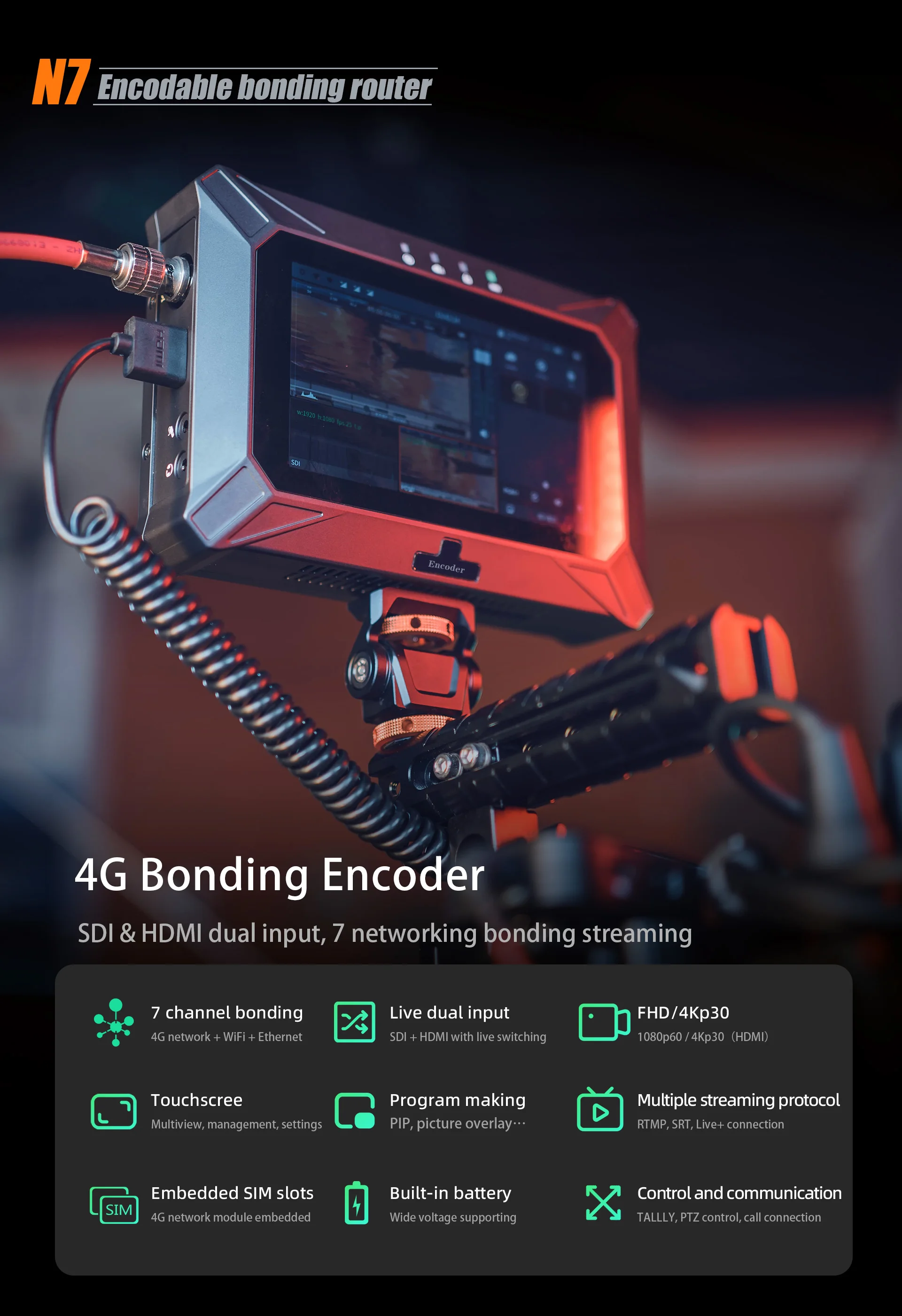

N7 Encodable Bonding Router
Professional-Class Live Broadcast Encoder
Product model | N7 7 links bonding encoder mixer | ||||||
Input | HDMI 4k 30FPS,SDI 1080 60FPS | ||||||
Output | HDMI 4k 30FPS,SDI 1080 60FPS | ||||||
Input resolution | 3840*2160 and below | ||||||
Coding standard | H.265 main profile , H.264 BASELINE PROFILE/ H.264 MAIN PROFILE/ H.264 HIGH PROFILE | ||||||
Encoded size | Up to 3840* 2160 | ||||||
Video bit rate | 200 kb/s~51200 kb/s | ||||||
Video frame rate | 3840-2160-30 fps, 1920*1080-60 FPS | ||||||
OSD | Text, images | ||||||
Audio coding | AAC/MP3/ G.711 | ||||||
Audio sampling rate | 48kHz,16 bit,stereo | ||||||
7 links bonding | 3*4G sim+WIFI+WAN+2*USB3.0 External | ||||||

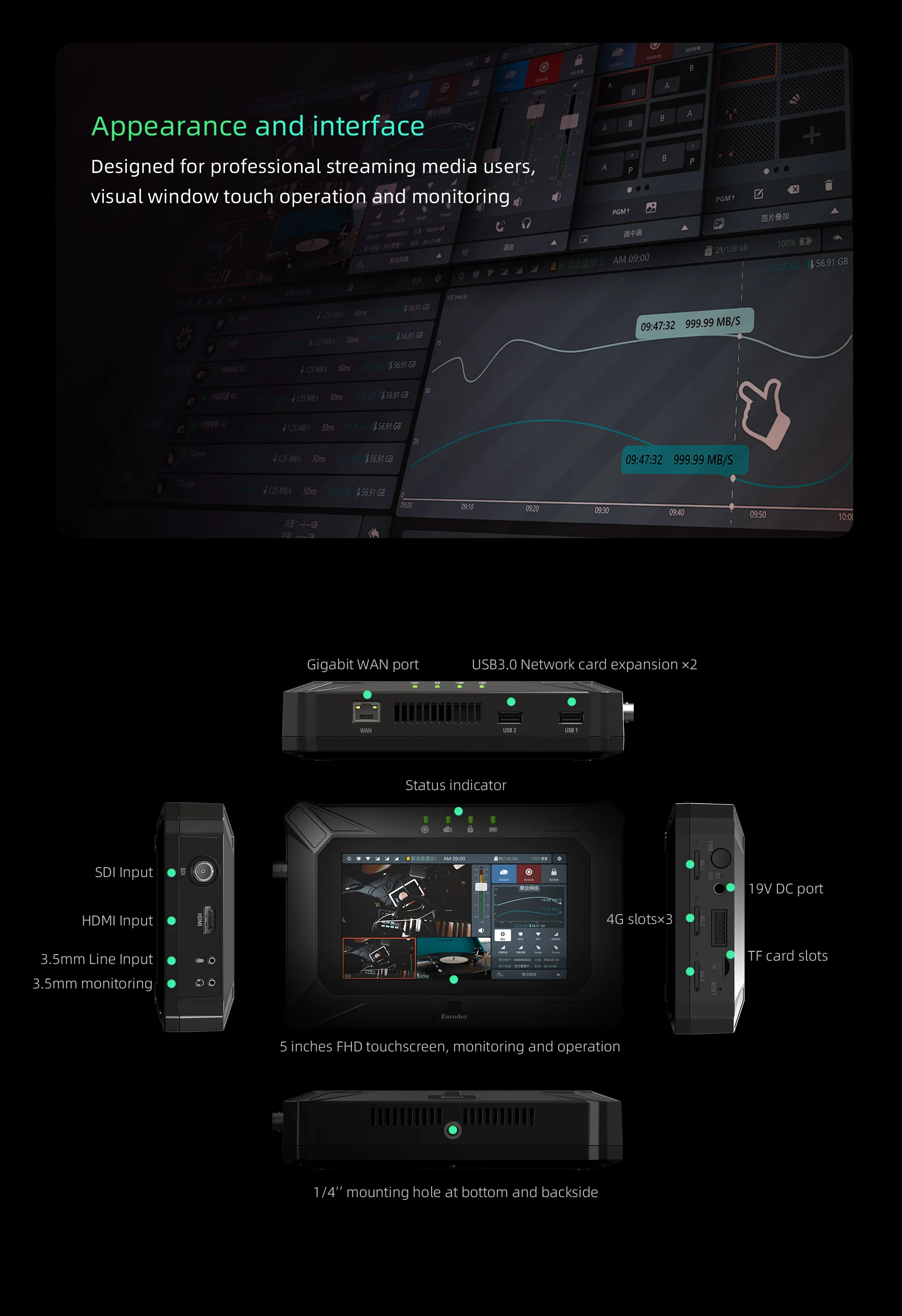

Internet | RJ45 1000M/100M, 4G (3* Sim), WIFI,2*USB3.0,Audio in/out | ||||||
Protocol | SRT, RTMP, RTMPS | ||||||
Router | bonding router support | ||||||
Product Details

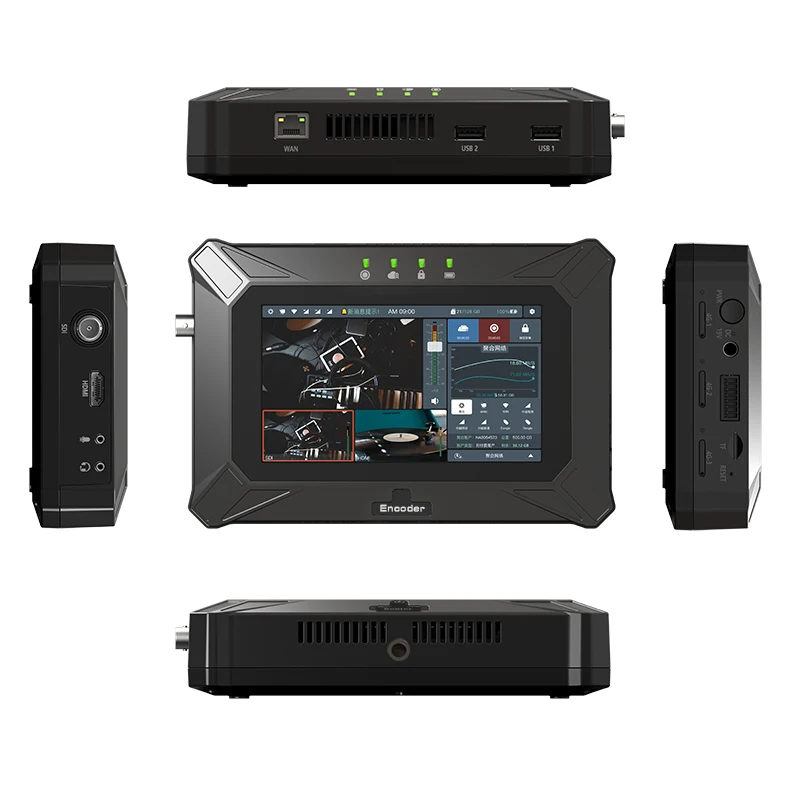

◆5.0 inch 1080PLCD touch screen,support screen display, support screen settings

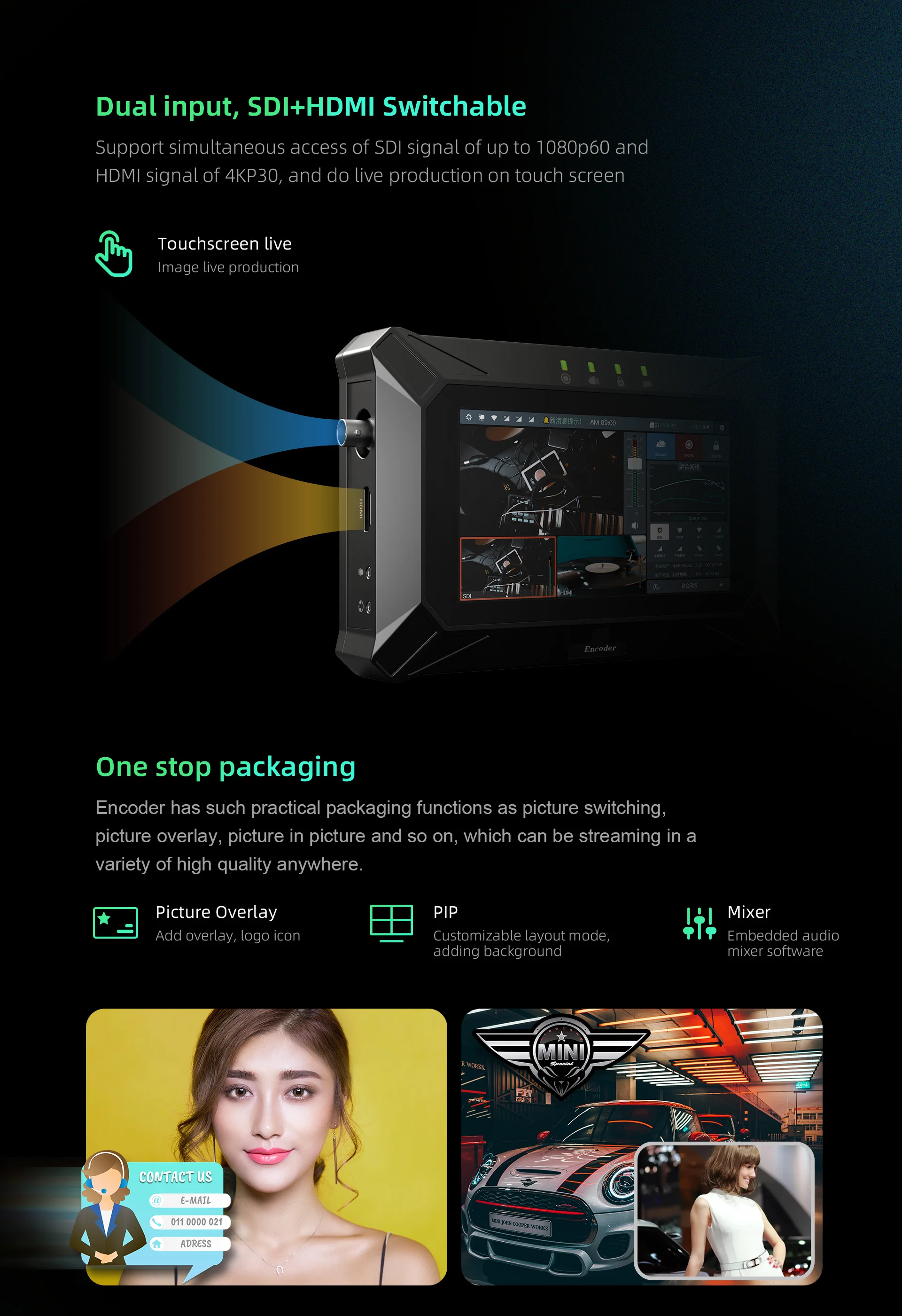

◆ Support HDMI input
◆ Support SDI input, audio input and loop out
◆ Support RS232 output
◆ Support Bonding router
◆ Support video/ audio mixing: HDMI & SDI & Audio
◆ Support sports competition mode (score display)
◆ Support TF card recording
◆ SRT, RTMP, RTMPS,
About Haiwei
Haiwei is leading video streaming solutions provider in China, mainly for broadcast, webcaster, Multimedia platform, sports, IPTV operator, IPTV project for Hotel/ enterprises, military project, and city's construction. Haiwei provide SDK for integration project, can be tailored to each customer's unique market needs, and developed "IP finder", "Multi devices manager", "APP for smartphone" for different use.
