Cylindrical roller thrust bearing 50TPS122

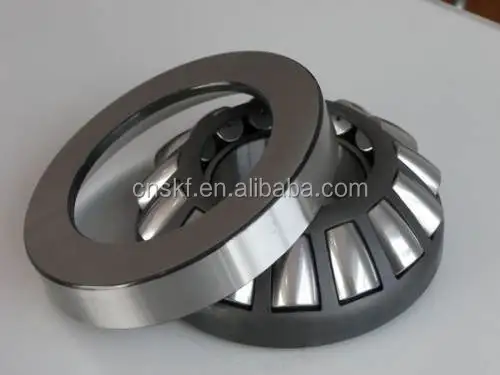

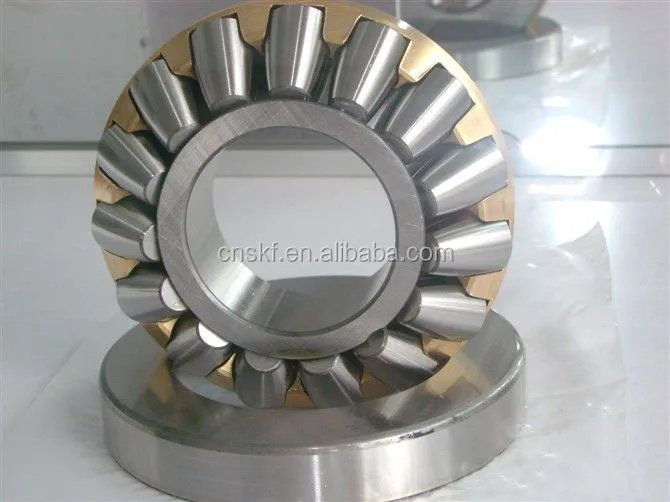

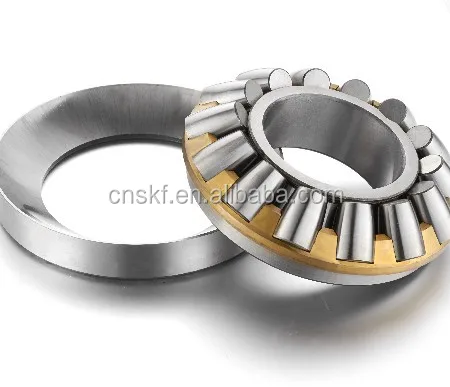

Products show

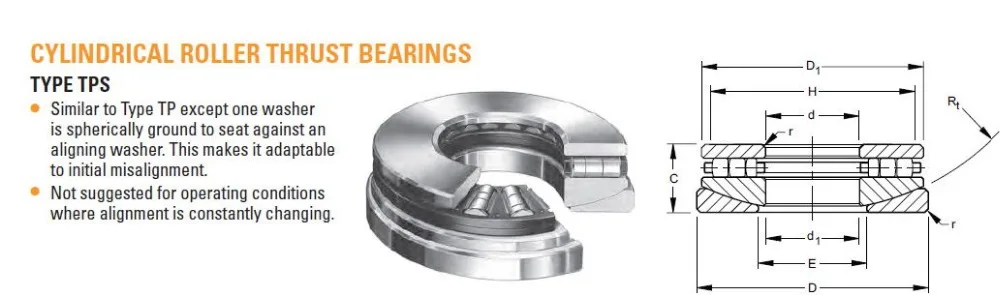

Drawing and parameter
| Tpye | Dimensions | Mass | ||
| d (mm) | D (mm) | H (mm) | Kg | |
| 20TPS103 | 50.8 | 160.325 | 46.038 | 5.2 |
| 20TPS104 | 50.8 | 185.725 | 46.038 | 7.12 |
| 30TPS106 | 76.2 | 160.325 | 46.038 | 4.5 |
| 30TPS107 | 76.2 | 185.725 | 46.038 | 6.4 |
| 30TPS108 | 76.2 | 211.125 | 46.038 | 8.7 |
| 35TPS113 | 88.9 | 138.908 | 33.338 | 1.9 |
| 40TPS114 | 101.6 | 187.327 | 58.738 | 7 |
| 40TPS115 | 101.6 | 212.725 | 58.738 | 10 |
| 40TPS116 | 101.6 | 238.125 | 58.738 | 13.4 |
| 40TPS117 | 101.6 | 266.7 | 58.738 | 17.1 |
| 50TPS119 | 127 | 215.9 | 58.738 | 8.4 |
| 50TPS120 | 127 | 241.3 | 58.738 | 11.8 |
| 50TPS121 | 127 | 266.7 | 66.675 | 17.6 |
| 50TPS122 | 127 | 292.1 | 66.675 | 22.1 |
| 50TPS123 | 127 | 317.5 | 66.675 | 27.2 |
| 60TPS124 | 152.4 | 241.3 | 66.675 | 10.8 |
| 60TPS125 | 152.4 | 266.7 | 66.675 | 15.2 |
| 60TPS126 | 152.4 | 292.1 | 66.675 | 20.1 |
| 60TPS127 | 152.4 | 317.5 | 66.675 | 25.2 |
| 70TPS129 | 177.8 | 266.7 | 66.675 | 12.7 |
| 70TPS130 | 177.8 | 292.1 | 66.675 | 17.7 |
| 70TPS131 | 177.8 | 317.5 | 66.675 | 23.3 |
| 70TPS132 | 177.8 | 374.65 | 101.6 | 52.6 |
| 80TPS134 | 203.2 | 323.85 | 101.6 | 29.8 |
| 80TPS135 | 203.2 | 374.65 | 101.6 | 47.7 |
| 80TPS136 | 203.2 | 428.625 | 101.6 | 68.2 |
| 90TPS139 | 228.6 | 374.65 | 101.6 | 42.2 |
| 90TPS140 | 228.6 | 428.625 | 101.6 | 63.3 |
| 100TPS143 | 254 | 428.625 | 101.6 | 56.2 |
| 100TPS144 | 254 | 479.425 | 127 | 99.5 |
| 100TPS145 | 254 | 530.225 | 127 | 131.8 |
| 120TPS151 | 304.8 | 479.425 | 127 | 82.1 |
| 120TPS152 | 304.8 | 530.225 | 152.4 | 139.4 |
| 120TPS153 | 304.8 | 631.825 | 152.4 | 236.9 |
| 140TPS158 | 355.6 | 530.225 | 123.825 | 89.2 |
| 140TPS159 | 355.6 | 581.025 | 123.825 | 125 |
| 140TPS160 | 355.6 | 631.825 | 123.825 | 170.9 |
| 160TPS164 | 406.4 | 581.025 | 152.4 | 123.9 |
| 160TPS165 | 406.4 | 635 | 152.4 | 174.4 |
| 160TPS166 | 406.4 | 685.8 | 152.4 | 229.8 |
