Машина для обработки обдува пленкой от коронавируса технология
- Категории: Other Plastic & Rubber Machinery >>>
- Поставщик: Zhengzhou,Aslan,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Machine Introduction & Application
Corona discharge equipment is suitable for surface pretreatment of silicone rubber, plastics and other materials, and it is used in vacuum electroplating, vacuum coating, sputtering, PVD, physical vapor deposition, printing, pad printing, screen printing, special printing, bonding and coating and other pretreatment.

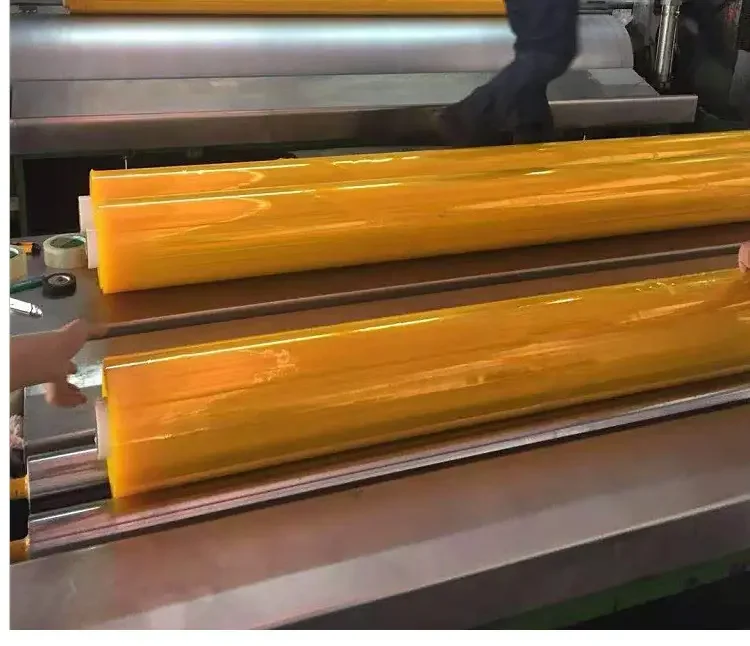

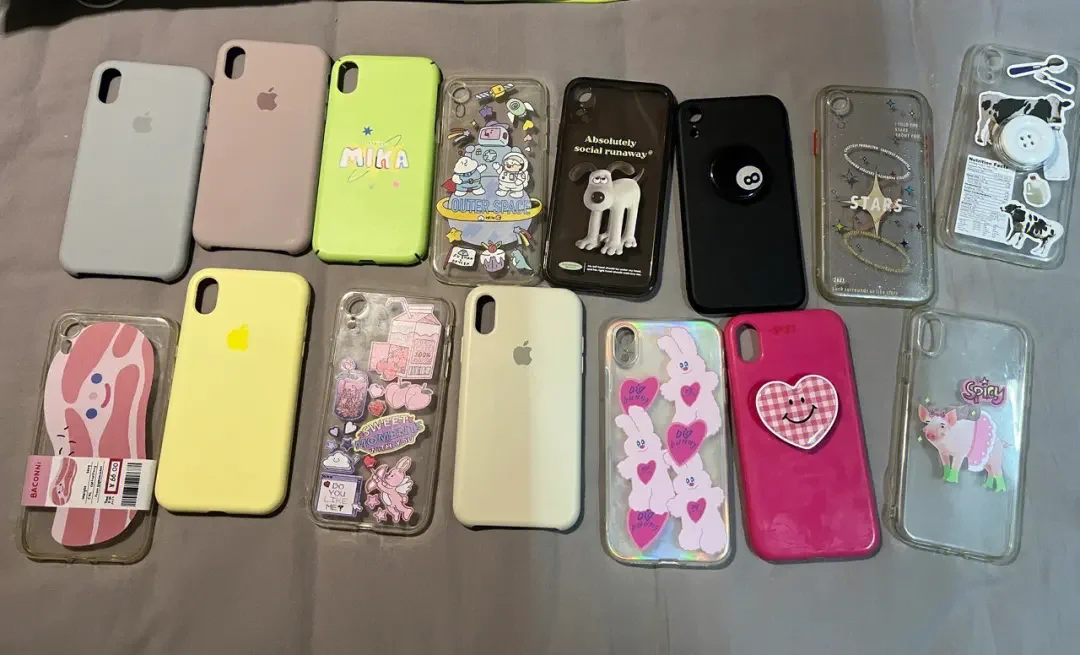

Mobile phone case, mobile phone button, P+R button, laptop computer, car lamp, car interior parts, eyeglasses, household appliances, cosmetic packaging container, washing supplies packaging container, various materials sheet and film, paper, fabric, artificial leather, metal, used for spray painting, spraying and printing pretreatment.

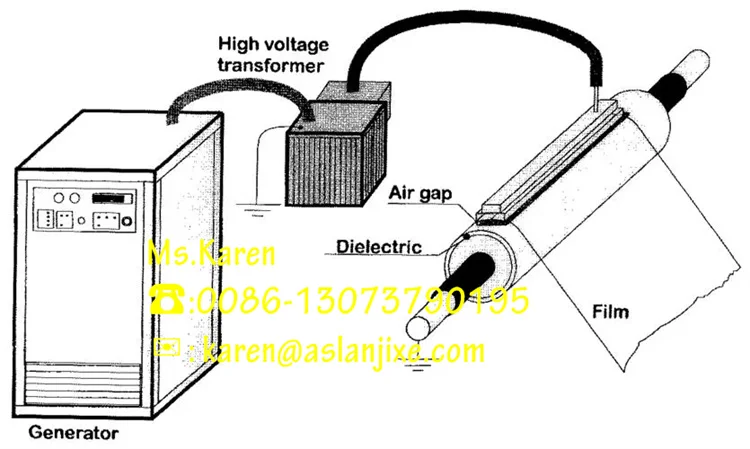

Machine Working Principle Introduction
This machine is dielectric barrier discharge. It is mainly used for the surface treatment of plastic films or plastic sheet products. When the above-mentioned materials are to be ink printed, composite, blown, coated, glued, material modified, grafted, polymerized, coated, cast, and pasted, in order to make the surface of the product have a stronger adhesion (that is, it has a higher Dyne coefficient), to prevent the raw materials from appearing in the production process. Printing color rejection, weak composite pasting, uneven coating and glue leakage, etc., affect the product quality, corona impact treatment must be carried out first.
Machine Classification

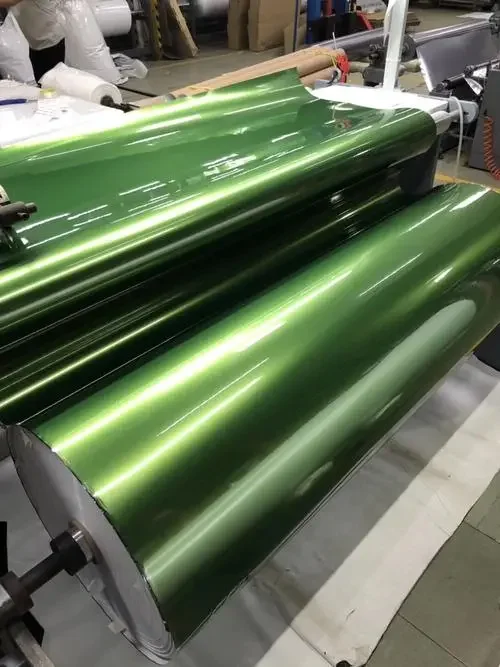

Film corona treatment machine is suitable for the surface wetting tension treatment of PP, PE, PS, PET, PA, PVC, BOPP, OPP, PT and other material films, plates, and sheets;
Model | Max. Corona width | Roller width | Corona roller dia. | Guide roller dia. | Dimension | Weight |
ASL-DY800 | 800mm | 850mm | Dia.98 | Dia.59 | 111*48*40cm | 42kg |
ASL-DY1000 | 1000mm | 1050mm | Dia.98 | Dia.59 | 131*48*40cm | 55kg |
ASL-DY1200 | 1200mm | 1250mm | Dia.98 | Dia.59 | 151*48*40cm | 68kg |
ASL-DY1400 | 1400mm | 1450mm | Dia.98 | Dia.59 | 171*48*40cm | 84kg |
ASL-DY1600 | 1600mm | 1650mm | Dia.98 | Dia.59 | 191*49*40cm | 92kg |
ASL-DY1800 | 1800mm | 1850mm | Dia.98 | Dia.59 | 211*49*40cm | 110kg |
Metal film corona treatment machine is suitable for the surface wetting tension treatment of aluminum foil, aluminized film and other material films, plates, and sheets;

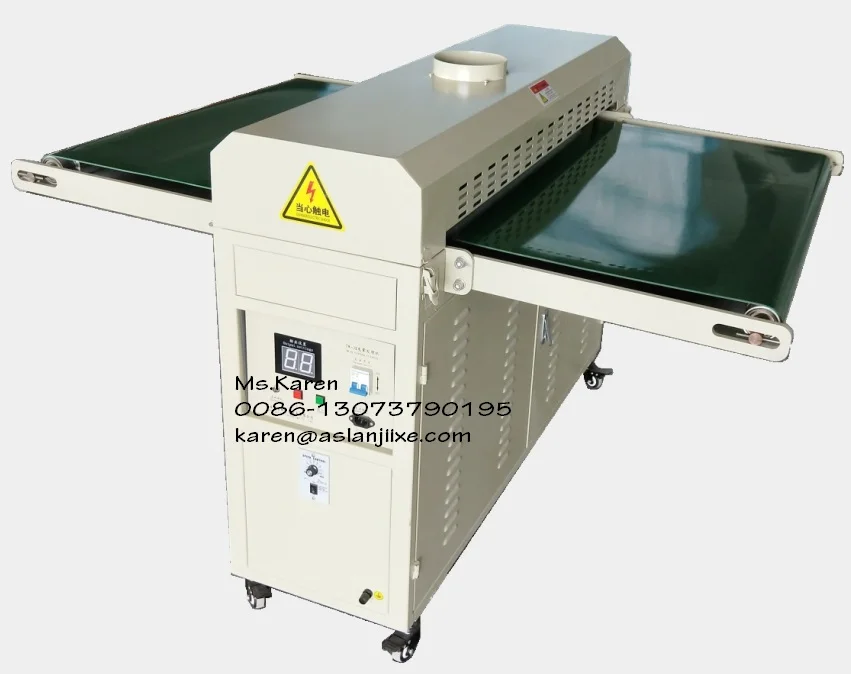

Sheet corona treatment machine is suitable for PS, ABS, PP, PE and other plastic sheet surface wetting tension treatment.

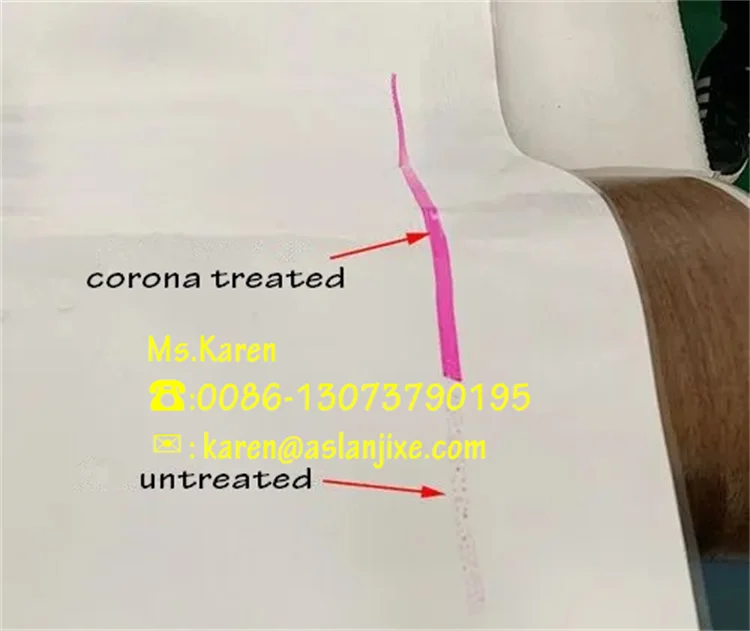

Machine Corona Effect

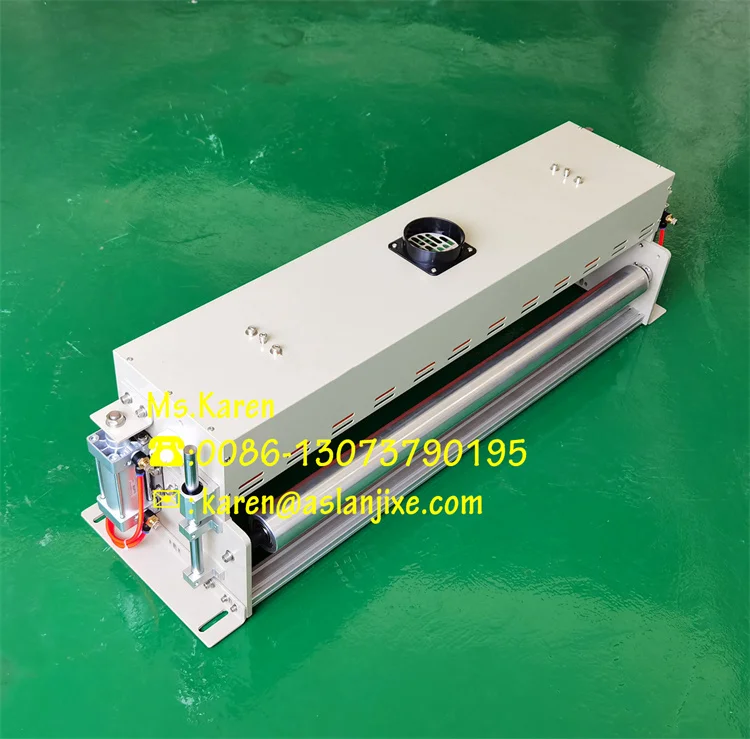

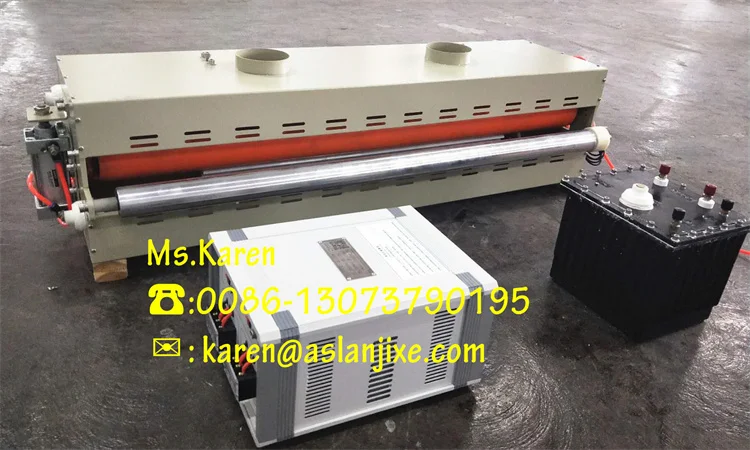

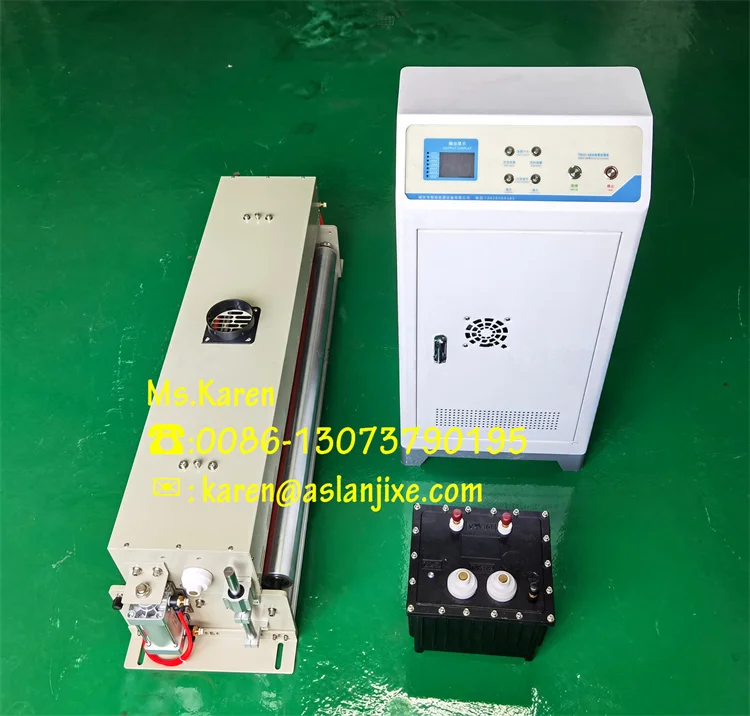

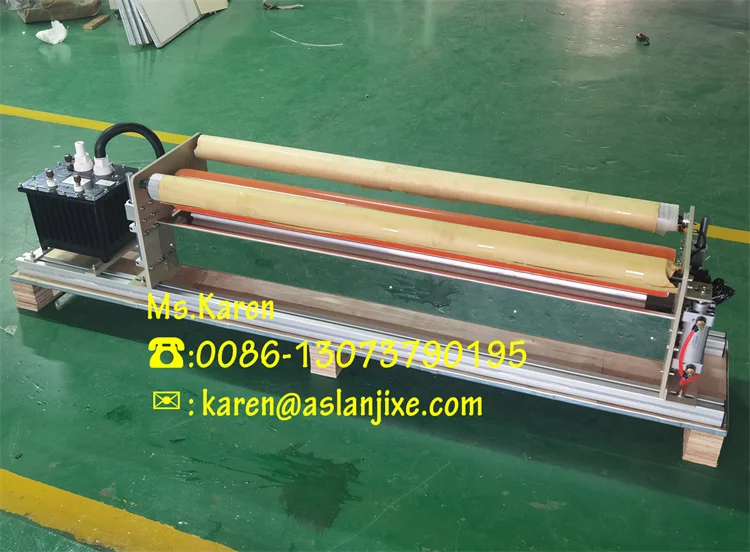

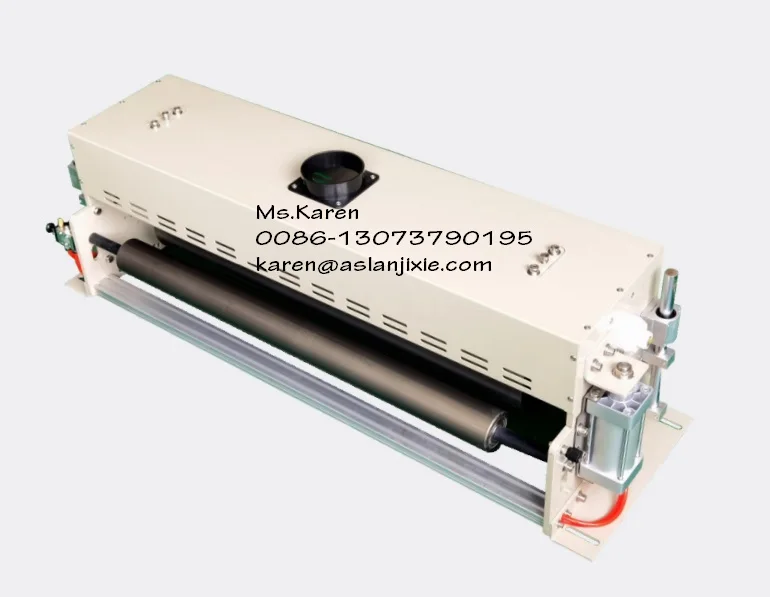

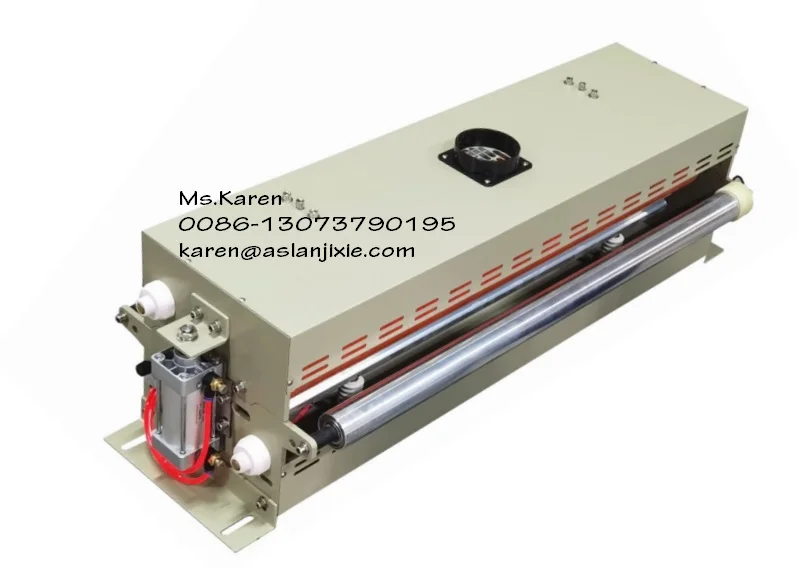

Machine Photo Display

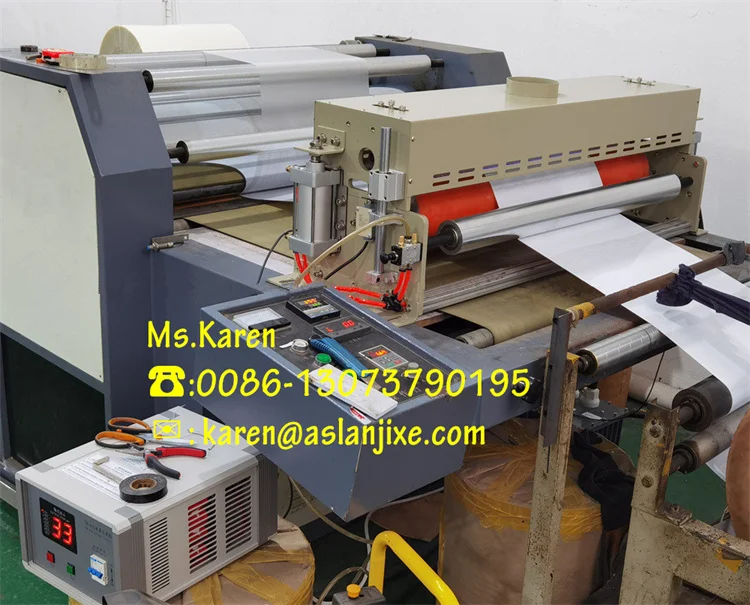

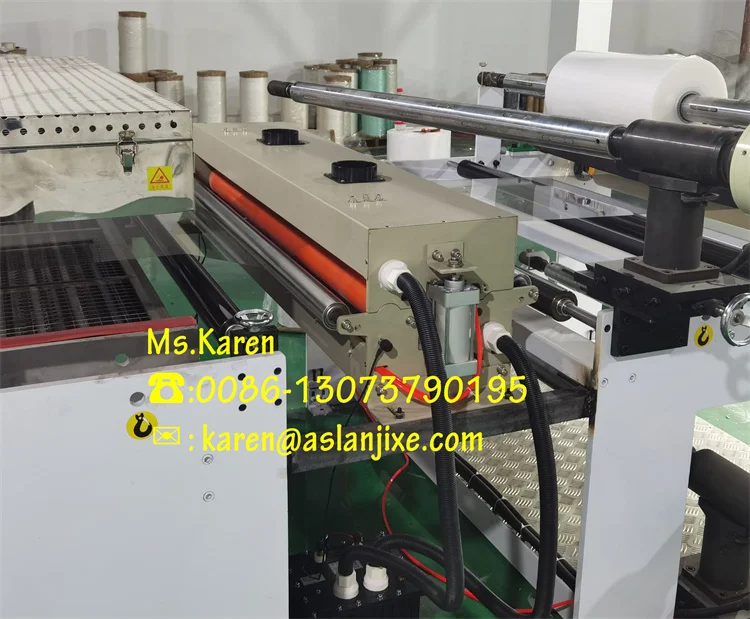

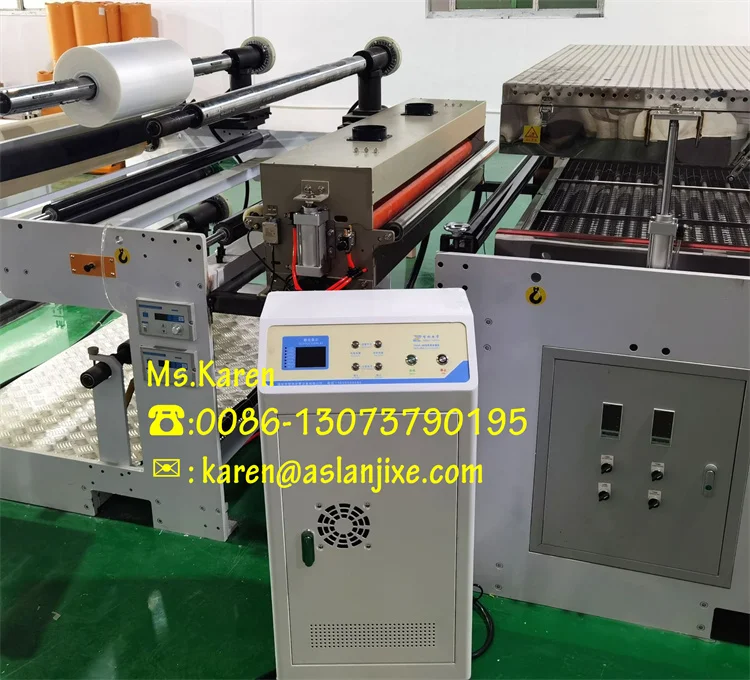

Machine In Customer Factory

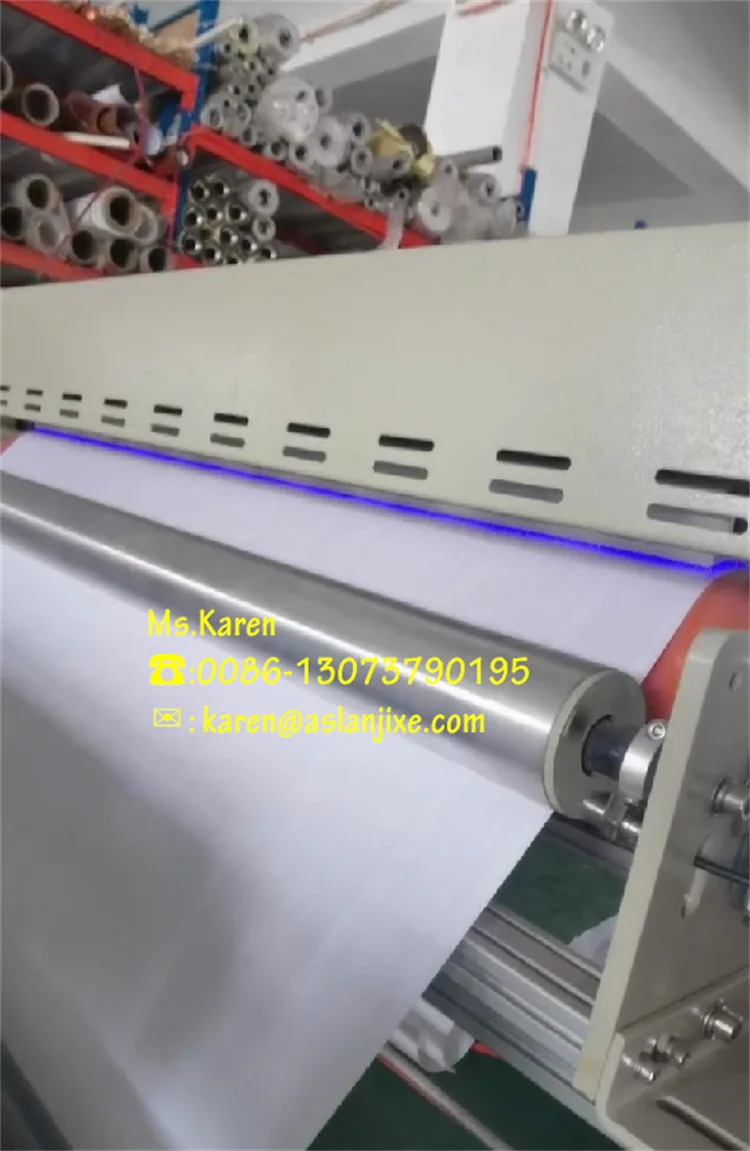

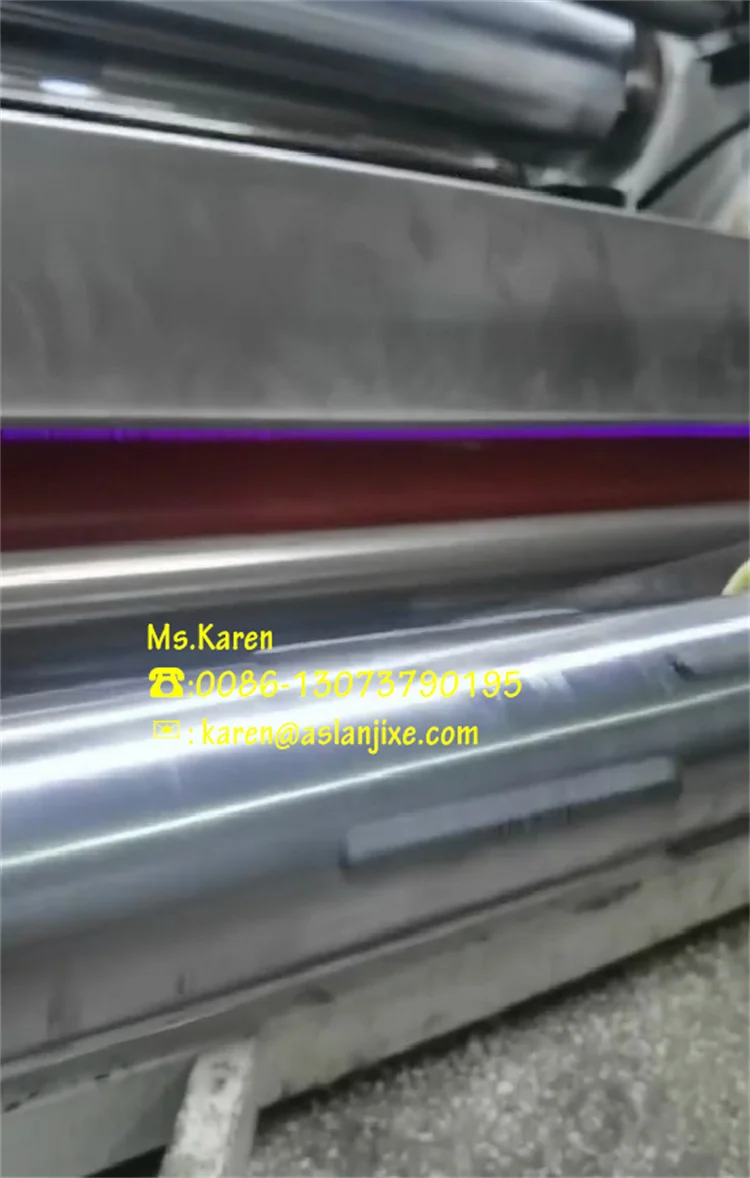

Machine Discharge Showing
Package&Delivery
Certifications
Comapny Services
ONLINE SERVICES
24 hours online to solve any problem. Your email will be reply within 12 hours. Your satisfy is our pursuit. Sincerely hope our cooperation .
GOODS SHIPPING
We have long time working shipping forwarder. We can do our best to send machine to your port safe and sound. If your need, we can help you do custom clearance.
PAYMENT TERMS
Currently, in order to protect you and us rights. Both us in safe, hope we can do business in safe way .
L/C(>20000USD),Western Union,T/T(bank transfer),Escrow
which one is you want, we can discuss it .
