Кабель питания промышленной камеры Basler, PoCL, SDR/MDR, P, 10 м, 3 м, 5 м
US $100.00-$340.00
Заводская Настройка оптовая продажа гибкий одножильный медный проводник ПВХ
- Категории: Other Wires, Cables & Cable Assemblies >>>
- Поставщик: Wuhan,Haomiao,Cable,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
PPlace of Origin: Hubei, China
Type: LOW VOLTAGE
Conductor Material: Copper
conductor material: Copper/tinned copper
insulation material: PVC
Rated voltage: 450/750V
Cross section: 1.5 mm 2.5mm 4mm 6mm
Type: LOW VOLTAGE
Conductor Material: Copper
conductor material: Copper/tinned copper
insulation material: PVC
Rated voltage: 450/750V
Cross section: 1.5 mm 2.5mm 4mm 6mm
10mm 16mm
Brand Name: Haomiao cable
Insulation Material: PVC
Application: Industrial
Jacket: Rubber

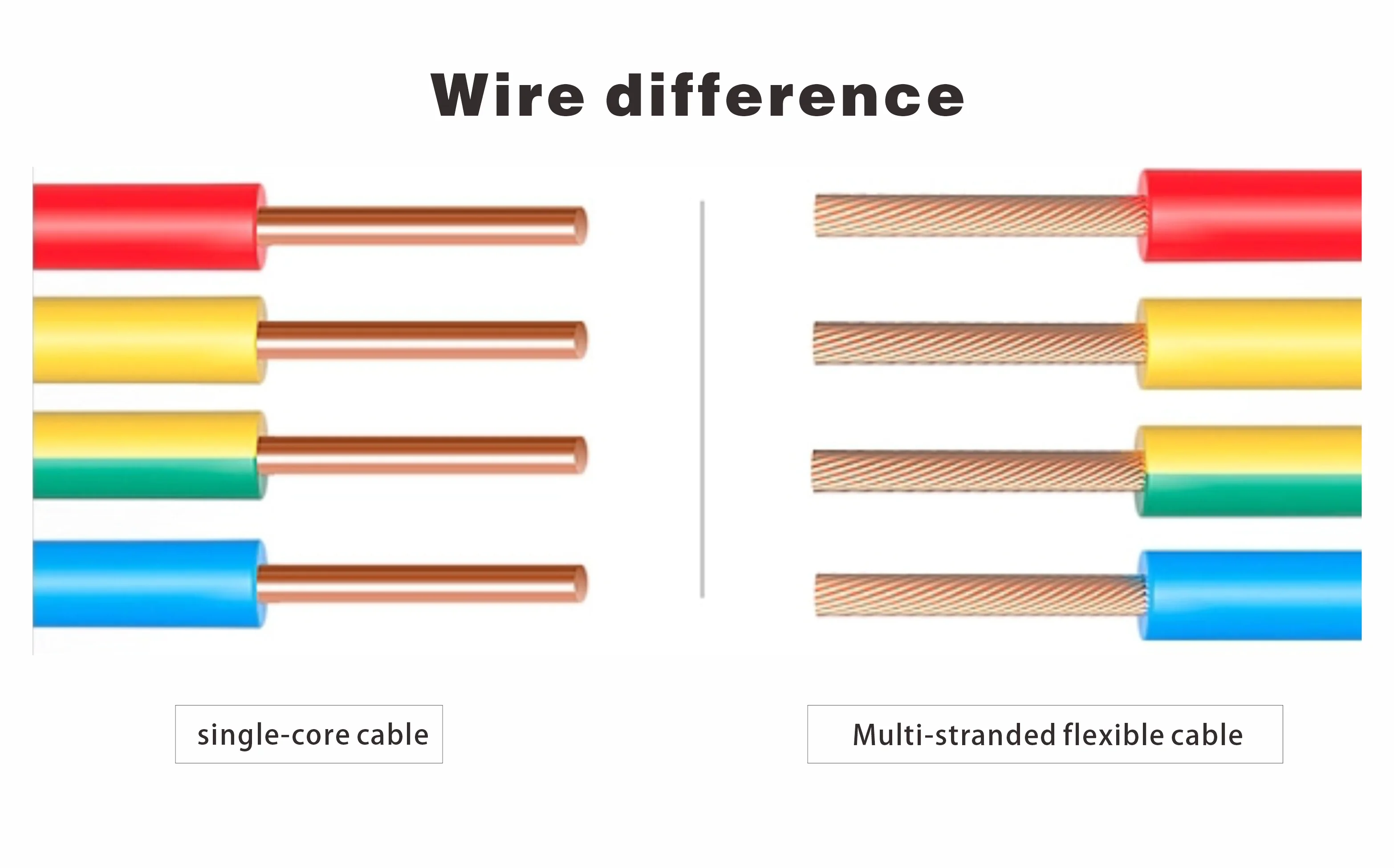

Conductor type: Stranded Conductor/Solid
Insulation Material: PVC
Application: Industrial
Jacket: Rubber
Conductor type: Stranded Conductor/Solid
conductor
sheath material: PVC
Number of Cores: Single Core Cable
sheath material: PVC
Number of Cores: Single Core Cable

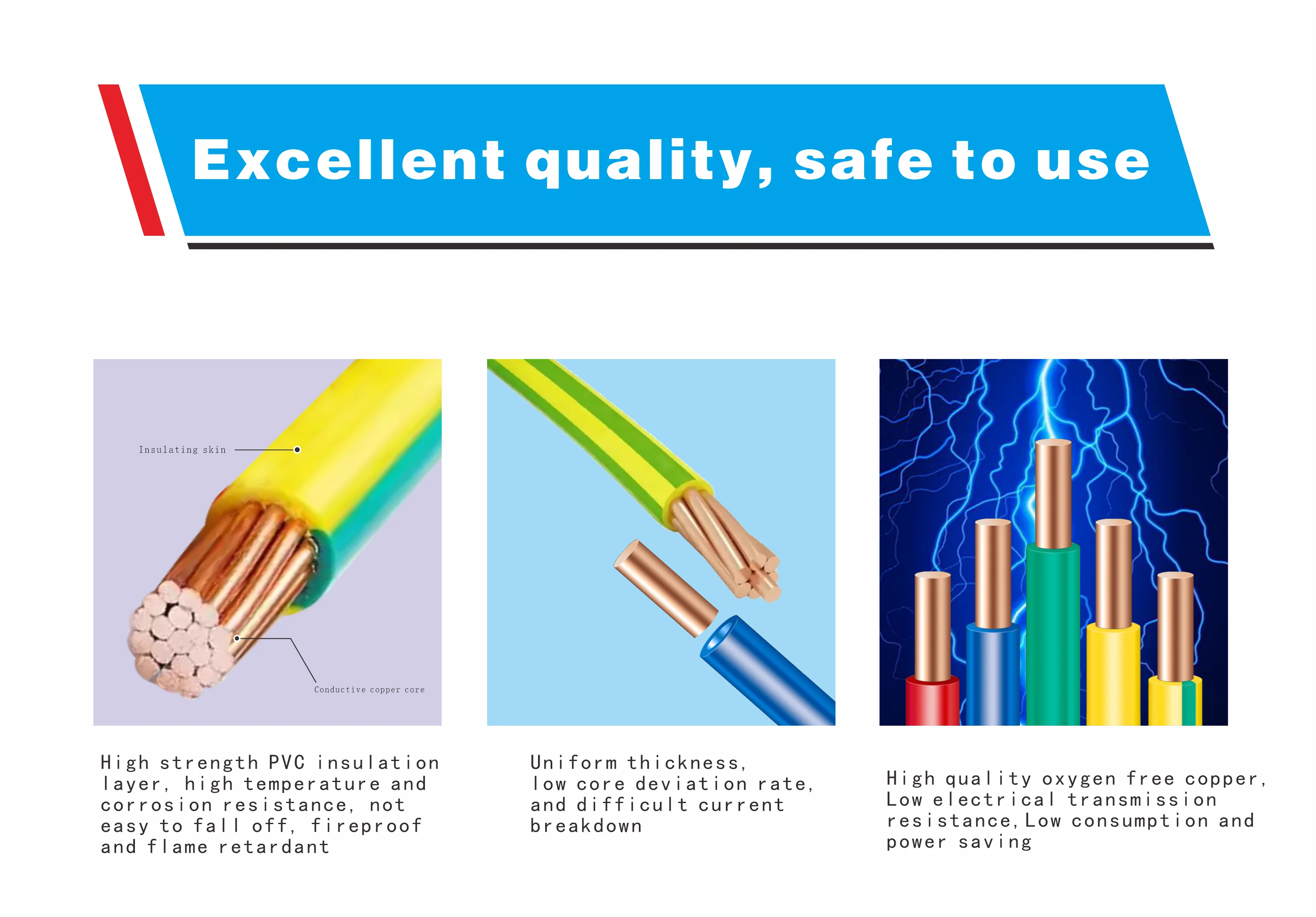

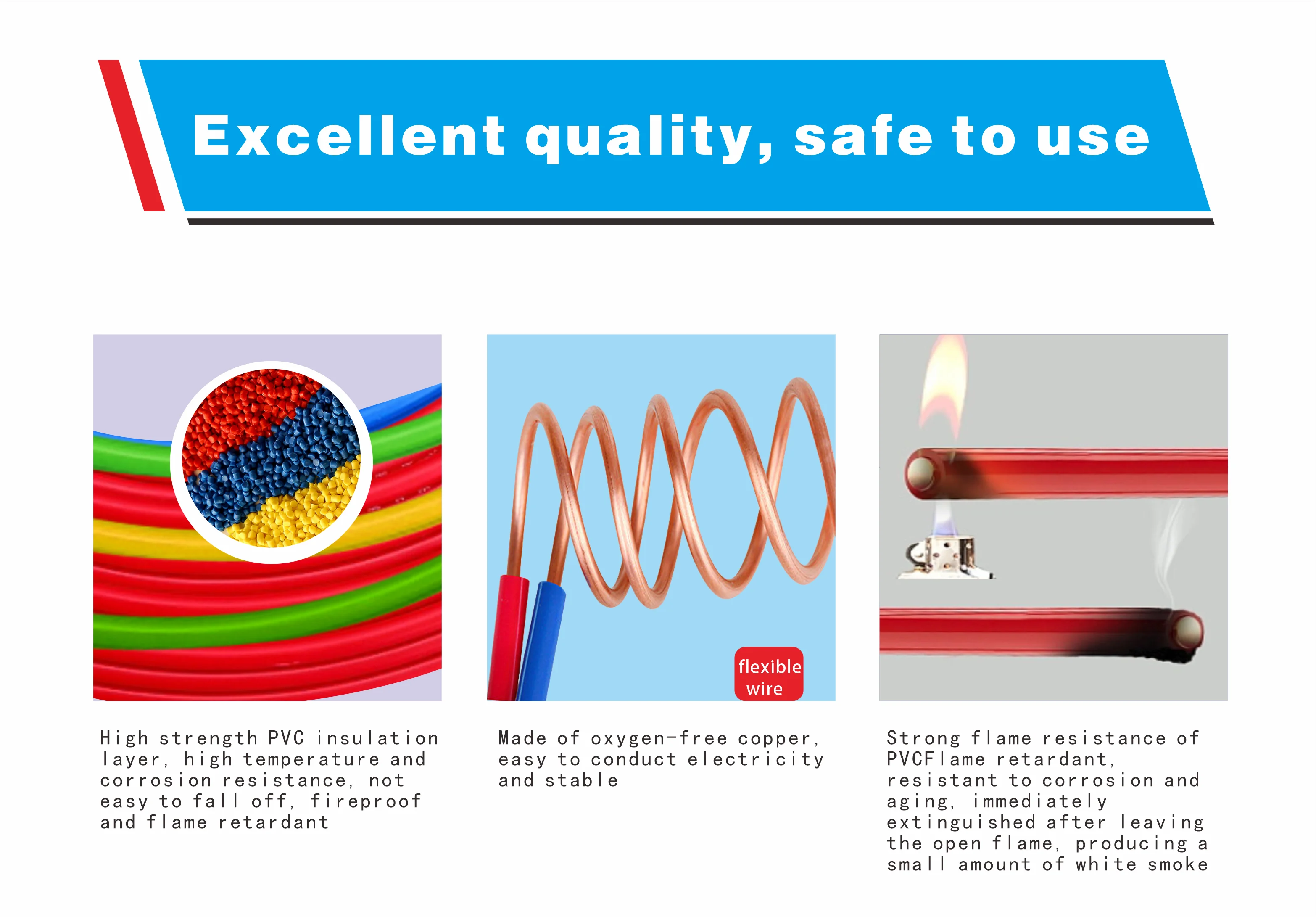

Characteristic
1. Excellent electrical insulation performance and stability
2. It has good mechanical properties and wear resistance
3. By addingspecial compounding agent, it can meet the high requirements of oil resistance, flame retardant, cold
resistance and heatresistance.

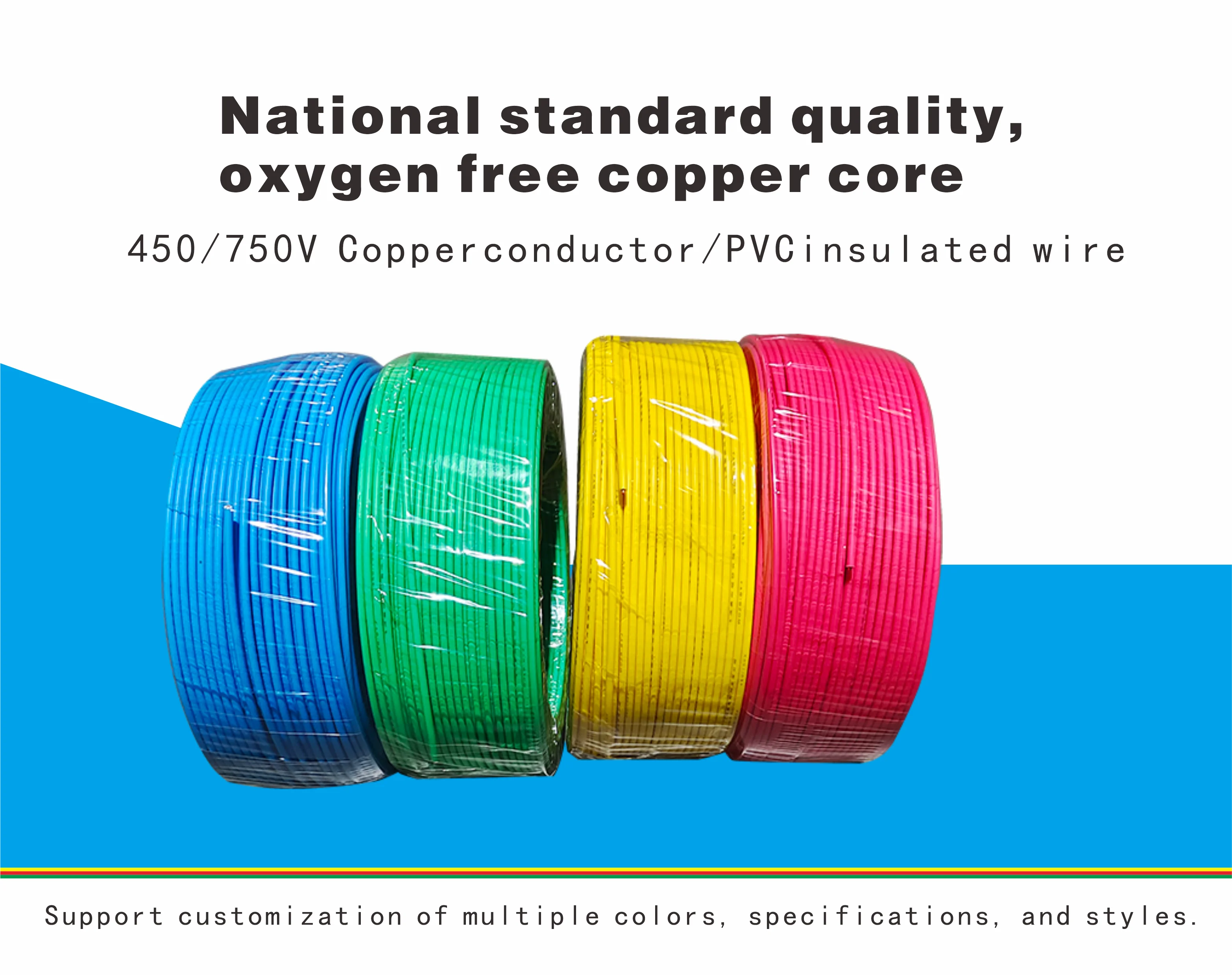

PVC insulated wires and cables with rated voltage of 450 / 750V and below
This product is suitable for power, household appliances, instruments, small electric tools, power lighting, etc. with AC ratedground voltage (UO / U) of 450 / 750V and below.
Usage characteristics:
1. Cable laying temperature ≥ 0 ℃
2. Working temperature of cable: except that the maximum working temperature of 60227iec07 (BV-90) and 60227IEC08 (RV-90) is 90℃, the rest are 70 ℃.
2. Working temperature of cable: except that the maximum working temperature of 60227iec07 (BV-90) and 60227IEC08 (RV-90) is 90℃, the rest are 70 ℃.
3. Allowable bending radius: if the outer diameter (D) of the cable is less than 25mm, it shall not be less than 4D; If the outer diameter (D) of the cable is 25mm or more, it shall not be less than 6D.
Product Paramenters
Nominal cross section of conductor mm2 | conductor species | Insulation Thickness mm | Upper limit of average outside diameter mm | conductor biggest resistance at 20°CQ/km | MinimumInsulationresistance at 70CMQ.km |
1.5 | 1 | 0.7 | 3.3 | 12.1 | 0.11 |
1.5 | 2 | 0.7 | 3.4 | 12.1 | 0.010 |
2.5 | 1 | 0.8 | 3.9 | 7.41 | 0.010 |
2.5 | 2 | 0.8 | 4.2 | 7.41 | 0.009 |
4 | 1 | 0.8 | 4.4 | 4.61 | 0.0085 |
4 | 2 | 0.8 | 4.8 | 4.61 | 0.0077 |
6 | 1 | 0.8 | 4.9 | 3.08 | 0.0070 |
6 | 2 | 0.8 | 5.4 | 3.08 | 0.0065 |
10 | 1 | 1.0 | 6.4 | 1.82 | 0.0070 |
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3: How about the quality?
A3: We have the best professional engineer and strict QA andQC system.
Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.
Q5: How’s the package?
A5: Normally are cartons, but also we can pack it according to your requirements.
A5: Normally are cartons, but also we can pack it according to your requirements.
Q6: How’s the delivery time?
A6: It depends on
the quantity you need, 1-25 days usually.
