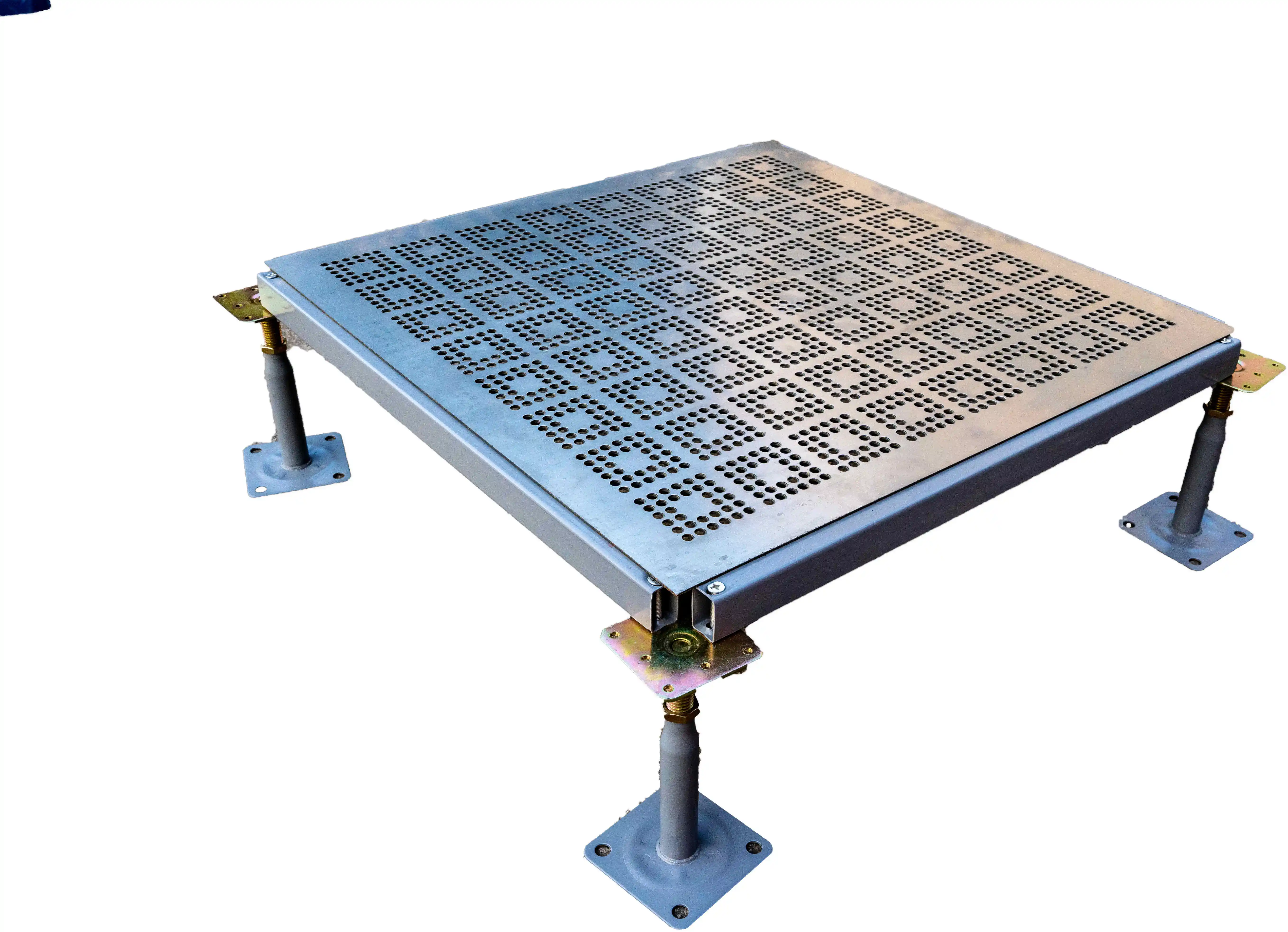

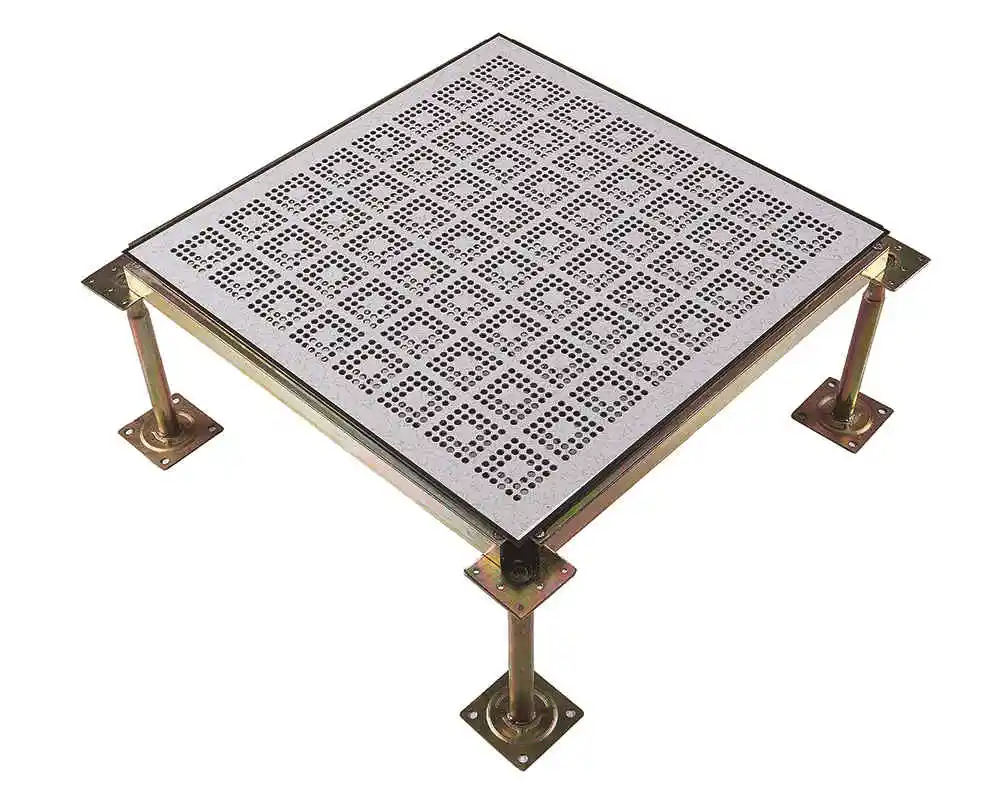

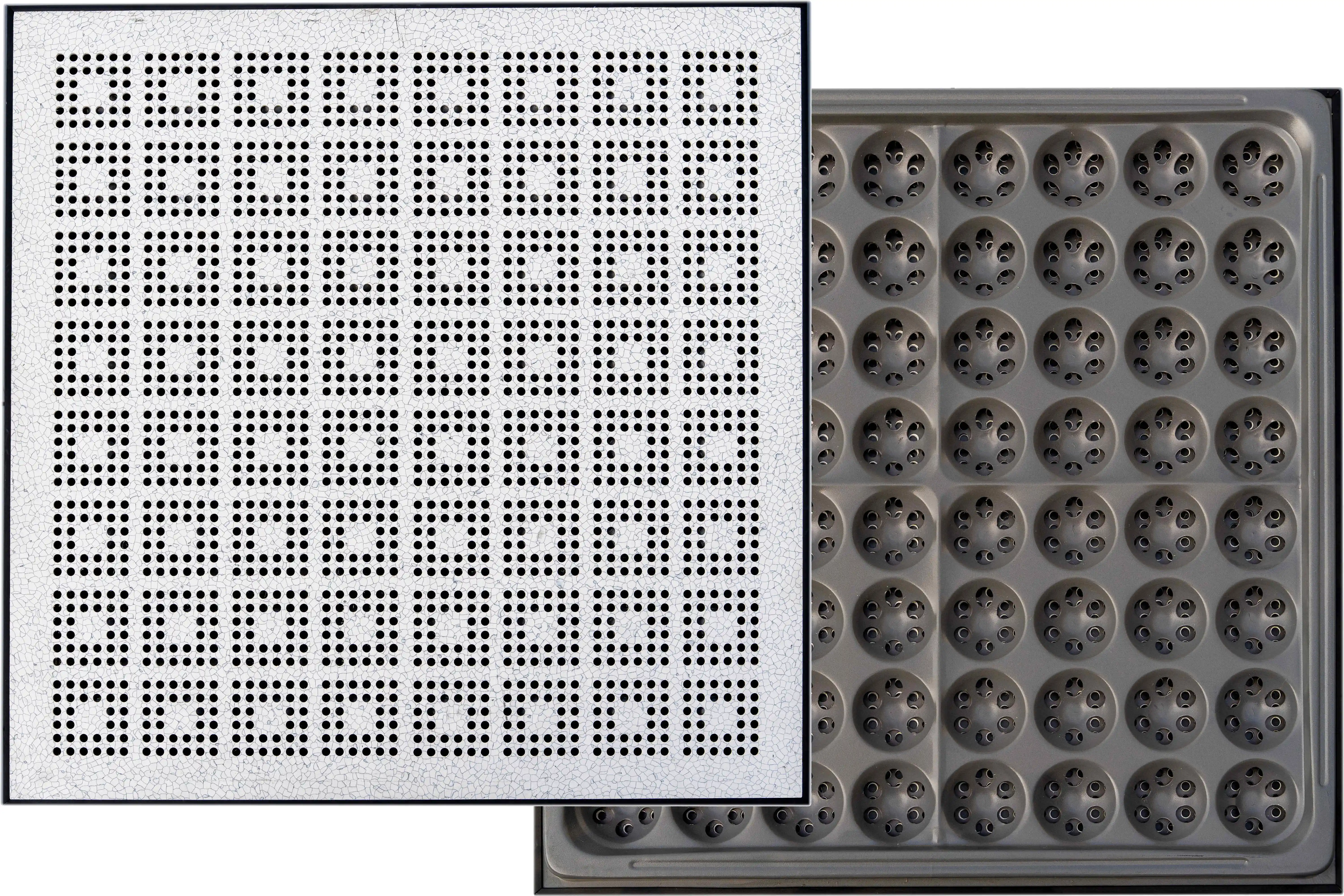

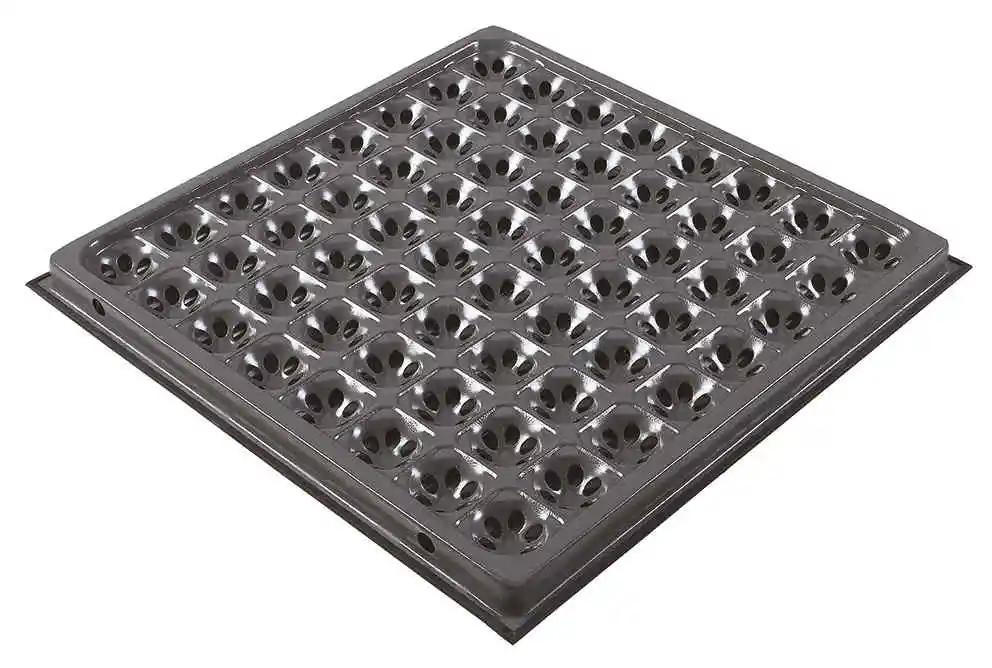

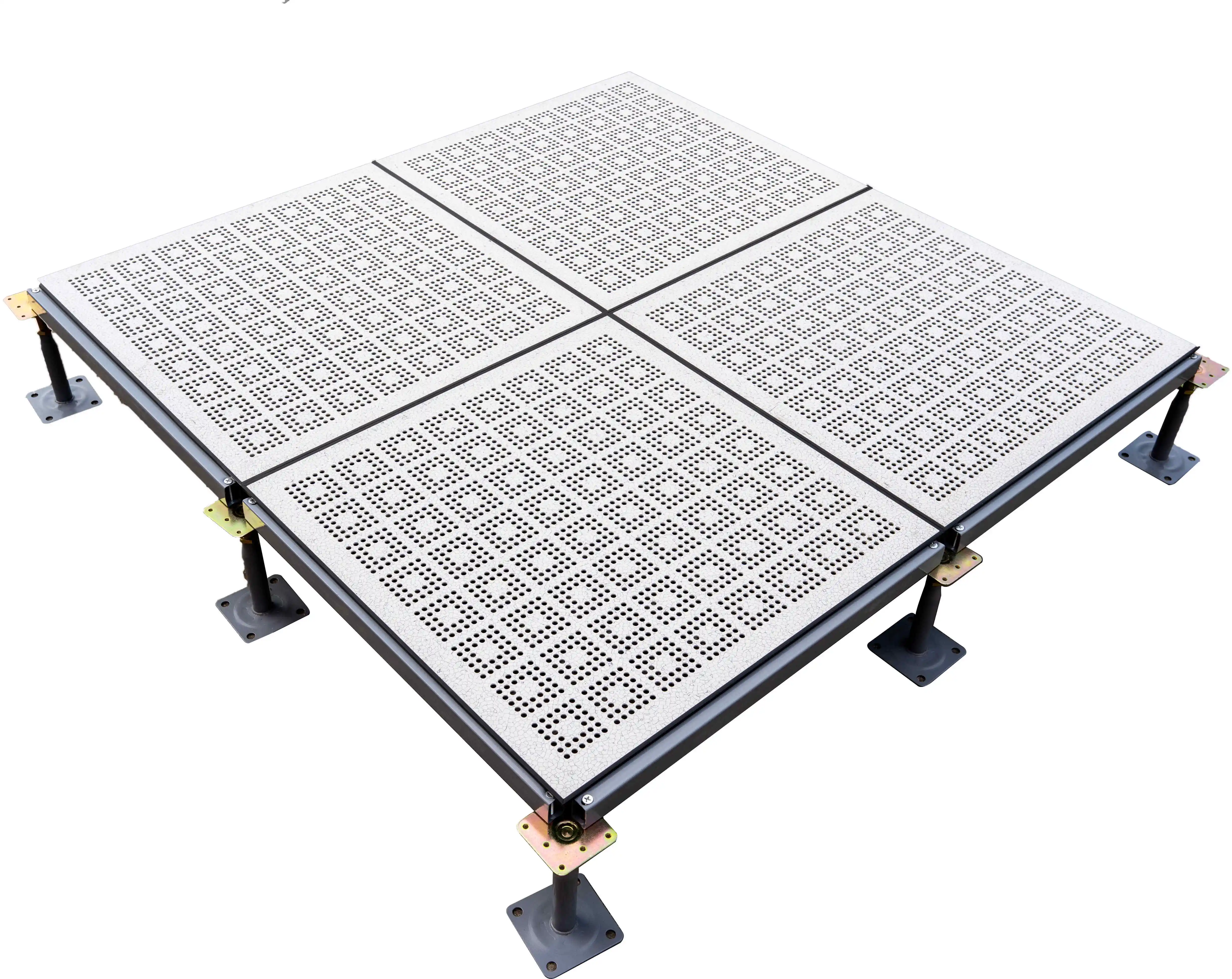

Antistatic perforated raised access floor in all steel | ||||||||||||
Type | International Standard | Size | Fireproof Performance | Concentrated Load | Uniform Load | Deflection | ||||||
mm | N | N | mm | |||||||||
TL80SP-X% | FS440 | 600-600-35 | A | ≥1960 | ≥9720 | ≤2 | ||||||
TL80SP-X% | FS662 | A | ≥2950 | ≥12500 | ≤2 | |||||||
TL80SP-X% | FS800 | A | ≥3550 | ≥16100 | ≤2 | |||||||
TL80SP-X% | FS1000 | A | ≥4450 | ≥23000 | ≤2 | |||||||
TL80SP-X% | FS1250 | A | ≥5560 | ≥33000 | ≤2 | |||||||

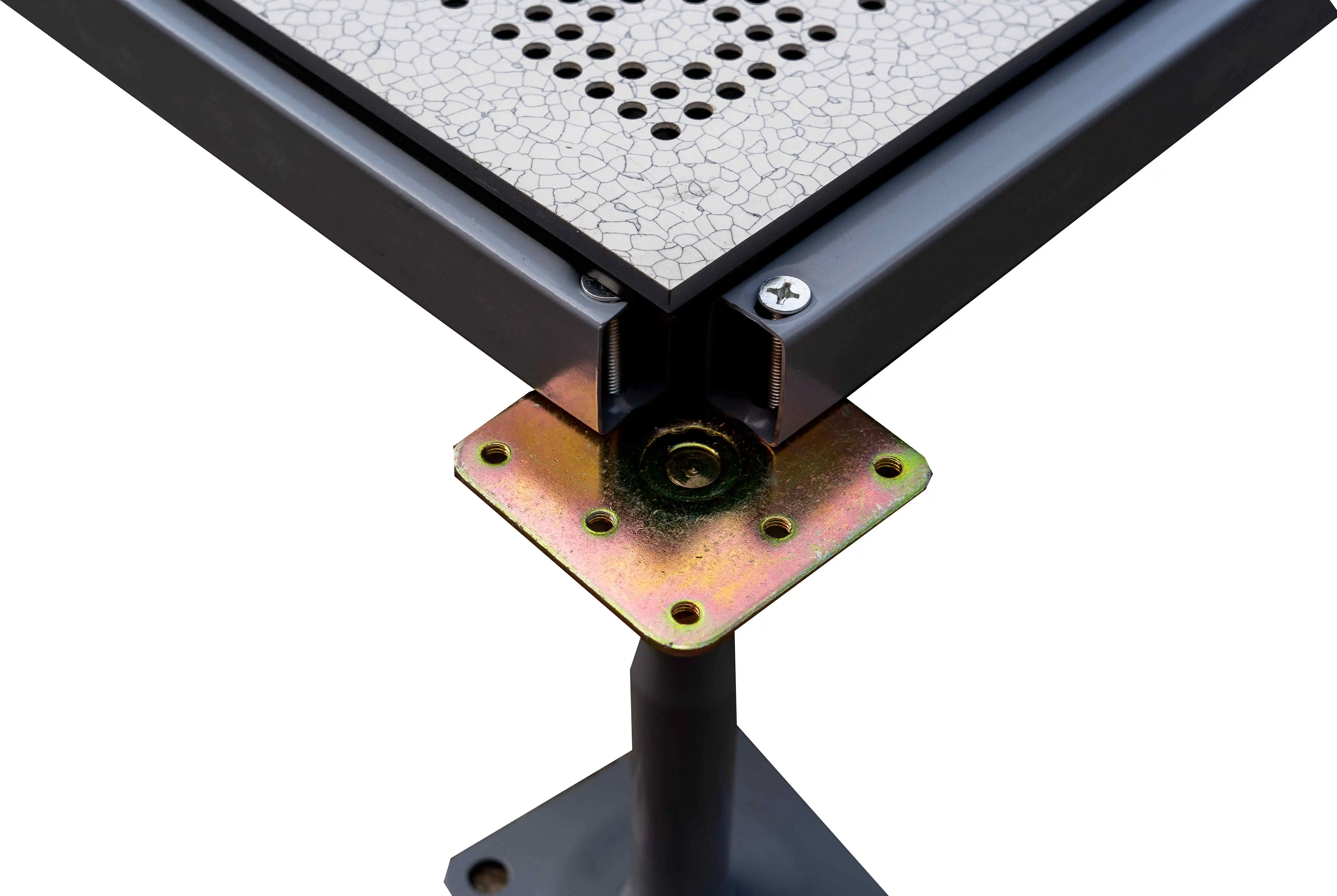

1. Ventilation Rate available: 17%, 20%, 22%, 25%, 29%, 35%, 46%, 50%, 55%, 70% etc. 2. Customization is available. 3. Corner lock hole type is available. 4. Epoxy coating. 5. HPL, PVC, SUS304 covering. |
