Product Description

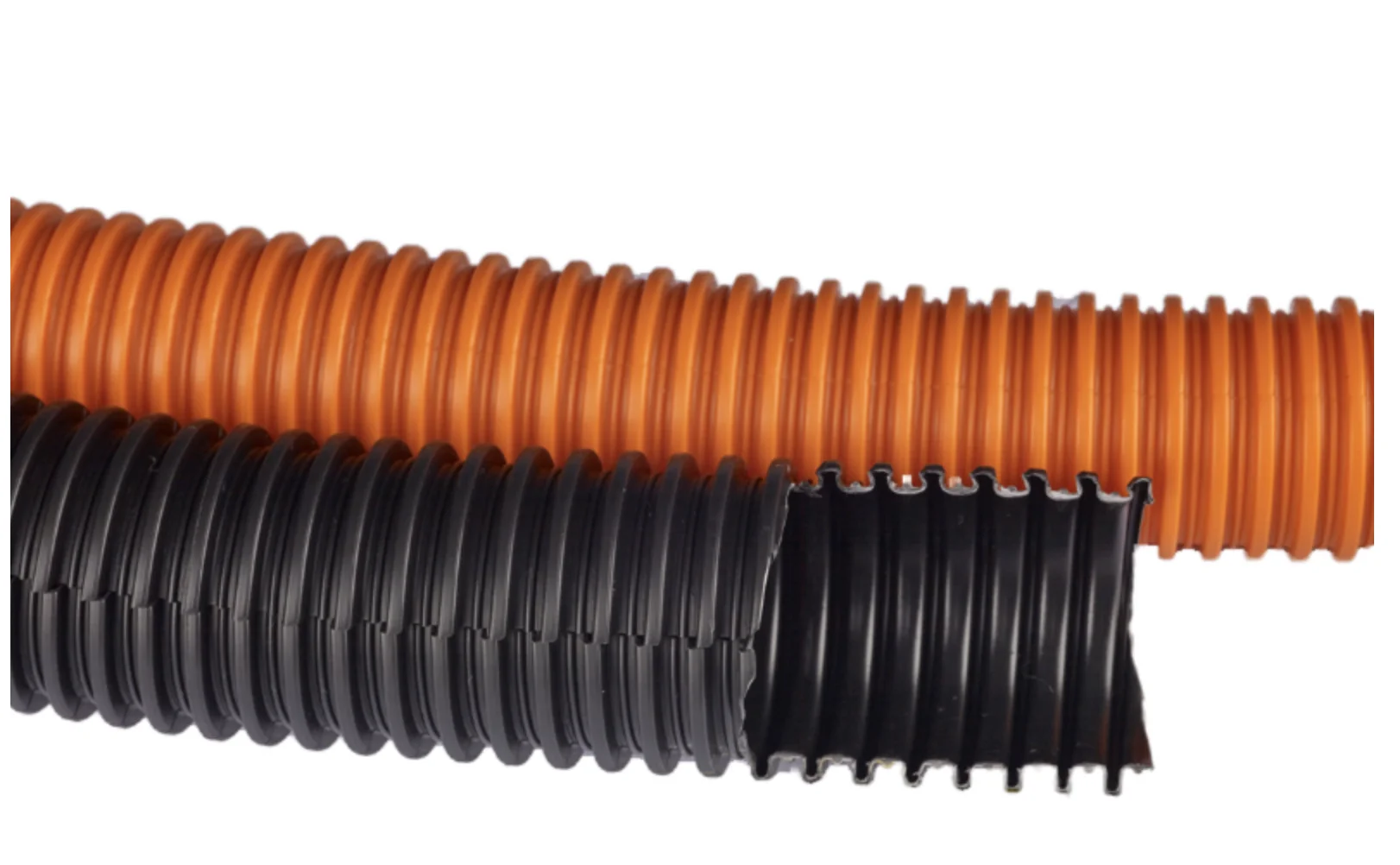

UFW Corrugated Conduit Wire Loom
Resistant to fuel oils, mineral oils, lubricating oils, alkalis, and common solvents. It is suitable for wire harness protection. Small threads are added to the conventional large threads during design, which can increase the strength of the corrugated pipe, effectively prevent the deformation of the trough, and ensure the smoothness of the interior. Good protection of the wire harness at the shunt; secondly, the inner wall surface of this product is flat, which can effectively protect the insulation layer of the wire harness and prolong its life of the wire harness. The smooth surface can also reduce the friction between the wire harness and the corrugated tube, making it easier for the wire harness to go in and improving the efficiency of the wire harness through the tube.

✦ Product material: PP ( polypropylene ) / PA6 nylon ( Polyamide )
✦ Working temperature :
1: PP -40℃ ∽ 105℃
2: PP -40℃ ∽ 125℃
3: PA -40℃ ∽ 125℃
4: PA -40℃ ∽ 150℃
✦ Colors: Black, Orange, Grey, White, Red, Blue, Yellow, etc ( Support Customized )
✦ Flammability rating : UL94-V0, GB/T2408-V0, GB/T2408-HB
✦ Product standards: QC/T29106-2014
✦ Certification: RoHS, REACH, 5510 ( odor test, TVOC optional )
✦ Property: flame retardant, high mechanical strength, resistance to twisting, abrasion, oil acid, alkali, ultraviolet.




Specification


size
Inner Diameter
( mm )
Outer Diameter ( mm )
Wall Thickness (mm )
Pipple width a ( mm )
Valley Width A (mm )
Packaging Standard
（ M / Roll ）
Φ5
5.3±0.3
8.0±0.3
0.27±0.1
1.5±0.1
2.8±0.1
500
Φ6
6.7±0.4
10.0±0.4
0.27±0.1
1.4±0.1
3.1±0.1
500
Φ7
7.5±0.4
10.4±0.4
0.27±0.1
1.4±0.1
3.1±0.1
500
Φ8
9.3±0.4
13.0±0.4
0.27±0.1
1.5±0.1
3.0±0.1
200
Φ10
10.5±0.4
13.5±0.4
0.27±0.1
1.5±0.1
3.5±0.1
200
Φ12
12.3±0.4
16.0±0.4
0.30±0.1
1.5±0.1
3.5±0.1
200
Φ14
14.0±0.4
18.5±0.4
0.30±0.1
1.7±0.1
4.0±0.1
200
Φ16
16.0±0.4
20.5±0.4
0.30±0.1
1.6±0.1
4.0±0.1
200
Φ17
17.0±0.4
21.2±0.4
0.30±0.1
1.6±0.1
4.1±0.1
200
Φ18
18.1±0.4
22.0±0.4
0.30±0.1
1.6±0.1
4.0±0.1
200
Φ20
20.0±0.4
24.15±0.4
0.35±0.1
1.7±0.1
4.3±0.1
200
Φ22
21.85±0.4
26.0±0.4
0.35±0.1
1.7±0.1
4.3±0.1
100
Φ23
23.0±0.4
28.5±0.4
0.35±0.1
1.9±0.1
5.5±0.1
100
Φ25
25.0±0.4
30.7±0.4
0.35±0.1
1.7±0.1
4.7±0.1
100
Φ30
30.0±0.4
35.0±0.4
0.40±0.1
2.3±0.1
5.0±0.1
100
Φ35
35.0±0.4
40.2±0.4
0.40±0.1
2.3±0.1
5.0±0.1
50
