Домашнее видео аудио HD MI 150M 200M через TCP/IP Cat5e/6 поддержка 1080P
Домашнее видео аудио HD MI 150M 200M через TCP/IP Cat5e/6 поддержка 1080P
Домашнее видео аудио HD MI 150M 200M через TCP/IP Cat5e/6 поддержка 1080P
Домашнее видео аудио HD MI 150M 200M через TCP/IP Cat5e/6 поддержка 1080P
Домашнее видео аудио HD MI 150M 200M через TCP/IP Cat5e/6 поддержка 1080P
Домашнее видео аудио HD MI 150M 200M через TCP/IP Cat5e/6 поддержка 1080P
Домашнее видео аудио HD MI 150M 200M через TCP/IP Cat5e/6 поддержка 1080P

Домашнее видео аудио HD MI 150M 200M через TCP/IP Cat5e/6 поддержка 1080P


Поделиться:

Цена:26,00 $ - 48,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики


Video audio home use 120m hd mi extender transmitter and receiver support KVM function


The Extender uses single cat5e or cat6(recommended) cables instead of HDMI cable totransmit high definition signal up to 120 meters, cutting down the cost. The Extender isdesigned to supply for long distance transmission of high definition signal.


Specification





Length of CAT5e/CAT6 cable between Rx and TX....................................120 meters

HDMI Input.................................................. 4k/1080p/720p/576p/576i/480p/480i

HDMI Output.................................................4k/1080p/720p/576p/576i/480p/480i

Max bandwidth.......................................................................................340MHz

Max baud rate.....................................................................................3x3.4Gbps

Input video signal.......................................................................0.5~1.5Volts p-p

Output DDC signal ......................................................................5Volts p-p (TTL)

Input HDMI cable distance.................................≤10m AWG26 HDMI standard cable

Output HDMI cable distance...............................≤10m AWG26 HDMI standard cable

TX Max working current............................................................................350mA

RX Max working current............................................................................200mA

Power adapter format..............Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range..........................................................(-15 to +55℃)

Operating Humidity range....................................... 5 to 90%RH (No Condensation)

Dimension (L x W x H)...........................................................107x105x27.3 (mm)

TX Weight .................................................................................................499g

RX Weight .................................................................................................494g

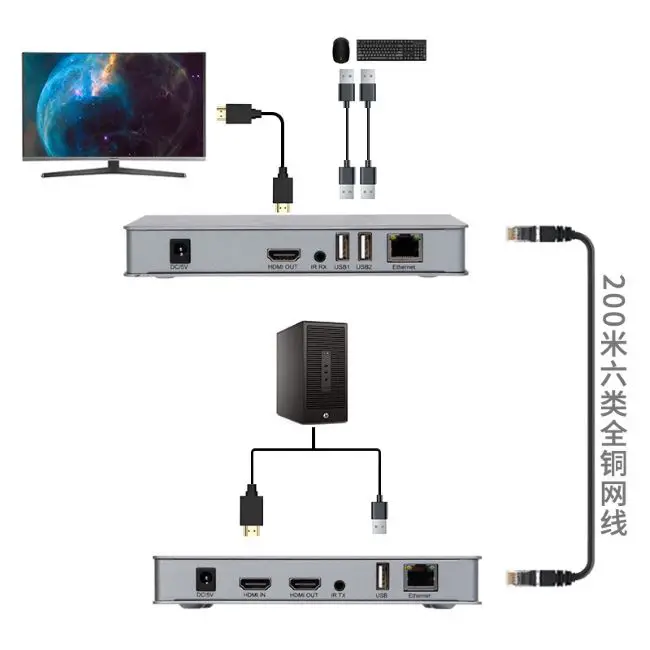

CONNECTION AND OPERATION








1.Connect one HDMI cable between source device and TX Extender, the max cable

distance is 10 meters.

2.Connect one HDMI cable between display device and RX Extender, the max cable

distance is 10 meters.

3.Connect single cat-5e or cat-6(recommended) cables instead of HDMI cables between TX and RX Extender, the max cable distance is 120 meters.

4.Connect 5V power supply to the TX and RX.

5.Plug the mouse and keyboard into the USB port of the receiver, and connect the USB port of the transmitter with the computer if you need the KVM control function.

When you use touch screen function, Please connect one of the port of the receiver with the USB port of the touch screen display.

6.LED indicator light

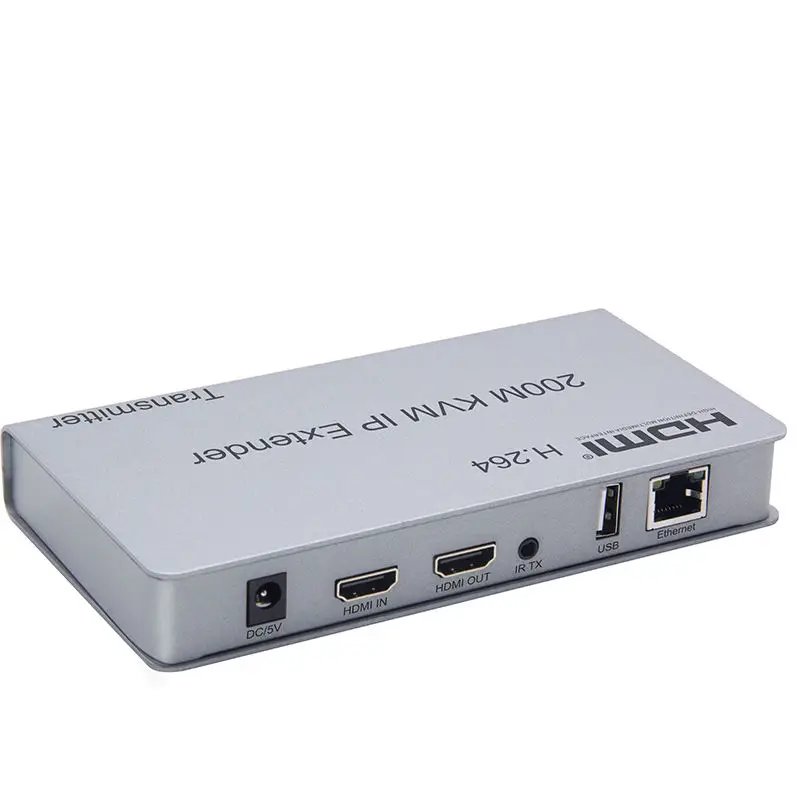

TX LED indicator light: Turn it on, green light; when there is a signal input,

the yellow light flashing.

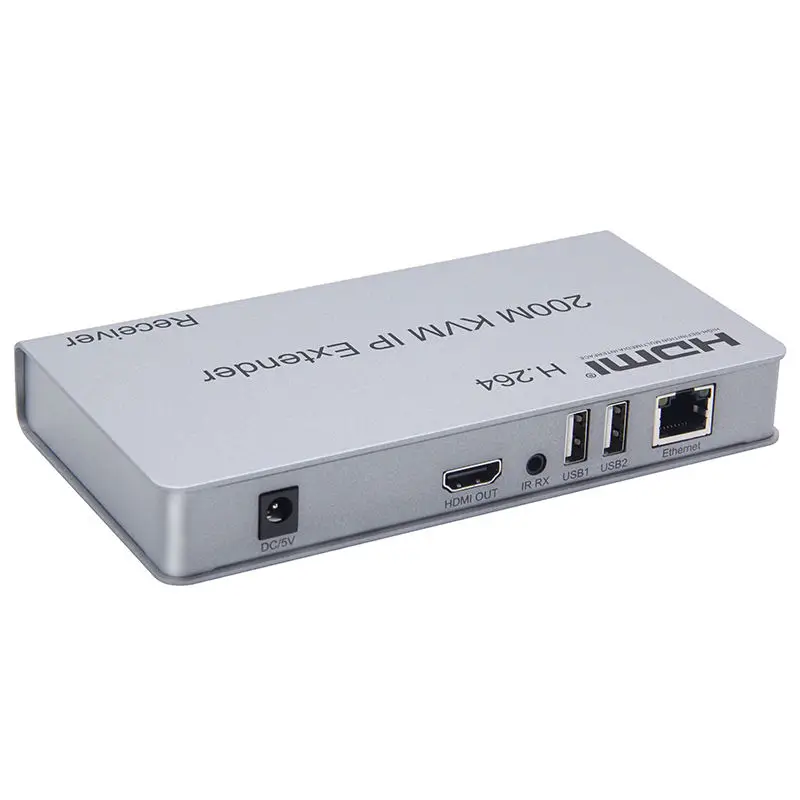

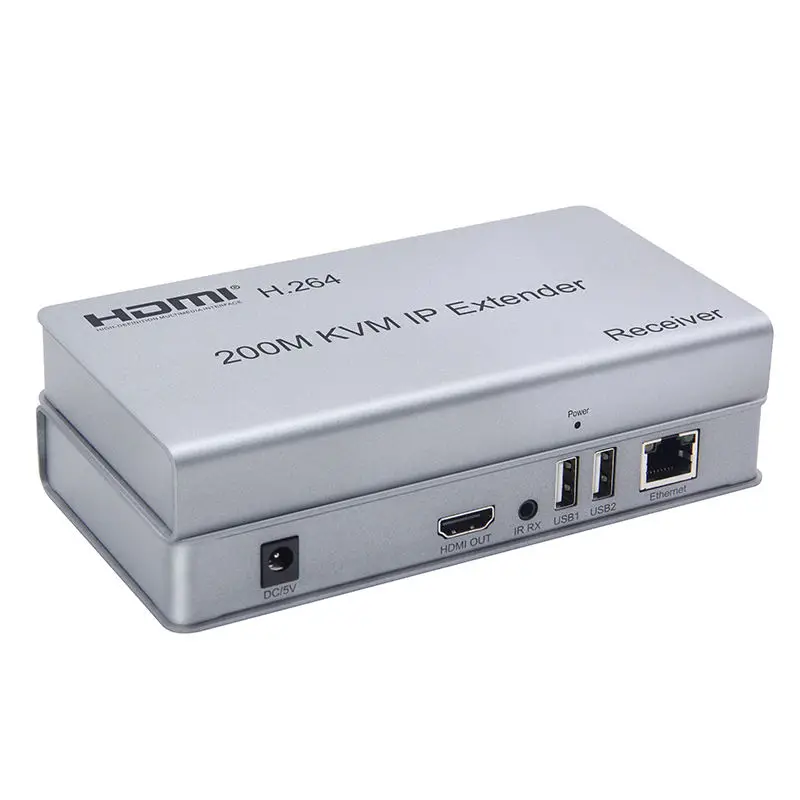

RX LED indicator light: Turn it on, green light; when there is a signal input,

the yellow light flashing.

7.The pairs of IR RX and IR TX cable connect the 3.5mm IR RX and IR TX port of the

receiver and transmitter respectively.(Just connect when you need it).1.jpg2.jpg3.jpg4.jpg5.jpg6.jpg


Company Information


H25





FAQ












































1. When can you get response to your inquiry ?


    >>Usually quote within 24 hours after we get your inquiry.
    >>If you are very urgent to get the price, please call us or tell us in your email or skype or wechat so that we will regard your inquiry priority.


2.We always pay attention to product's quality.How about the quality of your products?


   >>Our factory has gained the ISO9001,ISO14001 certification. Therefore we keep improving to provide more and better products for our customers.


3.How can I get a sample to check your quality?


   >>Samples within 5-7 working days or earlier
   >>After price and more details confirmed, you can require for samples to check our quality.
   >>If you need the samples, we will charge for the sample cost .
   >>But the sample cost can be refundable after order confirmation when your quantity of the order is more about the MOQ.



4.Can your company do OEM&ODM cable assembly?


   >>Yes, we can do cable assembly as customers' requirements and designed drawings.
   >>We also can design the drawings as customers samples or descriptions.


5.Can you give me some advices on how to buy the dc connector?


 >>You should confirm the Contact Gender,Rating Current,Size of Plug,Length,Material and Wire Gaugeand so on.
 >>If you have any inquiry,please feel free to ask us and we'll try our best to help you!


6.Do you test all your goods before delivery?


 >>Yes, we have test before delivery.
