SH-NHK Высококачественная промышленная кабельная втулка A2 из небронированного металла латуни нержавеющей
- Категории: Cable Glands >>>
- Поставщик: Yueqing,Sanhui,Explosion-Proof,Electrical,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

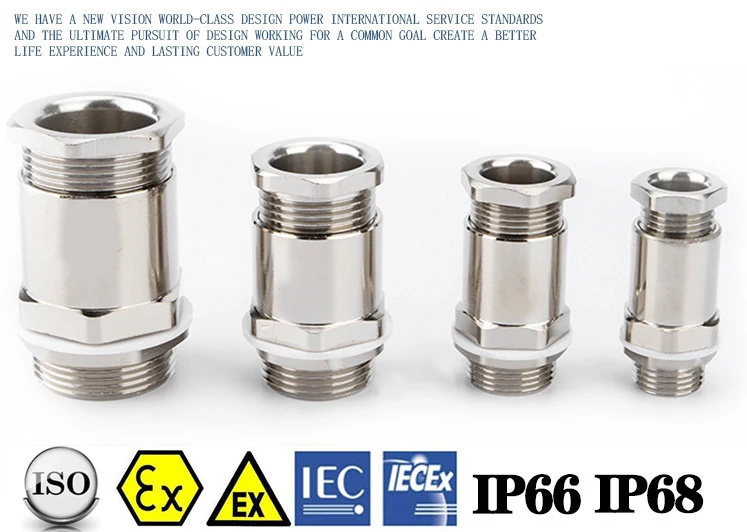

SH-NHK Industrial cable gland
Specification:
Materials:Brass or stainless steel ,brass with nickel planted
Sealing materials:Silicon rubber,Neoprene
It is with mechanical cable clamping seal
Fireproof grade:V0(UL94)
Allows cable to pass through the gland without any disassembly
For All Types of Unarmoured Cables
High quality durable materials

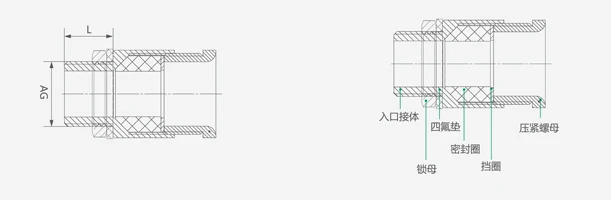

Technical Parameters:
Industrial Cable Glands (For most of Industrial Area,Unarmoured Cable)
| Size | Thread AG | Cable Range B | L | Spanner Size C | Diagonal Size D | ||
| M | G | NPT | |||||
| 12 | M12×1.5 | G1/4 | NPT1/4 | 2~6 | 8 | 20 | 21.5 |
| 16 | M16×1.5 | G3/8 | NPT3/8 | 3~8 | 8 | 24 | 26.2 |
| 20A | M20×1.5 | G1/2 | NPT1/2 | 6~14 | 10 | 27 | 29.6 |
| 20B | M20×1.5 | G1/2 | NPT1/2 | 5.5~13 | 10 | 27 | 29.6 |
| 25A | M25×1.5 | G3/4 | NPT3/4 | 12~18 | 10 | 34 | 37.3 |
| 25B | M25×1.5 | G3/4 | NPT3/4 | 11~20 | 10 | 34 | 37.3 |
| 32A | M32×1.5 | G1 | NPT1 | 18~25 | 10 | 40 | 43.6 |
| 32B | M32×1.5 | G1 | NPT1 | 17~26 | 10 | 40 | 43.6 |
| 40 | M40×1.5 | G1-1/4 | NPT1-1/4 | 25~31 | 10 | 50 | 54.9 |
| 50 | M50×1.5 | G1-1/2 | NPT1-1/2 | 31~39 | 12 | 57 | 62.8 |
| 63 | M63×1.5 | G2 | NPT2 | 39~47 | 12 | 68 | 74.3 |
| 75A | M75×1.5 | G2-1/2 | NPT2-1/2 | 47~55 | 12 | 80 | 87.6 |
| 75B | M75×1.5 | G2-1/2 | NPT2-1/2 | 55~63 | 12 | 82 | 89.6 |
| 90A | M90×1.5 | G3 | NPT3 | 63~71 | 15 | 95 | 102.6 |
| 90B | M90×1.5 | G3 | NPT3 | 71~79 | 15 | 102 | 109.6 |
| 100A | M100×1.5 | G4 | NPT4 | 79~87 | 15 | 115 | 122.6 |
| 100B | M100×1.5 | G4 | NPT4 | 84~92 | 15 | 120 | 127.6 |
what is cable gland?
1.Cable glands are mechanical cable entry devices that attach,
secureand terminate cable ends to an electrical enclosure
or directly into equipment providing.For mechanical support,
earth continuity for armoured/braided cables and protect against.
A Cable Glands provides strain relief and can include a provision
for making a connection to the armour,braid, lead or aluminum sheath of the cable.
2.For unarmoured and braided cables, this strain relief is provided by the seal only.
For armoured cables the armour and clamp can also provide the pull out resistance
.In hazardous areas, cable glands are also used to maintain
the protection concept ofthe equipment or enclosure into
which they are being terminated – in most instances the ingress of dust
and moisture according to the ingress protection (IP) rating.Our products is IP66-IP68.
3.Putting electrical equipment in a hazardous area is a huge deal.
Our Cable Glands are suitable for use in Hazardous Area Cable Glands – and
for explosive atmosphere.What it can that it includes any explosion originating
within the housing.It obstructs sparks within the housing from igniting.
4.Applications not compliance,Picking and using the wrong cable gland turns
from costly to life-threatening.
Therefore, we must choose high-quality products for explosion-proof cable glands.

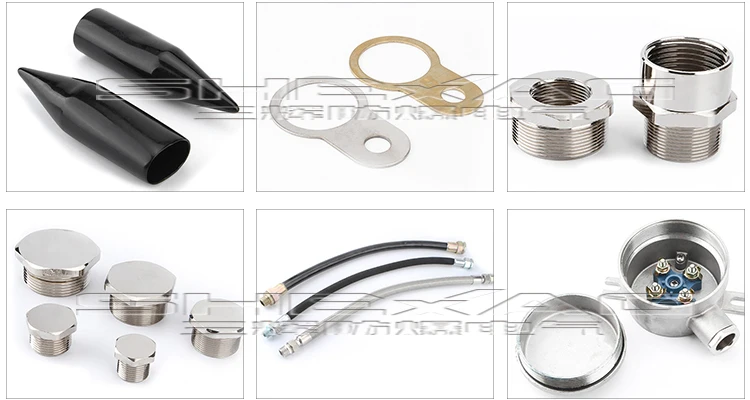

The Accessories that can fit for the Cable Gland
Show
The products are widely used in petrochemical, CNOOC, platform, chemical,
pharmaceutical, and coal mining companies.
They always adhere to the principle of "production by quality and development by credit".
The value created for customers is win-win.
Maintaining product safety and reliability is the customer's need and the main goal of Sanhui.
After excellent design,
we choose long-life materials and manufacturing processes to guarantee product safety and reliability,
convenient installation, and reduced procurement and maintenance. cost.
Pillows welcome new and old customers to guide! Main Scope:
Explosion-proof electrical appliances, explosion-proof pipes.
My products have good sealing performance, excellent explosion-proof performance,
excellent fastening effect, and high cost performance.

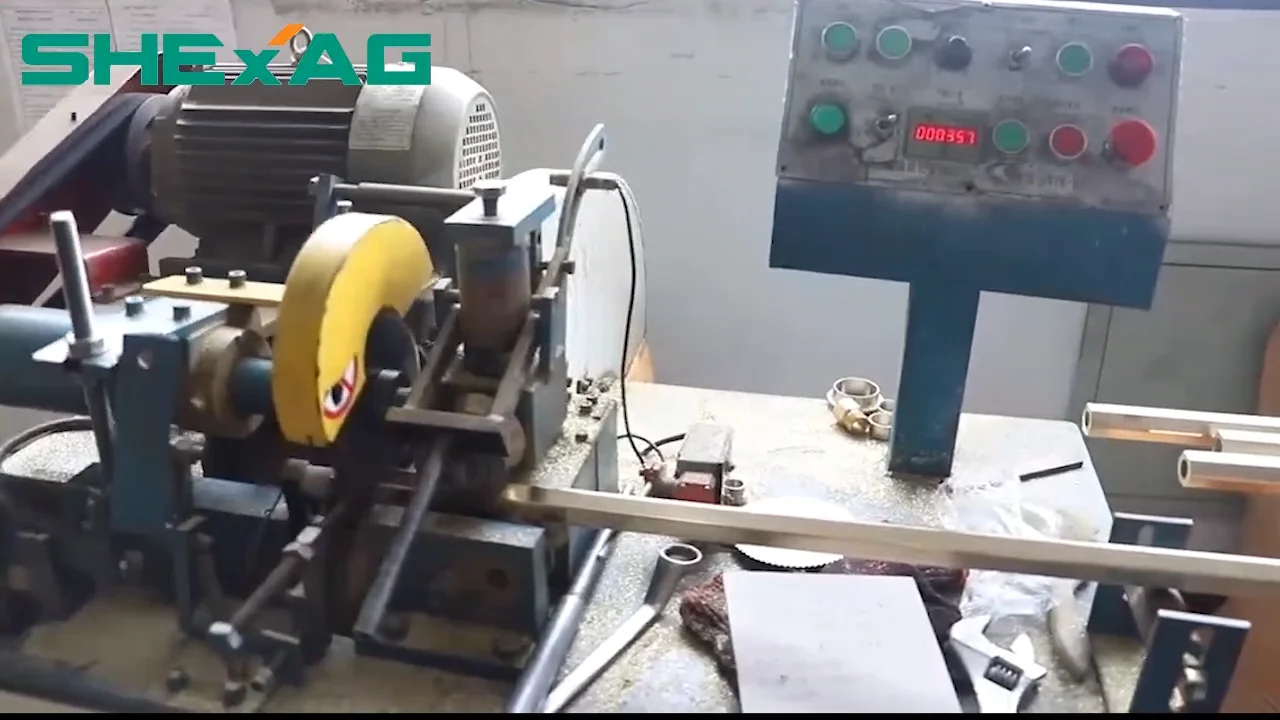

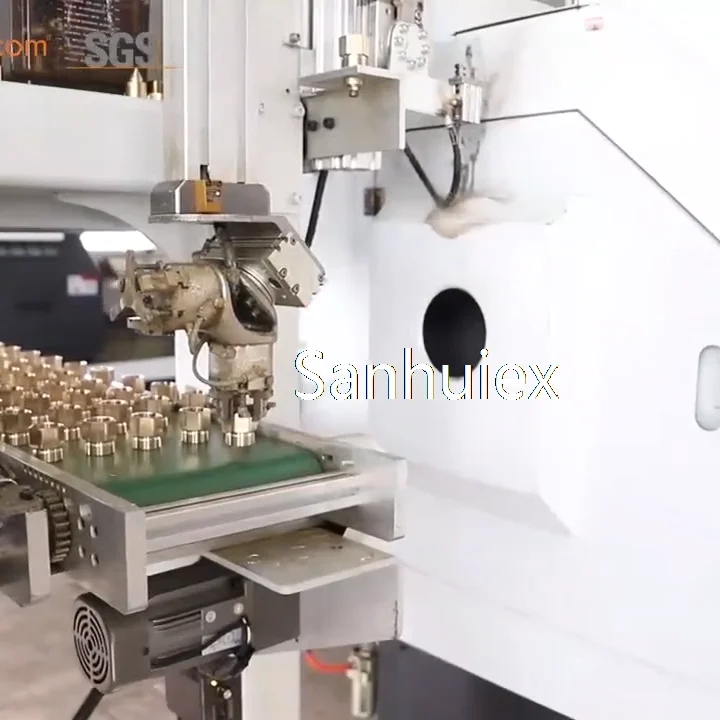

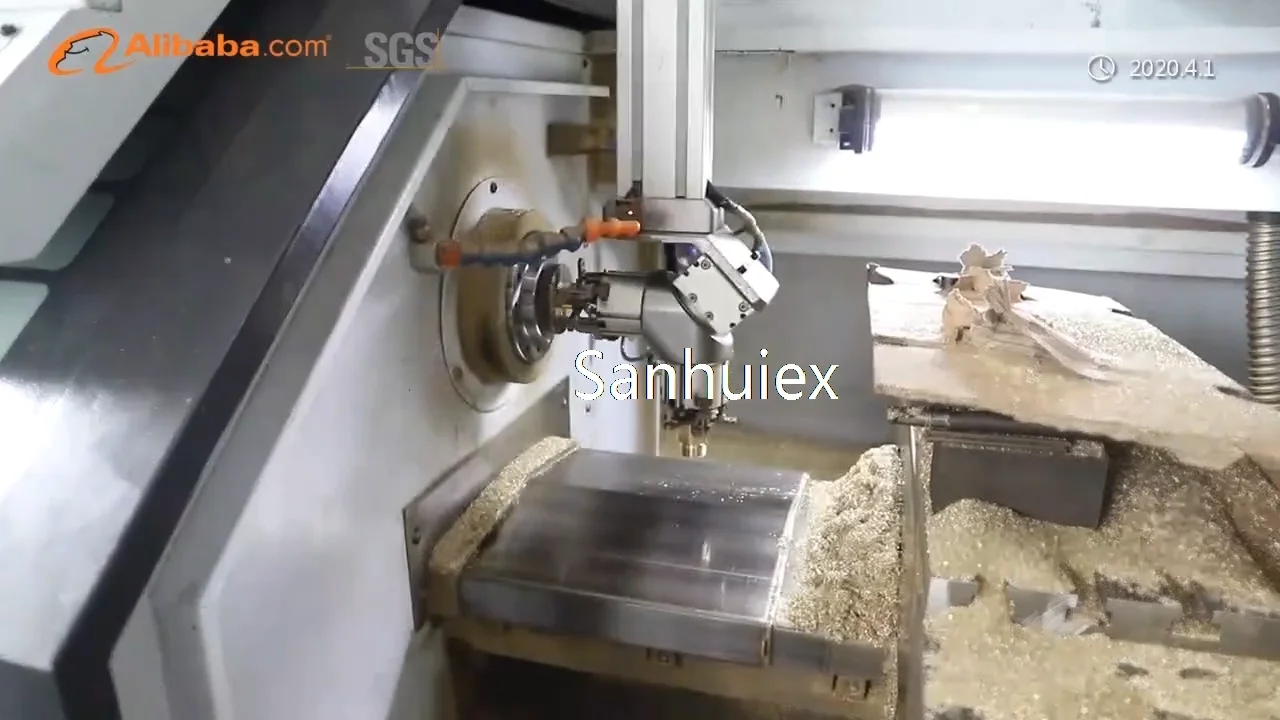

During the production process,
the products are professionally produced in strict accordance
with national technical requirements and manufactured with conscience.
FAQ:
1. Are you a manufacturer?
We're the manufacturer and trader,we have the factory for
Hardware field industry for more than for many years.
2.How about the quality and warranty?
We have strict quality inspection system from raw material to finished products.
We can send you sample to check quality first
and we guarantee the sample quality is the same as the mass production.
3.What's the Minimum Order Quantity (MOQ) ?
Please tell me the details request of what you want,like the item,the size and quantity,
i will tell you MOQ once we get it from you.
4.How long about the delivery time after I place an order?
Usually our delivery time is 3-7days after we receive the deposit.
5.What's the terms of payment?
Normally 30% T/T in advance,70% should be paid before shipment.
