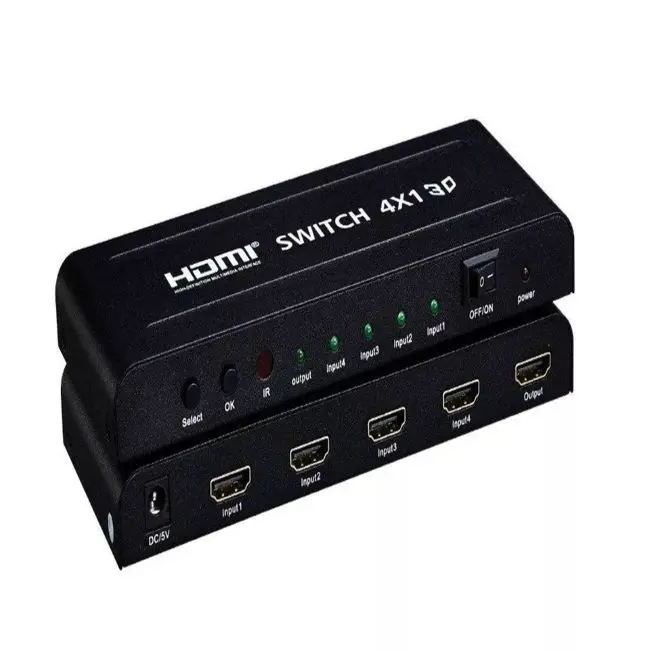

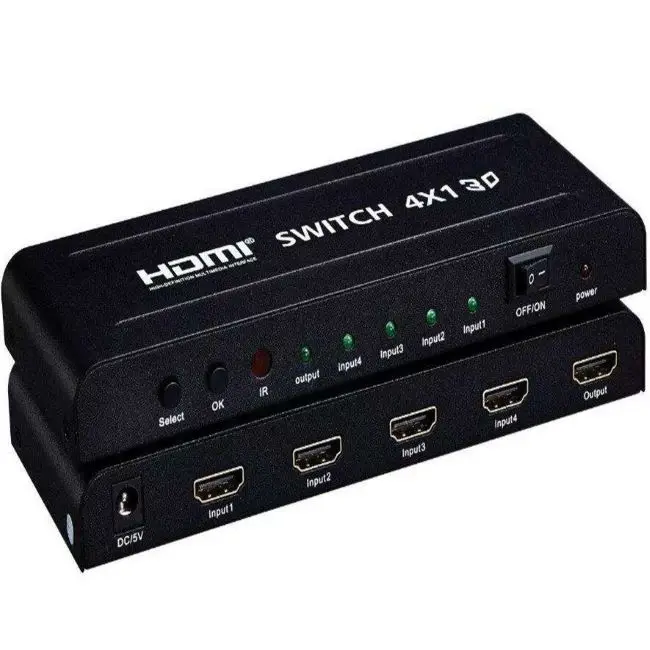

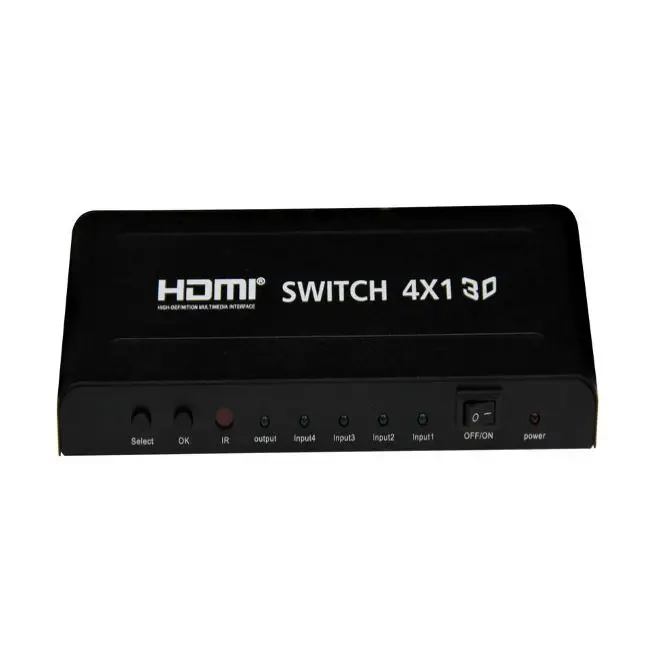

Лидер продаж HD MI переключатель 4x1 бесшовный экран 4K видео hd mi 4 в 1 с
- Категории: KVM Switches >>>
- Поставщик: Aost,Electronic,Tech,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Features
* Support 3D
* Support video resolution up to 4Kx2K @30Hz
* Support 3Gb data rate for tmds clock up to 300Mhz
* Support 24/30/36 bit deep color
* Support single and high definition display for multiple sources, such as DVD
Players and Satellite Receivers, Digital Projectors, A/V Receivers, TV Boxes
* 5V/1A power supply
* Picture-in-picture (PiP ) function
* Switched quickly , Switch one input source to the other input source quickly
Sertifications
HDMI resolution | UP TO 4K x 2K @30Hz |
Support Video color format | 24/30/36 bit deep color |
Support audio format | DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD |
Max bandwidth | 300MHz |
Max baud rate | 3Gbps |
Input cable distance | ≤10m AWG26 HDMI standard cable |
Output cable distance | ≤15m AWG26 HDMI standard cable |
Max working current | 3000mA |
Power adapter format | input:AC (50Hz, 60Hz) 100V-240V; Output: DC5V/1A |
Operating temperature range | (-15 to +55°C) |
Dimension (LxWxH) | 178x58x20 (mm) |
Weight | 220g |
Operating and Connecting:
Step 1: Connect the HDMI source device and HDMI switcher input ports with4 HDMI cables
Step 2: Connect HD displayer device (monitor or projector) and HDMI switchoutput port with 1 HDMI cable
Step 3: Connect 5V/1A power adapter to the HDMI switch .

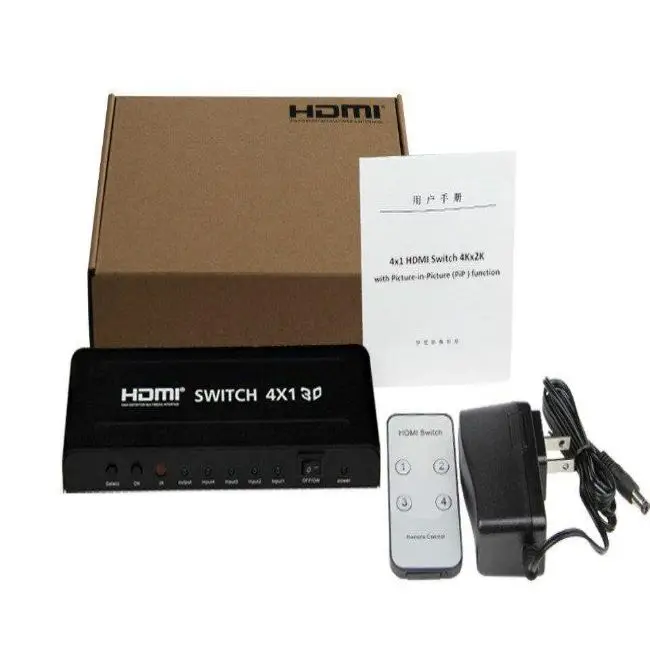

The Package includes:
1. HDMI Switch
2. IR Remote Control
3. 5V DC Power adapter
4. User Manual
