P2.6 P2.976 P3 Indoor Front Access LED Display Video Processor Indoor LED Video Wall Ground Support System 20ft LED Screen
Product Description
Your LED Wall Project Flow
LED Wall System Consultation
Talk to our sales about your sparkling ideas, TOALED will provide holistic services from professional solutions and door to door shipping that ensure your project is what you
envisioned.
envisioned.

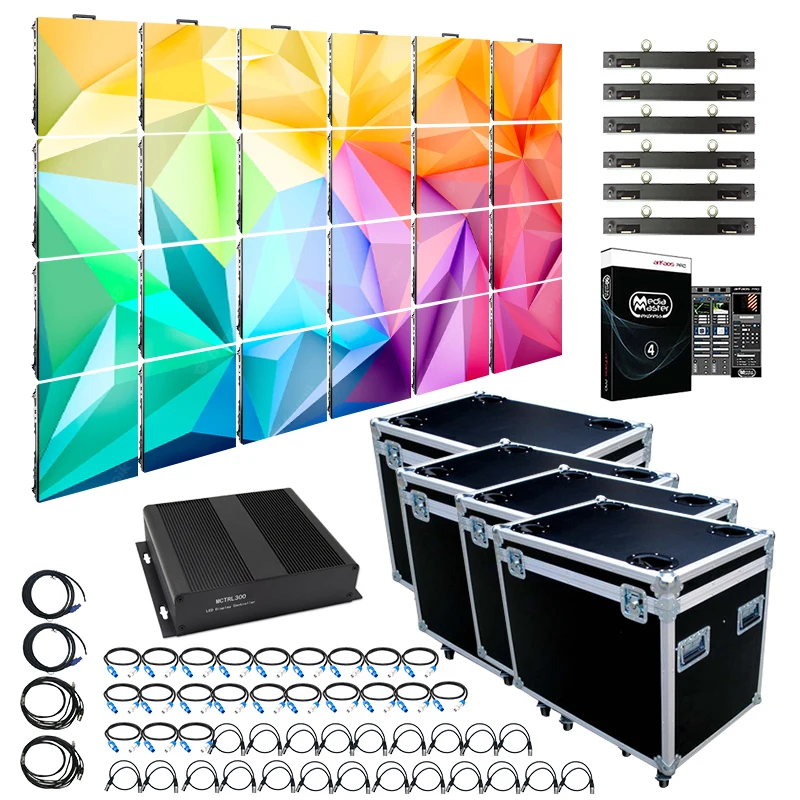

Accessories For Your All
From structural frames,
electric cables, signal cables to functions like video playbacks and
poster displays. Your project is in safe hands with us.
electric cables, signal cables to functions like video playbacks and
poster displays. Your project is in safe hands with us.
Support & Service
TOALED does not stop from providing quality LED Wall. We offer 2 years warranty and maintenance at
different service levels that help your ideas continue to glow.
different service levels that help your ideas continue to glow.
Product usage introduction
产品使用方式介绍
产品使用方式介绍
TOALED R50 Series is a robust stage touring LED panel that is designed for the high demands of the touring production world. Each tile is modular in design with unique rigging & curving capabilities.
Earning an IP65 Protection Rating, the dust-tight enclosure of the R50 Series works to protect the LED video wall display in outdoor installations.

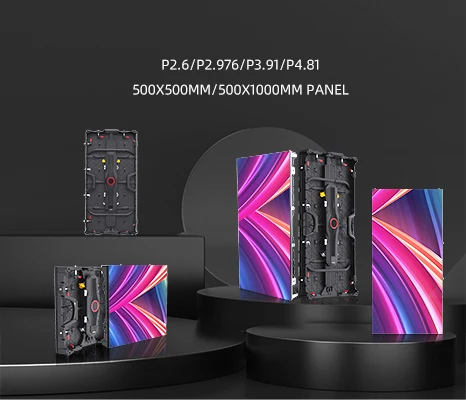

R50 Series is available in the following pixel pitches: 2.6mm, 2.9mm,3.9mm, 4.8mm, These pixel pitches are also available in an indoor model.
Earning an IP65 Protection Rating, the dust-tight enclosure of the R50 Series works to protect the LED video wall display in outdoor installations.
R50 Series is available in the following pixel pitches: 2.6mm, 2.9mm,3.9mm, 4.8mm, These pixel pitches are also available in an indoor model.
Description of product use effect产品使用效果说明

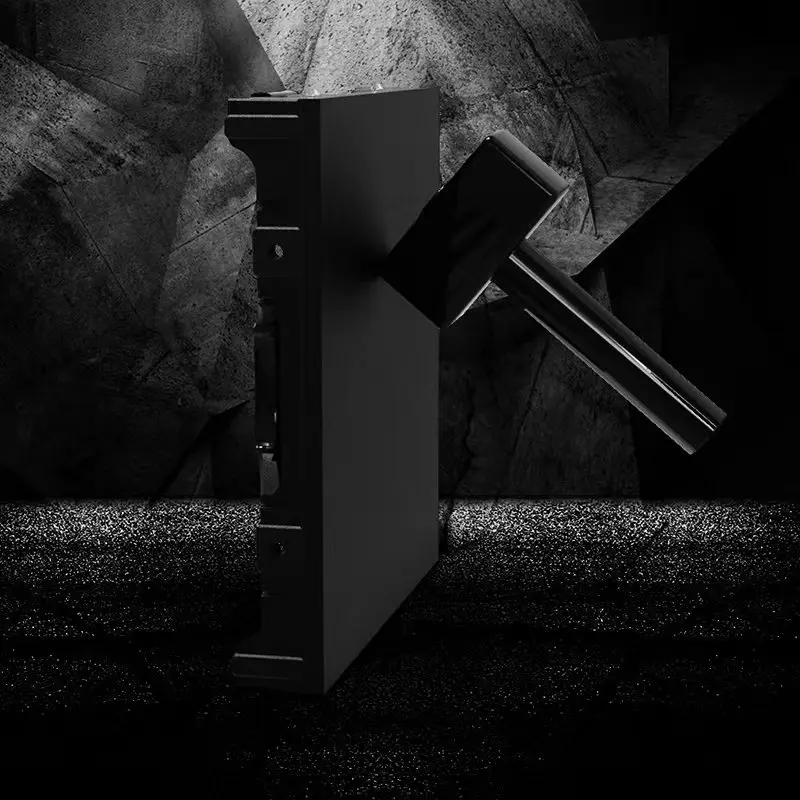

Transport, install and disassemble is much safer thanks to the LED video panel has been covered a PCB anti-collision welding plate.
The R50 Series is designed to meet the requirements of a wide range of applications. Through thoughtful engineering and craftsmanship, the R50 Series features a thin, lightweight, high-strength carbon fiber casing in a modular design to fit a wide range of simple or complex applications.
Product usage introduction
产品使用方式介绍
产品使用方式介绍
Unique black matte LED lamp bead, more "black" overall, no reflections from all angles, better display effect.
Each tile is modular in design with unique rigging capabilities, offers pixel pitches from 2.6mm – 4.8mm which allow you to create high resolution LED displays for your build.
Description of product use effect产品使用效果说明

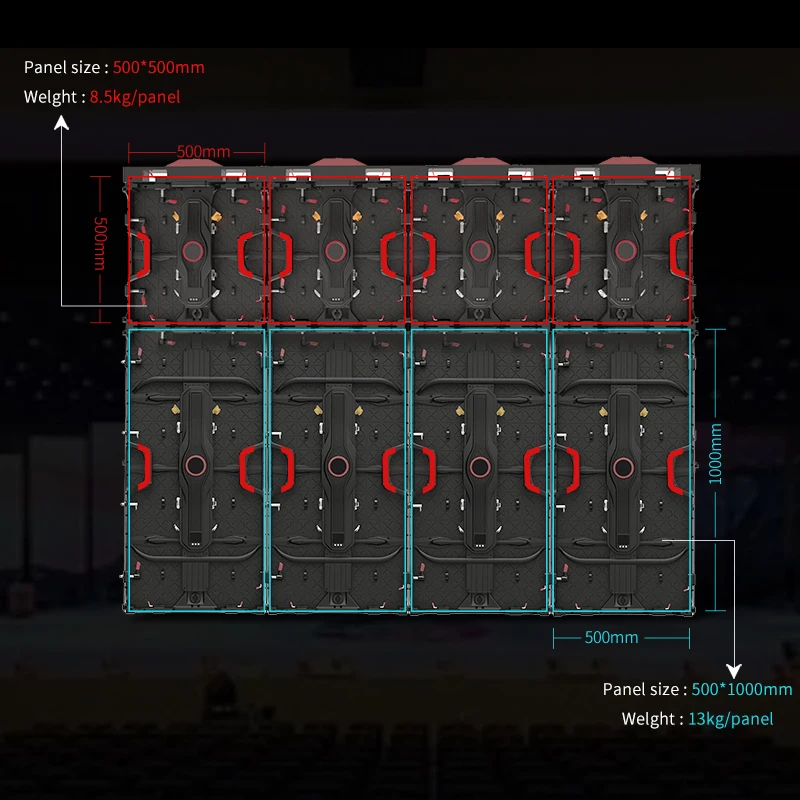

With two distinct sizes available (1000mm x 500mm and 500mm x 500mm), let R50 Series unlock the creative possibilities.
TOALED R50 Series supports front and rear maintenance at the same time. Faster and easier on-site maintenance, tool free module rear service in 15 seconds. Maintenance for power box in 10 seconds. This “best practice” design provides designers and maintenance crews the most creativity and Ease of Use as possible.
TOALED R50 Series supports front and rear maintenance at the same time. Faster and easier on-site maintenance, tool free module rear service in 15 seconds. Maintenance for power box in 10 seconds. This “best practice” design provides designers and maintenance crews the most creativity and Ease of Use as possible.
Product usage introduction
产品使用方式介绍
产品使用方式介绍

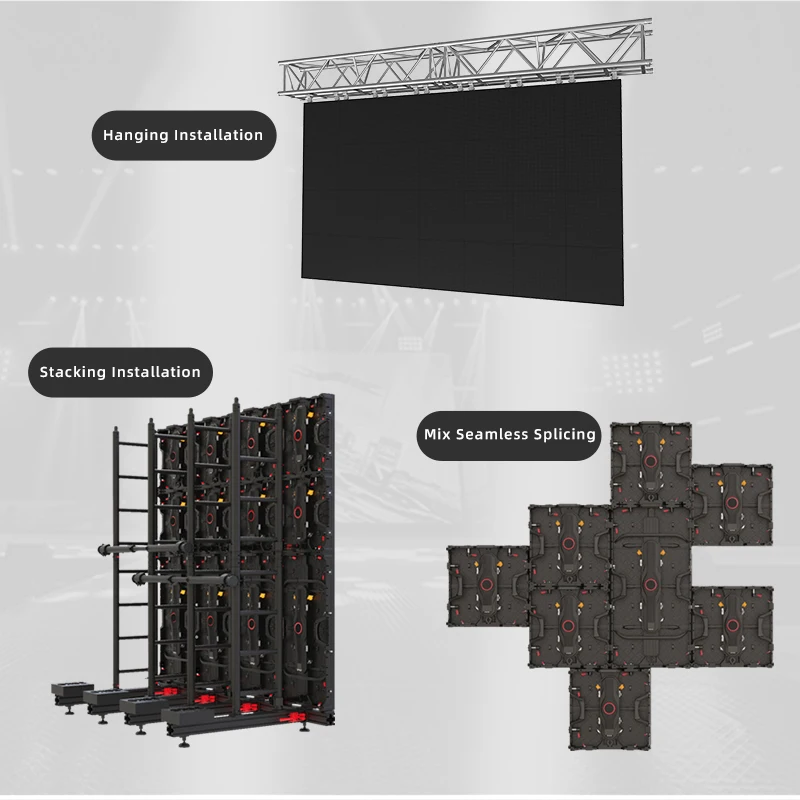

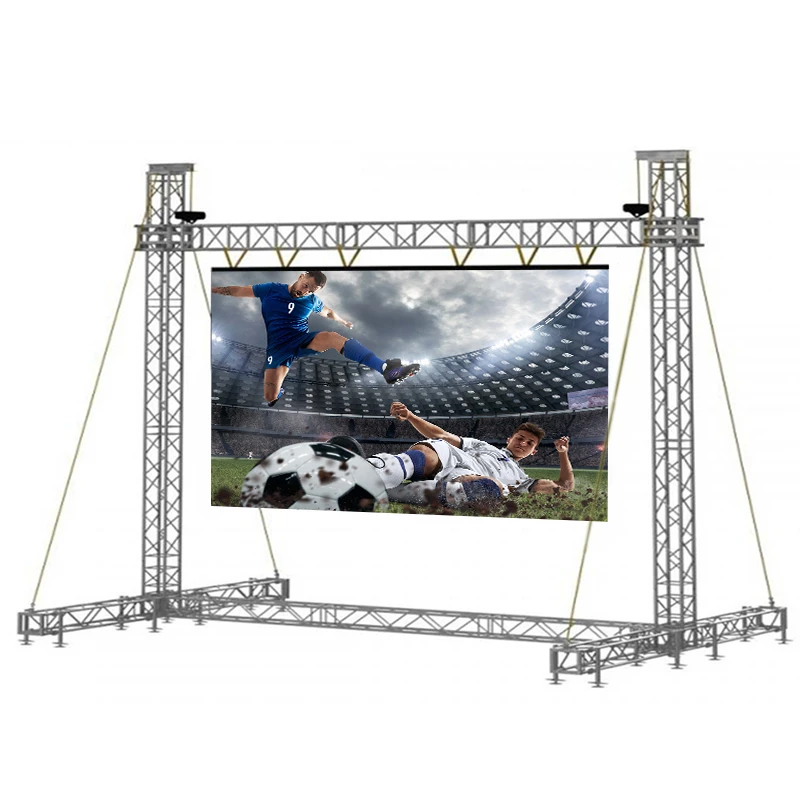

● Hanging Installation
● Mix Seamless Splicing
2-in-1 hanging and ground beam Stacking installation accessories (ground beam, ground beam support, back frame, back frame connector)
We provide holistic services from turnkey LED display solution and door to door shipping to ensure your LED screen project is what you envisioned.
Specification
Pixel Pitch | 2.6mm | 2.9mm | 3.9mm |
LED Configuration | SMD1515 | SMD1515 | SMD1921 |
Module Size | 250*250mm | 250*250mm | 250*250mm |
pixel density | 147,456 pixels/m² | 112,896 pixels/m² | 65,536 pixels/m² |
Cabinet resolution (W × H) | 192 × 192 | 168 × 168 | 128*128 |
Module resolution (W × H) | 96 × 96 | 84 × 84 | 64 × 64 |
gray scale | 16 bit | 16 bit | 16 bit |
contrast | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 |
Driver IC type | CHIPONE ICN2153 | CHIPONE ICN2153 | CHIPONE ICN2153 |
Receiving card type | Novastar Armor A5S plus | Novastar Armor A5S plus | Novastar Armor A5S plus |
Panel Weight(kg/cabinet) | 8.2 | 8.2 | 7.9 |
Brightness | 800CD/m² | 800CD/m² | 4500CD/m² |
Viewing Angle | H: 140°; V:140° | H: 140°; V:140° | H: 140°; V:140° |
Refresh Rate | 3840HZ | 3840HZ | 3840HZ |
Working Temperature | - 20℃~+50℃ | - 20℃~+50℃ | - 20℃~+50℃ |
FAQ
1. What Do I Need To Know Before Buying A Rental LED Screens?
Indoor or Outdoor?
The outside environment is harsher than the indoor environment. Therefore, your stage LED screens to need protection against substantial intrusions, dust, and water.
Close or Far Distance Viewing?
It will help you choose LED screen panels for the set with appropriate resolution.
2. How To Calculate A Stage LED Screen Size?
The standard and most commonly used aspect ratio for mainstream videos and displays is 16:9.
For the screen height of your LED screen for a stage show, 1/6 to 1/10 target (distance from the LED screen to the last row) is acceptable. Meaning to say, if the distance from your stage background LED screen to the last row is 21 meters, the height of your LED screen must be around 2.1 meters to 3.5 meters.
3. What Are The Advantages Of Using Stage LED Screens In Events?
Lively Stage Background. Large LED screens for events are commonly used to spice up the show's attendees' and participants' viewing experience. The vivid color and brilliant effects it gives can help you pull off a spectacular show for your audience, which affects audience engagement and participation.
4. Is It Difficult To Operate An LED Stage Display?
Indoor or Outdoor?
The outside environment is harsher than the indoor environment. Therefore, your stage LED screens to need protection against substantial intrusions, dust, and water.
Close or Far Distance Viewing?
It will help you choose LED screen panels for the set with appropriate resolution.
2. How To Calculate A Stage LED Screen Size?
The standard and most commonly used aspect ratio for mainstream videos and displays is 16:9.
For the screen height of your LED screen for a stage show, 1/6 to 1/10 target (distance from the LED screen to the last row) is acceptable. Meaning to say, if the distance from your stage background LED screen to the last row is 21 meters, the height of your LED screen must be around 2.1 meters to 3.5 meters.
3. What Are The Advantages Of Using Stage LED Screens In Events?
Lively Stage Background. Large LED screens for events are commonly used to spice up the show's attendees' and participants' viewing experience. The vivid color and brilliant effects it gives can help you pull off a spectacular show for your audience, which affects audience engagement and participation.
4. Is It Difficult To Operate An LED Stage Display?
Operating your LED stage screen is just like running your personal computer.
Most clients being 100 meters away or less from the stage LED screen is enough for the controlling computer to be located.
5. How Much Would It Cost For Stage LED Screens?
Most clients being 100 meters away or less from the stage LED screen is enough for the controlling computer to be located.
5. How Much Would It Cost For Stage LED Screens?
It depends on your needs. The screen size, the pixel pitch and the installation type will affect the price of stage LED screens.
