High quality 360 degree rotation concrete laser screed machine manufacturer
Products Description
1. Concrete laser screeds are used in concrete floor works, including flat floor works, slop works and double slops works. Such as factory, workshop, park, plaza, super market, exhibition hall, container yards, wharf, play ground, square and so on.
2. It has three important functions: Paving the concrete, Leveling the concrete floor, Compacting the concrete floor. It improves the quality of floor.
3. It can level the concrete floor automatically by microcomputer laser scanning.
4. It can improve the flatness of the concrete floor. The height deviation of all concrete floor is below 1.5mm.
5. It can save about 70% of manpower. So it can increase the profit greatly.
6. It can shorten the construction period. It can work quickly and well.
7. Operation is very easy.
8. The drive system is hydraulic drive fully.
9. The telescopic boom is 6m long, 360 degrees rotary.
2. It has three important functions: Paving the concrete, Leveling the concrete floor, Compacting the concrete floor. It improves the quality of floor.
3. It can level the concrete floor automatically by microcomputer laser scanning.
4. It can improve the flatness of the concrete floor. The height deviation of all concrete floor is below 1.5mm.
5. It can save about 70% of manpower. So it can increase the profit greatly.
6. It can shorten the construction period. It can work quickly and well.
7. Operation is very easy.
8. The drive system is hydraulic drive fully.
9. The telescopic boom is 6m long, 360 degrees rotary.
High quality 360 degree rotation concrete laser screed machine manufacturer
High quality 360 degree rotation concrete laser screed machine manufacturer

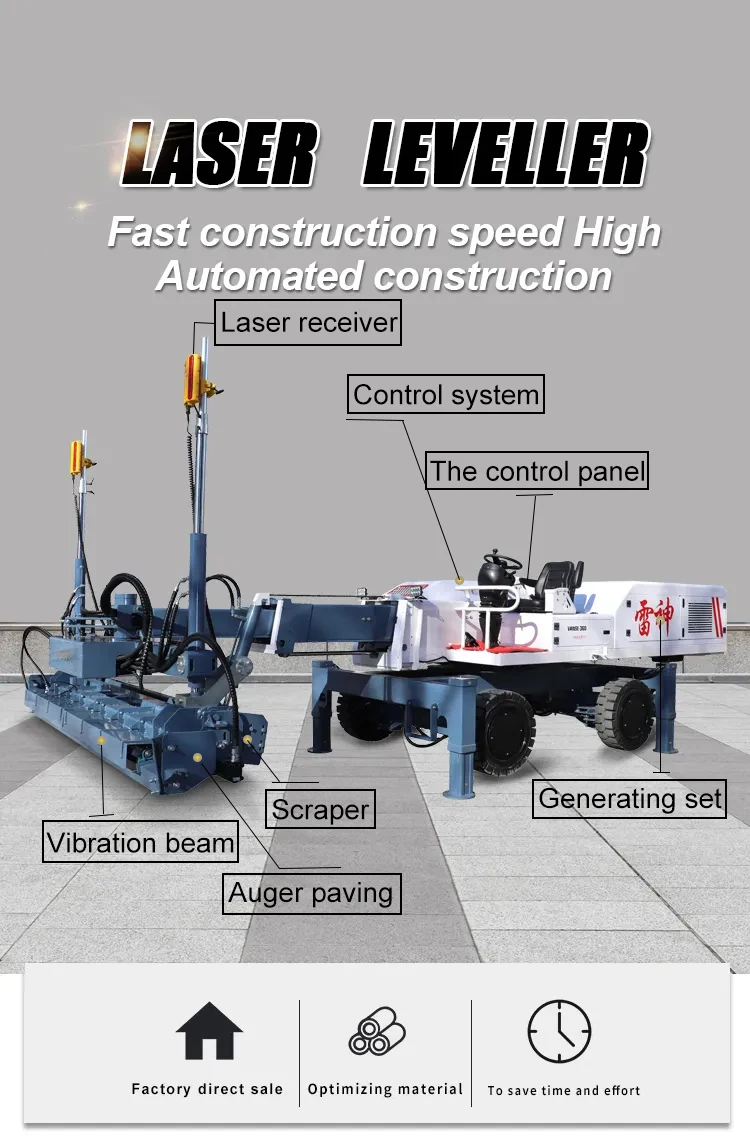

Details Images
High quality 360 degree rotation concrete laser screed machine manufacturer
Specification
Name | Concrete Laser Screed | Fuel Tank Volume | 100L |
Type | YZ30-4E | Engine Oil Volume | 2.4-5.3L |
Engine Type | YANMAR 4TNV94L | Screed Width | 3.1M |
Characteristic | Diesel, 4 Stroke,4 Cylinder | Screed Swing Angle | 120° |
Cooling System | Closed Cooling Liquid 50:50 | Paving Thickness | 5-40CM |
Power | 35KW/ 2400rpm | Leveling Precision | 1.5MM |
Telescopic Boom | 6M Long, 360° Rotation | Excitation Force | 3000N |
Paving Mode | Hydraulic Screw Conveyor Paving | Vibration Frequency | 60HZ |
Vibrating System | Hydraulic Eccentric Vibrating Beam | Mini turning radius | 2.6M |
Configuration | Laser Emitter & Receiver, Tripod. | Cooling Liquid Tank | 150L |
Working Speed | 18 sq.m/Min | Walking Speed | 3KM/H |
Speed Control | Stepless Speed Change. | Power | Hydraulic Drive |
Outline Dimension | 5350*3650*2100 mm | Tank Volume | 80 L |
Drive Type | Full Hydraulic 4 Wheels Drive | Net Weight | 5500Kgs |
Turning | 2 Wheels/ 4 Wheels/ Crab Turn. | Support Legs | One key up&down. Auto leveling |
Applicable Scope | Flat Surface、Slope、Double Slope （three-dimensional） | Tyre | Solid puncture-proof & antiskid tyre |
Laser Control System | Microcomputer Laser Scanning | Laser System | Trimble brand (standard), Leica (optional) |
High quality 360 degree rotation concrete laser screed machine manufacturer

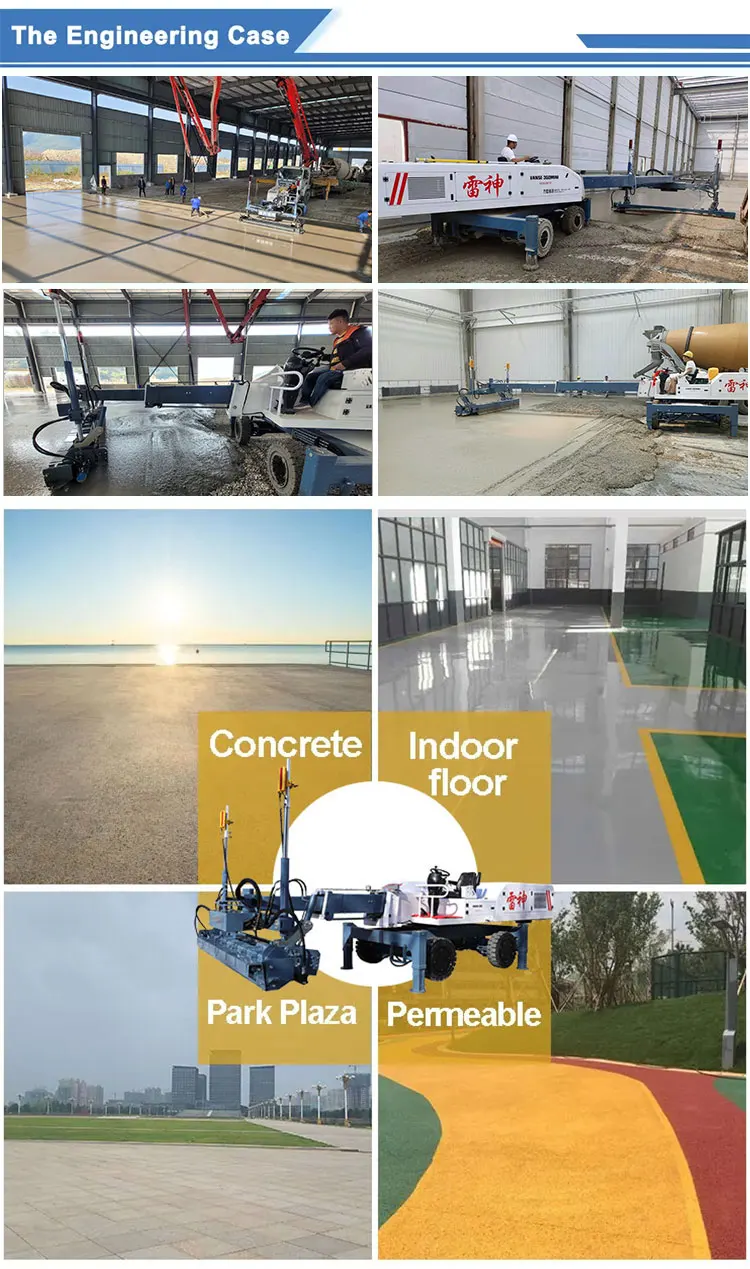

Application
High quality 360 degree rotation concrete laser screed machine manufacturer

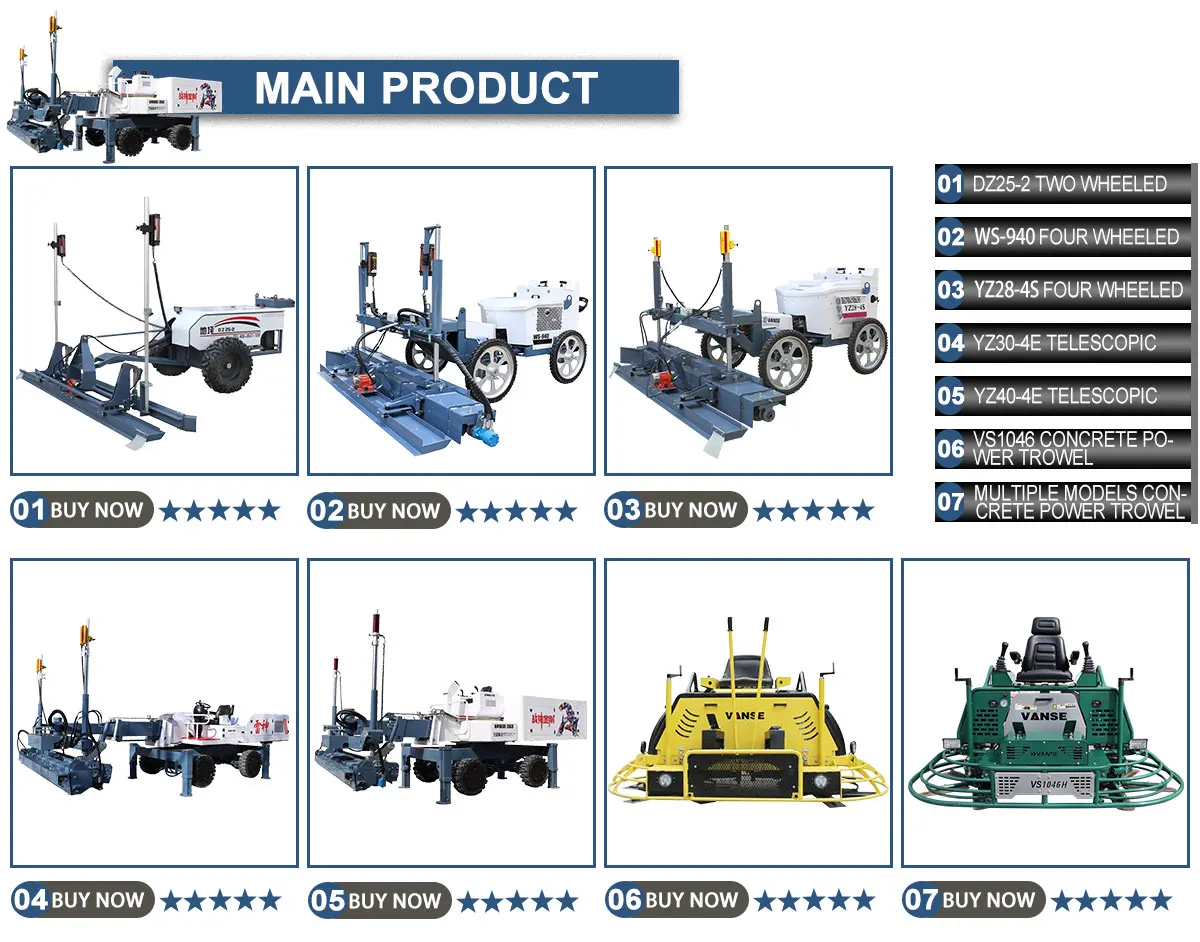

Related Products
Company Information
Our Service
Become Our Dealer
Packing & Delivery
FAQ
1. What is the delivery time ?
Generally we need 3-5 days to produce the machine after prepayment ,if you are urgent , 2 days will be ok , then send to port .
2. How about the warranty ?
We supply 12 months warranty .
3. How should we do if the machine broken ?
You can take a video to us and our technicians will analyze the cause of the problem based on the video.
4. How should we do if parts are broken ?
We advise customers to purchase some conventional accessories based on their country and environment. If other parts broke ,we will send to you by sea of by air .Or deliver with the next order
5. Can the machine use the trademark of our own company?
Yes ,sir ,of course .
6. Can we customize the product according to our requirements?
Yes ,sir ,no problem .
7. How do you pack the machines ?
Generally ,we pack them in export wooden cases ,we make sure it is safe for transportation .Or we can also use Iron Frame to pack them . If machine is big, we use iron frame much more .
Generally we need 3-5 days to produce the machine after prepayment ,if you are urgent , 2 days will be ok , then send to port .
2. How about the warranty ?
We supply 12 months warranty .
3. How should we do if the machine broken ?
You can take a video to us and our technicians will analyze the cause of the problem based on the video.
4. How should we do if parts are broken ?
We advise customers to purchase some conventional accessories based on their country and environment. If other parts broke ,we will send to you by sea of by air .Or deliver with the next order
5. Can the machine use the trademark of our own company?
Yes ,sir ,of course .
6. Can we customize the product according to our requirements?
Yes ,sir ,no problem .
7. How do you pack the machines ?
Generally ,we pack them in export wooden cases ,we make sure it is safe for transportation .Or we can also use Iron Frame to pack them . If machine is big, we use iron frame much more .
