Product Description
Benefits:
1. Built-in USB sound card, support playing USB audio files,record and remote conference.
2..Built-in microphone adaptive feedback cancellation (AFC), digital matrix, automatic mixing, echo cancellation, noise suppression.
3.The product has the function of camera tracking, which can realize the voice tracking of 48 V phantom power supply microphone. The corresponding microphone tracking is based on the voice threshold. The camera supports PELCO _ D, PELCO _ P, VISCA and other protocols.
4. The system integrates the central control function, supports RS232, RS485 and UDP control, and simply controls the projection, curtain, lighting, curtain, power sequencer and other third-party equipment.
Product performance description
Feature: 1.The device supports APP control and supports IOS, Android, WINDOWS, etc. The APP software supports user customization, and the processor can be controlled through APP, such as volume, preset call, external control of third-party equipment (supporting RS232, RS485, UDP, etc.), matrix switching, etc.
2.The product supports the expansion of external control panel functions, with at least two types of panels, which can realize remote control of the processor, such as volume, preset call, external control of third-party equipment (supporting RS232, RS485, UDP, etc.), matrix switching, etc.
2.The product supports the expansion of external control panel functions, with at least two types of panels, which can realize remote control of the processor, such as volume, preset call, external control of third-party equipment (supporting RS232, RS485, UDP, etc.), matrix switching, etc.
supports 48V phantom supply, 8/12/8/16 balanced line outputs. DSP has powerful processing ability, Each input channel is provided with a feedback suppressor, a noise gate, a high-pass filter, a low-pass filter, a delayer, a voltage limiter and a parametric equalizer (PEQ/High Shelf/Low Shelf), and each output channel is provided with a high-pass filter, the low-pass filter, the parametric equalizer (PEQ/High Shelf/Low Shelf), the voltage limiter and the delayer. Built-in sine wave, pink noise, white noise signal generator. Storage of multiple scene presets, customizable labels, 1 TCP/IP communication port, 1 RS-232 communication port, 1 RS-485 communication port and open third-party control protocol. Support to extend the touch screen control panel installed on the wall. You can set the volume and call the mode preset through the wall control panel. It is used for meeting rooms, multi-function halls and live performances.

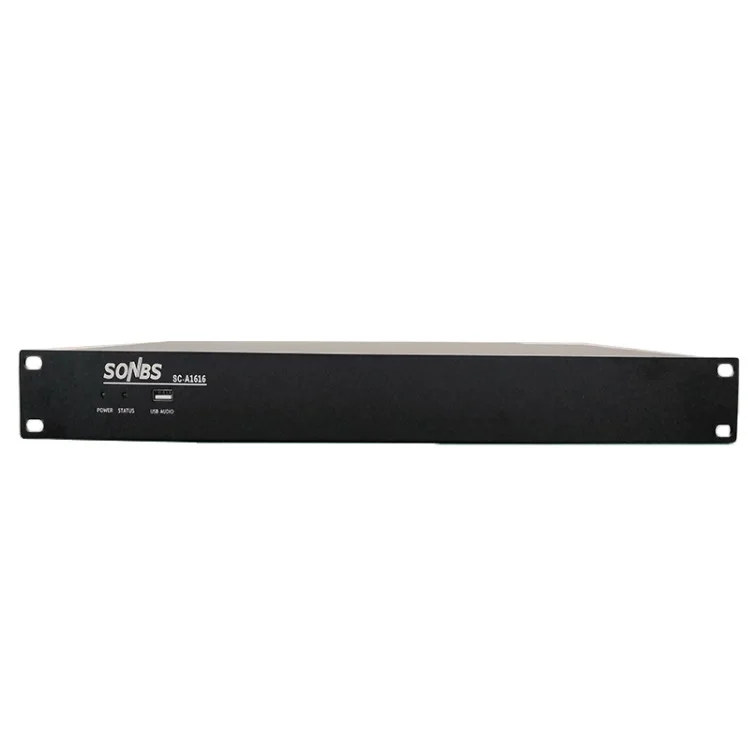

Product Name | high end conference professional dsp usb sound card recording audio digital signal (16 in 16 out) digital audio processor |
Model | SC-A1616 |
Audio input | 8/8/12/16 channel balanced input, Phoenix plug |
Maximum input level | 12dBu/Line, -9dBu/Mic |
Input gain | 0/10/20/30/40/43 dB |
Input impedance | Balance 9.4KΩ |
Phantom power | +48 VDC |
Audio output | 8/12/8/16 channel balanced output, Phoenix plug |
Size | 484×260×44mm |
Weight | 3kg |
