Новый автомобильный грейдер SG21-3 210Hp высокопроизводительный дорожный с комплектующими для
- Категории: Motor Graders >>>
- Поставщик: Liebty,Machinery,Technology,(Hangzhou),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
The Shantui series paver adopts full hydraulic drive and microcomputer control technology, and is equipped with imported
high-precision automatic leveling equipment. It has good stability at low speed and has superior control precision and handling.
The core components are all famous foreign brands. Its high stability and long life to improve construction quality and paving efficiency to improve construction quality and paving efficiency; ideal construction equipment for paving roadbeds and pavements.
high-precision automatic leveling equipment. It has good stability at low speed and has superior control precision and handling.
The core components are all famous foreign brands. Its high stability and long life to improve construction quality and paving efficiency to improve construction quality and paving efficiency; ideal construction equipment for paving roadbeds and pavements.
Contact
Katharine Zhou——Sales Manager
whatsapp/mobile phone :+86 13185082327
wechat:+86 13484310522
libety Construction Engineering (Hangzhou)Co.,Ltd
libety International Limited
libety International Limited
Specifications
Engine | Engine model | Cummins 6BTAA5.9-C180 | |||||||||||
Rated power/speed | 132 kW/2200 rpm | ||||||||||||
Engine type | In-line, water-cooled, 4-cycle, direct injection, turbocharged | ||||||||||||
Number of cylinders | 6(102X120mm) | ||||||||||||
Piston displacement | 5.9L | ||||||||||||
Maximum torque/speed | 770 N·m/1500 rpm | ||||||||||||
Minimum fuel consumption | 206 g/kW·h | ||||||||||||
travel speed | Transmission and torque converter: Electronic controlled transmission | ||||||||||||
Gear | 1st | 2nd | 3rd | 4th | 5th | 6th | |||||||
Forward | 0~5.4 km/h | 0~9.3 km/h | 0~12.2 km/h | 0~20.7km/h | 0~25.6 km/h | 0~39.7 km/h | |||||||
Reverse | 0~5.4 km/h | 0~12.2 km/h | 0~25.6 km/h | ||||||||||
TRAVEL | Tire Type | 17.5-25PR12 | |||||||||||
Steering system | Max. steering angle of front wheel | ±45° | |||||||||||
Max. tilting angle of front wheel | ±17° | ||||||||||||
Max. oscillating angle of front axle | ±15° | ||||||||||||
Steering angle of frame | ±25° | ||||||||||||
Max. oscillating angle of rear axle | ±15° | ||||||||||||
Min. turning radius | 7800 mm | ||||||||||||
Operation weight | Operating weight (standard configuration) | 16200 kg | |||||||||||
Front axle load | 4800 kg | ||||||||||||
Rear axle load | 11400 kg | ||||||||||||
Blade | Blade length | 3660/3965 mm | |||||||||||
Blade height | 635 mm | ||||||||||||
Blade rotational angle | 360° | ||||||||||||
Cutting angle adjustment range | 44~91° | ||||||||||||
Maximum cutting depth | 500 mm | ||||||||||||
Cutting force per dozing | 24.47 kN/m | ||||||||||||
Maximum lift above ground | 440 mm | ||||||||||||
Maximum blade lateral extension (left/right) | 1900/1950 mm | ||||||||||||
Detailed Photos
Successful Cases
Why Choose Us

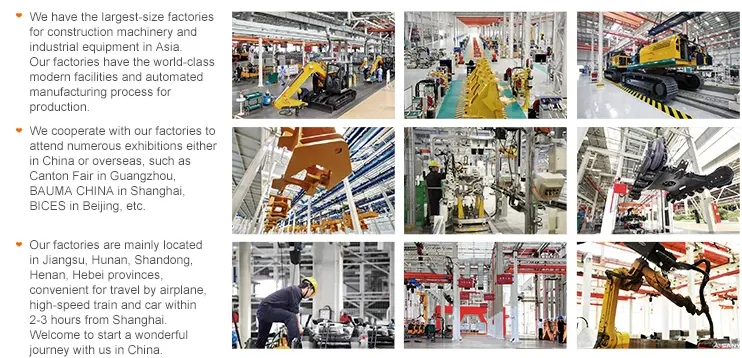

Our Factories
