RAIL GAUGE ROD
Gauge rod is a kind of track material used to keep track in gauge by improving the lateral stability of the rail. It is a very important reinforcement accessory for railroad tracks. Gauge rods are most applied at weak points in straight track, curved track, switches, bad ties, etc. Placing under the parallel rails, it can grip the rails and prevent them from spreading or tilting. If the gauge rods are missing in weak sections of railway tracks, derailment accidents or even the overturn of trains may happen. Other track materials such as rail joint, rail clip, rail clamp, rail pad are available as well.

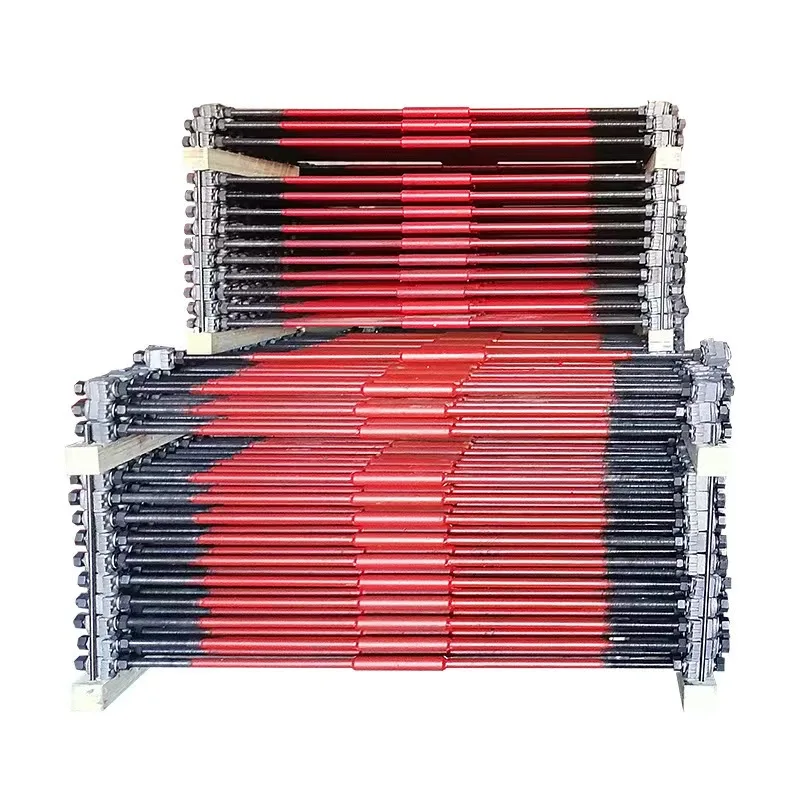

Types of gauge rods include insulated gauge rods and non-insulated gauge rods. Insulated gauge rods are needed in railway lines with the electric circuit. The insulation material is placed in the middle of the rod.
We can supply both insulated gauge rods and non-insulated gauge rods for 56-½” track and rails of 60-140 lbs, AREMA 1-1/4 “, and other gauge rods used in BS, UIC rails, with the length of 600mm,762mm,900mm,1435mm, etc. Other types of gauge rods are available according to your special requirements.
Typical Railroad Gauge Rods

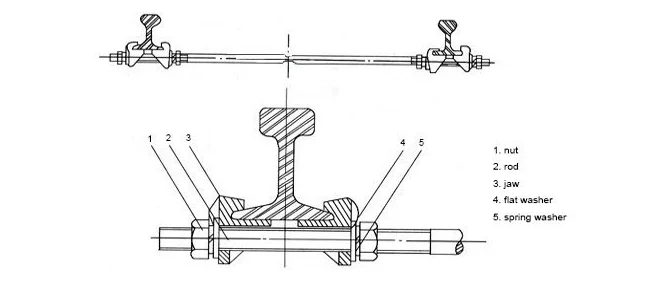

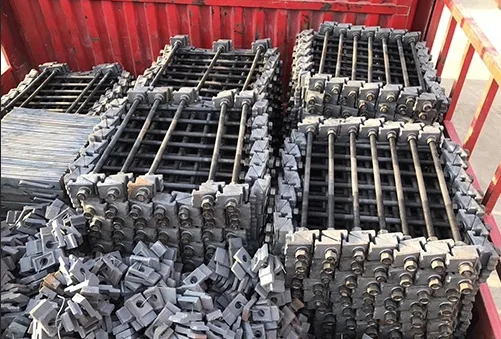

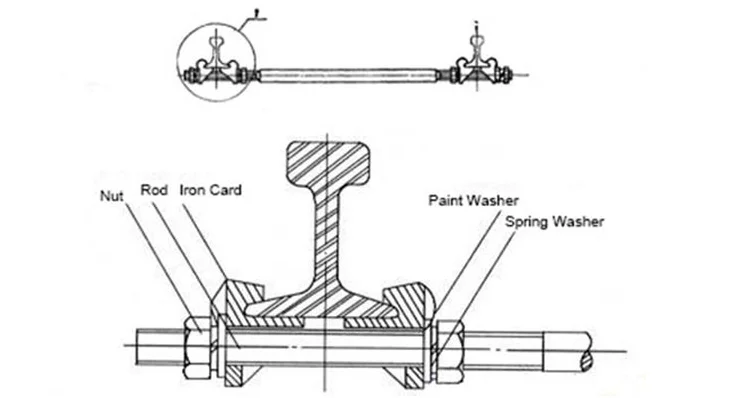

Our hot sale products are double end gauge rods for non-insulated or insulated types. They are a typical gauge rod with 2 iron jaws, 2 flat washers, 2 nuts, 2 spring washers on both ends.
| No. | Part | Quantity | Specification | Material |
| 1 | nut | 4 | M30 M36 | 3# |
| 2 | rod | 1 | M30 M36 | 3# |
| 3 | iron jaws | 4 | I type II type | KTH350-10 |
| 4 | flat washer | 4 | M30 M36 | 3# |
| 5 | spring washer | 4 | M30 M36 | 65Mn |
- Application: 43,50,60,75kg/m rail
- Rail gauge: 600, 762, 900 and 1450.
- Diameter: 20, 22, 24, 28, 32, 36 etc.
- Specification: 20×870, 22×880, 22×1050, 24×1050, 24×1250, 28×1810, 28×1850, 32×1810, 32×1850, 36×1850
The Importance of Rail Gauge Rod
As an important accessory for railroad tracks, rail gauge tie rod helps to improve the rails’ lateral stability and also the ability to keep rail distance. There are some railways that with track circuit, then it should use the insulated rail gauge rod which adopts high insulation resistance material to separate the circuit between two rails apart. Rail gauge may deviated if gauge tie rod is serious lacked, it may cause derailment or even overturned when the train passing by.
Made of two clamping devices at either end to fix railway tracks and a connected rod in the middle, a rail gauge rod fastens two parallel railways with certain gauge railway and prevents the rail from sliding.
For some weaker sections of rails, like in sharp curves, turnouts, bad ties and temporary track, rail gauge rods are quite necessary, they help to prevent the rail track from unbalanced longitudinal tension and keep regular rail gauges.
Made of two clamping devices at either end to fix railway tracks and a connected rod in the middle, a rail gauge rod fastens two parallel railways with certain gauge railway and prevents the rail from sliding.
For some weaker sections of rails, like in sharp curves, turnouts, bad ties and temporary track, rail gauge rods are quite necessary, they help to prevent the rail track from unbalanced longitudinal tension and keep regular rail gauges.
Features of rail gauge tie rod from GETAI
1. High Intensity
2. High Durability
3. Excellent Chemical Stability
4. Easy Operation
2. High Durability
3. Excellent Chemical Stability
4. Easy Operation
Influence factors of rail gauges
Traffic Condition:
If the intensity of traffic on the track is likely to be more, a gauge wider than the standard gauge is suitable.
Development of Poor Areas:
The narrow gauges are laid in certain parts of the world to develop a poor area and thus link the poor area with the outside developed world.
Cost of Track:
The cost of railway track is directly proportional to the width of its gauge.
If the fund available is not sufficient to construct a standard gauge, a metre gauge or a narrow gauge is preferred rather than having no railways at all.
Speed of Movement:
The speed of a train is a function of the diameter of wheel which in turn is limited by the gauge.
The wheel diameter is usually about 0.75 times the gauge width and thus, the speed of a train is almost proportional to the gauge.
If higher speeds are to be attained, the B.G track is preferred to the M.G or N.G track.
Nature of Country:
In mountainous country, it is advisable to have a narrow gauge of the track since it is more flexible and can be laid to a smaller radius on the curves.
This is the main reason why some important railways, covering thousands of kilometers, are laid with a gauge as narrow as 610 mm.
If the intensity of traffic on the track is likely to be more, a gauge wider than the standard gauge is suitable.
Development of Poor Areas:
The narrow gauges are laid in certain parts of the world to develop a poor area and thus link the poor area with the outside developed world.
Cost of Track:
The cost of railway track is directly proportional to the width of its gauge.
If the fund available is not sufficient to construct a standard gauge, a metre gauge or a narrow gauge is preferred rather than having no railways at all.
Speed of Movement:
The speed of a train is a function of the diameter of wheel which in turn is limited by the gauge.
The wheel diameter is usually about 0.75 times the gauge width and thus, the speed of a train is almost proportional to the gauge.
If higher speeds are to be attained, the B.G track is preferred to the M.G or N.G track.
Nature of Country:
In mountainous country, it is advisable to have a narrow gauge of the track since it is more flexible and can be laid to a smaller radius on the curves.
This is the main reason why some important railways, covering thousands of kilometers, are laid with a gauge as narrow as 610 mm.
Our Services
Good Service:
We will respond to you within 24 hours. We can manufacture nonstandard parts according to your drawings. And we will continue to serve you after sales and will be responsible for the mistakes from us.
Low Price:
The prices of our production are reasonable! The prices will be much better if your quantity is good.
Perfect Quality:
We have strict quality control from producing to delivery. Our company had strong technology support, 80% of our colleagues are master or bachelor's degree. We have cultivated a group of managers who are familiar with product quality , good at modern concept of management .

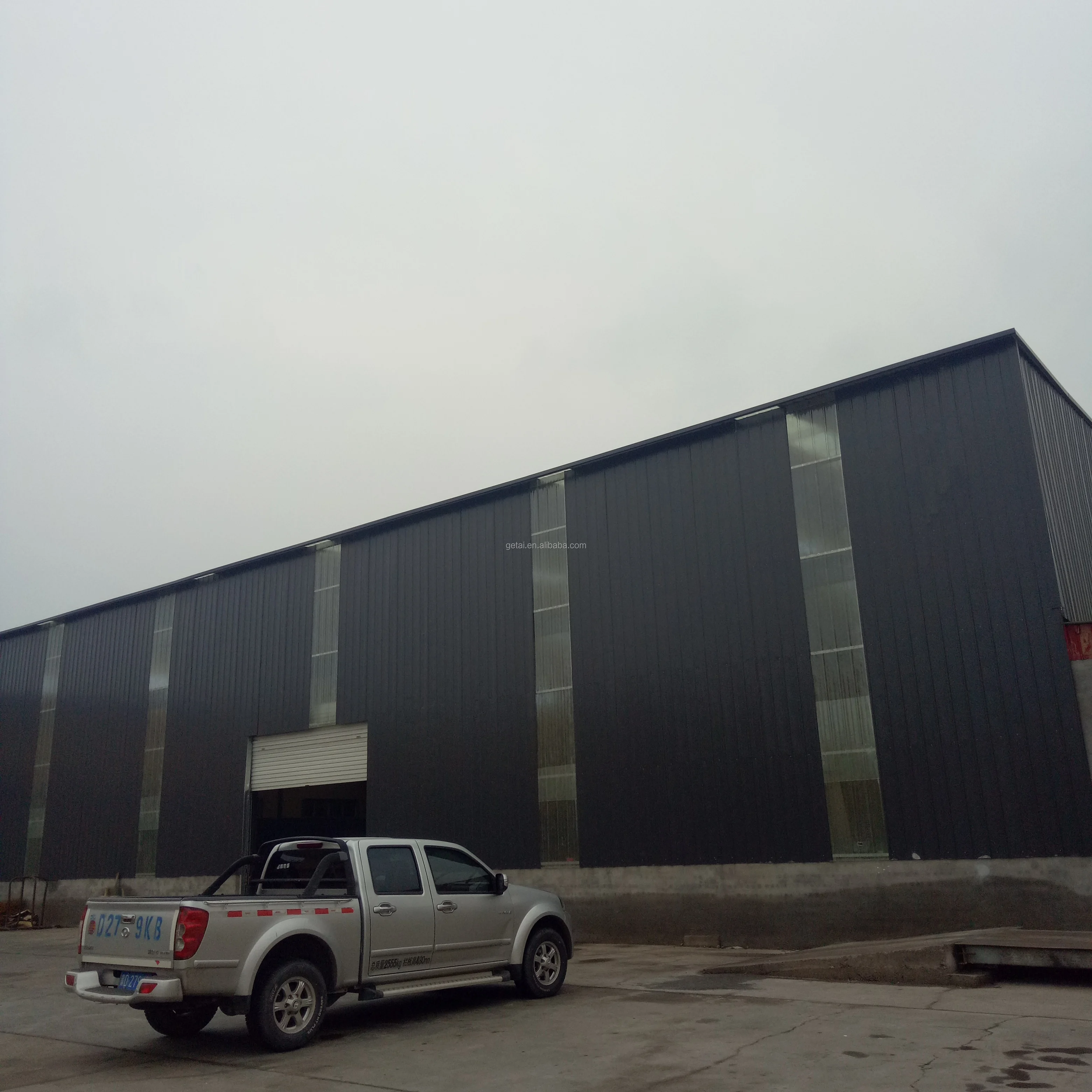

Company Information
Yongnian Getai Fastener Co., Ltd is a leading and professional manufacturer and supplier of various fasteners such as threaded rods, anchor bolts, headed bolts, nuts, washers, expansion anchors, and screws, etc. We are also capable of producing non-standard fasteners according to customers’ drawing or sample. Also stamping and welded products with extensive industry application. Meanwhile, we can do head markings to meet customers’needs. The main product standards: DIN, GB, ANSI/ASTM, JIS, ISO.

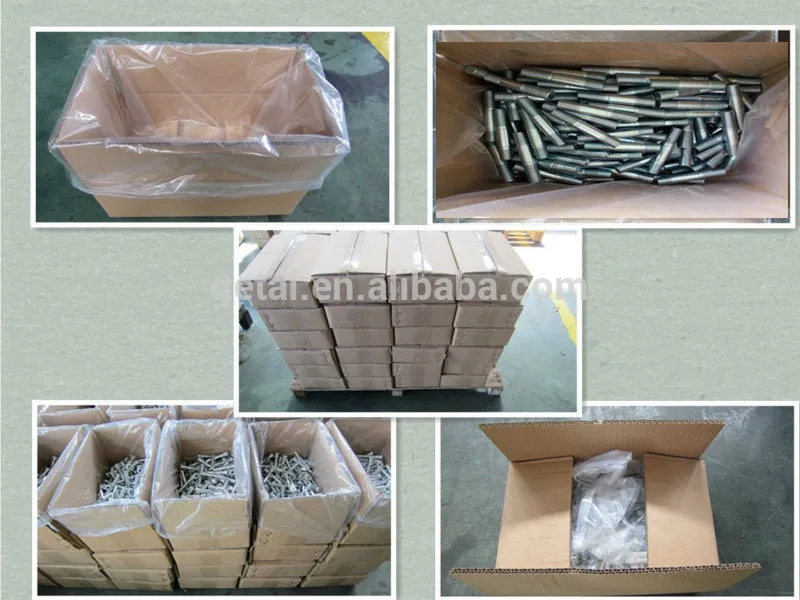

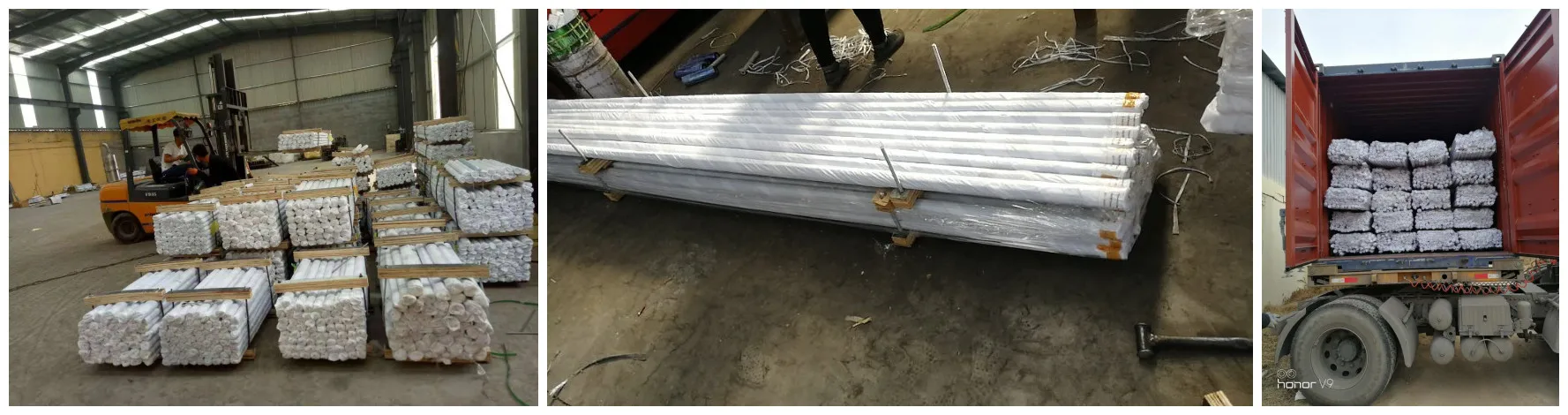

Packaging & Shipping
Our goods will be packaged according to your requirements and be delivered as soon as possible according to our order.
FAQ
