High Quality Orange Concrete Spray Gunite Shotcrete Machine Electric Concrete Shotcrete Machine

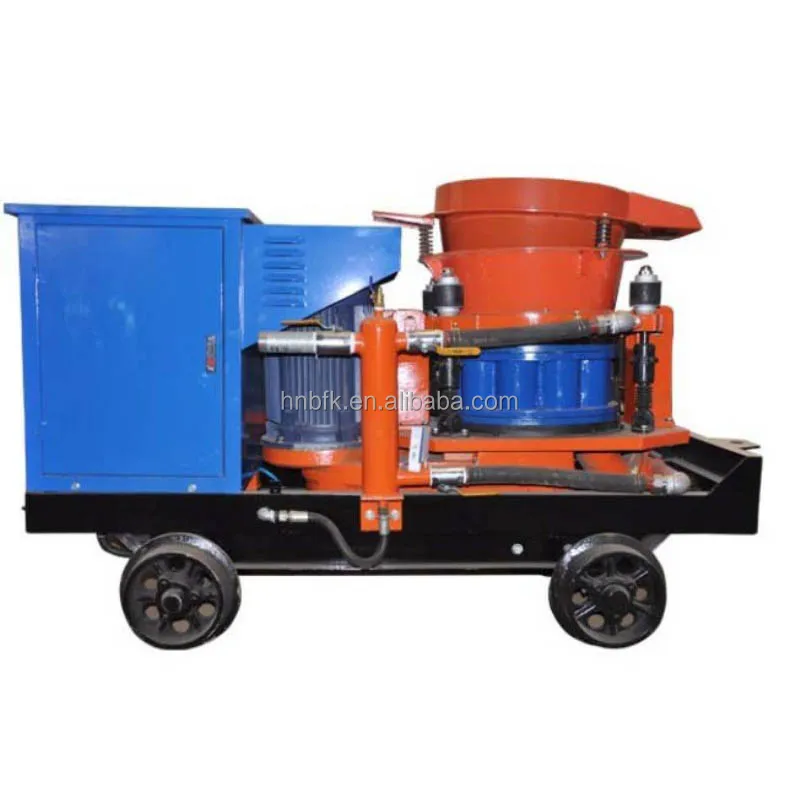

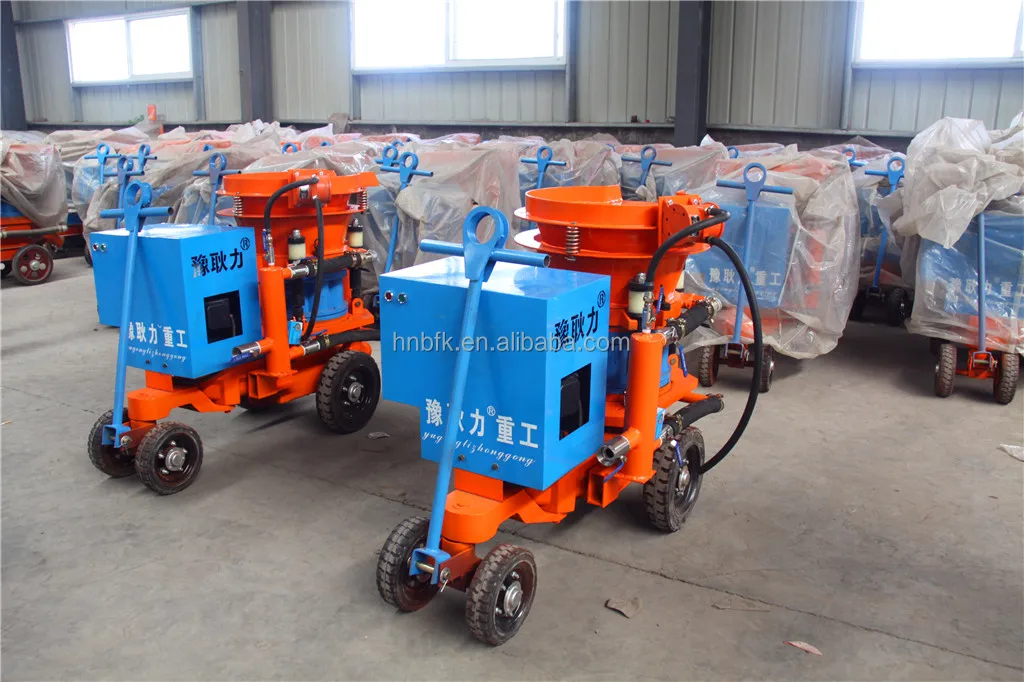

Concrete shotcrete machine
The shotcreting machine is a new type of high-efficiency shotcreting machine. The equipment uses concrete pump to deliver concrete to the nozzle through the pipeline, and uses compressed air with accelerator to spray the concrete to the wall of the sprayed roadway.
Product parameters
Type | PZ-5 | PZ-7 |
productive power | 6m³/h | 7m³/h |
working pressure | 0.2Mpa-0.4Mpa | 0.2Mpa-0.4Mpa |
Air consumption | 8-10m³/min | 8-10m³/min |
Motor power | 5. 5KW | 5. 5KW |
voltage | 380V | 380V |
transmission distance | 200M | 200M |
Transmission height | 20M | 20M |
Maximum orthopedic particle size | 20mm | 20mm |
Export direct | 51mm | 51mm |
Weight | 600KG | 850KG |
size | 1520*900*1200mm | 1600*900*1200mm |
Water-cement ratio | ≤0.4-0.45 | ≤0.4-0.45 |
Material ratio | 1：3--5 | 1：3--5 |
Feeding height | 1.1M | 1.1M |

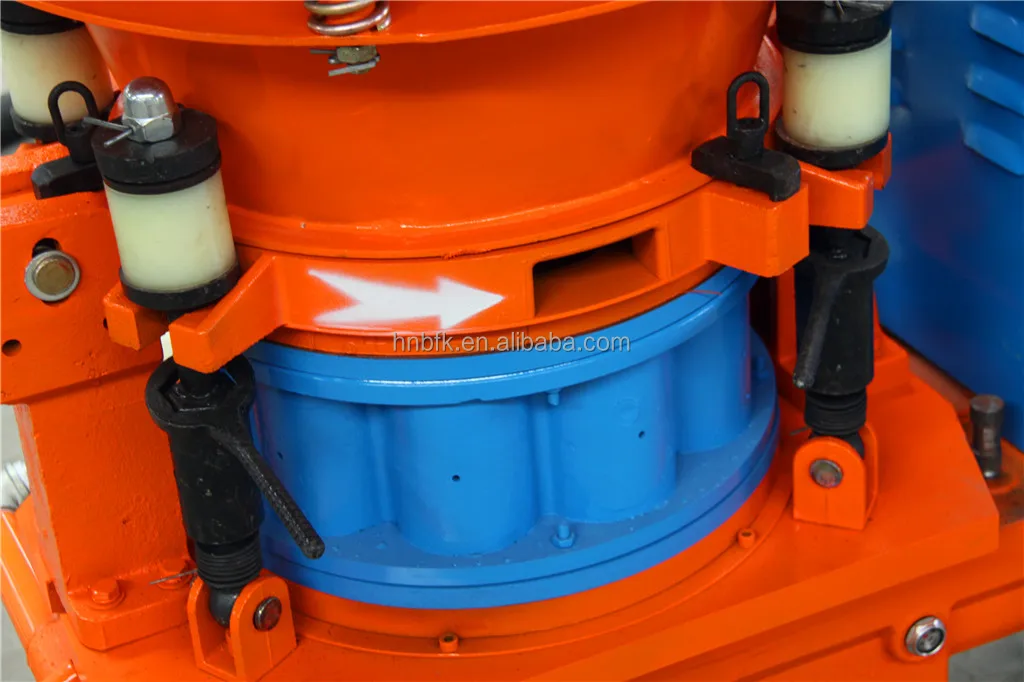

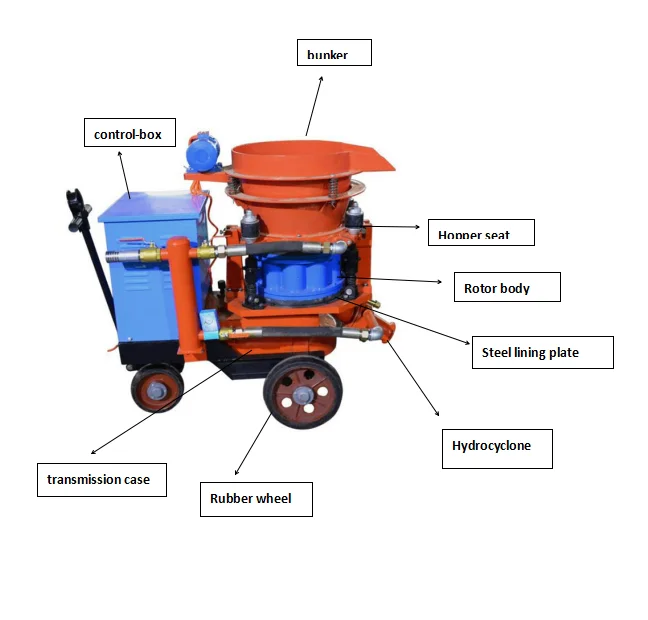

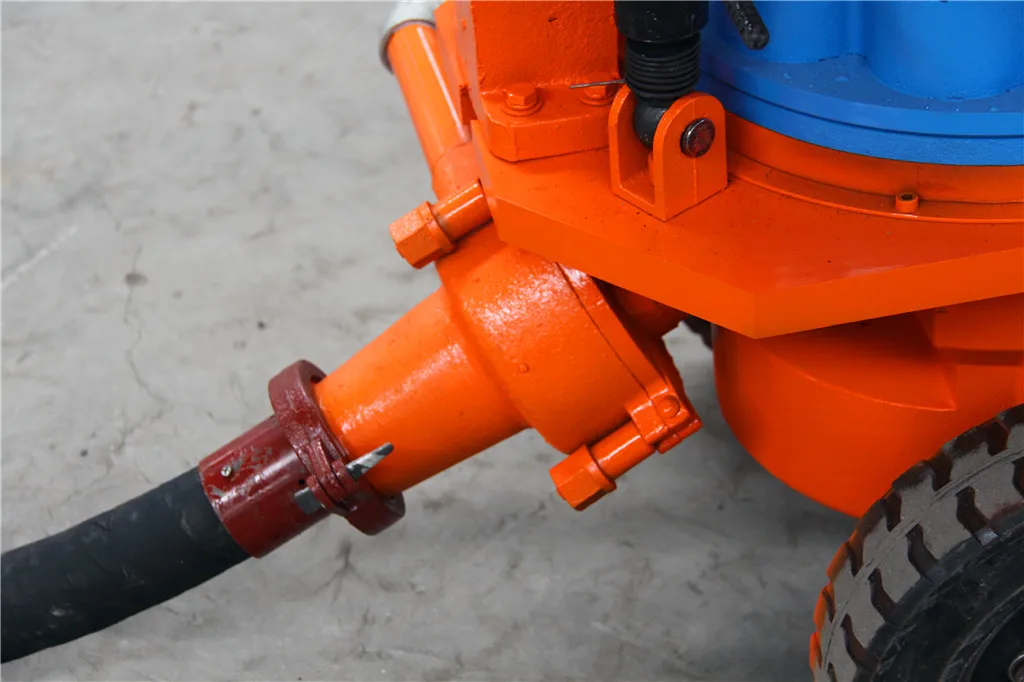

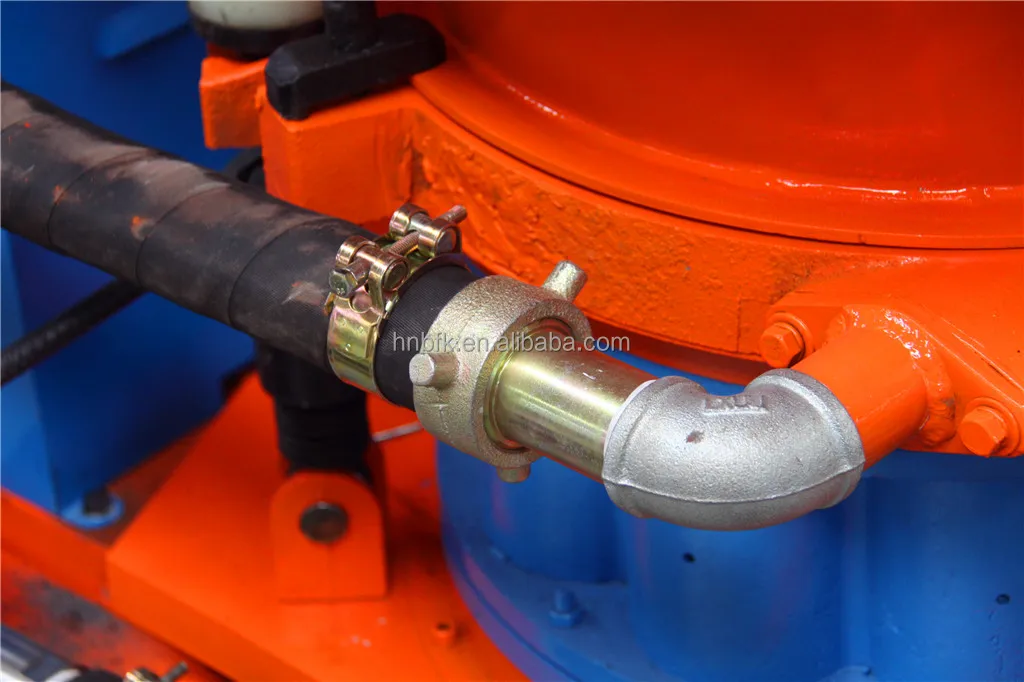

Product details
The concrete shotcrete machine has a remote control system, and the wireless remote control operation is simple and convenient. Moreover, the large arm and small arm of the telescopic shotcrete arm have automatic parallel function, stable performance, good construction quality, improved construction environment, and also played an important role in various construction fields.
Related accessories
Attention
This product is equipped with wearing parts that can be used for one year.Vulnerable parts are of good quality, but they need to be purchased later.

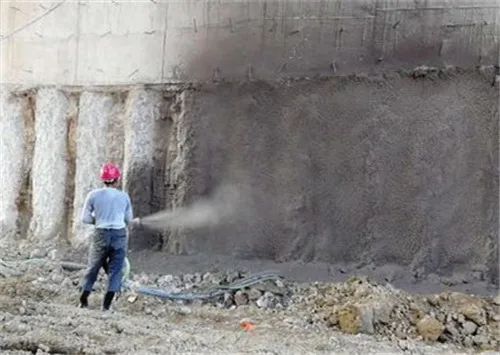

Scope of application

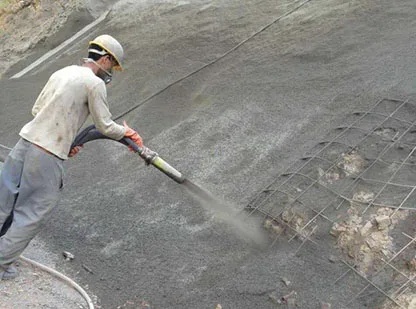

1.Slope support
In order to ensure the safety of the slope and its environment, the retaining, reinforcement and protection measures are taken for the slope. There are many kinds of slope support, one of which is called bolting and shotcrete support.

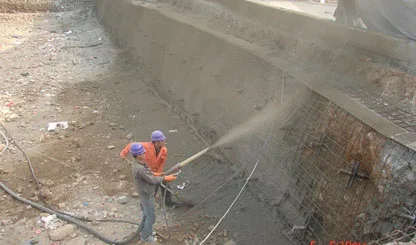

2.Foundation pit support
Foundation pit support is to ensure the safety of underground structure construction and the surrounding environment of the foundation pit, and to adopt support, reinforcement and protection measures for the side wall of the foundation pit and the surrounding environment.

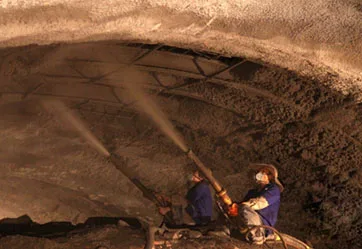

3.Tunnel support
The main supporting methods are arch support, anchor bolt support, anchor shotcrete support, anchor mesh shotcrete support, anchor cable support, metal arch support, stone support, reinforced concrete support, and of course, joint support between various types of supports.
4.Bolting and shotcrete support
Bolt and shotcrete support is composed of anchor rod and shotcrete panel. Its main function is to limit the free development of surrounding rock deformation, adjust the stress distribution of surrounding rock, and prevent rock mass from falling loose.
Why Choose Us
Henan Be Focus Mechanical Equipment Co., Ltd. is a professional production and processing company for steel machinery, concrete mixers, road machinery, batching machines, etc. It has a complete and scientific quality management system. Henan Be Focus Mechanical Equipment Co., Ltd.was established in the nineties of twenty century and is one of the earliest professional manufacturers in the field of construction machinery In the spirit of professionalism and excellence,we have gradually developed into a large factory with a history of 30 years. The equipment we provid includes steel bar bending machine,steel bar cutting machine steel bar straightening machine concrete laser screed,concrete cutting machinepower plastering machinerollerconcrete screedconcrete mixer and so on. Has more than 100 engineering and technical experience. Construction machinery we can meet your different orders. In addition, our professional R &:D team will provide you with the most convenient service, Since your order, we can provide the best products and service for you.
Company culture
All employees of the company adhere to the principle that credibility is life, quality is survival, and customers are parents The principle is to gain trust by quality, extract value by brand, create differences by creating, and serve To win the competition is your reliable and long-term partner.Production Capacity

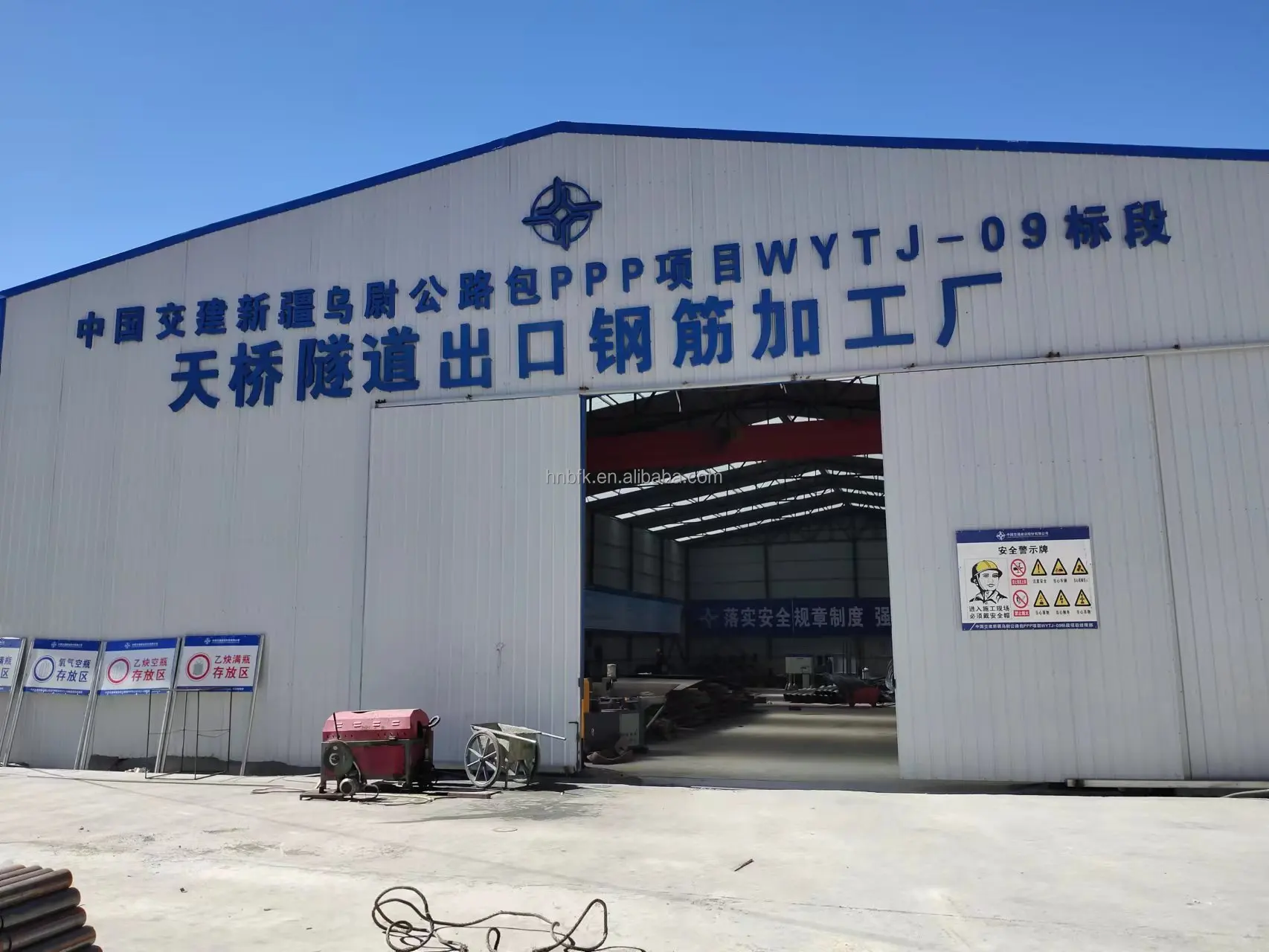

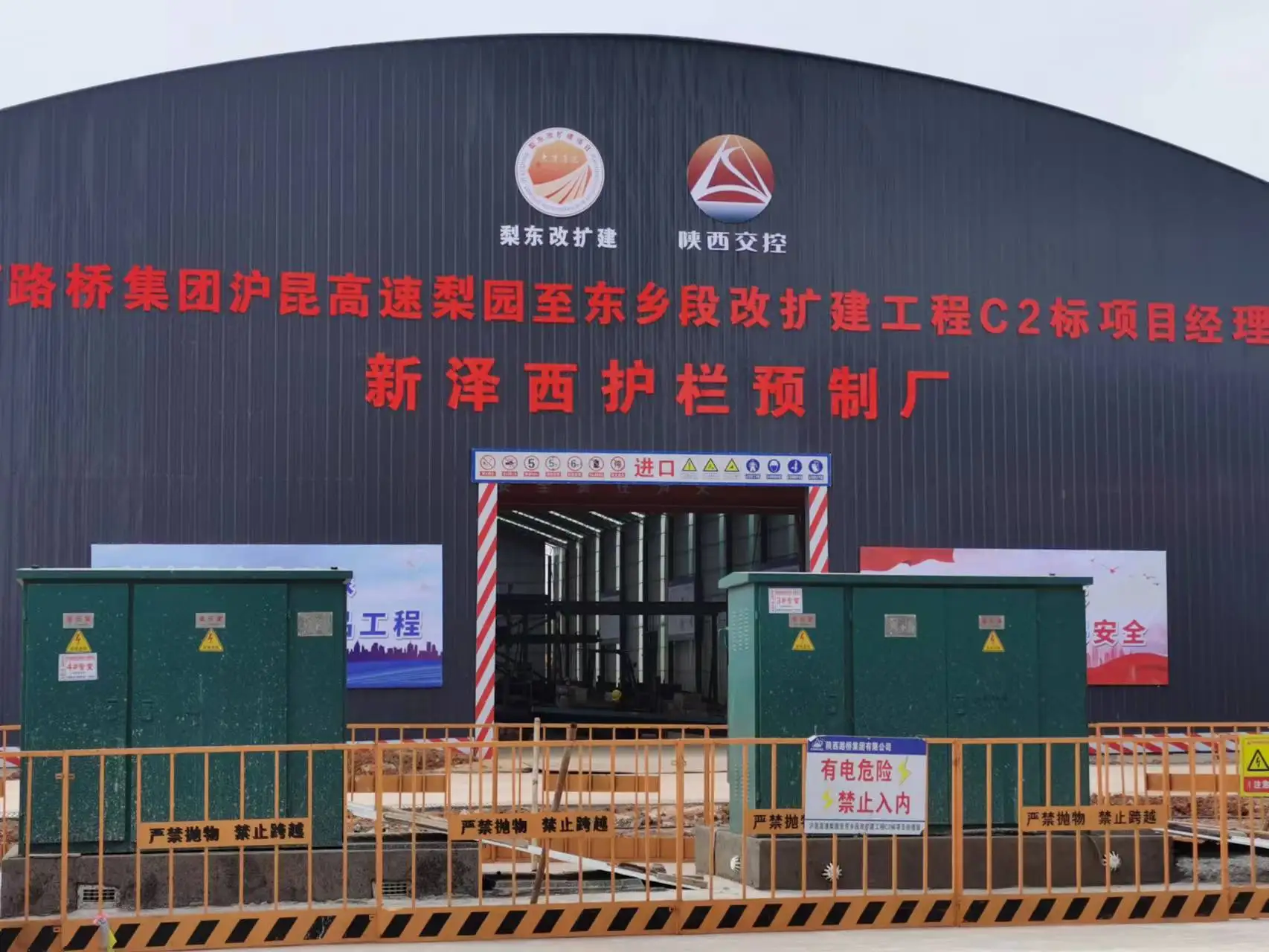

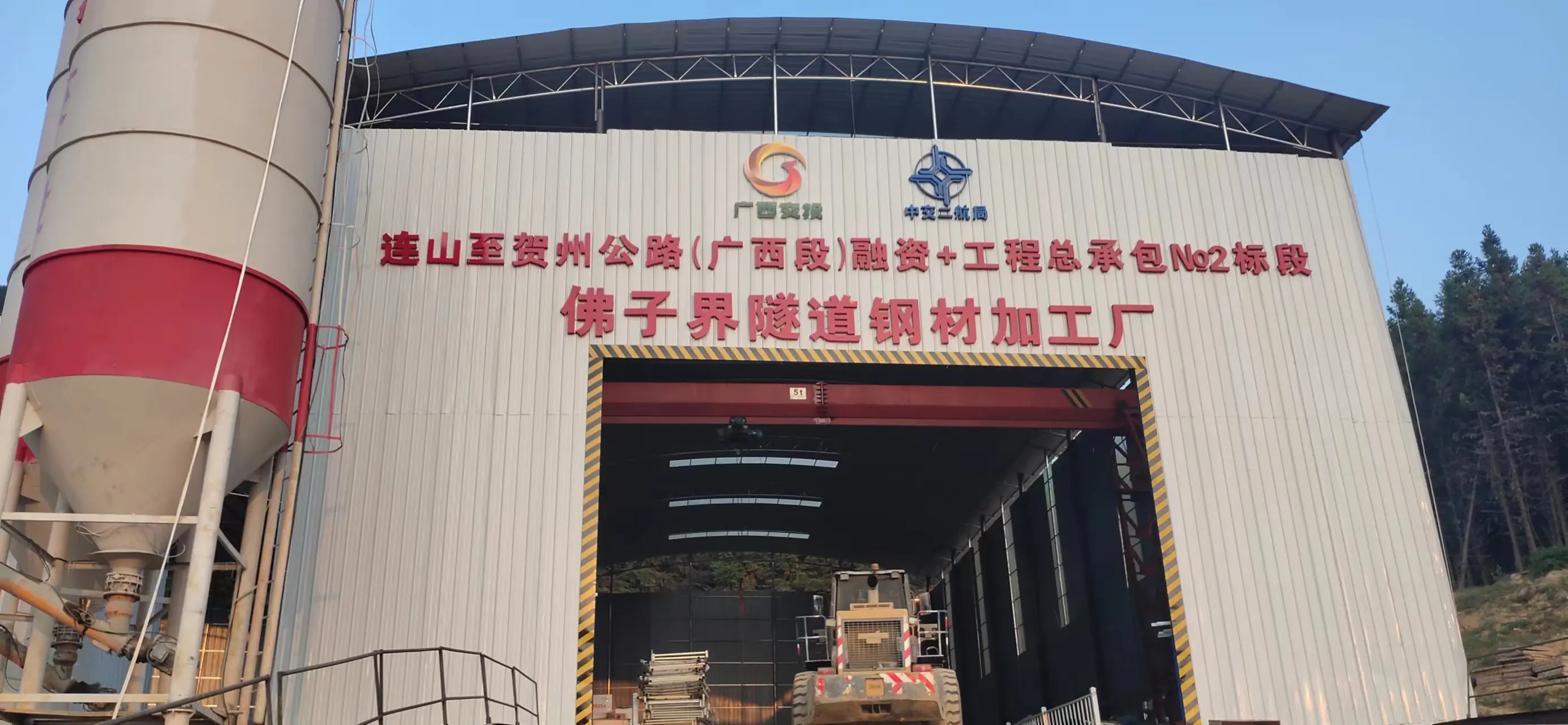

The company cooperates with all major engineering projects
R&D capability
Packing
Factory inspection report
A: T/T 30% is the deposit, and 70% before delivery. Before you pay the balance, we will show you the photos of the products and packaging.
Q2. What are your delivery terms? Answer: EXW, FOB, CFR, CIF. Q3. How about your delivery time?
A: Generally, it takes 7-10 working days after receiving your advance payment. The specific delivery time depends on the item and quantity of your order.
Q4. What is the warranty of our machine? Answer: Our host enjoys a one-year warranty(except hammer), during which all Damaged parts can be replaced with new ones. We provide machine installation and operation video.
Q5. What are your packing conditions? Answer: LCL goods generally use standard export wooden cases, and the full case goods are fixed.
Q6. Do you test all goods before delivery?
Ans.: Yes, we conducted 100% tests before delivery. We will attach the inspection report of each machine.
Q7. Do you give priority to providing vulnerable parts to trading customers?
Ans.: Yes, we have the records of your customers and are more willing to provide them with accessories.
Q8: How do you maintain a long-term good relationship with our business?
Ans.: 1. We maintain good quality and competitive prices to ensure the interests of our customers;
2. We respect every customer and treat them as friends, no matter where they come from We all sincerely do business and make friends.
2. We respect every customer and treat them as friends, no matter where they come from We all sincerely do business and make friends.
Q9. Do you have a certificate for your machine?
Ans.: All our products have CE and ISO9001 certificates.
