033 U-образная машина для производства питьевой соломы
US $9200-$9500
Горячий продукт 2023 машина для сгибания соломы
- Категории: Straw Making Machines >>>
- Поставщик: Zhengzhou,Huamo,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

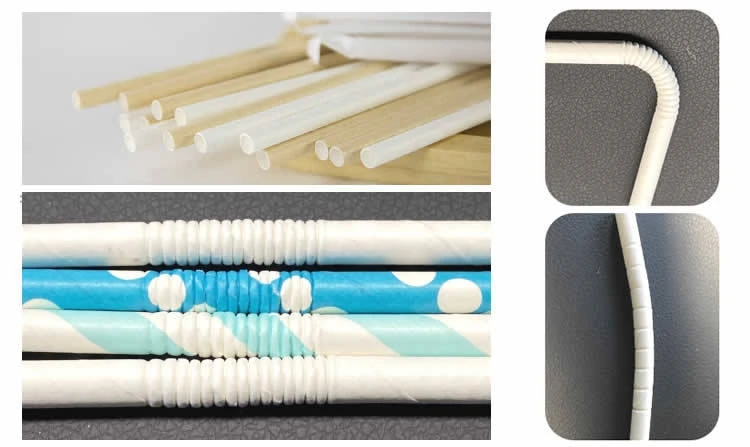

Paper tube bending machine
It is a kind of equipment used to process straws into organ-shaped bends. The whole machine is fully automated from straw input to finished product
output, and only needs to manually add straight tube blanks. The straw is fed from the hopper on the upper part of the equipment, and the straight pipes are clamped by two sets of
manipulators, and then the straight pipes are sent to the main rotary table of the equipment one by one, and the suction pipe is placed on the suction pipe by two rotating pressure wheels
through the rotation of the main rotary table. The indentation is formed, and then it is compressed by two manipulators, so that the indentation is in the shape of an organ, and
the finished product is automatically conveyed out.
output, and only needs to manually add straight tube blanks. The straw is fed from the hopper on the upper part of the equipment, and the straight pipes are clamped by two sets of
manipulators, and then the straight pipes are sent to the main rotary table of the equipment one by one, and the suction pipe is placed on the suction pipe by two rotating pressure wheels
through the rotation of the main rotary table. The indentation is formed, and then it is compressed by two manipulators, so that the indentation is in the shape of an organ, and
the finished product is automatically conveyed out.
Machine Features
High production efficiency, only one person is required to operate.
1、Applicable to the production of straws made of plastic, paper and other materials.
2、The production process is automatically counted and displayed on the touch screen.
3、The designated production batch will automatically stop, which is convenient for manual bagging.
Friendly man-machine interface, fault alarm and automatic shutdown.
1、Applicable to the production of straws made of plastic, paper and other materials.
2、The production process is automatically counted and displayed on the touch screen.
3、The designated production batch will automatically stop, which is convenient for manual bagging.
Friendly man-machine interface, fault alarm and automatic shutdown.
Specification
Straw outer diameter | 6mm |
Inner diameter of straw | 5.2mm |
Straw length | 150-240mm |
Elbow length | 30mm |
Production speed | 250-300pcs/min |

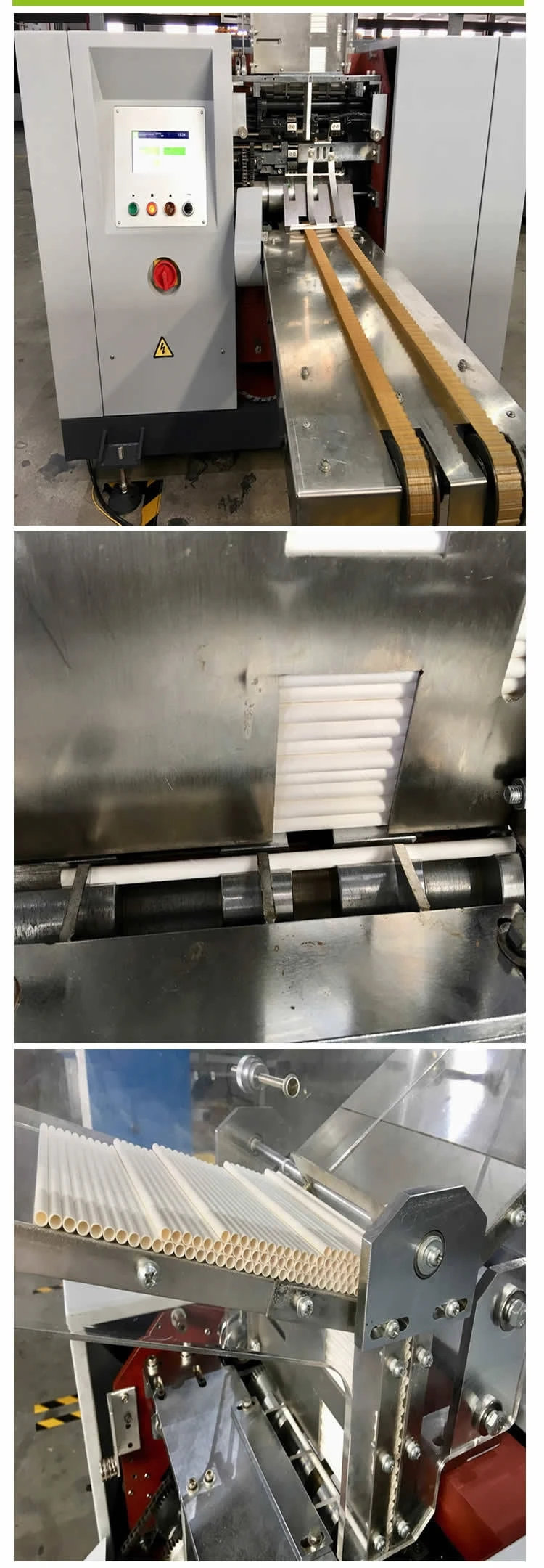

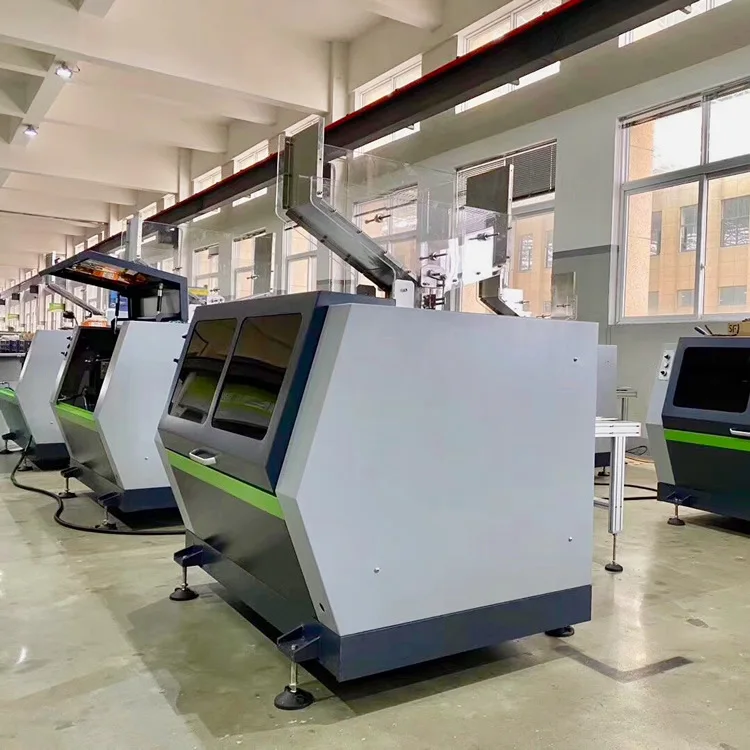

Machine Display
Packing & Delivery
Wooden case
Company Profile
Zhengzhou HuaMo Machinery Equipment Co., Ltd. is an operating entity integrating design, development, manufacturing, marketing and engineering services of kind of paper producing machine,paper box,paper cups,paper strawing,snack box processing environmental equipment,Egg holder machines and various of packing&filling machine and base construction machines etc.
Based on research results and production experience, the company has extensively absorbed and digested advanced technologies at home and abroad, and devoted itself to the production and service of complete processing equipment,and passed ISO9001 Quality System and CE certificate for insuring quality.
Based on research results and production experience, the company has extensively absorbed and digested advanced technologies at home and abroad, and devoted itself to the production and service of complete processing equipment,and passed ISO9001 Quality System and CE certificate for insuring quality.
FAQ
Q1: How to find a Packing machine suitable for your product? Please tell me your raw materials and daily output, and I will
recommend suitable machines for you
recommend suitable machines for you
Q2:How can I trust you for the first time business ? Please note our above business license
and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee
your machine's on-time delivery and machine quality.
and certificate. And if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee
your machine's on-time delivery and machine quality.
Q3:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality
