Product Overview

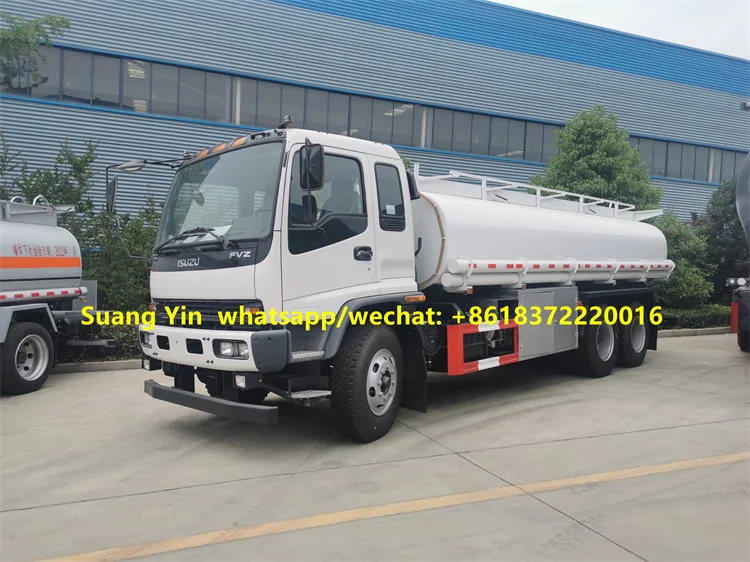

ISUZU FVZ CXZ 18000 liter Stainless Steel Water Tanker Truck
ISUZU FVZ CXZ 18000 liter stainless steel water tanker truck, also called water bowser, water tanker, water truck, water tank lorry, which is a kind of tanker vehicles, consists of truck chassis, tank body, manhole, pump, pipeline, vavles, ladder, etc, mainly used for the transportation of water. Potable water truck, also called potable water lorry, drinking water truck, etc, is a kind of water lorry to transport clean drinking water, and also can be used to transport milk, juice, potable oil, alcohol, and other food or edibel liquid.

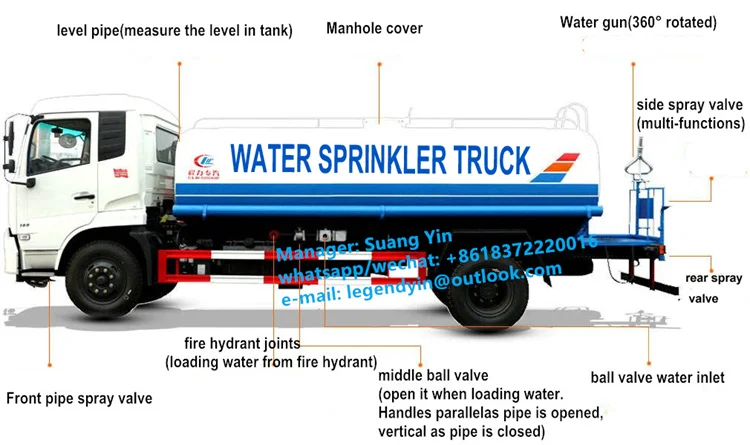

Main Structures:

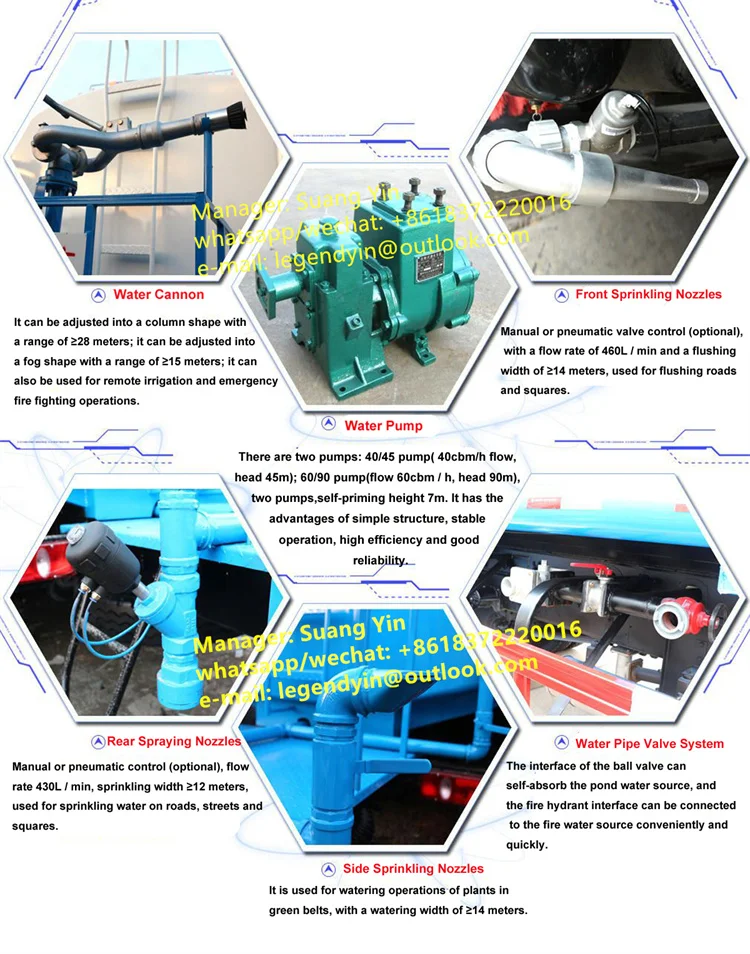

Our company's ISUZU FVZ CXZ 18000 liter stainless steel water tanker truck comes standard with front flushing and rear spraying, side spraying, rear-mounted working platform, and a high-pressure water cannon on the platform (it can be rotated 360°, and can be adjusted to a column with a maximum range of 35 meters, and can also be adjusted to a fog-shaped maximum range of 15 meters. , can be adjusted into: straight-through, heavy rain, moderate rain, light rain, drizzle), equipped with high-quality high-power special sprinkler pump, power take-off, debris filter, national standard universal 65-type fire interface (water can be added through fire hydrant), 1 set of self-flowing ball valve system (can be self-priming and self-draining, can pump water from the river or pond to the tank, the maximum suction lift is 7 meters), 2 water diversion steel wire hoses. water spraying truck water tank Water pumps, power take-offs, ball valves, and filters are all national standard products. The main pipeline of stainless steel water tanker truck is thickened, the flange gasket and flange plate are thickened, and the universal forward punching, large-diameter ball valve has excellent performance, reliable work, high efficiency, It has the characteristics of large flow and convenient maintenance.
Our company's ISUZU FVZ CXZ 18000 liter stainless steel water tanker truck comes standard with front flushing and rear spraying, side spraying, rear-mounted working platform, and a high-pressure water cannon on the platform (it can be rotated 360°, and can be adjusted to a column with a maximum range of 35 meters, and can also be adjusted to a fog-shaped maximum range of 15 meters. , can be adjusted into: straight-through, heavy rain, moderate rain, light rain, drizzle), equipped with high-quality high-power special sprinkler pump, power take-off, debris filter, national standard universal 65-type fire interface (water can be added through fire hydrant), 1 set of self-flowing ball valve system (can be self-priming and self-draining, can pump water from the river or pond to the tank, the maximum suction lift is 7 meters), 2 water diversion steel wire hoses. water spraying truck water tank Water pumps, power take-offs, ball valves, and filters are all national standard products. The main pipeline of stainless steel water tanker truck is thickened, the flange gasket and flange plate are thickened, and the universal forward punching, large-diameter ball valve has excellent performance, reliable work, high efficiency, It has the characteristics of large flow and convenient maintenance.
FEATURES AT A GLANCE
Japan ISUZU FVZ CXZ 18000 liter stainless steel water tanker truck
6HK1 300HP Euro5 diesel engine
7T/2x 10T axle Load
11.00R20 tires
18000 liter volume Tank Body
Stainless steel 304 tank body
Discharge valve: 2 pcs DN65 valve
60m3/h water pump, pump in and pump out
Suction depth 6 meters
Stainless steel pipe/valves
ISUZU FVZ/CXZ cab chassis
ISUZU Stainless steel tank body
ISUZU WATER TRUCK
PRODUCT SPECIFICATIONS
Medium of Water Tanker | Water | |||
Model of Water Lorry | CLW5250GYSSQ5 | |||
Volume of Tank | 18,000 liter | |||
Material of Tank | Stainless steel 304 | |||
Overall Dimension | 9500x2500x3220 mm | |||
Gross Weight | 18000 kg | |||
Tare Weight | 9500 kg | |||
Brand | Japan(ISUZU) | |||
Wheelbase | 6x4, LHD | |||
Engine | 6HK1 300HP Euro5 Diesel Engine | |||
Wheelbase | 4350+1370mm | |||
Cab Seat | ISUZU FVZ single half cabin, air conditioner, electric window shaker, manual flip, AM/FM Radio MP3 USB, road bumper, fixed boarding pedal. | |||
Tire | 10+1 pcs 11.00R2014PR radial tires | |||
Type | Mechanical type PTO | |||
Switch | In driving cab | |||
Super Structure Specification | Volume of Tank | 18,000 liters (= 18 cubic meter) | ||
Material of Water Tank | Stainless steel 304, inside with anti-corrosive treatment | |||
Manhole of Water Tank | 1 pcs, DN460mm at top of tank, stainless steel manhole cover with breathing hole | |||
Pipeline | Stainless steel | |||
Discharge Valve | 2 pcs, DN65mm stainless steel ball valve | |||
Front/rear/side spraying system | 12~16 meter spraying nozzles | |||
Water cannon | 28~ 35 meter | |||
Ladder | One pcs | |||
Optional Devices | 2. Tank thermal insulation; 3. Tank with multi division compartment for different mediums; 4. Tool box; 5. Reverse camera. 6. Arrow light. | |||
For more details or special requirements about isuzu stainless steel water trucks, please directly contact whatsapp/wechat +86 18372220016 or email legendyin @ outlook.com. Direct factory will give you professional and high efficient suggestions. | ||||
