2x1x1m габионные корзины оцинкованная проволока с цинковым покрытием профессиональная фабрика шестиугольная габионная
- Категории: Other Wire Mesh >>>
- Поставщик: Anping,Hua,Cheng,Wire,And,Netting,Making,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
Gabion box by high corrosion resistance, high strength, ductility of low carbon steel wire or coated PVC above the use of mechanical weaving, the use of the net made of box structure is gabion cage. According to ASTM and EN standards, the diameter of the low carbon steel wire used varies according to the engineering design requirements. Generally between 2.0-4.0mm, the tensile strength of the stone cage wire is not less than 38kg/Square Meters, the weight of the metal coating is generally higher than 245g/Square Meters, and the edge line diameter of the stone cage mesh is generally greater than the wire diameter. The length of the double stranded part shall not be less than 50mm. To ensure that the stranded part of the steel wire metal coating and PVC coating is not damaged.
Specification
Gabion box specifications
Model | Mesh(mm) | Mesh Wire(mm) | Selvedge Wire(mm) | Lacing Wire(mm) | Max Widh |
60 | 60*80 | 2.0-2.8 | 3.0-4.0 | 2.0-2.2 | 4m |
80 | 60*100 | 2.0-3.0 | 3.0-4.0 | 2.0-2.2 | 4m |
80W | 60*120 | 2.0-3.0 | 3.0-4.0 | 2.0-2.2 | 4m |
100 | 100*120 | 2.0-3.0 | 3.0-4.0 | 2.0-2.2 | 4m |
100W | 100*150 | 2.0-3.0 | 3.0-4.0 | 2.0-2.2 | 4m |
120 | 120*150 | 2.0-3.0 | 3.0-4.0 | 2.0-2.2 | 4m |
Length(m) | Width(m) | Height(m) | Spacer(u) | Volume(m3) | Tolerance |
2 | 1 | 0.3 | 1 | 0.6 | ±5% |
3 | 1 | 0.3 | 2 | 0.9 | |
4 | 1 | 0.3 | 3 | 1.2 | |
2 | 1 | 0.5 | 1 | 1 | |
3 | 1 | 0.5 | 2 | 1.5 | |
4 | 1 | 0.5 | 3 | 2 | |
1 | 1 | 1 | 0 | 1 | |
1.5 | 1 | 1 | 0 | 1.5 | |
2 | 1 | 1 | 1 | 2 | |
3 | 1 | 1 | 2 | 3 | |
4 | 1 | 1 | 3 | 4 |

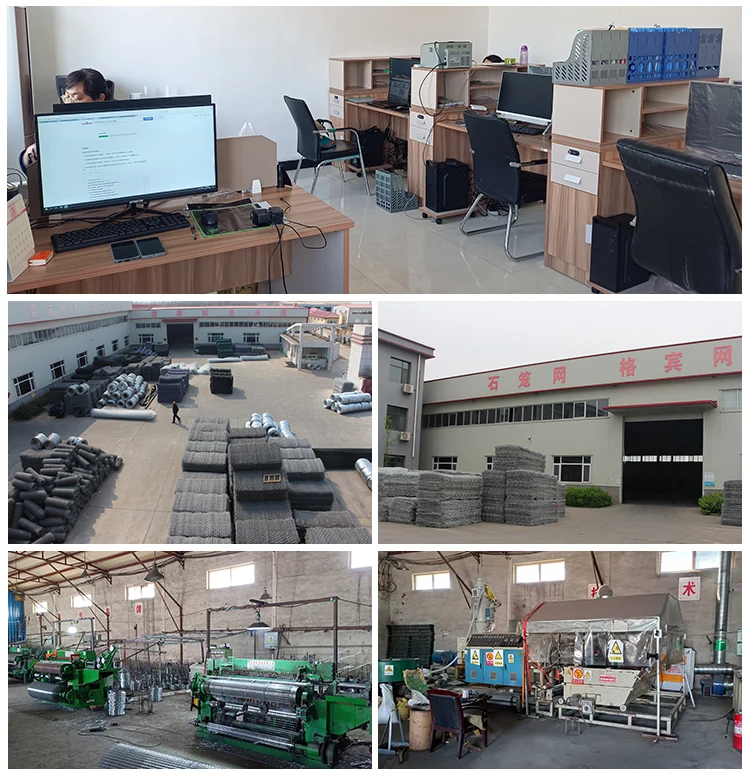

Company Profile
Packing & Delivery
FAQ
Q:Why choose us?
A: Save Time, Save Cost, and Safety ! Each of our customers proved this!
A: Save Time, Save Cost, and Safety ! Each of our customers proved this!
Q: How about the payment terms?
A:We usually use the T/T,L/C,D/P, Western Union. Trade assurance service optional for over $100 order. (100% guaranteed transaction by Alibaba ).
A:We usually use the T/T,L/C,D/P, Western Union. Trade assurance service optional for over $100 order. (100% guaranteed transaction by Alibaba ).
Q: How about the delivery time?
A:Usually within 5- 15 days, customized order may need longer time.
A:Usually within 5- 15 days, customized order may need longer time.
Q:Can you offer free sample?
A:Yes, but usually the customer need to pay the freight, We'll send back the courier charge if you make an order.
A:Yes, but usually the customer need to pay the freight, We'll send back the courier charge if you make an order.
Q: Can I have your products with my own logo on it?
A: Yes! Accept any custom logos, just send us your design in pdf. ai, or high res jpg. We would send you layout art with your logo on our products to check. The setup cost would be quoted per artwork.
A: Yes! Accept any custom logos, just send us your design in pdf. ai, or high res jpg. We would send you layout art with your logo on our products to check. The setup cost would be quoted per artwork.
Q: Are you a manufacturer?
A:Yes, we have been in providing the professional products in wire mesh field for 20 years.
A:Yes, we have been in providing the professional products in wire mesh field for 20 years.
