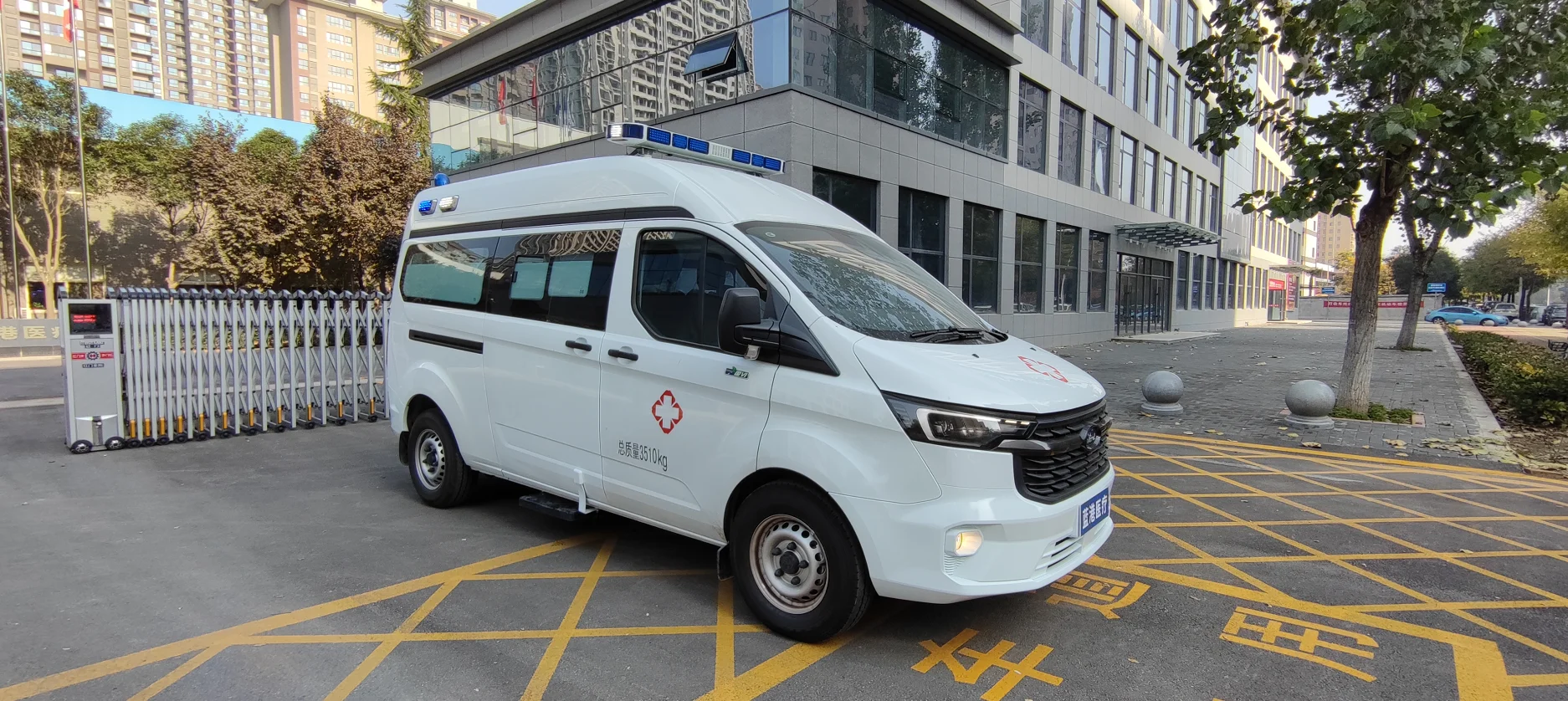

FORD NEW TRANSIT V362 MCA ICU мобильный медицинский автомобиль дизельный

Dimension and Weight

1

Overall Dimension (mm)

L:5341, 5520 ( with optional rear foot step)  W:1986

H:2450 (Heart-type alarm light) / 2495 (Embedded alarm light / 2510 (Alarm light bar)

2

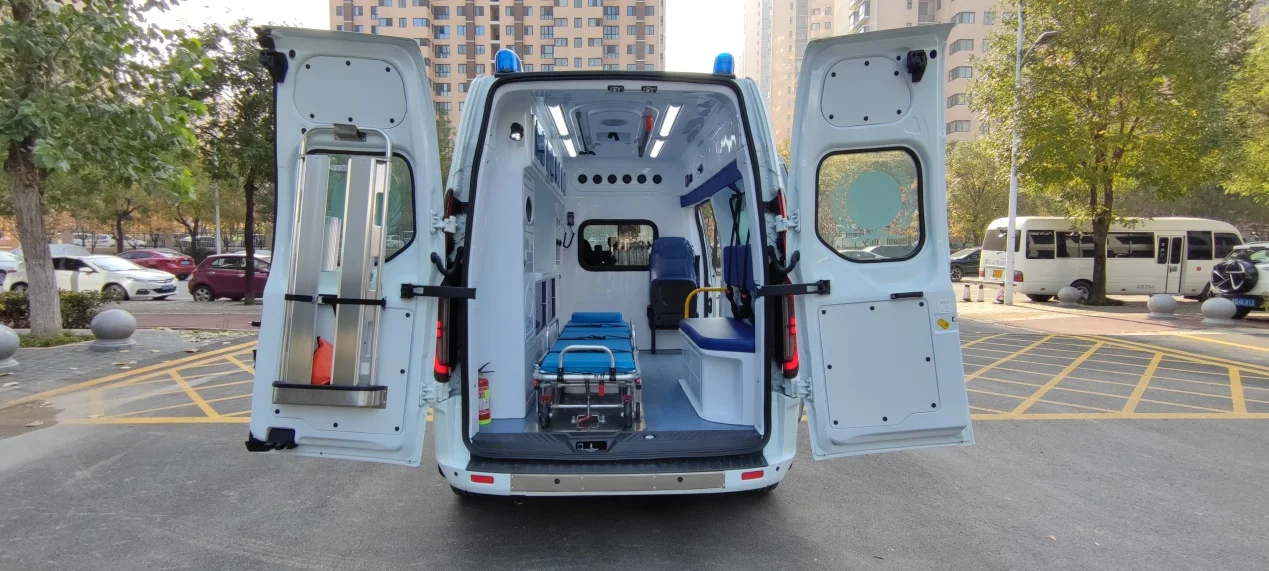

Dimension of Patient’s compartment (mm)

L:2820  W:1725  H:1760

3

GVW (kg)

3510

4

Turning diameter(m)

12.9

5

Approach Angle/Departure Angle (°)

21/25

6

Complete vehicle curb mass (kg)

2480(6)

7

Front/rear suspension (mm)

1014/1027

8

Front Wheel tread (mm)

1736

9

Rear Wheel tread (mm)

1720

10

Minimum ground clearance (mm)

141

11

Wheelbase (mm)

3300

12

Max speed (km/h)

160

13

Number of seats

6

14

Axle Load (kg)

1570/1940

15

Qty. of tires

4

16

Tires size

215/75R16LT

B

Engine

1

Engine

DURATORQ4D20B6H  (FORD)

2

Type of Fuel

Diesel

3

Working manner

in-line, 4 cylinders, inter-cooling, direct injection diesel engine

4

Engine Manufacturer

Jiangling Motors Corporation, Ltd

5

Emission standard

GB17691-2018 CN VI GB3847-2005

6

Displacement  ml

1998

7

Maximum power KW

105KW

Standard configuration of vehicle

1

Side sliding door+ Side door on the pedal

2

Central control door lock

3

Front power window

4

Driver seat manual 6 adjustment

5

Steel Hub

6

Integrated side window

7

Driver airbag+Seatbelt Warning

8

Four wheel disc brake

9

ABS

10

High mounted stop lamp

11

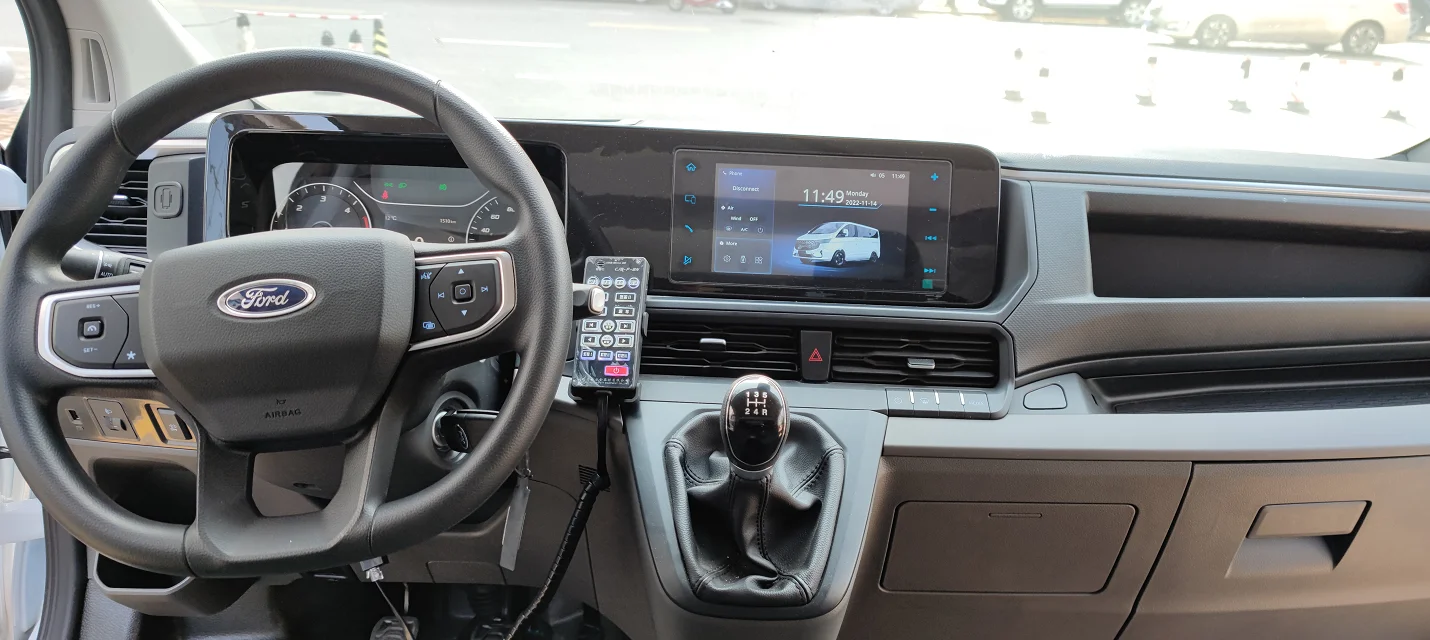

Central control multimedia screen, Bluetooth hands-free, BAIDU LIFE navigation, air conditioning adjustment

12

Air Conditioner

13

All-metal closed bearing body

14

Multi-function steering wheel

15

Parking radar+parking camera

16

Cruise Control

17

Automatic Headlight

18

Rear foot step (optional)
