Products Description

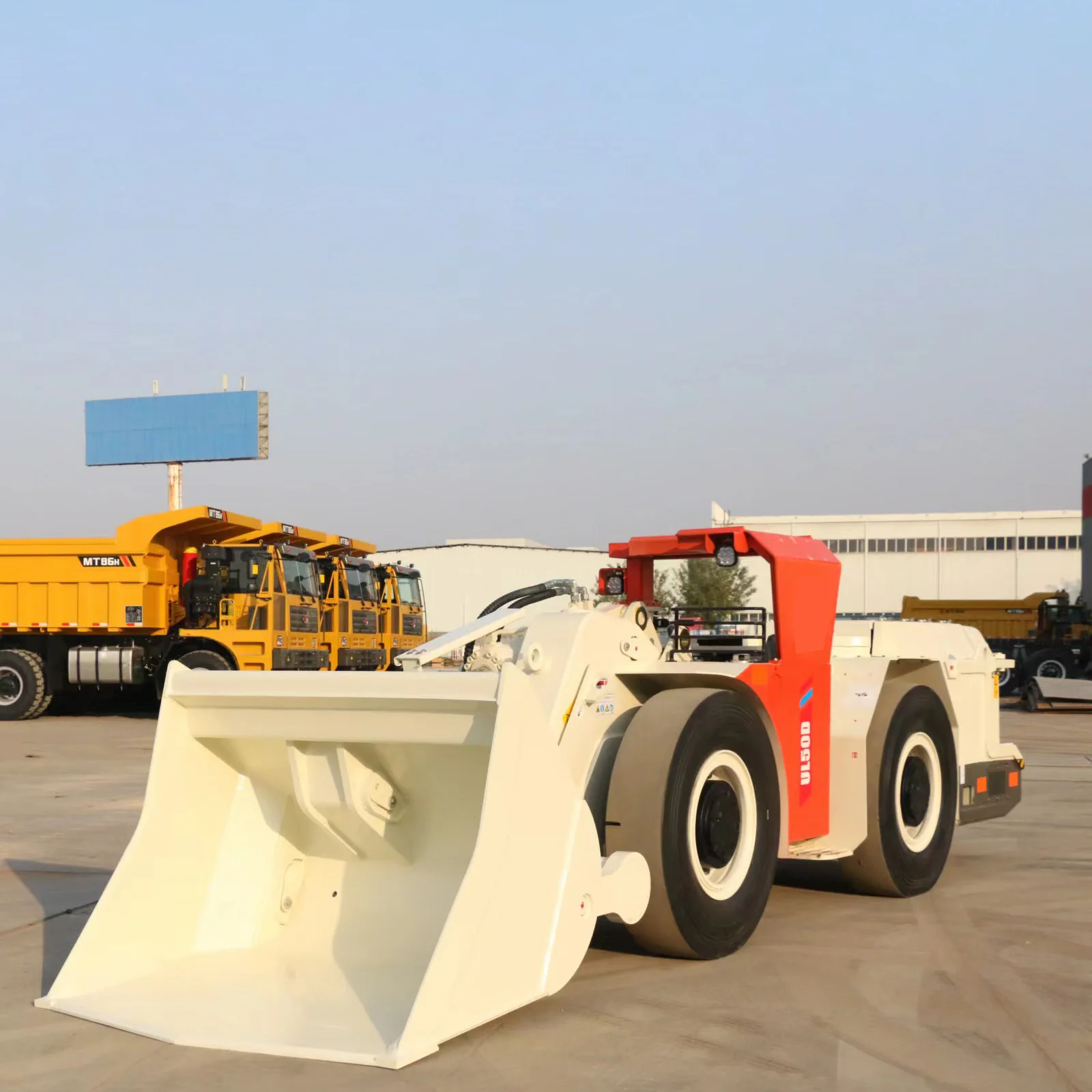

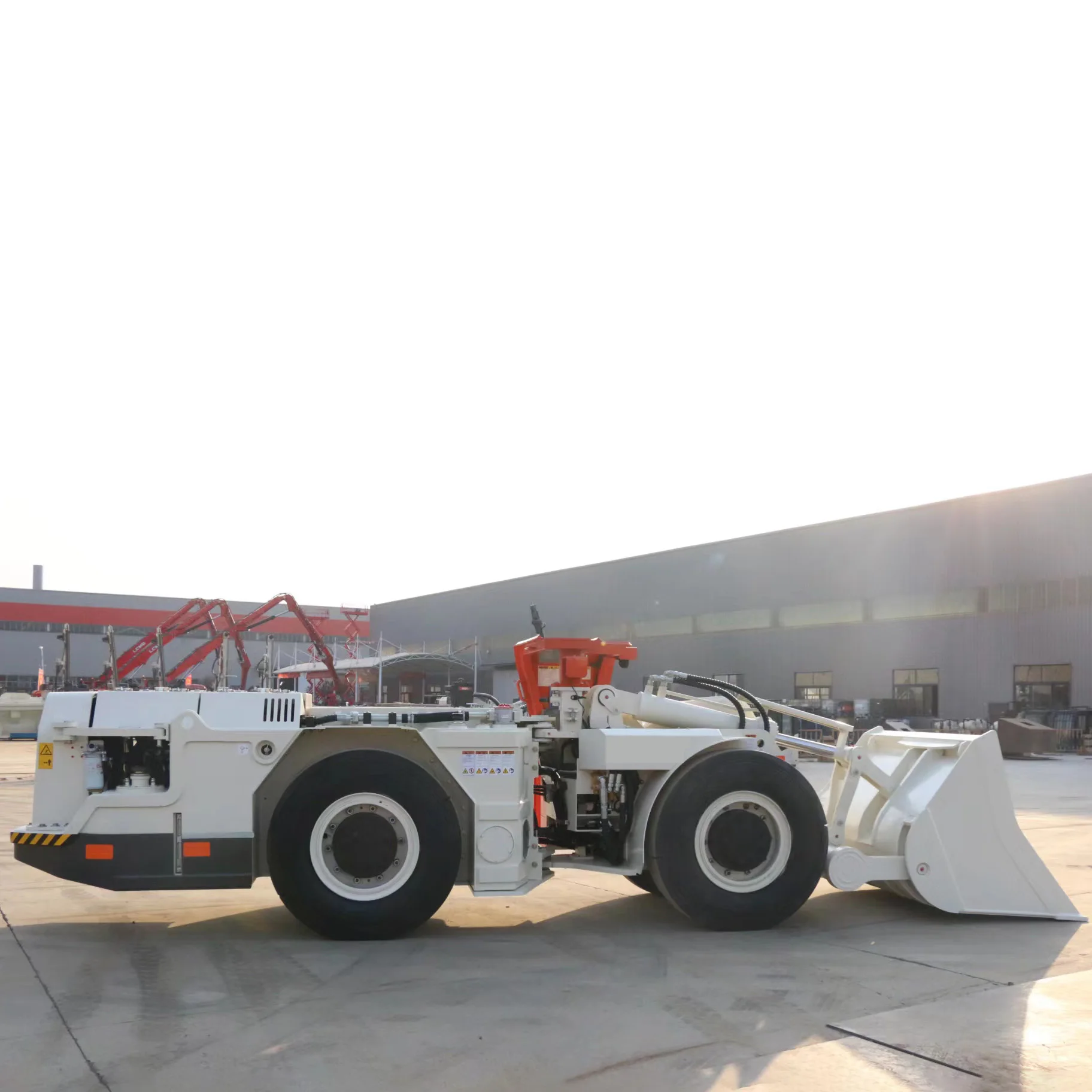

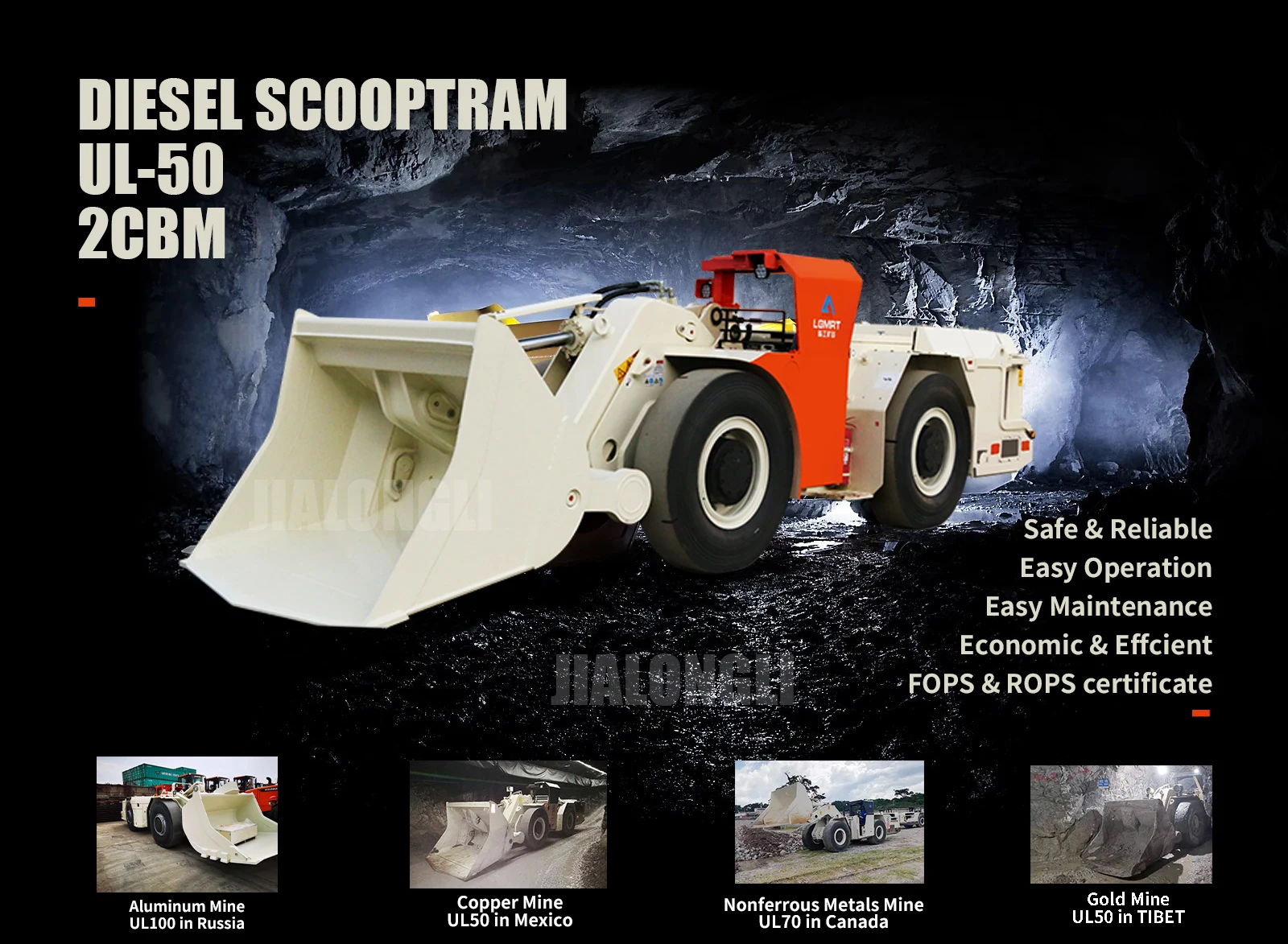

UL50D Diesel Underground Loader
SAFE & RELIABLE
UL50D is a safe, durable and efficient underground scraper, suitable for mining operations in underground tunnels and engineering construction tunnels with a working face greater than 3.1×3.1 meters, with a standard bucket capacity of 2.5m³, the maximum shovel force can reach 103KN.
ECONOMIC & EFFCIENT
UL50D power adopts Cummins QSB4.5 engine with strong turbocharged, electronically controlled high pressure common rail, the maximum torque can reach 620N﹒m, The transmission system adopts the Volvo Temporary gearbox and torque converter which have been deeply adjusted , which has good system stability and higher work efficiency.
COMFORTABLE & FLEXBLE
UL50D power adopts Cummins QSB4.5 engine with strong turbocharged, electronically controlled high pressure common rail, the maximum torque can reach 620N﹒m, The transmission system adopts the Volvo Temporary gearbox and torque converter which have been deeply adjusted , which has good system stability and higher work efficiency.
COMFORTABLE & FLEXBLE
The cab adopts a more flexible front semi-enclosed room, which has a larger field of vision. The indoor standard control handle, the accelerator pedal and seat are all ergonomic, and the comfortable sitting posture and flexible operation can effectively reduce the operator's work intensity;
EASY MAINTENANCE & LOW COST
Normally closed wet drive axle, limited-slip reducer, brake not loose and prevent slipping, boom safety lock, 3 safety brake valves, convenient for operation/maintenance personnel to deal with emergencies and safer operation; Wear-resistant Hardox 500 steel plate, Eaton hydraulic hose, German standard PVBR wire, IP67 waterproof and dustproof connector, 10 micron hydraulic oil filtration twice before leaving the factory, centralized lubrication, up to 80% of routine maintenance can be floor-mounted maintenance, with professional technology to upgrade good customer service;
Model | UL100 | UL70 | UL50 |
Standard Bucket | 5.2 yd³(4m³) | 3.9yd³(3m³) | 2.6yd³(2m³) |
Tramming Capacity | 10T | 7T | 5T |
Weight | 30tT | 22T | 14T |
Product Paramenters
Parameter Configuration
Rated load （kg） 5000

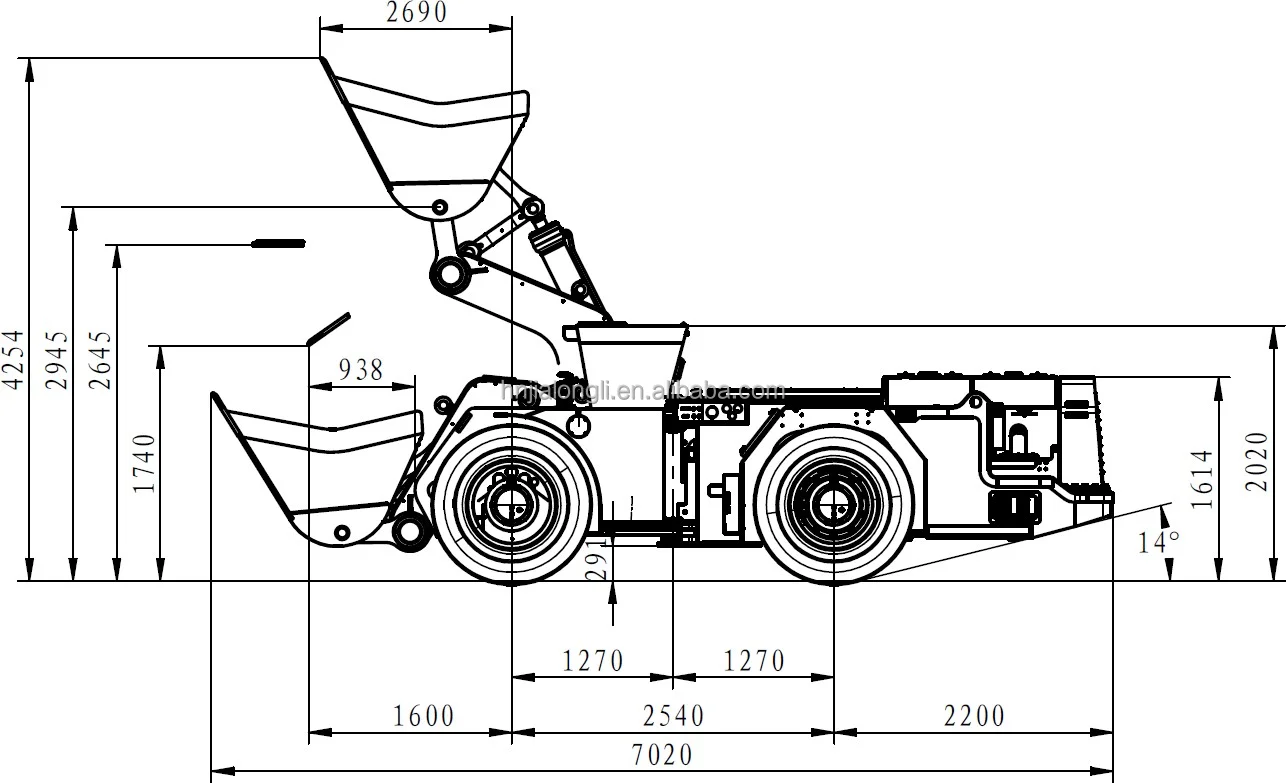

L* W* H (mm) 7020*2550*2350
Maximum shovel force (kN) 103
Maximum traction (kN) 126
Tipping load(kN) 100
Standard bucket capacity（m3）\t 2
Forward and Backward Speed
1st gear(km/h)\t 5.2
2st gear (km/h) 8.8
3st gear (km/h) 18.5
4st gear (km/h) 22.8
Rated load （kg） 5000
L* W* H (mm) 7020*2550*2350
Maximum shovel force (kN) 103
Maximum traction (kN) 126
Tipping load(kN) 100
Standard bucket capacity（m3）\t 2
Forward and Backward Speed
1st gear(km/h)\t 5.2
2st gear (km/h) 8.8
3st gear (km/h) 18.5
4st gear (km/h) 22.8
Bucket Motion Times
Raising time(s)\t 5
Lowering time (s) \t 4
Tipping time (s)\t 3
No-load Mass
Gross weight (kg) 14000
Front axle load (kg) 6000
Rear axle load (kg) 8000
Raising time(s)\t 5
Lowering time (s) \t 4
Tipping time (s)\t 3
No-load Mass
Gross weight (kg) 14000
Front axle load (kg) 6000
Rear axle load (kg) 8000
**The weight of the equipment will vary according to the options

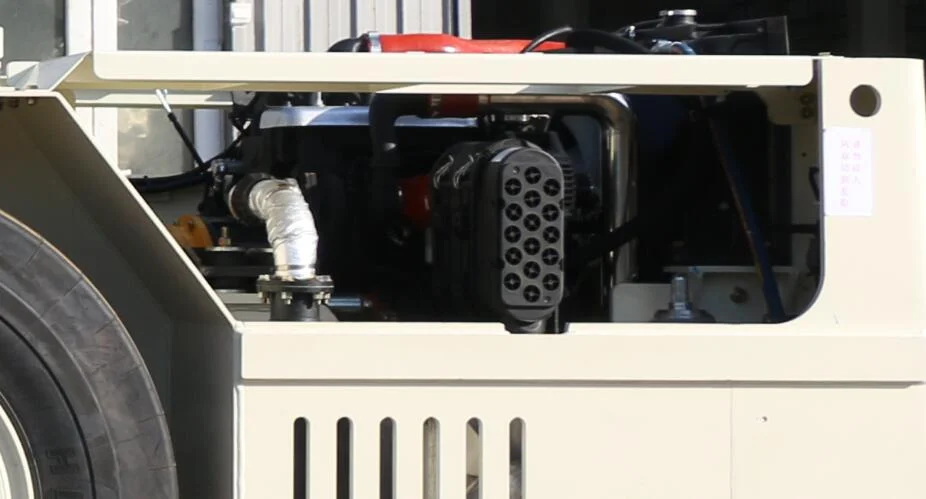

Diesel Engines
Model Cummins QSB4.5
Rated output power（KW） 97 Number of cylinders 4 Displacement (L) 4.5 Cooling method Water cooling
Air filter dry discharge
Emission Standards Tier 3
Average fuel consumption（L/H） 15 Fuel tank volume（L） 200
Diesel Engines
Model Cummins QSB4.5
Rated output power（KW） 97 Number of cylinders 4 Displacement (L) 4.5 Cooling method Water cooling
Air filter dry discharge
Emission Standards Tier 3
Average fuel consumption（L/H） 15 Fuel tank volume（L） 200

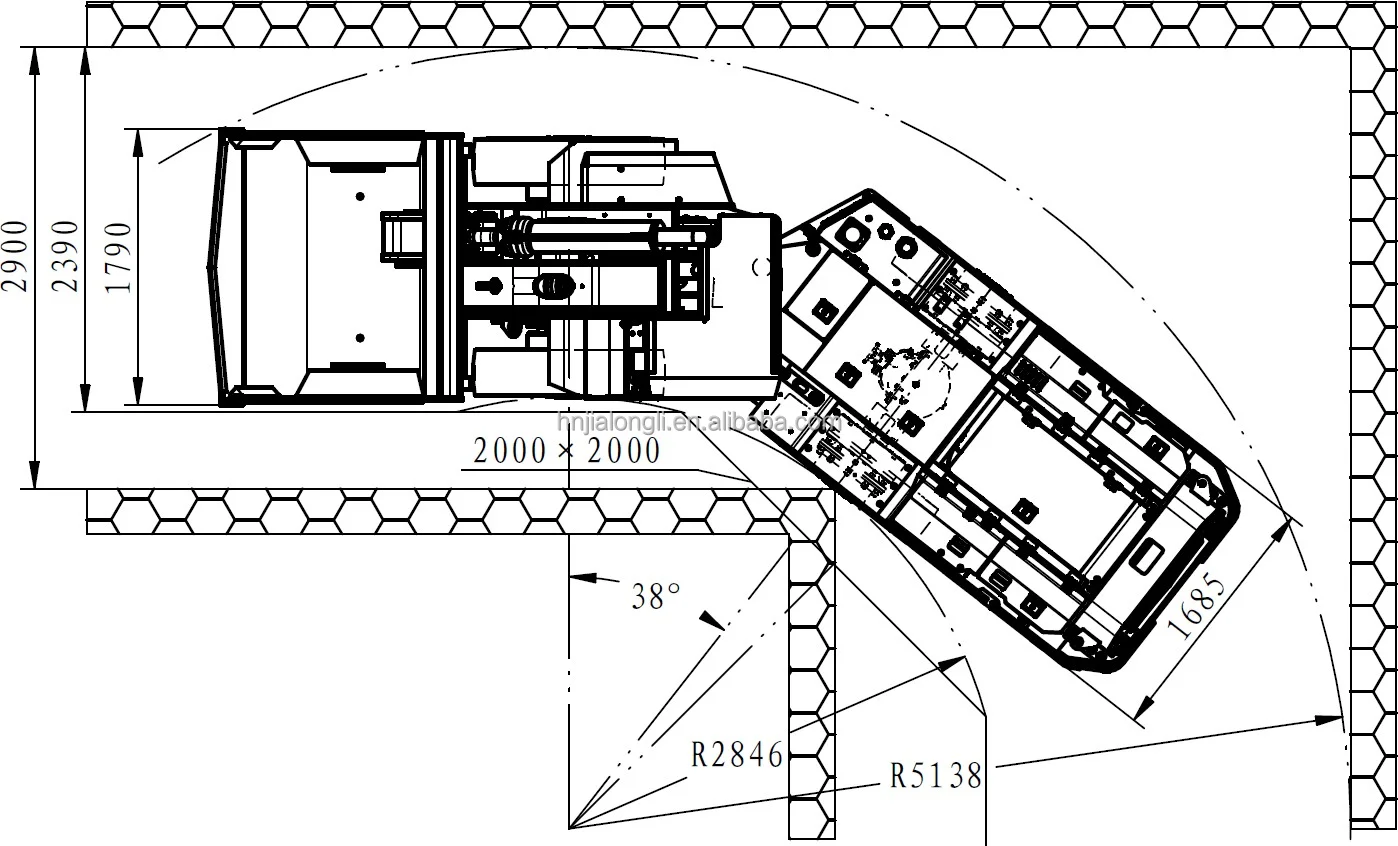

Turning Radius
Max. steering angle(°) ±38
Min transformation inner diameter(mm) 3050
Min. Transition Outer Diameter(mm) 5300
Drive Axle
Front axle Meitong CY2FRear axle Meitong CY2F
Tire
Model 12.00-24
Hydraulic System
Hydraulic Pump LGMRT
Control Valve LGMRT
Braking System
Control Valve LGMRT
Filter(μm) 10
Steering Cylinder LGMRT Tipper cylinder LGMRT
Lift Cylinder LGMRT Braking System
Brake Normally closed wet type
Accumulator Aurel Brake element SAFIM
Electric System
Battery Exed120Ah
Starting motor 24V,6KW
Illumination LED 4-35W
Safety Device
Handheld Fire Extinguisher
Seat Belt
Reversing Alert
Optional Item
Bucket 2.0m³ 1.7 m³
Exhaust gas purifier (DOC+DPF)
Automatic fire extinguishing system
Electric System
Electronic control components Schneider
Generator 24V,55A Battery Exed120Ah
Starting motor 24V,6KW
Illumination LED 4-35W
Safety Device
Main switch lock/brake button/emergency stop button
Security roof（ROPS&FOPS）Handheld Fire Extinguisher
Seat Belt
Reversing Alert
Optional Item
Bucket 2.0m³ 1.7 m³
Automatic centralized lubrication
Remote wireless remote controlExhaust gas purifier (DOC+DPF)
Automatic fire extinguishing system
Reverse image
Details

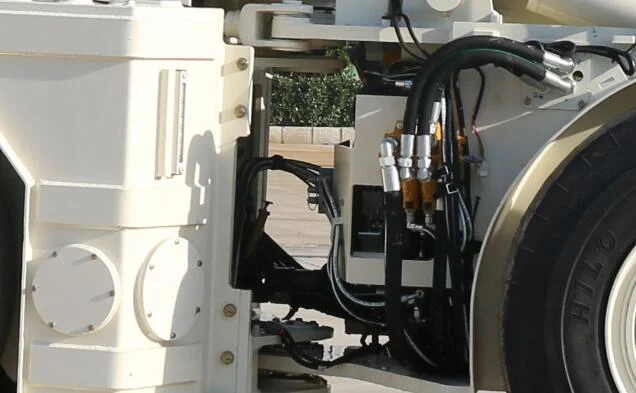

High Reliability
Renowned and reliable hydraulic components are used,including PERMCO hydraulic pumps,
EATON hydraulic hoses and REXROTH valves
DANA power train components.
EATON hydraulic hoses and REXROTH valves
DANA power train components.
Ergonomical Operation

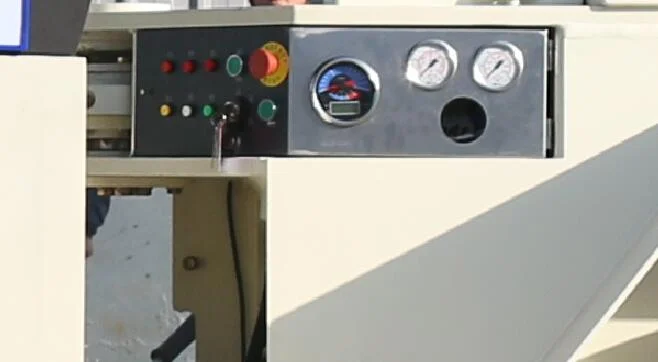

All instruments, gauges and alarms are integrated into one control panel;The positions of the steering wheel and the working level are ergonomically designed.The blind zone area is largely reduced thanks to the wider visual angle from the canopy.
Easy Maintenance
