Высококачественный упорный сферический роликовый подшипник 81230 81232
- Категории: Thrust Roller Bearings >>>
- Поставщик: Shandong,Haoxiang,Bearing,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Paramenters
High quality thrust spherical roller bearing 81230 81232 81234 81236

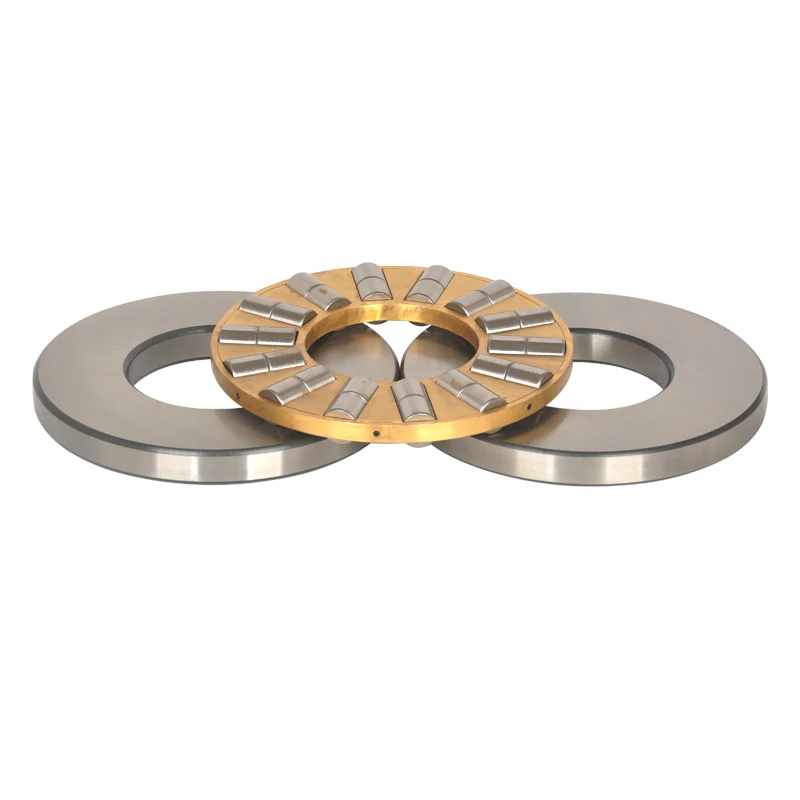

Thrust cylindrical roller bearing introduction
Thrust roller bearings are used to bear axial load mainly combined axial and radial load, but the radial load shall not exceed 55% of the axial load. Compared with other thrust roller bearings, this bearing has lower friction factor, higher speed and aligning performance.
Product characteristics
The stick of type 29000 bearing is asymmetrical spherical roller, which can reduce the relative sliding of roller and raceway in the work, and the roller is long, large diameter, large number of rollers, high load capacity, usually using oil lubrication, individual low speed can be lubricated by grease. In the design and selection, should be preferred;
80000 type thrust cylindrical roller bearing, 90000 type thrust tapered roller bearing and AXK type thrust needle roller bearing can bear one-way axial load, which is much larger than thrust ball bearing axial load capacity, and larger rigidity, occupy less axial space.
Thrust cylindrical roller bearings and thrust tapered roller bearings are suitable for low speed occasions, thrust tapered roller bearings speed is slightly higher than thrust cylindrical roller bearings. Thrust cylindrical roller bearing is a separation type bearing, can only withstand one-way axial load and slight impact, can limit the axial displacement of the shaft (or shell) in one direction, so it can be used as one-way axial positioning. But its bearing capacity is much greater than that of thrust ball bearing. When the roller rolls, due to the different linear speeds at both ends of the roller, the roller will inevitably slide on the raceway of the ring. Therefore, the limit speed of this kind of bearing is lower than that of the thrust ball bearing, which is usually only suitable for low-speed running occasions.
Standard thrust cylindrical roller bearings are made of metal solid cages. Cages of other types or materials can also be used according to user requirements. Thrust tapered roller bearing can only bear one-way axial load and limit one-way axial displacement of bearing, so it can be used for one-way axial positioning. Compared with the thrust cylindrical roller bearing, the bearing capacity is large, the relative sliding is small, but the limit speed is low
80000 type thrust cylindrical roller bearing, 90000 type thrust tapered roller bearing and AXK type thrust needle roller bearing can bear one-way axial load, which is much larger than thrust ball bearing axial load capacity, and larger rigidity, occupy less axial space.
Thrust cylindrical roller bearings and thrust tapered roller bearings are suitable for low speed occasions, thrust tapered roller bearings speed is slightly higher than thrust cylindrical roller bearings. Thrust cylindrical roller bearing is a separation type bearing, can only withstand one-way axial load and slight impact, can limit the axial displacement of the shaft (or shell) in one direction, so it can be used as one-way axial positioning. But its bearing capacity is much greater than that of thrust ball bearing. When the roller rolls, due to the different linear speeds at both ends of the roller, the roller will inevitably slide on the raceway of the ring. Therefore, the limit speed of this kind of bearing is lower than that of the thrust ball bearing, which is usually only suitable for low-speed running occasions.
Standard thrust cylindrical roller bearings are made of metal solid cages. Cages of other types or materials can also be used according to user requirements. Thrust tapered roller bearing can only bear one-way axial load and limit one-way axial displacement of bearing, so it can be used for one-way axial positioning. Compared with the thrust cylindrical roller bearing, the bearing capacity is large, the relative sliding is small, but the limit speed is low
Bearing type | Thrust cylindrical roller bearing |
Brand | YLY、CDZZ、OEM |
Business type | Manufacturer |
material quality | Bearing steel Gcr15, stainless steel, ceramic, high-temperature steel |
packing | Carton, wooden box, pallet, OEM |
heat treatment | Bainite quenching, martensite quenching, salt bath quenching |
Delivery method | Air, sea, express |
delivery time | 3-7 working days |
Minimum order quantity | 1 piece |
Inventory Status | Large quantity of goods in stock, fast delivery |
Vibrating | ZV1、ZV2、ZV3、ZV4 |
Sealing type | 2RS rubber seal, open type without seal |
service | OEM |
specialized | 20 years of bearing manufacturing experience |
Our Strengths | Competitive prices, multiple categories |
Products Description
Product packaging
Company Profile
Application scenario
Product category
FAQ
