120 м3/ч бетоносмесительная установка с цементным заводом
- Категории: Construction & Building Machinery >>>
- Поставщик: Yili,Engineering,Machinery,Henan,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Introduction
120m3/h concrete mixing plant with cement batching machinery price

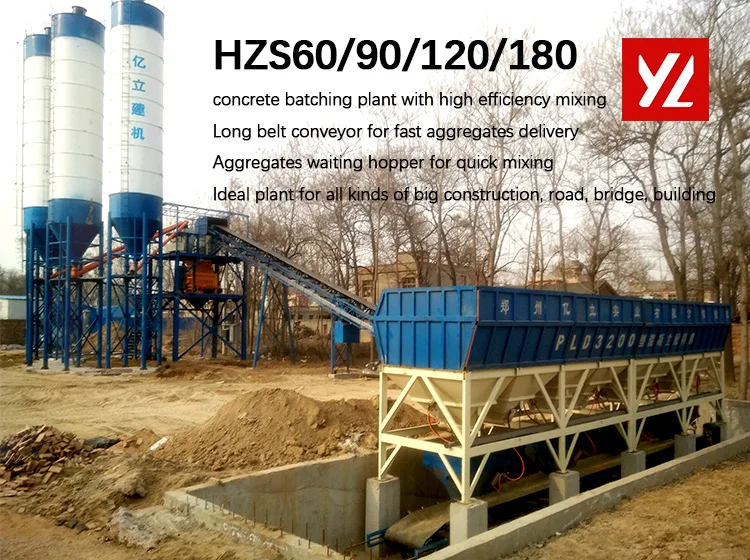

Yili HZS series concrete batching plant with twin shaft forced mixing concrete mixer is very popular in all the countries and regions. It is stationary with two main types. One is skip hopper feeding and the other one is belt conveyor feeding.
Skip hopper feeding type has the advantages of small area, easy to install and remove. Its price is cheaper and easy to maintain.
Belt conveyor feeding type covers a bigger area and has a very high efficiency of concrete mixing, which is the ideal machine for concrete selling, and big construction such as skyscraper, road and bridge.
Product Paramenters
Main | YILI Plant Model | HZS60 | HZS90 | HZS120 | HZS180 | |||
Theo. Mixing Capacity | 60m3/h | 90m3/h | 120m3/h | 180m3/h | ||||
Concrete Discharge Height | 4.1m | 4.1m | 4.2m | 4.2m | ||||
Raw Material Feeding | Belt Conveyor | Belt Conveyor | Belt Conveyor | Belt Conveyor | ||||
Max. Aggregates Size | 80mm | 80mm | 100mm | 100mm | ||||
Mixing Time per Batch | 60s | 60s | 60s | 60s | ||||
Batching Machine | Model | PLD1600 | PLD2400 | PLD3200 | PLD4800 | |||
Conveying Speed | 1.6m/s | 1.6m/s | 1.6m/s | 1.6m/s | ||||
Twin Shaft Concrete Mixer | Model | JS1000 | JS1500 | JS2000 | JS3000 | |||
Aggregates Waiting Hopper | Yes | Yes | Yes | Yes | ||||
Lubrication Pump | Electric | Electric | Electric | Electric | ||||
Dust Filter | Optional | Pulse Type | Pulse Type | Pulse Type | ||||
Weighing | Cement Weighing | Yes | Yes | Yes | Yes | |||
Water Weighing | Yes | Yes | Yes | Yes | ||||
Additive Weighing | Optional | Yes | Yes | Yes | ||||
Screw Conveyor | Model | 219-8 | 219-9 | 219-9 | 219-9 | |||
Conveying Distance | 8m | 9m | 9m | 9m | ||||
Motor Power | 11kw | 11kw | 11kw | 11kw | ||||
Cement Silo | Type | Vertical Bolted | Vertical Bolted | Vertical Bolted | Vertical Bolted | |||
Storage Capacity | 100t*2 | 100t*3 | 100t*3 | 100t*4 | ||||
Control System | Model | Both computer type full-auto control and PLC control are available, depending on the customers' needs. | ||||||
Control Room | Yes | Yes | Yes | Yes | ||||
Product Details
Manufacturing Technique

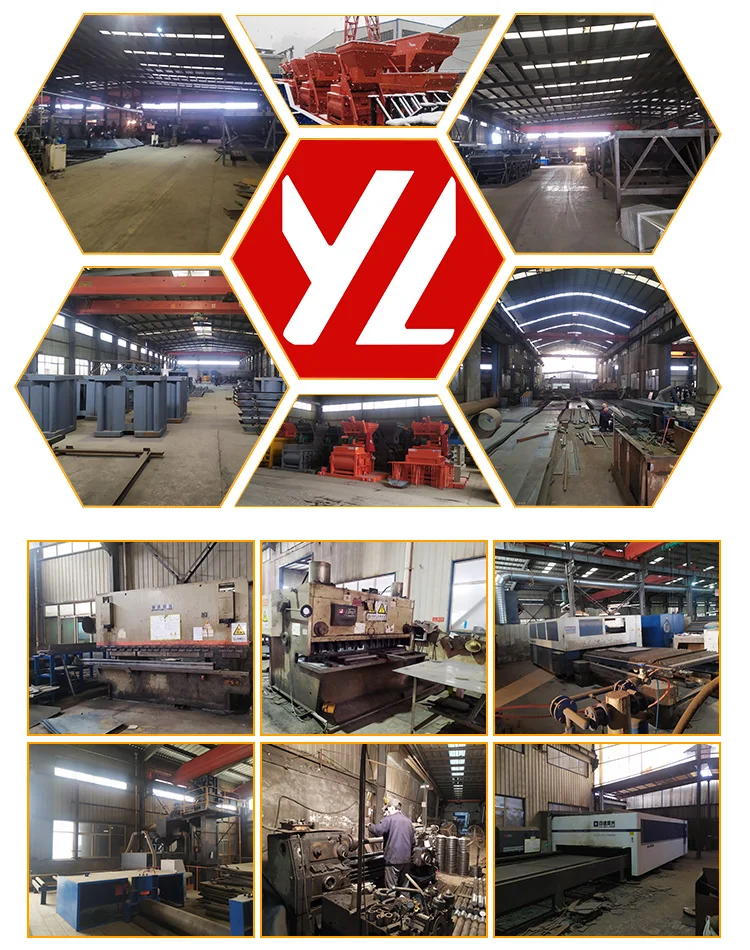

Yili has many high-tech production machines, such as computer numerical control (CNC) plate cutter, CNC plate bender, Germany imported high-accuracy laser cutter and sand blasting machine for painting. Combined with our skilled workers, we can proudly guarantee that we provide the high-quality machines for you.

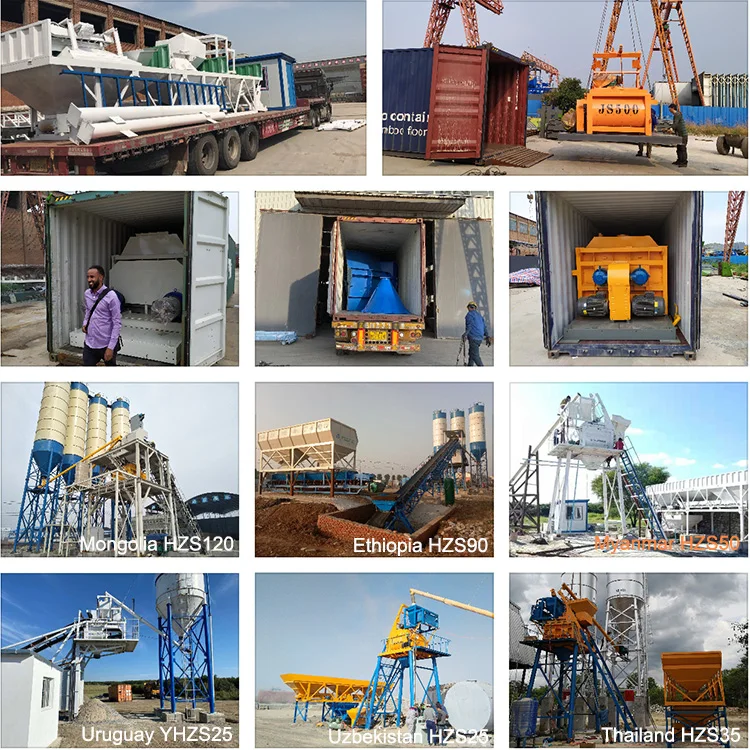

Delivery & Project
Customer Photos
Company Profile
Yili Engineering Machinery Co., Ltd. is a professional factory specializing in manufacture, design and service for concrete mixing machines such as concrete batching plant, concrete mixer, dry powder mortar mixing plant, stabilized soil mixing plant, concrete batching machine, concrete truck, cement silo, screw conveyor etc.
We have 20 years experiences and our products are sold to most areas in China and other regions such as South-east Asia,Middle Asia, Middle East, Africa, European and American countries. The high-quality products earn very good praises from our customers.
We believe our products can meet your demands and we welcome friends all of the worlds to visit us!
FAQ
1. Are you the real manufacturer?
Yes, We Yili is a real factory with 20 years history.
2. What is the delivery time?
Depending on the machine size, averagely 10 days.
3. What is the warranty time?
1 years from the day when the goods arrive at your port, or 13 months after departing from China port.
4. Do you provide ODM or OEM?
We can design the plant according to your land layout and print your logo onto the machines.
5. Do you provide installation guide and operation training?
Yes, installation manual will be provided and we can send our engineer to your site.
Yes, We Yili is a real factory with 20 years history.
2. What is the delivery time?
Depending on the machine size, averagely 10 days.
3. What is the warranty time?
1 years from the day when the goods arrive at your port, or 13 months after departing from China port.
4. Do you provide ODM or OEM?
We can design the plant according to your land layout and print your logo onto the machines.
5. Do you provide installation guide and operation training?
Yes, installation manual will be provided and we can send our engineer to your site.
