Машина для прокатки листового металла
US $10000
Высококачественные запчасти для грузовиков брызговики прицепов машины изготовления стальных
- Категории: >>>
- Поставщик: Botou,Kefa,Roll,Forming,Machine,Co.,Ltd.Botou,Ltd.
Поделиться:
Описание и отзывы
Характеристики

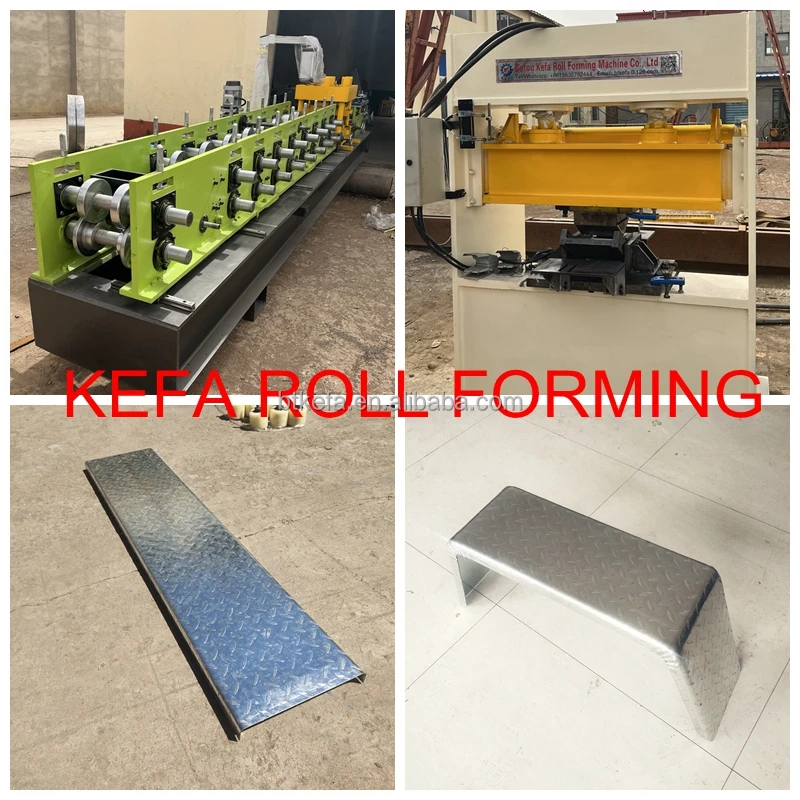

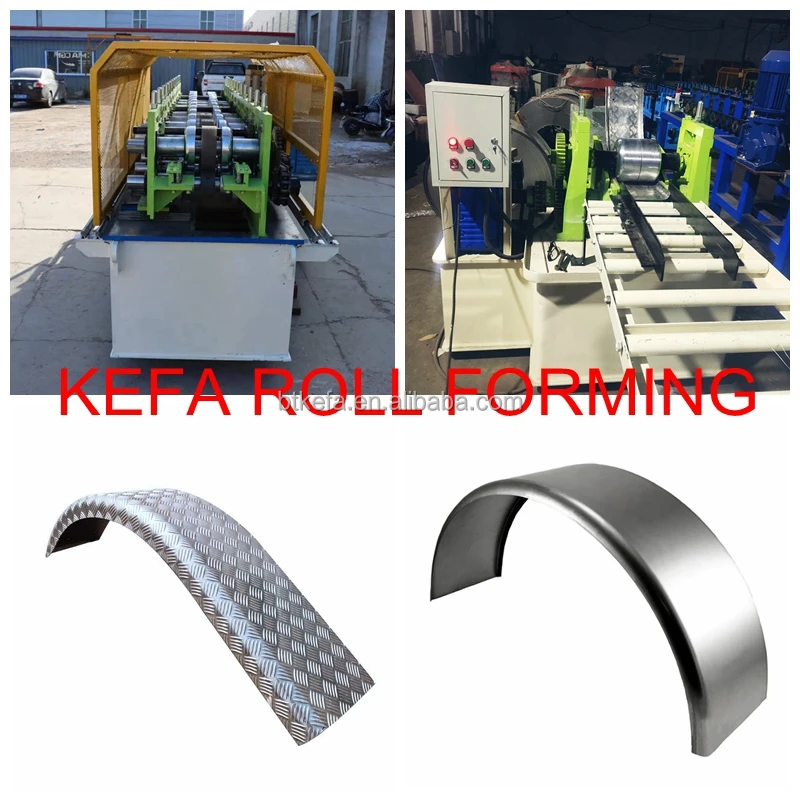

Trailer Fender Roll Forming Machine

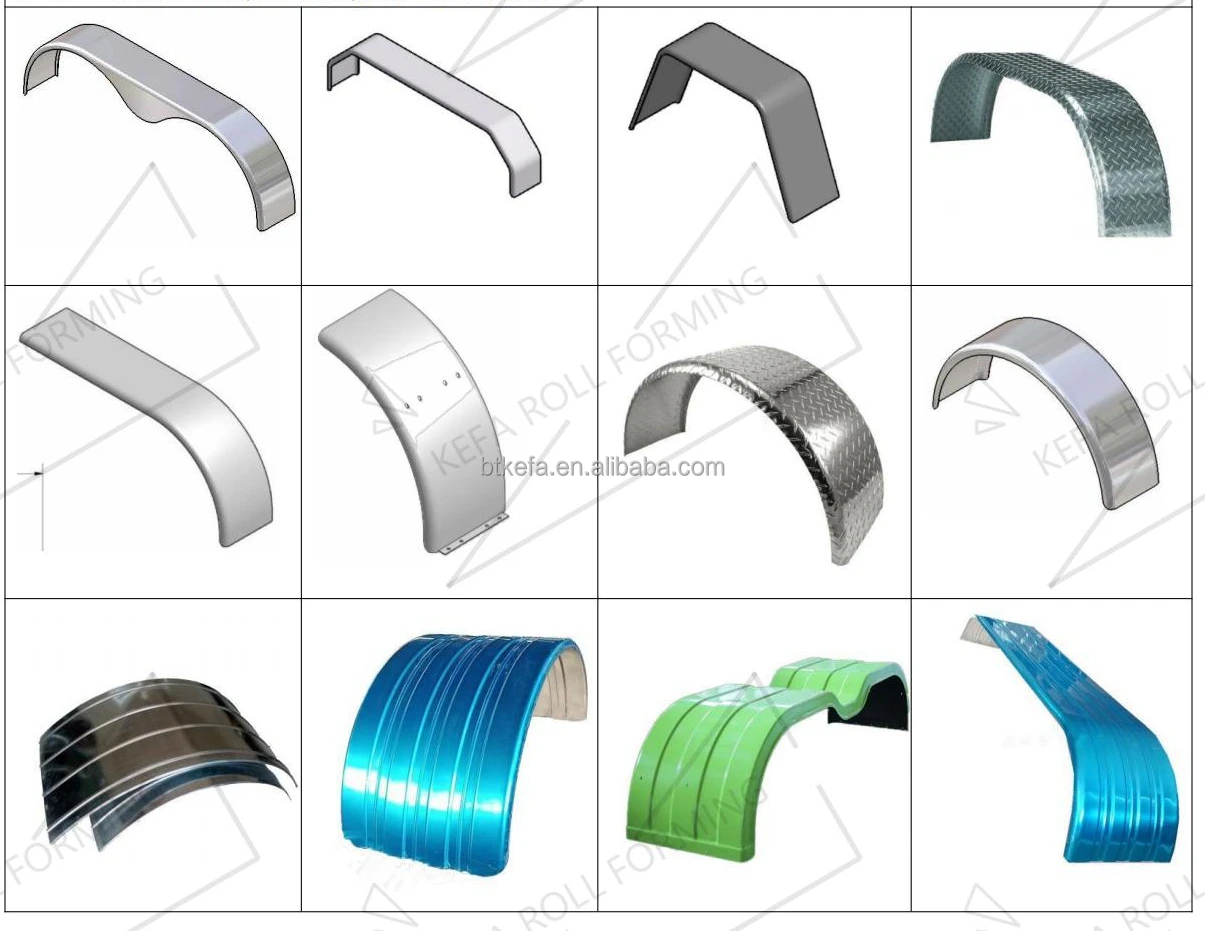

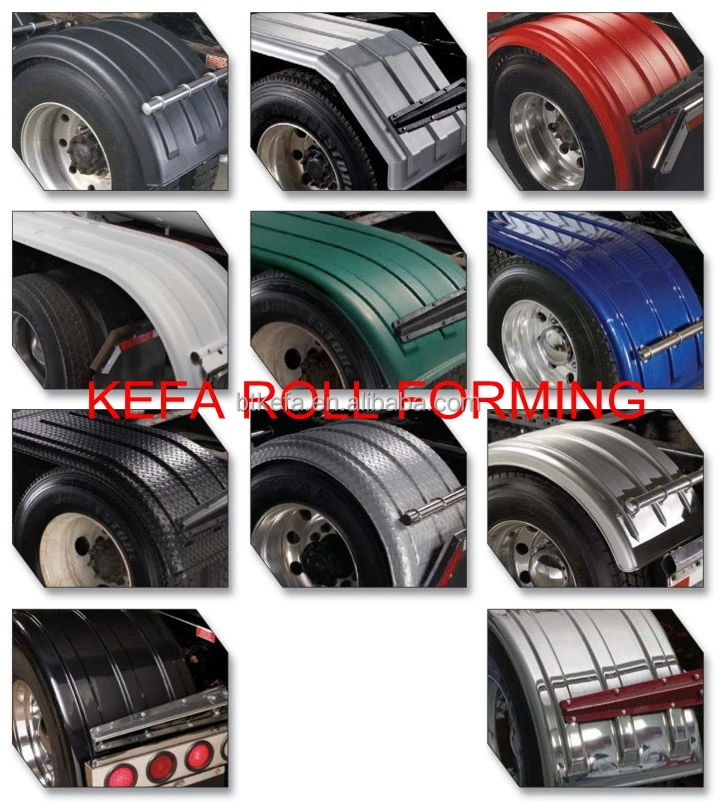

1.Trailer Fender or tanker fender
2.Aluminum,Galvanized Steel or Stainless Steel
3.Plain surface or pattern with diamond pattern
4.Roll forming then bending
5.Working flow: Decoiler --Leveling and Feeding----Hydraulic Cutting----Roll forming --Runout Table -- Bending Machine
6.Roll Forming Main Machine：Various Section widths automatic changing
7.Fender Bending Machine:One machine for one section drawing
Can Bend one-wheel,two wheel,three-wheel fenders
2.Aluminum,Galvanized Steel or Stainless Steel
3.Plain surface or pattern with diamond pattern
4.Roll forming then bending
5.Working flow: Decoiler --Leveling and Feeding----Hydraulic Cutting----Roll forming --Runout Table -- Bending Machine
6.Roll Forming Main Machine：Various Section widths automatic changing
7.Fender Bending Machine:One machine for one section drawing
Can Bend one-wheel,two wheel,three-wheel fenders
Decoiler : | Manual decoiler | * Hydraulic decoiler (Optional) |
Forming station : | According to your profile drawings | * With straighten revise rollers |
Main machine motor brand : | Shanghai Lichao (Famouse Brand) | * Siemens (Optional) |
Driving system : | Chain drive or Gear drive | * Gearbox drive (Optional) |
Machine structure: | Cantilever type | * Forged Iron station (Optional) |
Forming speed : | 10-20 (M/MIN) | * Or according to your profile drawings |
Rolling Shaft: | 40Cr Steel Material | * (Modulation, fine turning, fine grinding) |
Rollers’ material : | CR12 Steel (Quenching, fine turning and grinding of inner holes and surfaces, Hard chrome) | * SKD-11 (Optional) |
Cutting system : | Post-cutting | * Pre-cutting (Optional) |
Frequency changer brand : | Yaskawa | * Siemens (Optional) |
PLC brand : | Delta,Touch Screen | * Siemens (Optional) |
Power supply : | 380V 50Hz 3ph | * Or according to your requirment |
Machine color : | Industrial blue | * Or according to your requirment |
Runout Table: | Roller type,non-power | * Motorized,Drop off,auto stack(Optional) |

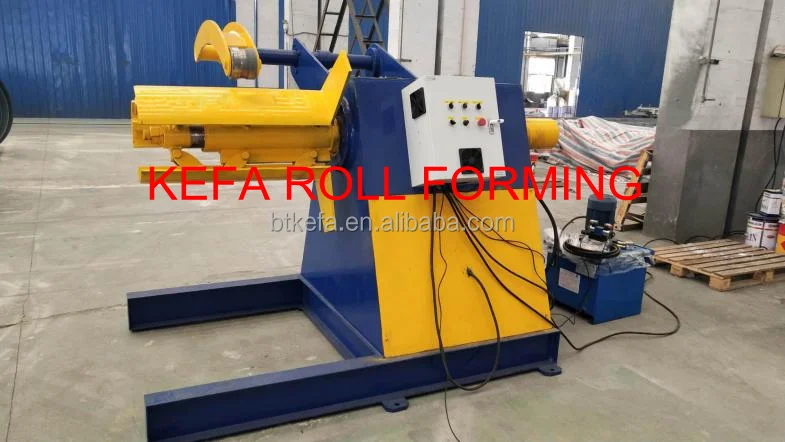

De-Coiler is provided to load Raw material coil on its bridge& Hold the coil and also in loop area store the row material before
in process. It will hold tighten sheet coil & decoiling for roofing line smoothly.
in process. It will hold tighten sheet coil & decoiling for roofing line smoothly.

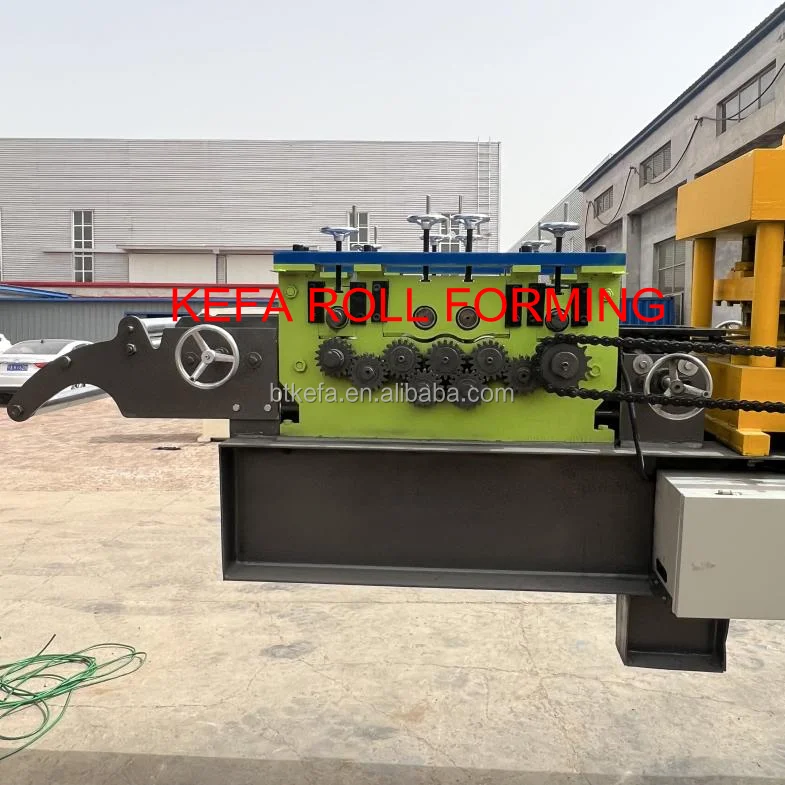

Entry Guides
1. With several support rollers, to feed the material more smoothly
2. Equipped with 2 groups nylon wheels in the middle of the platform, prevent the material surface from being damaged, and feed the material more easily and quickly
3. Can be With hand wheels to adjust the feeding size, more conveniently.
4. Optional With manual cutters to cut feed material more easily.
2. Equipped with 2 groups nylon wheels in the middle of the platform, prevent the material surface from being damaged, and feed the material more easily and quickly
3. Can be With hand wheels to adjust the feeding size, more conveniently.
4. Optional With manual cutters to cut feed material more easily.

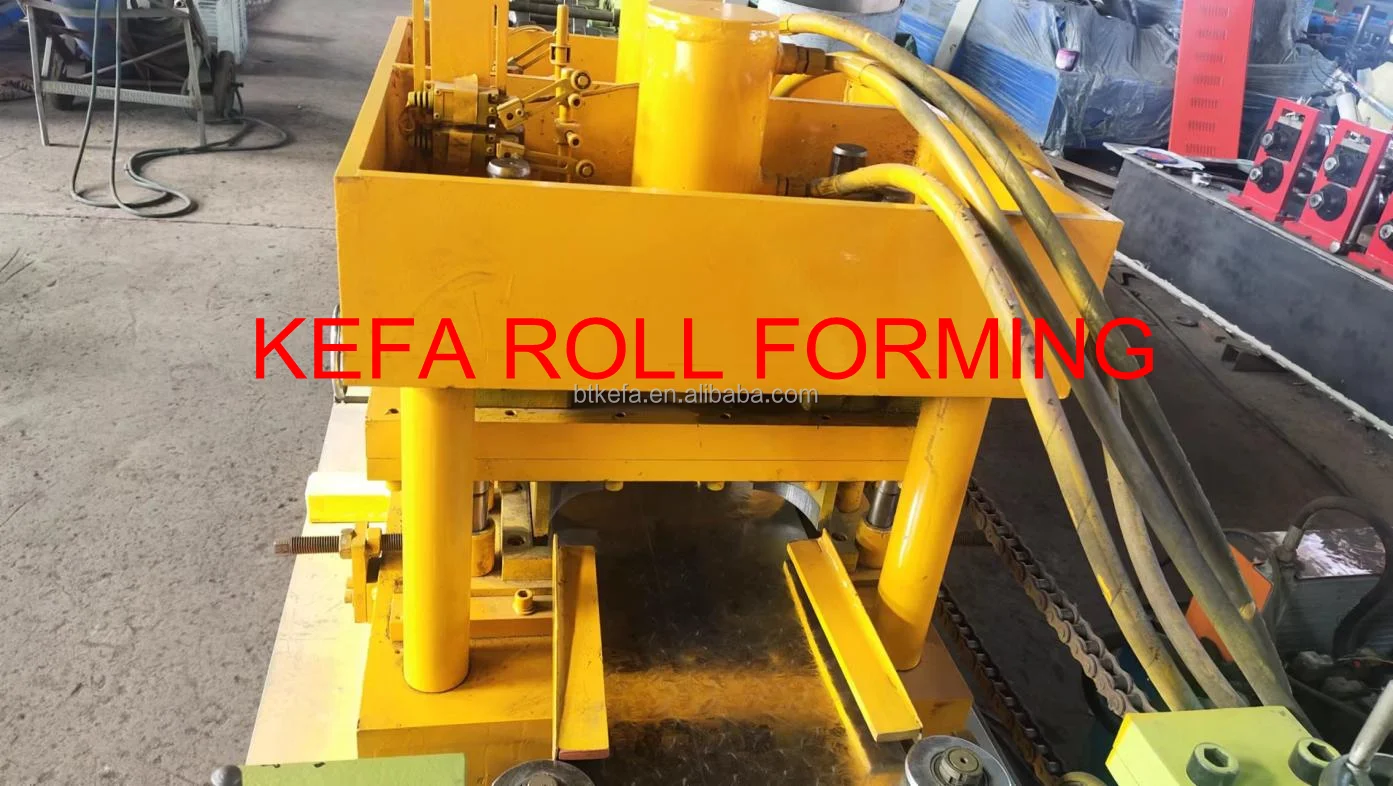

Cutting
Work type：Hydraulic cutting Driving method：By pillar type cylinder Cutting device structure：Guide pillar type Cutter material:GB-Cr12 with heat treatment Cutting length tolerance:±1mm/3m Cutting feature: Steady and safe working condition Oil tube and wiresconnection All the tubes and wires will be marked by the numbers or letters,So it will be very easy to connect for theunprofessional client.

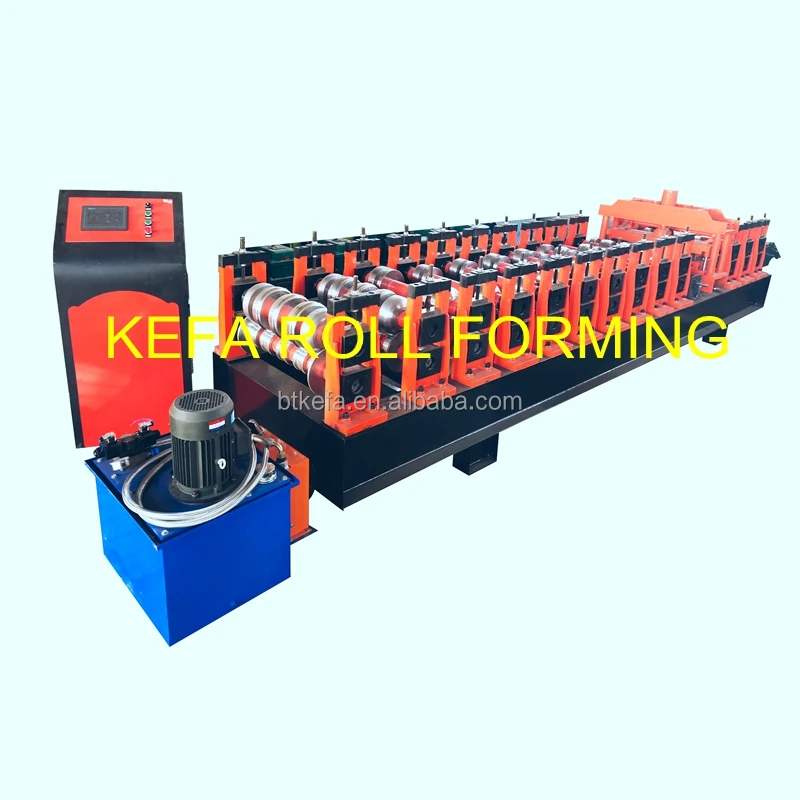

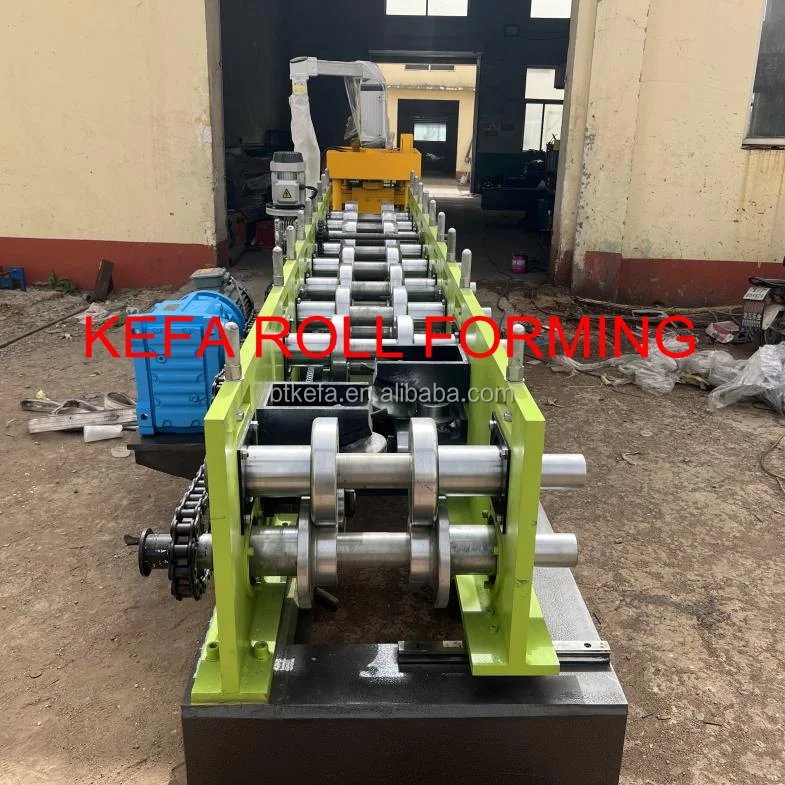

Roll Forming
Work type：Hydraulic cutting Driving method：By pillar type cylinder Cutting device structure：Guide pillar type Cutter material:
GB-Cr12 with heat treatment Cutting length tolerance:±1mm/3m Cutting feature: Steady and safe working condition Oil tube and wires
connection All the tubes and wires will be marked by the numbers or letters,So it will be very easy to connect for the
unprofessional client.
GB-Cr12 with heat treatment Cutting length tolerance:±1mm/3m Cutting feature: Steady and safe working condition Oil tube and wires
connection All the tubes and wires will be marked by the numbers or letters,So it will be very easy to connect for the
unprofessional client.

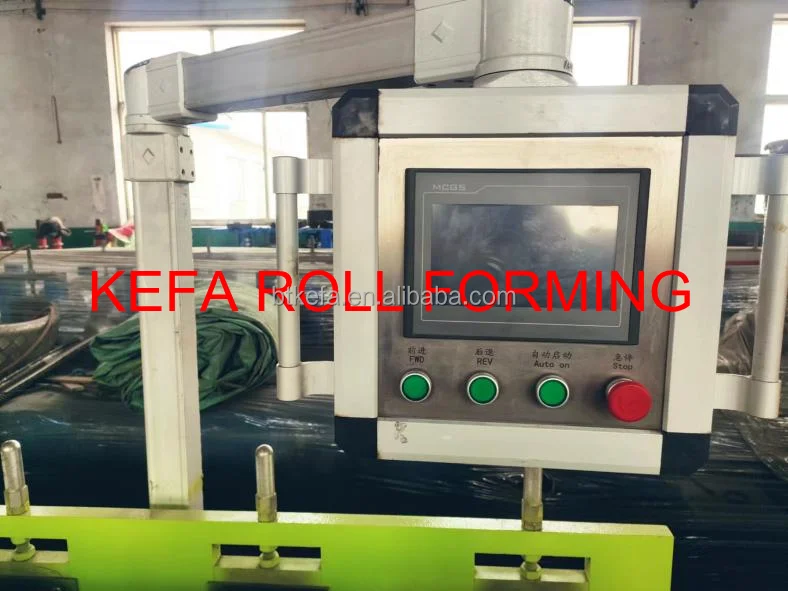

PLC & CONTROL PANELS
Frequency brand:Delta,PLC brand:Delta Screen type:Touch screen, also have buttons on the panel Screen language:English /Chinese /Spanish Low pressure electric part:Schneider brand Encode:Omron brand Remark:Support multi orders input,ensure the machine can work continuously according to different request without stop. All the electrical parts are branded with high quality, it can be fixed easily if damaged.

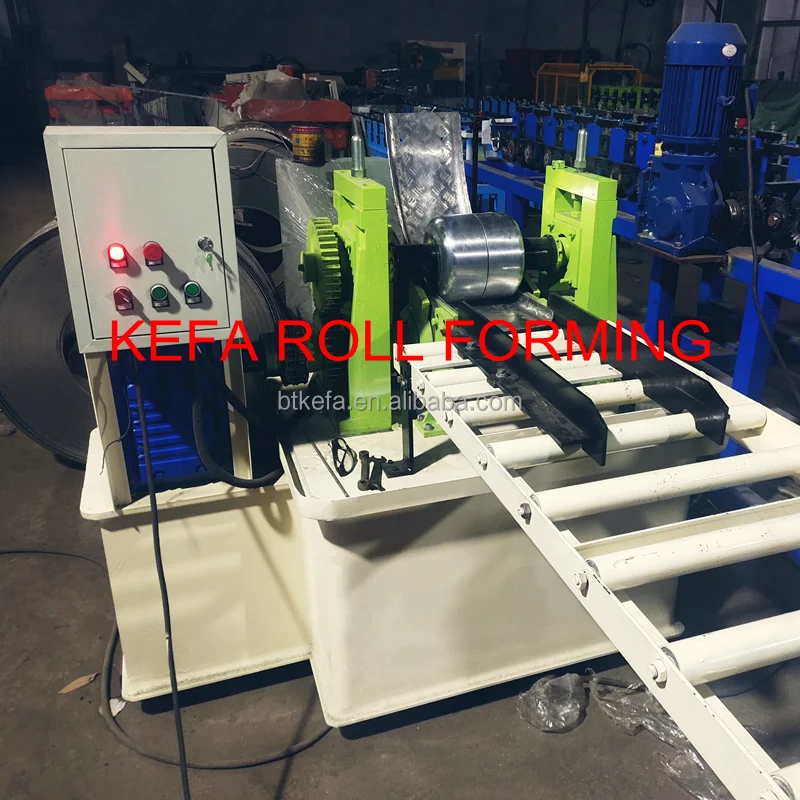

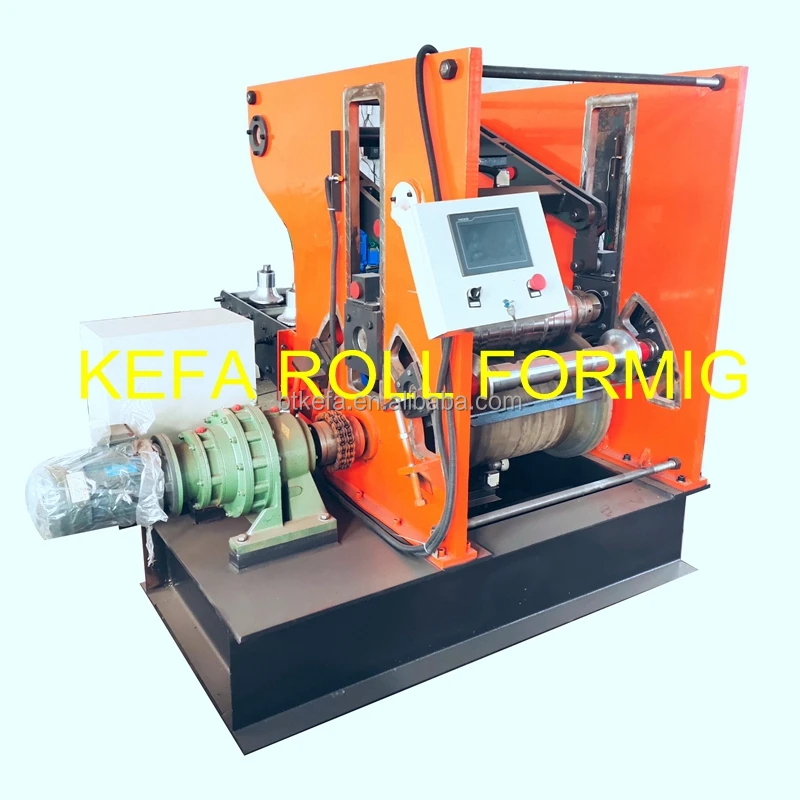

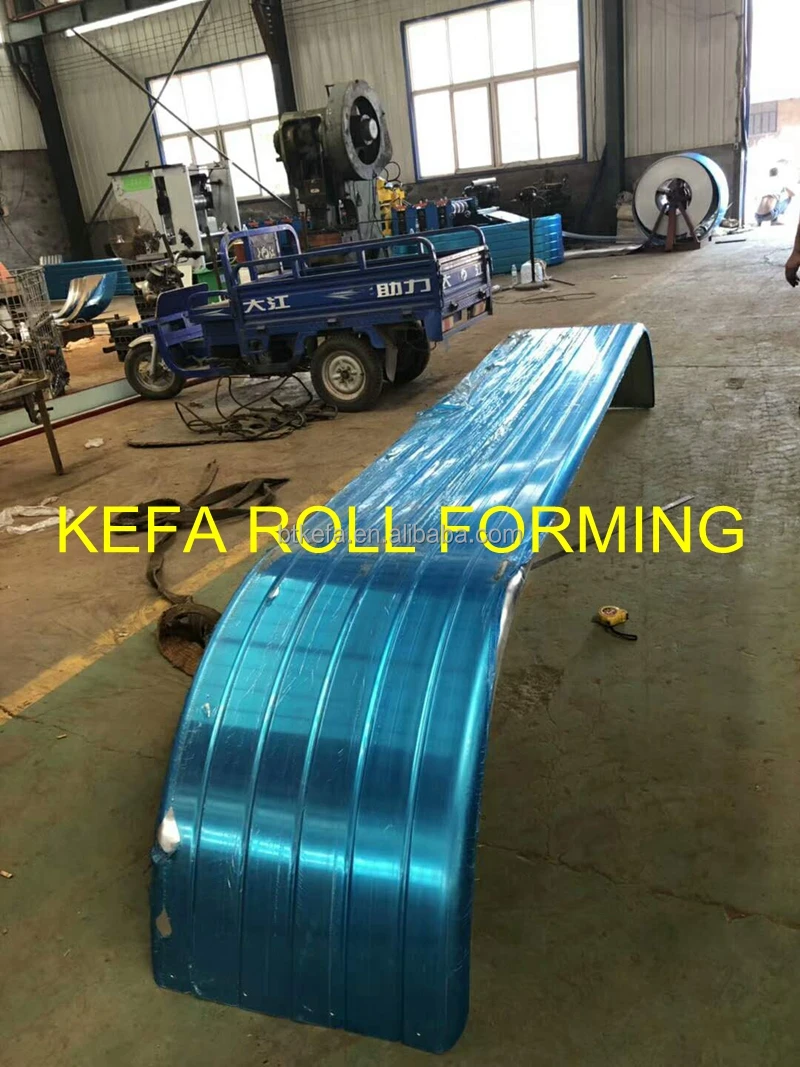

Curving
Based on the final machine design, form one end of the arc at a time Type of mudguard used: can meet the bending requirements for three axle, two axle, and single axle mudguardsCurvable arc width: according to the drawingBending arc R range: according to the requirements of thedrawingorsampleCurve speed: 5-10m/minEasy to change diameter: Quickly manually adjust the position of the
bending roller to adjust the diameter.
bending roller to adjust the diameter.
1.How to maintain the machine?
Answer: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.
2. Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
3.How many workers to operate the machine?
A:Only 1-2 workers.
4. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West Station(1 hour), then we can pick you up .
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.
5. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't be repaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.
6.How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) Please visit company and test machine if convenient.
Answer: add mechanical lubrication equipment to chain, bearing and cutting slide every month. Add mechanical lubrication to the case every half a year.
2. Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.
3.How many workers to operate the machine?
A:Only 1-2 workers.
4. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan Station to Cangzhou West Station(1 hour), then we can pick you up .
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou West station(4.5 hours), then we can pick you up.
5. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't be repaired,we can send the new parts to replace the broken parts for free,but you need pay the express cost yourself.if over warranty period,we can for to solve the problems via negotiation,and we supply the technical support for the whole life of the equipment.
6.How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) Please visit company and test machine if convenient.
