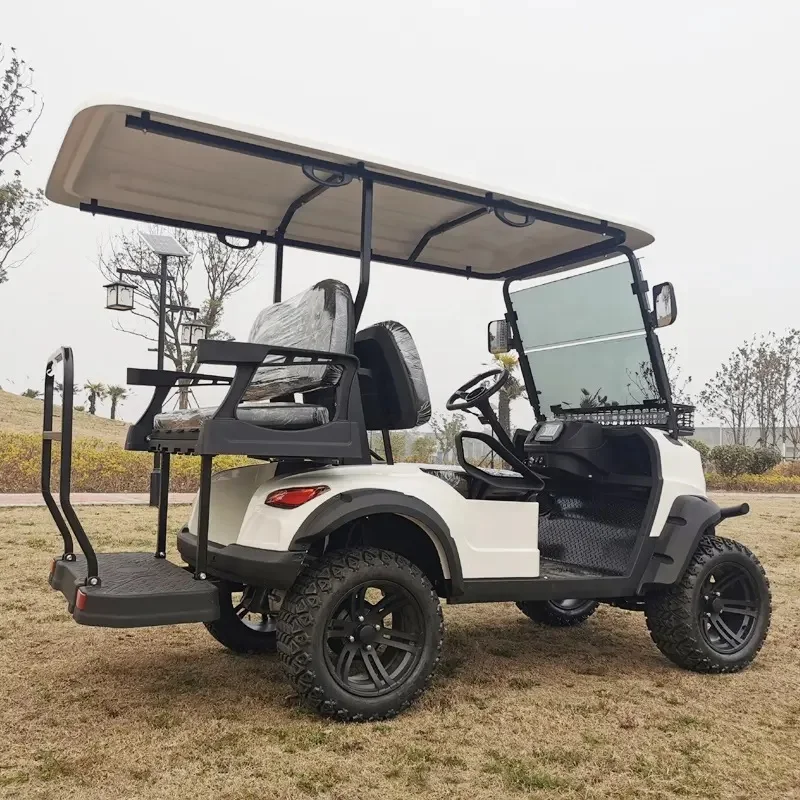

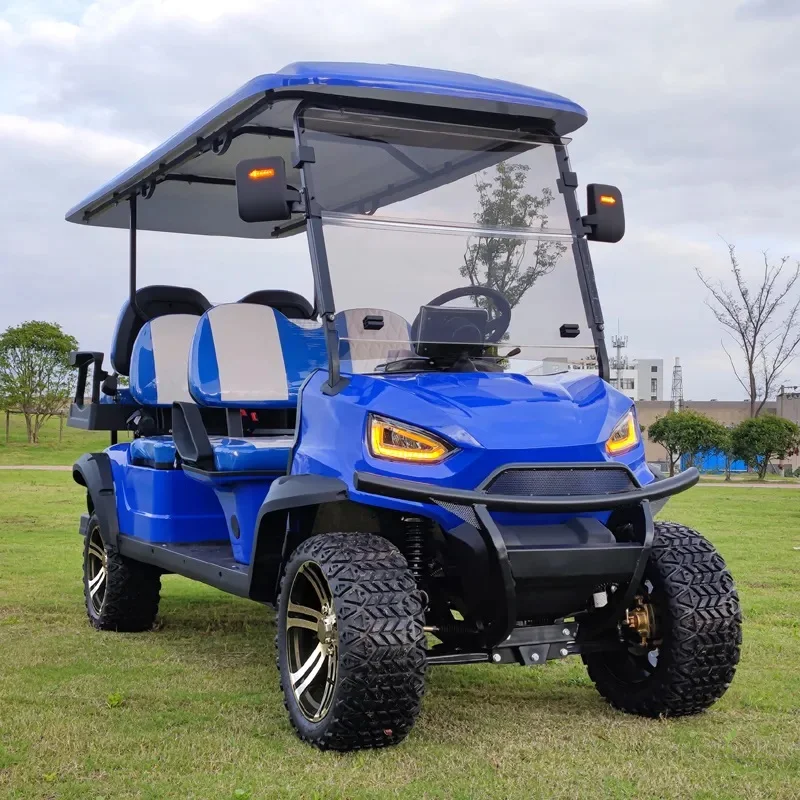

SPECIFICATIONS OF 4 Seats Sports Utility Vintage Street Legal Electric Golf Cart Vehicles LS2020ASZ
|
|
Controller
|
Curtis Brand, SME or China Local Brand
|
Motor
|
4KW/5KW/7KW AC motor
|
Battery
|

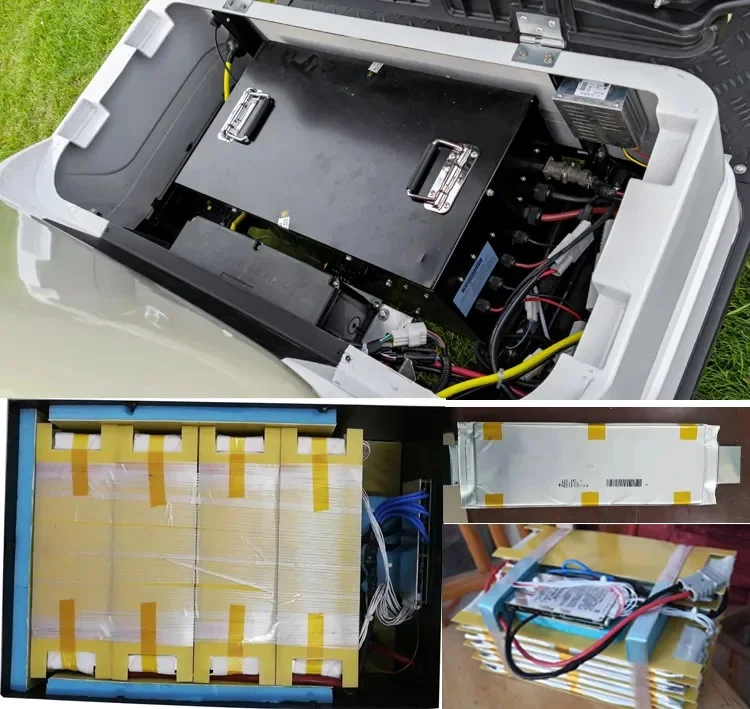

72V126AH Lithium Battery
|
Performance and Dimensions
|
Passenger Capacity
|
4 (2+2)
|
Range (Loaded) *
|
90-100kms
|
Max.speed
|
32-40km/h
|
Min. Turning Radius
|
3.7m
|
Max. Gradeability
|
20%-30%
|
Max. Loading Weight
|
320kgs
|
Net Weight
|
510kgs
|
Overall Dimensions
|
2950X1340X1990mm
|
|
Frame (Chassis)
|
Welded steel framework, with anti-rust treatment of acid washing, phosphating and electro-coating
|
Body and Roof
|
PP plastic front body and rear body; PP vacuum form roof
|
Windshield
|
Organic plastic windshield, splited tinted
|
Roof supports
|
Carbon Steel, powder coated
|
Backrest and Seat
|
Reborn Sponge, artificial leather + plastic armrest
|
Floor
|
Galvanized Steel plate and anti-slip rubber floor mat
|
Dashboard
|
Plastic in black, with 4 cup holders, 2 glove storage box, forward/reverse switch, battery capacity indicator, ignition key
|
Side trim
|
Plastic
|
Sider mirror
|
2pcs, foldable
|
Electric System
|
Lighting system and horn
|
All LED lights, 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 72V to 12V), electric horn.
|
Backup Buzzer
|
12V
|
Digital Meter
|
LCD screen, with speedometer, odometer, battery power meter and various indicators
|
Charger
|
Smart charger, input 110V-240V~50Hz-60Hz, output 72V, 20A
|
Steering, Brake, Transmission and Suspension
|
Steering System
|
Single-stage rack and pinion steering system, automatic rocker compensating function
|
Brake system
|
4 Wheels hydraulic front disc rear drum brake, regen brake
|
Accelerator
|
Stepless speed change
|
Driving mode
|
Rear axle two stage deceleration, motor direct driving
|
Rear axle
|
Integrated, Gear ratio12.49:1
|
Suspension system
|
Front MacPherson Independent and rear plate leaf spring + cylinder hydraulic shock absorber
|
Wheel & Tyre
|
12x7 aluminum rim & 23*10.5-12 Tire
|
