Product Overview

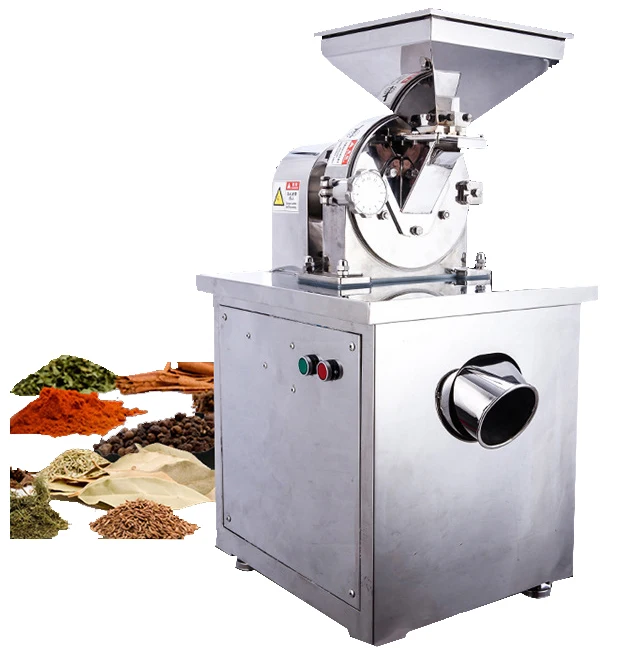

Universal Grinder Crusher Pulverizer Machine
Universal crusher adopts the tooth disc high-speed rotating knife, the fixed knife impact and shear grinding to crush. The crushing effect is good, the heat of crushing chamber and finished product outflow together from sieve by strong airflow. Crushing fineness can be decided by different sieves after being crushed.

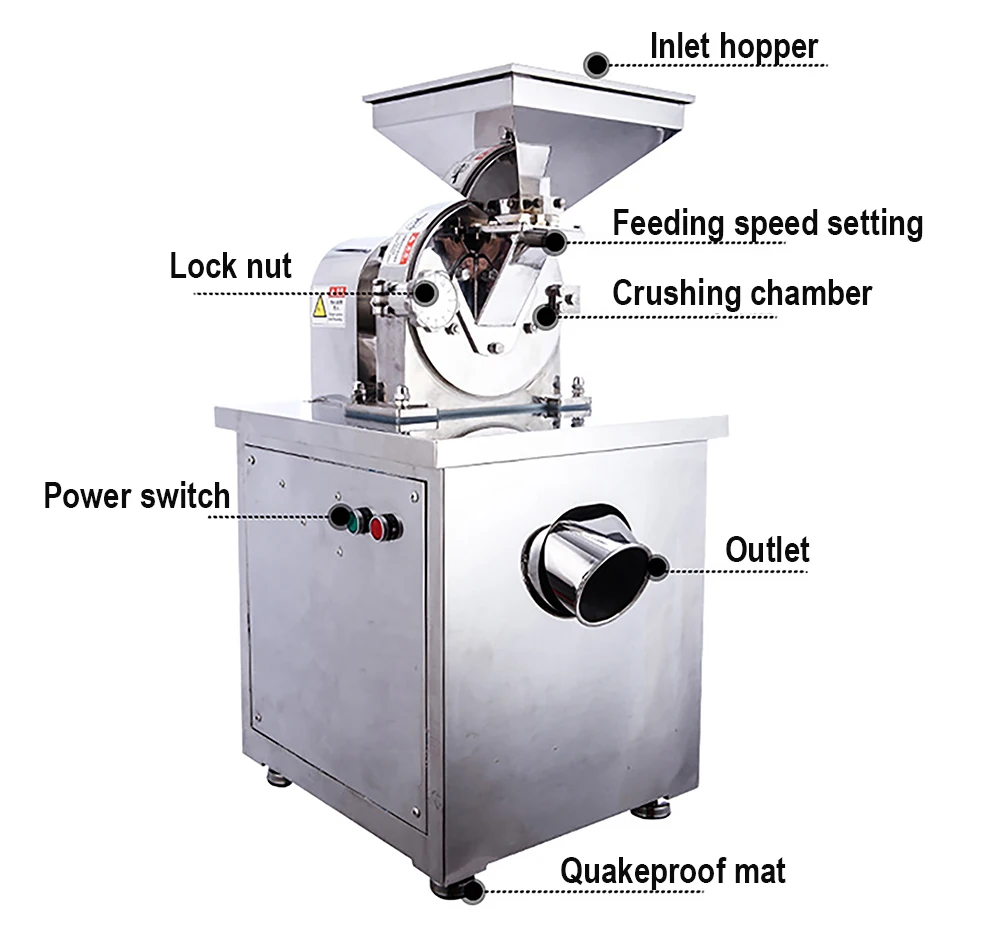

FEATURES AT A GLANCE
All contact parts: stainless steel SUS 304
Material : Anti- corrosion

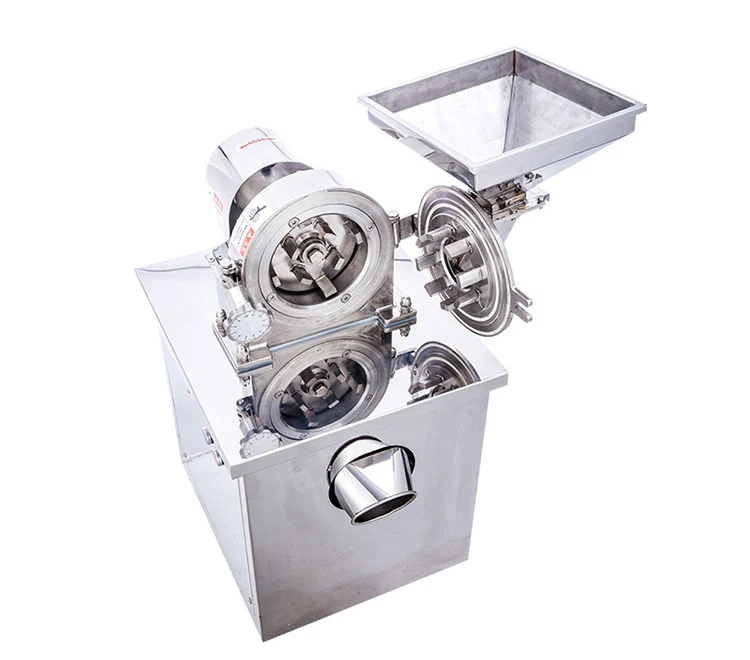

It has the advantages of smooth running, convenient dismounting and cleaning, low
noise and good grinding effect.
noise and good grinding effect.
PRODUCT SPECIFICATIONS
Model | Capacity (KG/H) | speed (r/min) | Feed size (mm) | Crush size (mm) | Power (kw) | Weight (kg) | Dimensions (mm) |
SR-20 | 20-150 | 4500 | <6 | 12-120 | 4 | 280 | 590*650*1350 |
SR-30 | 30-300 | 3800 | <10 | 12-120 | 5.5 | 350 | 650*800*1500 |
SR-40 | 40-500 | 3400 | <12 | 12-120 | 7.5 | 480 | 800*950*1700 |
SR-60 | 60-600 | 2400 | <15 | 12-120 | 22 | 650 | 950*1050*1900 |
SR-80 | 80-1000 | 2200 | <15 | 12-120 | 37 | 1050 | 2500*1500*2100 |
Product Details

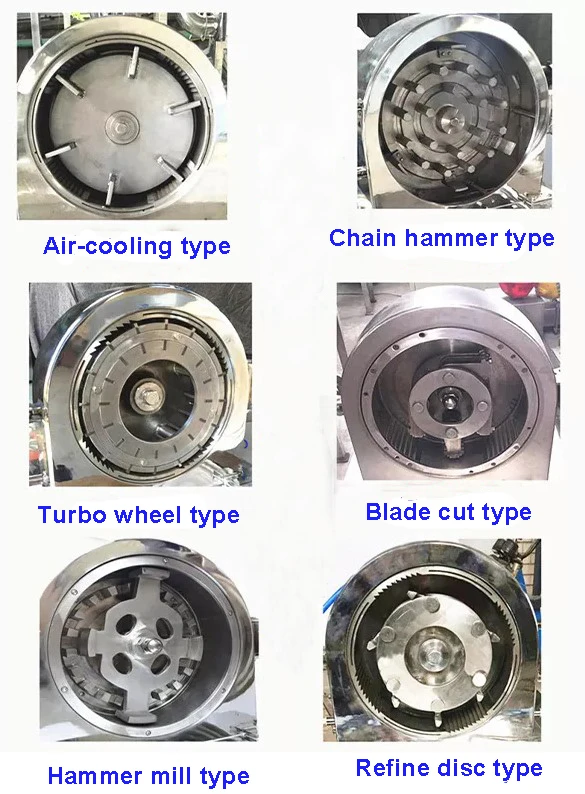

Hammer type is better on little hard material like stone. If grinding grain cost a longer time.
Air cooling type grind and discharge quickly, and not easy heat temparature in grind chamber.
Turbo wheel type is best in fineness degree of flour, even oil material. Only notice its big noise.
Refiner disc type is main use for make food condiments, such as spice, ginger, curry flour.
Blade cut type has special effect on material with fiber, like herb. Flour with very high uniformity.
Air cooling type grind and discharge quickly, and not easy heat temparature in grind chamber.
Turbo wheel type is best in fineness degree of flour, even oil material. Only notice its big noise.
Refiner disc type is main use for make food condiments, such as spice, ginger, curry flour.
Blade cut type has special effect on material with fiber, like herb. Flour with very high uniformity.
Product application
