Точное измерение универсального

Product Overview

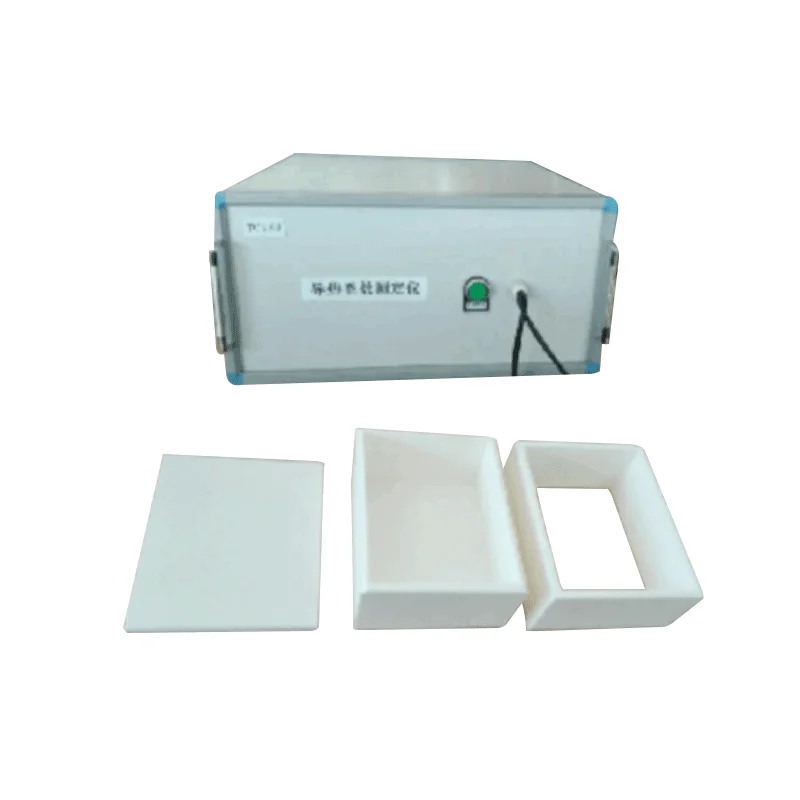

The universal thermal conductivity meter using the hot wire method has the advantages of accurate measurement, fast measurement, simple operation, and wide applicability, providing great convenience for material research, thermal conductivity improvement in the scientific research field, as well as product quality inspection and production control in industry. Suitable for various insulation materials, thermal conductivity materials, phase change materials, composite materials, etc.
Executive Standards
GB/T10297-2015 "Hot wire method for the determination of thermal conductivity of non-metallic solid materials"
Technical parameters
1. Measurement time: 2-20 seconds to obtain results;
2. Measurement accuracy: The best accuracy of the standard sample is better than 2%, and less than 3% within the full range range;
3. Sample morphology: Various block, sheet, film, powder, particle, colloid, paste, and irregularly shaped samples can be applied without the need to replace the probe; The minimum side length of solid samples is 2.5 centimeters, while liquid samples are 30mL. Special samples can use smaller probes;
4. Model and temperature measurement range:
RX-1 room temperature measurement
RX-2(-30~100℃)
RX-3 (room temperature+10 ℃~200 ℃)
RX-4(-150~0℃
