Product Description

SKZ1061C Thermal Conductivity Tester
It can be used for various heat conduction properties of different types of materials testing. Transient Plane Source method is to study the thermal conductivity method, the latest one, which makes measurement technology to a whole new level. In the study of material capable of fast and accurate measurement of thermal conductivity for the enterprise quality control, material production and laboratory studies provide a great convenience. The instrument is easy to operate, simple to understand, will not cause damage to the sample.
Test object:
Metal, ceramics, alloys, minerals, polymers, composite materials, paper, fabric, foam (smooth surface insulation material, plate), mineral wool, cement walls, glass-reinforced composite plate CRC, cement polystyrene board, sandwich concrete, glass and steel panels composite plates, paper honeycomb panels, gel, liquid, powder, granular and pasty solid.

1. Standard: ISO 22007-2 2008.
2. Direct measurement, testing time is about 5-160s, and can be set up, to quickly and accurately measure the coefficient of thermal conductivity, saving a lot of time.
3. Do not suffer the effects of thermal contact resistance.
4. No need special sample preparation, sample shapes without special requirements, bulk solids, only need the relatively smooth surface and satisfies the length and width of at least twice the diameter of probe can be.
5. Non-destructive testing on samples, samples can be reused.
6. The probe using the double-helix structure design, combined with the exclusive model, data collected on the probe using the core algorithm analysis.
7. Sample stage designed, easy operation, suitable for different thickness of the sample
8. The probe data acquisition using the imported data acquisition on the chip, which is high resolution, can make the tests more accurate and reliable results.
9. Host control system using the ARM microprocessor, speed is faster than traditional microprocessors, improves the processing capacity, more accurate results,
10. It can be used for measuring bulk solids,pasty solid, granular solid, paste, gel, liquid, powders, coatings, thin film thermal insulation materials.
11. Intelligent freiendly human-computer interface, color LCD display, touch screen controls
12. Powerful data processing capabilities. Highly automated computer processing system for data communication and reporting.


Technical parameters:

12 months
Customized support
Place of Origin
Brand Name
Model Number
Product name
guarded hot plate thermal conductivity testing equipment
 ISO 22007-2 2008.
Sample Size
300 * 300 * 30mm
Temperature range
Room temperature--130℃
Thermal conductivity Coefficient range
Testing time
5--160 seconds
Test method
Transient Plane Heat Source, Unsteady Status
LCD color screen display

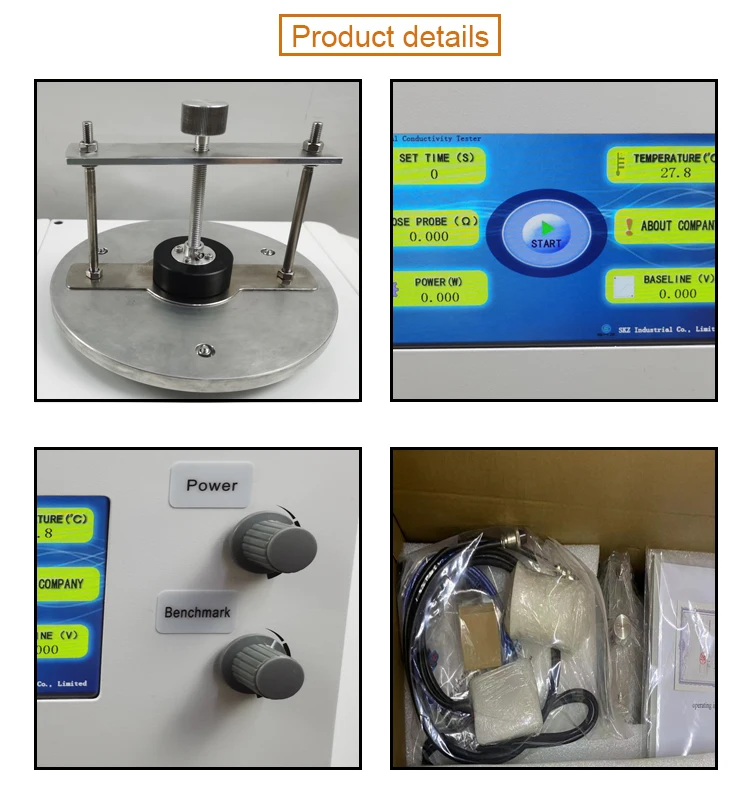

Details Images

Customer praise

Company Profile
