Products Description

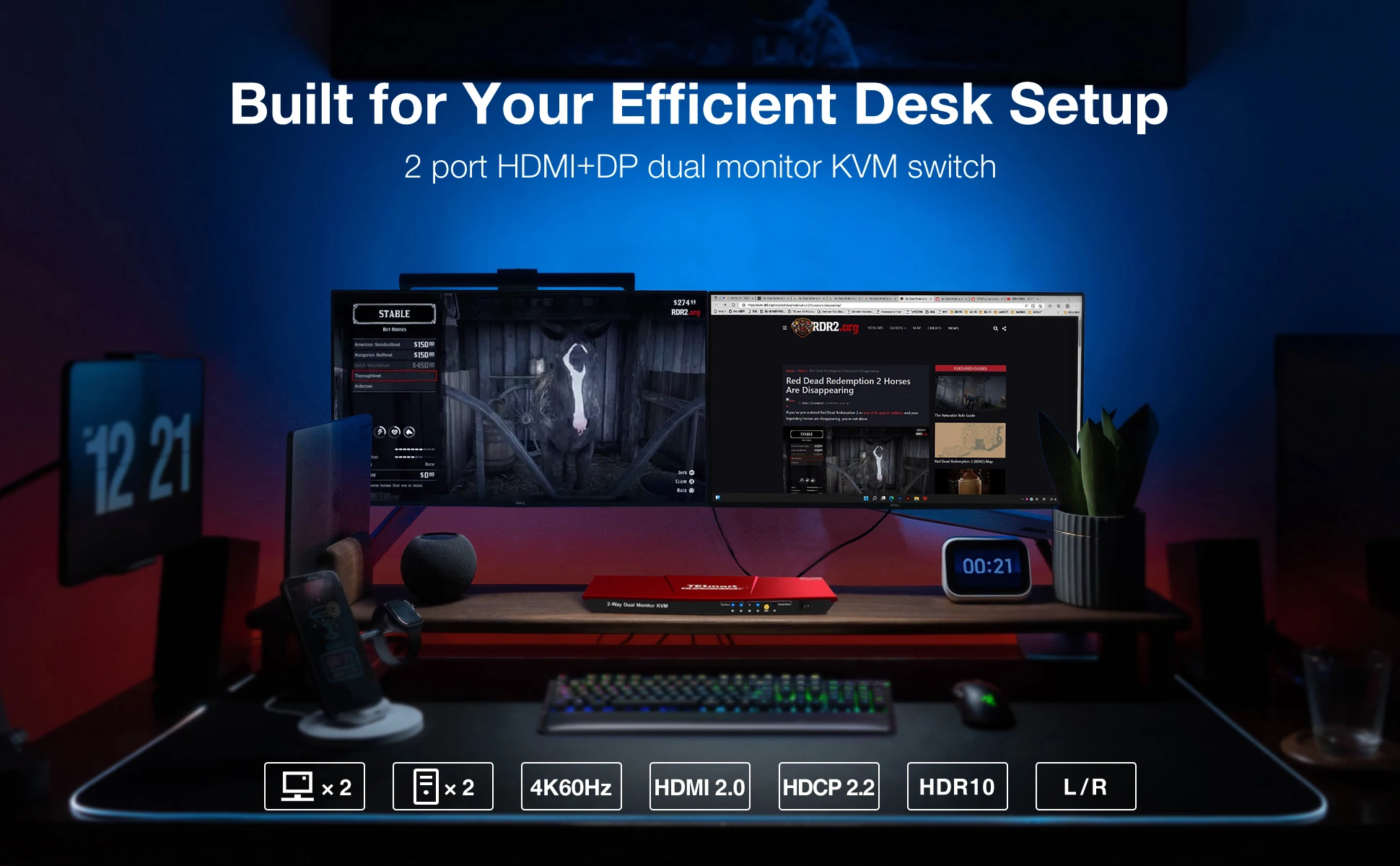

This 4x2 Dual Monitor KVM provides you with great flexibility in integrating cross-platform computer equipment easily. You can control the Dual Monitor KVM with the front-panel button, IR remote control and keyboard hot keys.
It supports only a set of keyboard & mouse and 2 monitors to control 2 PCs. Supports hot keys to change active selected PC. Supports USB 2.0, you can even attach USB 2.0 hub , USB drive, printer, barcode scanner or other USB devices to the Dual Monitor KVM. And supports keyboard and mouse pass through mode to improve KM compatibility.
It supports only a set of keyboard & mouse and 2 monitors to control 2 PCs. Supports hot keys to change active selected PC. Supports USB 2.0, you can even attach USB 2.0 hub , USB drive, printer, barcode scanner or other USB devices to the Dual Monitor KVM. And supports keyboard and mouse pass through mode to improve KM compatibility.
Features:
●Using only 1 set of keyboard, mouse and 2 monitors to control 2 computers
●Support Unix /Windows /Debian /Ubuntu /Fedora /Mac OS X /Raspbian /Ubuntu for Raspberry Pi and other Linux based systems

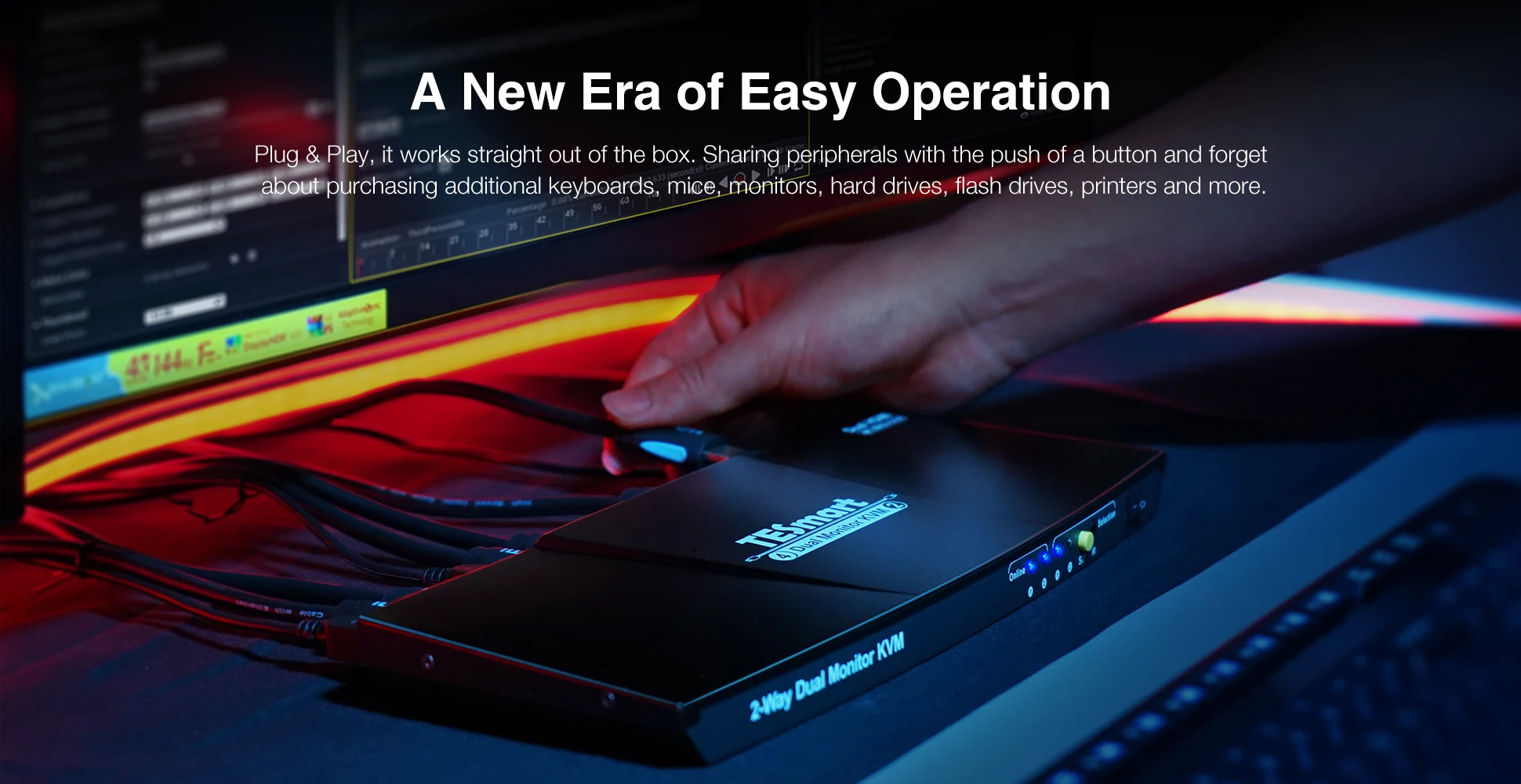

●Support hot plug, connect or disconnect devices to the KVM at any time without turning off devices
●Support front panel button, IR signals, keyboard hot keys to control the
●Available to use keyboard and mouse without any delay after switching computer.
●Support resolution up to 3840*2160@60HZ
●With extra standard USB 2.0 port, it is possible to connect barcode scanner, USB hard drive or other USB devices to the KVM
●Support keyboard and mouse pass through mode to improve KM compatibility
●Support Unix /Windows /Debian /Ubuntu /Fedora /Mac OS X /Raspbian /Ubuntu for Raspberry Pi and other Linux based systems
●Support hot plug, connect or disconnect devices to the KVM at any time without turning off devices
●Support front panel button, IR signals, keyboard hot keys to control the
●Available to use keyboard and mouse without any delay after switching computer.
●Support resolution up to 3840*2160@60HZ
●With extra standard USB 2.0 port, it is possible to connect barcode scanner, USB hard drive or other USB devices to the KVM
●Support keyboard and mouse pass through mode to improve KM compatibility
Specification
HDK0402A1U | 4x2 Dual Monitor KVM | |||
Functionality: | ||||
Auto Scan | No | |||
Port selection | Front panel buttons | Yes | ||
Keyboard hotkeys | Yes | |||
IR remote control | Yes | |||
Technical: | ||||
Max. Resolution | 3840x2160@60Hz | |||
Auto to get EDID | Yes | |||
Data rate | 10.2 Gbps | |||
OSD | No | |||
Supported OS | Unix/Windows/Debian /Ubuntu /Fedora /Mac OS X/ Raspbian /Ubuntu for Raspberry Pi and other Linux based systems | |||
Console ports | Keyboard emulation | 1 * USB Type A | ||
Mouse emulation | 1 * USB Type A | |||
USB 2.0 Hub ports | 1 * USB Type A | |||
Video /Audio | 2 * HDMI Type A | |||
System ports | USB Data | 2 * USB Type B | ||
L/R audio output | 1*AUX | |||
Video / Audio | 2 * HDMI Type A，2*DP Type A | |||
ESD protection | Human body model - ±8kV (Air-gap discharge) | |||
Mechanical: | ||||
Chasing material | Aluminum Alloy | |||
Product | Dimension | 300 (L) x 117.4 (W) x 30.3 (H) mm | ||
Weight | 523g | |||
Item | Dimension | 338 (L) x 166 (W) x 90 (H) mm | ||
Weight | 1445g | |||
Carton | Dimension | 490 (L) x 360 (W) x 360 (H) mm | ||
Quantity | 10pcs | |||
Total Weight | 15.3kg | |||
