PRODUCT INTRODUCTION
China exhaust hood filters wholesale electrostatic precipitator for commercial kitchen cooking smoke grease

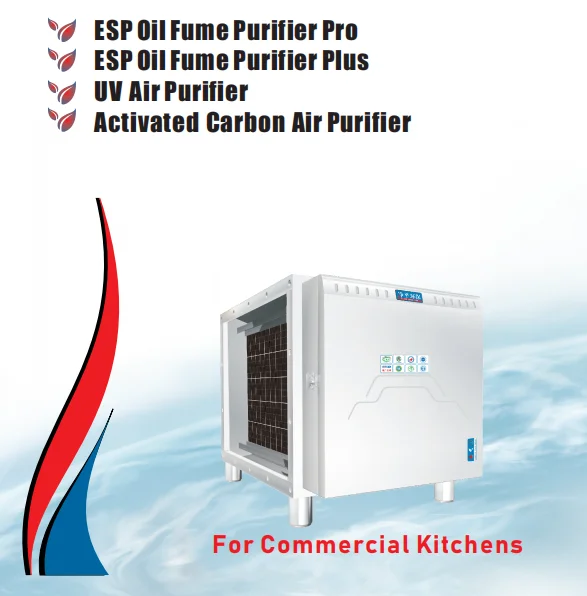

This ESP Oil Fume Purifier is designed with Electrostatic Precipitator (ESP) technology to purify the oil fume or cooking smoke during food processing and recycle the oil. Due to the oil fume or oil mist with high temperature, high volume & high density, the purification machine needs to be with high reliability and stability, easy to use and maintenance. JingPing technicians have found a unique and feasible solution in terms of equipment structure, control of high-voltage power supply, system safety protection and system fault diagnosis.

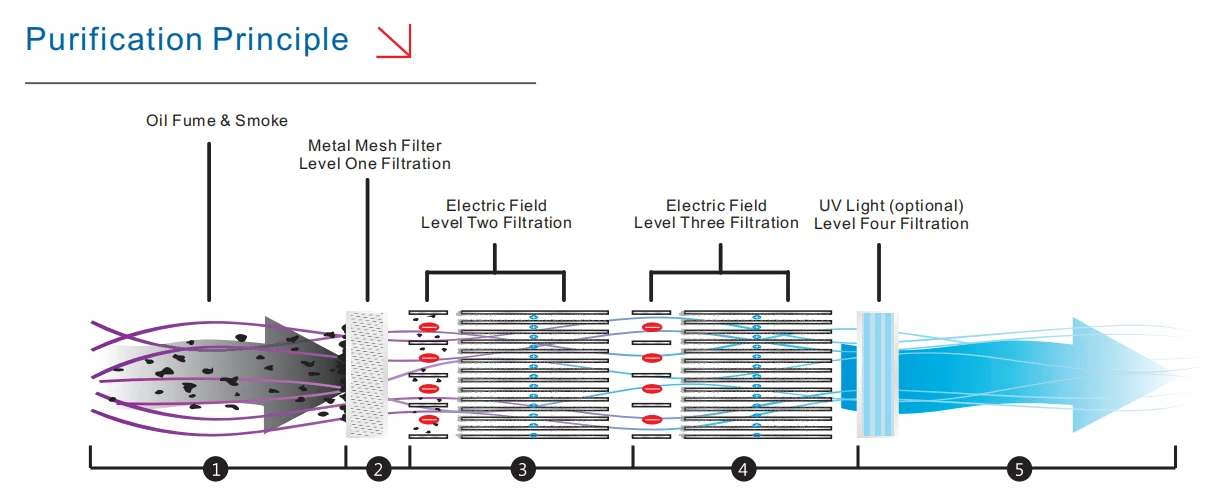

Electrostatic Precipitator (ESP) technology on oil fume, oil mist or cooking smoke purification is to capture oil fume and smoke particles, and then force the particles to collide with the electrons and negative ions generatedin the electric field. After the oil particles are charged, they will be absorbed on the anodes, and then collected.The electrostatic filed is mainly used to emit electrons and accelerate oil fume or smoke particles.
For collection of dry and wet particulates like dust, oil, mist, grease and cooking fumes. Best suited for commercial kitchen systems, the electrostatic air cleaner collects particles as small as 0.01 microns and traps them within its collection plates until later cleaned, with the UV ozone working to further sanitise and destroy odours.

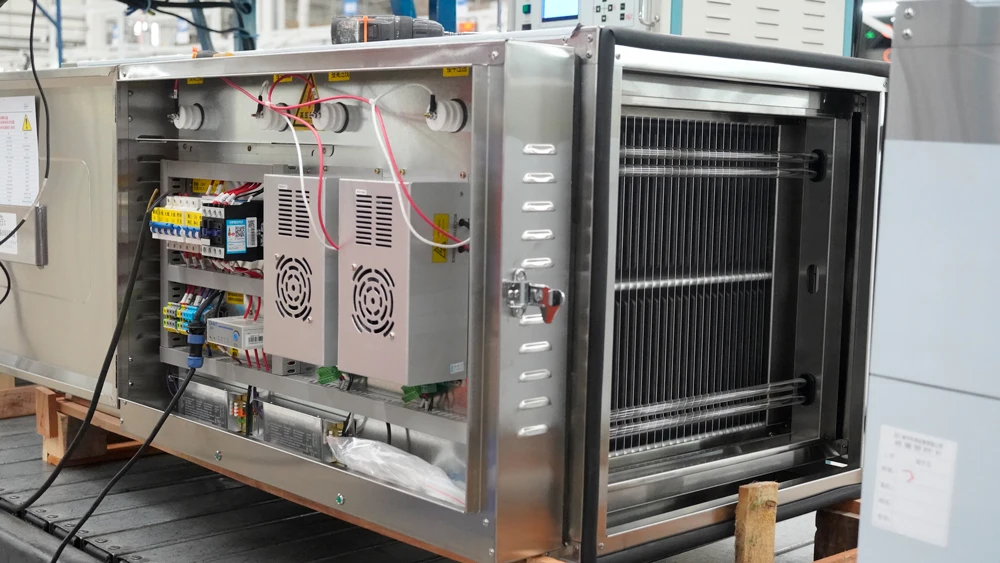

The dual cells are each comprised of 9 ionizing wires and 29 collection plates. Two high output ozone lamps are fitted in the unit, after the Electrostatic Cells. This can be easily removed for maintenance or lamp replacement.
For collection of dry and wet particulates like dust, oil, mist, grease and cooking fumes. Best suited for commercial kitchen systems, the electrostatic air cleaner collects particles as small as 0.01 microns and traps them within its collection plates until later cleaned, with the UV ozone working to further sanitise and destroy odours.
The dual cells are each comprised of 9 ionizing wires and 29 collection plates. Two high output ozone lamps are fitted in the unit, after the Electrostatic Cells. This can be easily removed for maintenance or lamp replacement.

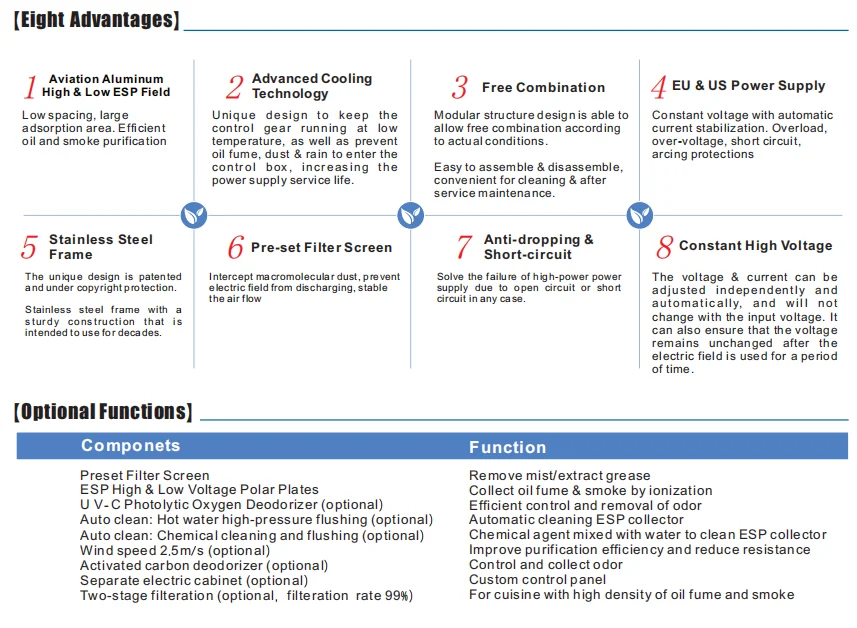

Features & Benefits of Oil Fume Purifier /Electrostatic Air Cleaner/ Kitchen Smoke Cleaner/ Oil Grease Collector
★Electrostatic air purifier 95-98% cooking smoke, grease particles removal efficiency
★Optional UV air filter & activated carbon filter to remove odors
★Built in oil collection tray
★Advanced gasket door system which stops air and grease leaks
★Stainless steel rails for easy cell and pre-filter maintenance
★Compression contact switch on cells for failsafe contact. No springs to lose
★Heavy duty aluminum collection cells which are durable and long-lasting
★Powder coated finished and built from 1.4mm galvanised electro steel
★High efficiency with low maintenance costs
★UV Lamps are automatically turned on when the electrostatic air cleaner is in operation.
★Built in oil collection tray
★Advanced gasket door system which stops air and grease leaks
★Stainless steel rails for easy cell and pre-filter maintenance
★Compression contact switch on cells for failsafe contact. No springs to lose
★Heavy duty aluminum collection cells which are durable and long-lasting
★Powder coated finished and built from 1.4mm galvanised electro steel
★High efficiency with low maintenance costs
★UV Lamps are automatically turned on when the electrostatic air cleaner is in operation.

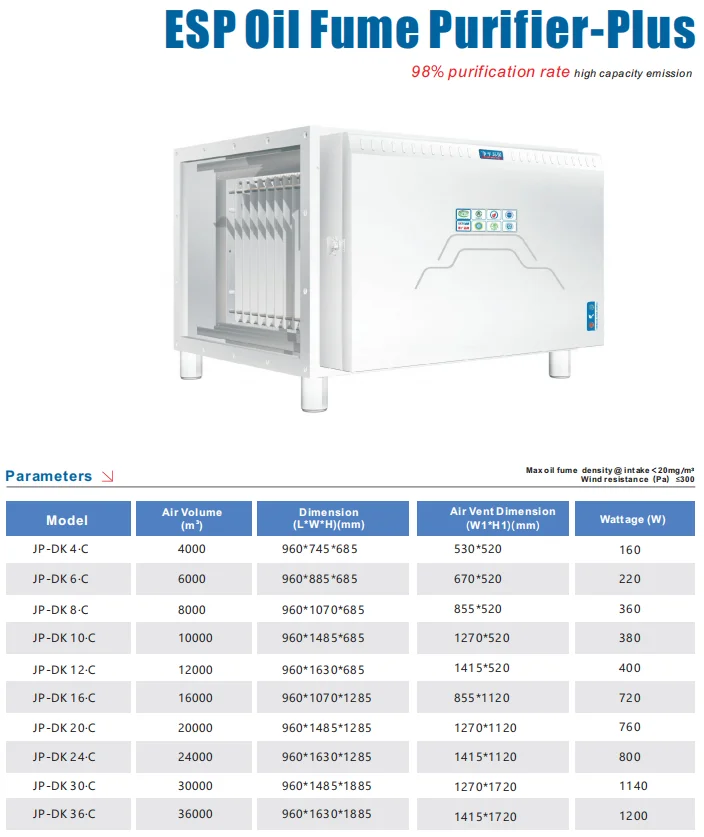

PRODUCT SPECIFICATIONS
Name | China exhaust hood filters wholesale electrostatic precipitator for commercial kitchen cooking smoke grease |
Model | JP-DK30C |
Machine Dimension | L960*W1485*H1885mm |
Air Vent Dimension | 1415*1720mm |
Input Voltage | AC100-220V 50/60Hz |
Power Consumption | 1140W |
Wind Resistance | 300Pa |
Air Volume | 30000m3/h |
Filtration Rate | 98% |
Core Components | Electrostatic Precipitator, UV Air Filter |
Housing Material | Stainless Steel 201/304 |
Installation | On ground |
Maximum Inlet Concentration(mg/m³) | 20mg/m3 |
Outlet Concentration(mg/m³) | 1mg/m3 |
Application | Large and medium-sized restaurants, canteens |
COMPANY PROFILE
JingPing Environmental Protection Co., Ltd is a professional manufacturer of Integrated Oil Fume Purification Machines, which are the most advanced All-In-One Commercial Range Hood on the market. With maximum eight layer filtration process, it can reach up to 99% purification rate by removing grease, oil, smoke and odors in addition to heat & moisture. After purification and filtration process, the fresh air just comes out from the air outlet. There will be NO MORE DUCTS required in your kitchen!
Founded in 1999 and with 24 years development, JingPing now has became the largest Integrated Oil Fume Purification Machine manufacturer in China. JingPing has purchased a large number of advanced intelligent production equipment, including CNC laser cutting machines, CNC punching machines, bending processing machines, welding robots etc. and set up an advanced and modern factory in Suining City, Sichuan Province with over 45000sqm area covered. With over 300 workers, JingPing can produce 5000sets various type commercial range hoods monthly, and our annual sales turnover reaches 50millions US dollars. Our products have been exported to Malaysia, Singapore, India, Vietnam, Germany, Italy and many other countries.
To ensure our quality, JingPing has obtained many certificates such as ISO9001 International Quality System Certification,
ISO14001 Environment Management Certification, and IS045001 Occupational Health and Safety Certification, Meanwhile, JingPing has gained more than 60 national patents, which makes our products more competitive in the market.
JingPing adheres to the management policy of "Quality for Survival, Innovation for Development, Cooperation for Win-win".
JingPing is seeking to provide a Smoke-free Kitchen to our client.
Founded in 1999 and with 24 years development, JingPing now has became the largest Integrated Oil Fume Purification Machine manufacturer in China. JingPing has purchased a large number of advanced intelligent production equipment, including CNC laser cutting machines, CNC punching machines, bending processing machines, welding robots etc. and set up an advanced and modern factory in Suining City, Sichuan Province with over 45000sqm area covered. With over 300 workers, JingPing can produce 5000sets various type commercial range hoods monthly, and our annual sales turnover reaches 50millions US dollars. Our products have been exported to Malaysia, Singapore, India, Vietnam, Germany, Italy and many other countries.
To ensure our quality, JingPing has obtained many certificates such as ISO9001 International Quality System Certification,
ISO14001 Environment Management Certification, and IS045001 Occupational Health and Safety Certification, Meanwhile, JingPing has gained more than 60 national patents, which makes our products more competitive in the market.
JingPing adheres to the management policy of "Quality for Survival, Innovation for Development, Cooperation for Win-win".
JingPing is seeking to provide a Smoke-free Kitchen to our client.
Choose JingPing, choose a better life.
New Factory in Suining City, Sichuan Province
45000sqm Working Area with Modern Equipments
JingPing Sales Team at the Exhibition
200 Experienced Workers & 100 Management Staff
CERTIFICATIONS
FAQ
Q1：Are you a factory or trading company?
A1：We are a manufacturer for over 24 years. Our company has committed to making contribution to environmental proteciton. We sincerely welcome you visit our factory at any time. We located in Suining City, Sichuan Provice, within one hours to Chengdu airport.
Q2：What are your main products?
A2：We mainly manufacture Integrated Oil Fume Purification Machines and Mini Oil Fume Purifiers. Both are for commercial kitchens, mostly in hotels, shools, resturants.
Q3：What is your MOQ?
A3：We welcome one-unit trial.
A3：We welcome one-unit trial.
Q4：What is your delivery time?
A4：5-7 days for samples and 10-15 days for bulk.
A4：5-7 days for samples and 10-15 days for bulk.
Q5：Can you do custom made?
A5：Yes, we can do both OEM/ODM and custom made. We can also offer design for your projects.
A5：Yes, we can do both OEM/ODM and custom made. We can also offer design for your projects.
