Автомобильные датчики Gaoxinsens 5WK96681C/D
- Категории: Auto Sensors >>>
- Поставщик: Gaoxin,Green,Technology,(suzhou),Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Paramenters
Main Spec | Gaoxin Green | CONTI-GEN3.5 |
Measuring Range | NOx: 0-3000ppm O2:0%-21% | NOx: 0-2500ppm O2:0%-21% |
NOx Accuracy | 0-100ppm: +/-10ppm 100ppm-500ppm: +/-8% 500ppm-1500ppm: +/-12% 1500ppm-2500ppm: +/-20% | 0-100ppm: +/-10ppm 100ppm-500ppm: +/-10% 500ppm-1500ppm: +/-15% 1500ppm-2500ppm: +/-25% |
O2 Accuracy | 0%-5% O2 ±0.2% 5% -21% O2 ±4% | 0%-5% O2 ±0.2% 5% -21% O2 ±4% |
Response Time | t10<-->90%λlin< 3500ms t10<-->90%NOx< 3500ms | t10<-->90%λlin< 3500ms t10<-->90%NOx< 3500ms |
Supply Voltage | DC 9~36V | 12V/24V |
Light-off time | Reach measurable state: < 100s | Reach measurable state: < 100s |
Design life | 6000h or 350,000km | 6000h or 350,000km |
Exhaust temperature | -40℃~+800℃ | -40℃~+800℃ |
Wire-Harness length | Any length can be customized | 408~908mm |

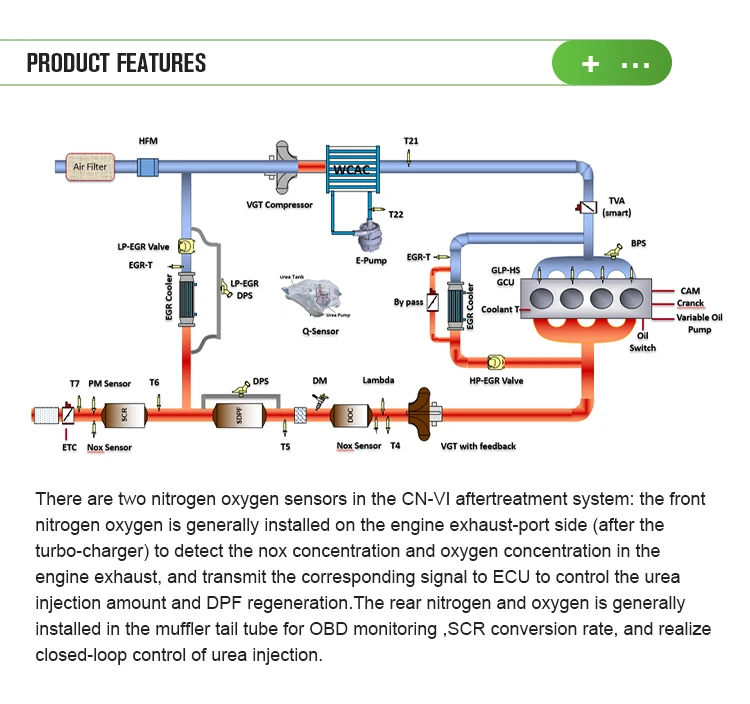

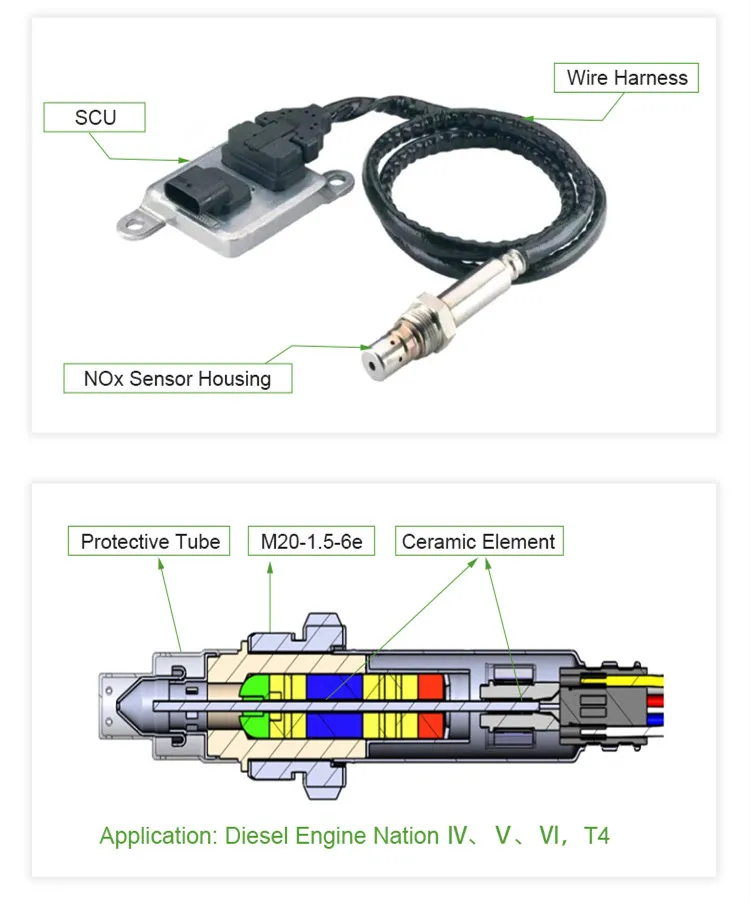

Products Description

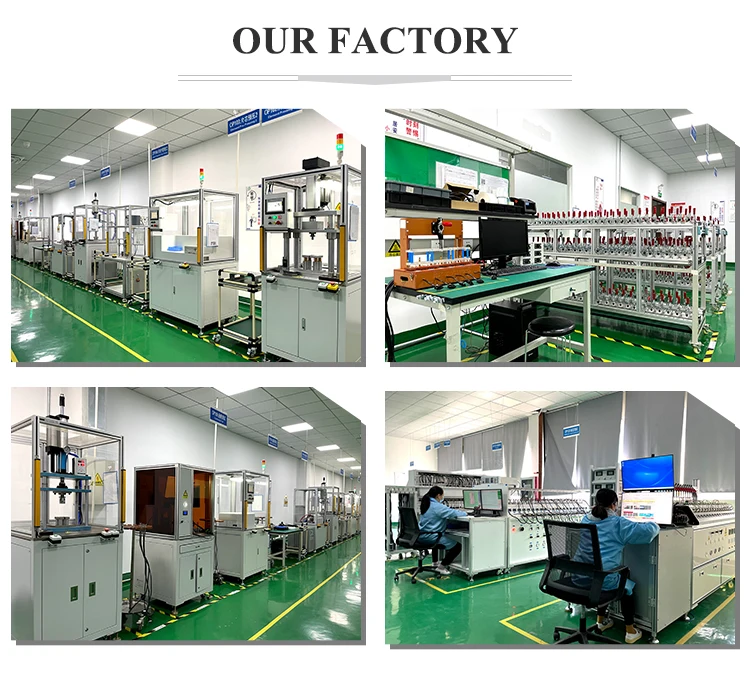

Manufacturing Technique

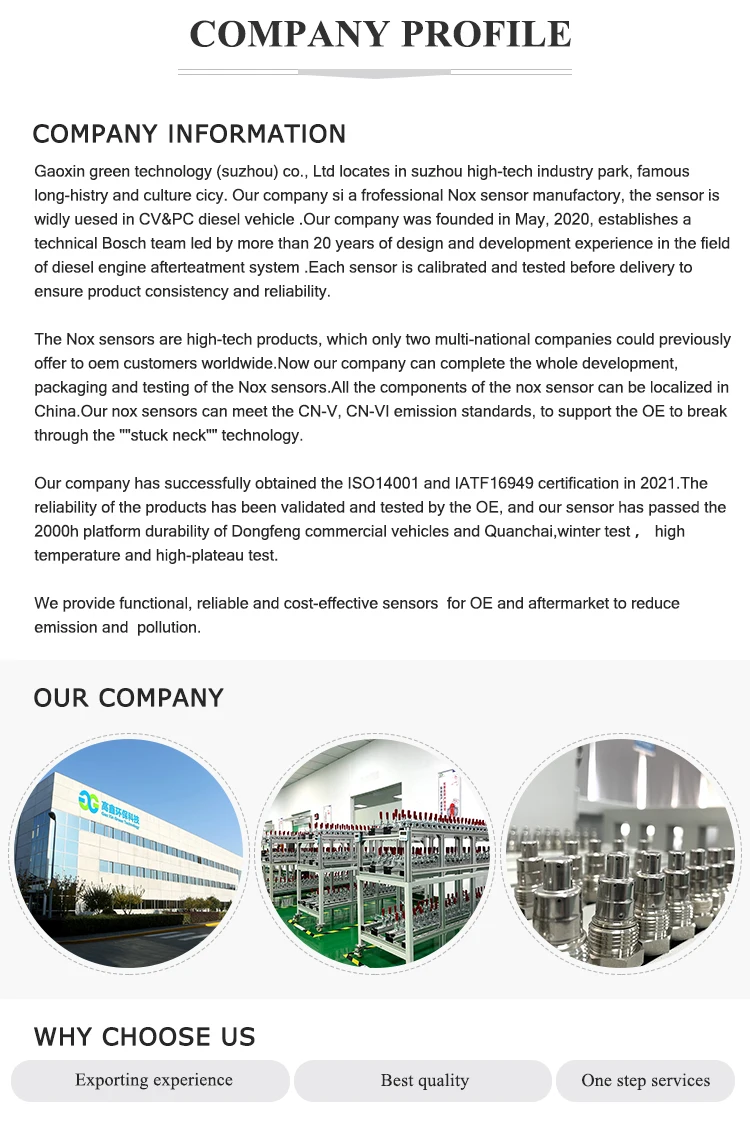

Company Profile
Certifications
Production Process
Product packaging
FAQ
Q: Are you the final manufacturer?
A: Yes, We are SENSOR manufacturer and exporter in china with 10+ years experience
A: Yes, We are SENSOR manufacturer and exporter in china with 10+ years experience
and with the factory authorized by SGS.
Q: Do you offer the OEM service?
A: Yes, we can offer OEM service and design the logo marking for you. But the
minimum quantity is 10pcs for the first order.
Q: Do you offer free samples?
A: Sorry , we do not offer free samples. You should pay for the samples and
freight cost.
Q: What payment ways do you accept?
A: You can pay us by T/T , PayPal , and West Union.
Q: What is your delivery time?
A: It is in 6-8 working days since the payment confirmed. If quantity is more
than 100pcs /order, it will need extra 3-5 working days .
Q: What is your normal delivery way?
A: Goods will be sent by DHL / FEDEXI UPS/ EMS 1 TNT / or other proposed forwarders.
Q: How is your quality assurance service?
A: Our service is 12 months quality guarantee.
Q: Could we make a visit to your factory?
A: Yes, you are welcomed. But before that, we will do the visiting investigation.
Q: Do you offer the OEM service?
A: Yes, we can offer OEM service and design the logo marking for you. But the
minimum quantity is 10pcs for the first order.
Q: Do you offer free samples?
A: Sorry , we do not offer free samples. You should pay for the samples and
freight cost.
Q: What payment ways do you accept?
A: You can pay us by T/T , PayPal , and West Union.
Q: What is your delivery time?
A: It is in 6-8 working days since the payment confirmed. If quantity is more
than 100pcs /order, it will need extra 3-5 working days .
Q: What is your normal delivery way?
A: Goods will be sent by DHL / FEDEXI UPS/ EMS 1 TNT / or other proposed forwarders.
Q: How is your quality assurance service?
A: Our service is 12 months quality guarantee.
Q: Could we make a visit to your factory?
A: Yes, you are welcomed. But before that, we will do the visiting investigation.
