Fan or Ventilation System Wireless Smart indoor Air Quality  433 CO2 Monitor and  Controller

Wireless Wifi 433 Air Quality  CO2  Controller CO2 Meter For air quality monitoring system  Fan Ventilation System CO2 Monitor

Product description

This product SA1300C indoor air quality monitor is a Large LCD desktop and wall mountable instrument that measures CO2 concentration in air.
The co2 monitor displays real-time value of CO2 concentration,temperature and relative humidity.



1.The measured CO2 value in ppm(parts-per-million)will be displayed on the LCD with tee states indication:Good(0 to 800ppm),Normal(800 to 1200ppm),Poor(>1200ppm).Programmable alarm setting by users

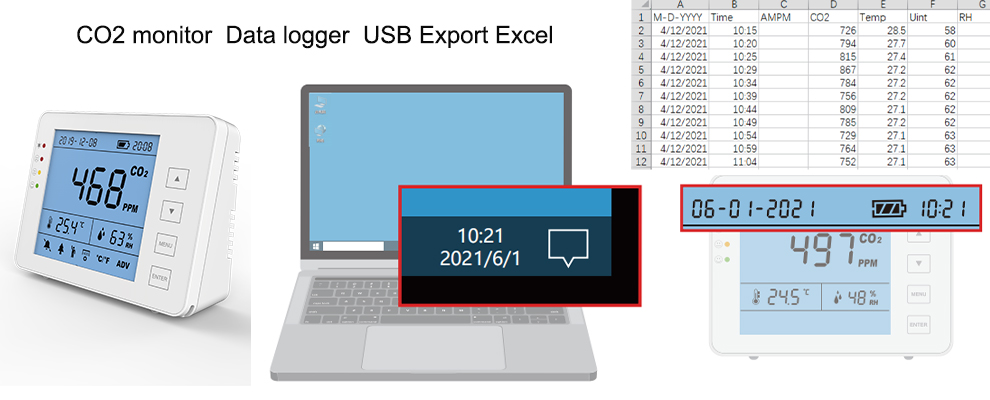

2.Data storage&USB export function(USB drive function)

3.Powered by USB,or optional AC adapter.

4.CE certificate.(EN 55032:2015;EN55035:2017)

Wireless Wifi 433 Air Quality  CO2  Controller CO2 Meter For air quality monitoring system  Fan Ventilation System CO2 Monitor







Features

Wireless Wifi 433 Air Quality  CO2  Controller CO2 Meter For air quality monitoring system  Fan Ventilation System CO2 Monitor

· Monitor CO2 Carbon Dioxide concentrations

· Maintenace free NDIR(non-dispersive infrared)CO2 sensor,with high precision and high sensitivity

· Automatic Baseline Calibration(ABC)with disable feature for use in areas with continuously elevated CO2 levels(>400ppm)

· Triple LCD simultaneously displays CO2,Temperature and Humidity

· Visible and Audible CO2 warning alarm when concentration level exceeds high or low user set point

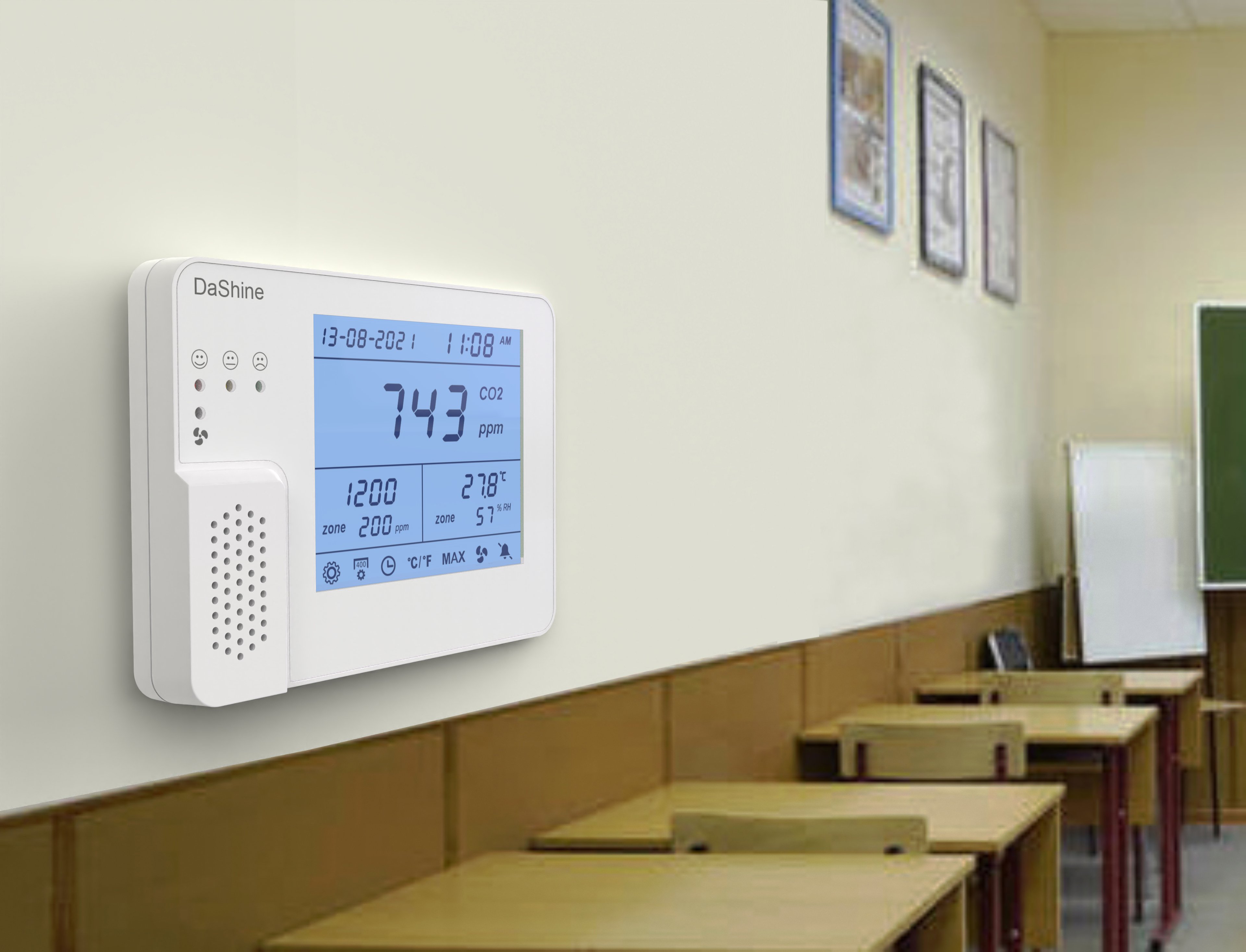

· Desktop or wall mount indoor air quality monitor,patent structure design

· Complete with Universal usb cable and optional AC adapter

· Optional 1800mAh rechargeable battery

Indoor Air Quality CO2 Monitor SA1300C in:

• Ambiance air quality detection and alarm


• Ventilation systems


• Air cleaning systems


• Installation place such as bedroom, sitting room, study and dinner room, kindergarten, classroom, office, car, restaurant, and other public places.

Product display





Data sheet



Typical test and conditions: Ambient Temp: 23±3℃, RH=50%~70%, Altitude=0~10 meters

Measurement	Specifications
Operating Temperature	32℉~122℉ (0℃~50℃)
Storage Temperature	-4°F ~ 140°F (-20°C ~ 60°C)
Operating & storage RH	0-95%(non-condensing)
CO2 Sensor
Measuringe range	(0-5000)ppm
Display resolution	1ppm (0-1000); 5ppm (1000-2000); 10ppm (>2000)
Accuracy	(0~3000)ppm: ± 50ppm or ± 5% of reading (take the Maximum)
	(>3000)ppm:  ± 7% of reading
Repeatability	20ppm at 400ppm
Temp compensation	±0.1% of reading per ℃ or ±2 ppm per ℃, referenced to 25℃
Response time	2 min for 63% of step change or < 4.6 min for 90% step change
Warm-up time	<20 seconds
Temperature Measurement
Operating temperature	32°F ~ 195°F (0°C ~50°C)
Display resolution	0.1°F (0.1°C)
Response time	<20 minutes (63%)
RH Measurement
Measuring range	5~95%
Accuracy	±5%
Display resolution	1% Main interface display, 0.1% Max/Min display
Power consumption	160mA Peak, 40mA average at 5.0V
Dimension	120*90*33.5mm  (4.7*3.5*1.3 inch)
Weight	170g ( 6 oz)  device only



Package list

CO2 Monitor Unit SA1300P
USB Cable for Power
User’s Manual
AC Adapter (Optional)



We're looking for distributors all over the world, Price Liberally.
Rebate. (If the total amount is up to 5000 sets/year, we will send several extra devices for free.)
OEM. (Can print company name on the back label of device. Print company logo on the front look of device, if the quantity is big.)
Change the color of device.
Change other accessories, if need.



About us

Design & Moulding with 14 years’ experience, we make solidest and most practical products

Stricter quality inspection--we persue higher accuracy

Customization--we customize the exact product in your heart

Beijing Shi’an Tech Instrument Co., Ltd is grown out of Beiijing Dashiweye Technology Co., Ltd, and it’s engaged in designing and manufacturing portable gas detectors
