1000 мм наружный бесзатворный тепловой прицел 35 с длительным рабочим временем 384x288
- Категории: Night Vision >>>
- Поставщик: Shandong,Gloryvision,Intelligence,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

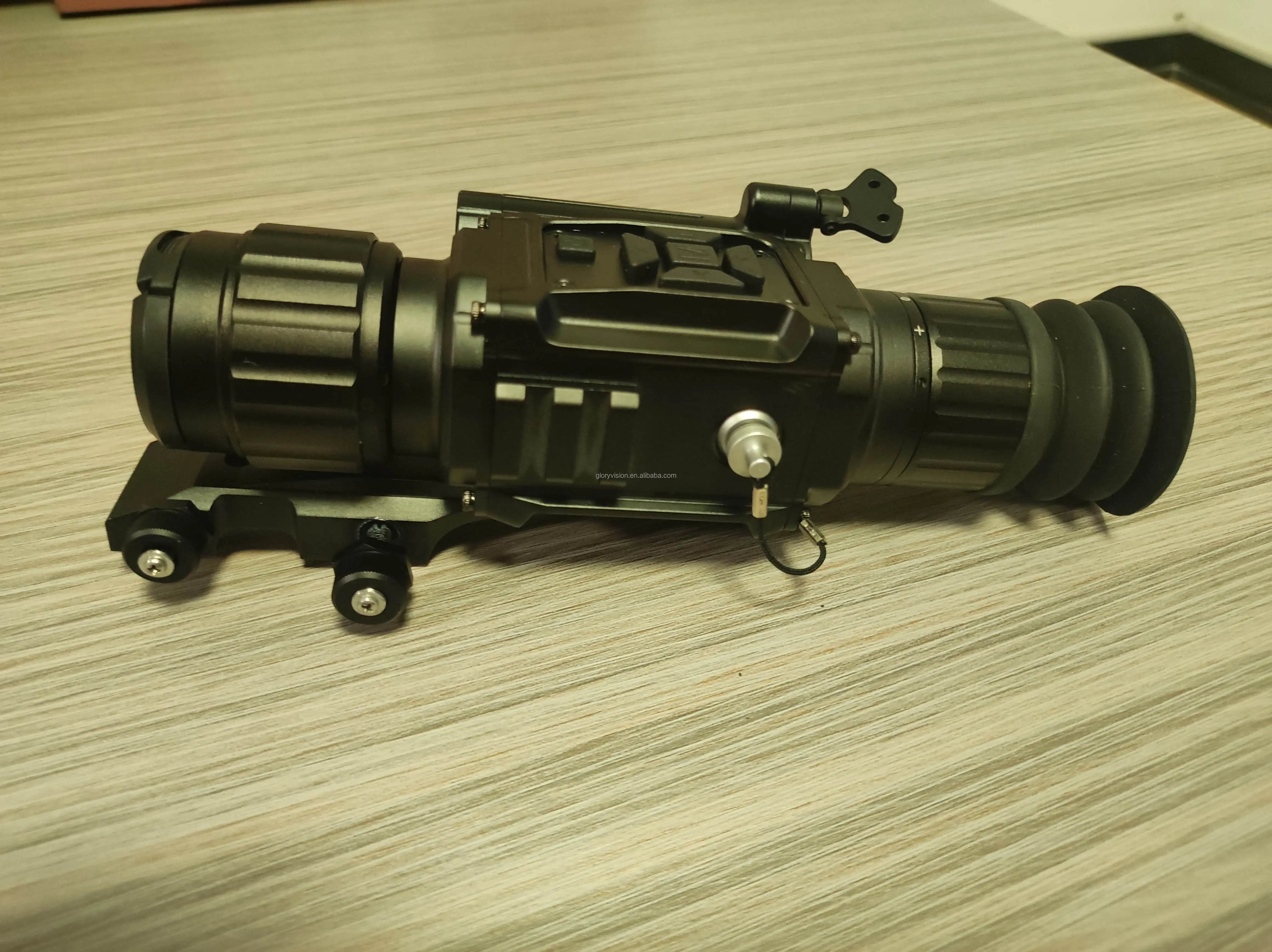

RXB series infrared thermal imaging gun sights use advanced non-blade technology, with the characteristics of high sensitivity, high refresh rate, and high stability. They can be used for 24-hour full-scene imaging and investigation, and are used in reconnaissance observation, outdoor hunting, outdoor exploration, Security and anti-theft, offshore operations, execution of special tasks, and many other occasions.
With or without Shutter ?
What is shutter?
The shutter is built between the lens and the detector. After a time interval, it is opened and closed manually or automatically. According to the existing environment, the parameters of the detector are reset to achieve the best observation effect. If it is not reset, irregular streaks will appear when observing. When the shutter is opened and closed, there will be 2-5 seconds, and the image will stagnate and cannot be observed.
The RXB series uses more excellent detectors that are more adaptable to environmental changes. At the same time, it has a built-in highly intelligent software algorithm, which can automatically adapt to the observation environment, observe the temperature and humidity changes of the target, and automatically achieve the best observation effect.
The RXB series uses more excellent detectors that are more adaptable to environmental changes. At the same time, it has a built-in highly intelligent software algorithm, which can automatically adapt to the observation environment, observe the temperature and humidity changes of the target, and automatically achieve the best observation effect.
Sensor | 384x288 |
Type | Uncooled FPA detector |
Material | Vox |
Frame rate | 50Hz |
Thermal Sensitivity | <50 mK |
Spectrum | 7~14 μm |
Lens System | 50mm |
Field of View | 5.3x4.0 |
F number | 1.2 |
Display | Colorful 0.39 inch OLED screen 1024×768 |
Eyepiece | Exit pupil distance 48mm, eyepiece magnification 14× |
Digital-zoom | 2x/4x |
Video Output System | PAL 50Hz |
Hotspot tracking | Yes |
Brightness adjustment | Manual |
Sharpness adjustment | Automatic |
Start up time | <5 sec |
Polarity control | Black hot, white hot, red hot, green hot |
Environmental Rating | IP67 |
Battery type | Interchangeable Li-ion battery 18650 x 2 |
Battery Life | 9 hrs |
Mounting bracket | MIL-STD 1913 rail (Quick) |
Low Battery Indicator | Yes |
Iconology | Quick access, Icon driven feature controls |
Dimension | 1760mm×80mm×72mm |
Net Weight | 600g |
Impact | 500G/1ms |
Products Features
Main features are as follows
1. No shutter design, user could get continuous image with no interval
2. Anti-impact 6000J
3. Wide range working temperaure -40℃ ~ +60℃ , suitable for harsh environment
4. IP67 Protection
5. Quick start and with 8 hours super long standby time
6. Easy to operate with multi image modes
Packing&Shipping

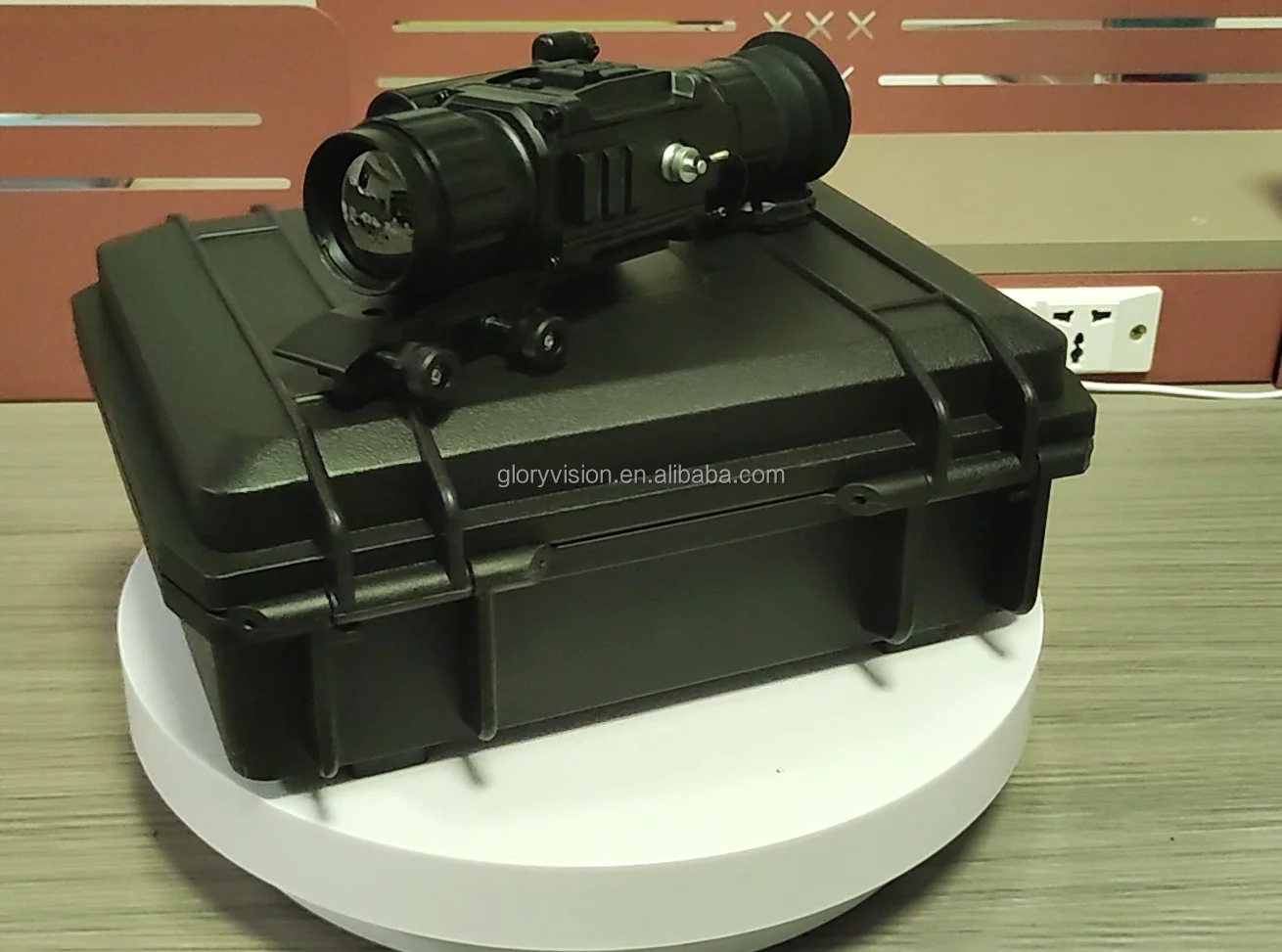

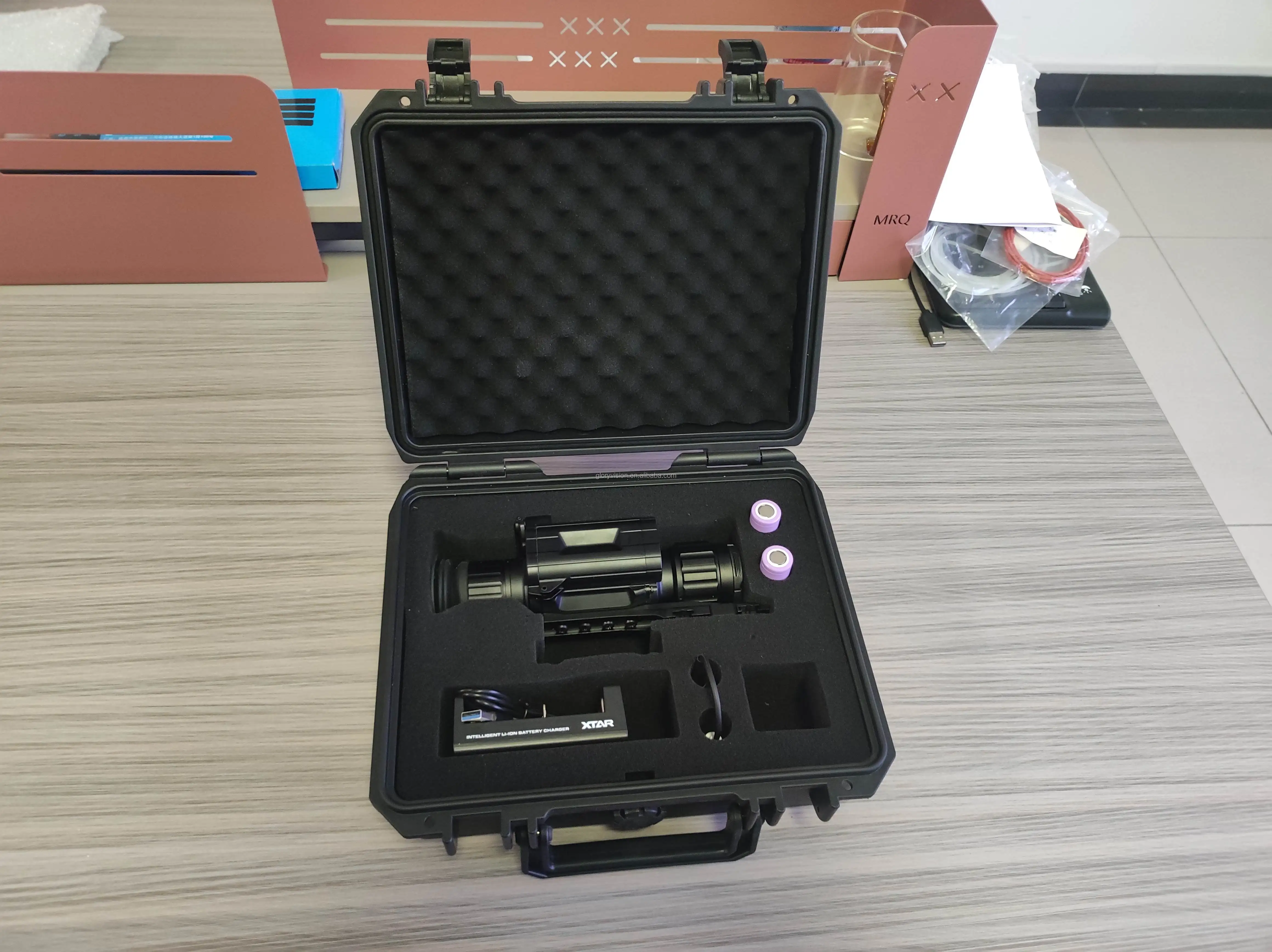

The thermal scope is packaged with safety case.
