hospital patient calling system with computer software management clinic wireless nurse call system













hospital patient calling system is widely used in service area of , hospital, restaurant, hotel, café bar, casino and so on. It consist of table button for patient use and signal receiver for nurse use. When the patient needs any service, he or she just press the button , the bed number will be showed on the RECEIVER of watch or display screen with “red lighting sound or vibration. So the nurse could offer service very timely.

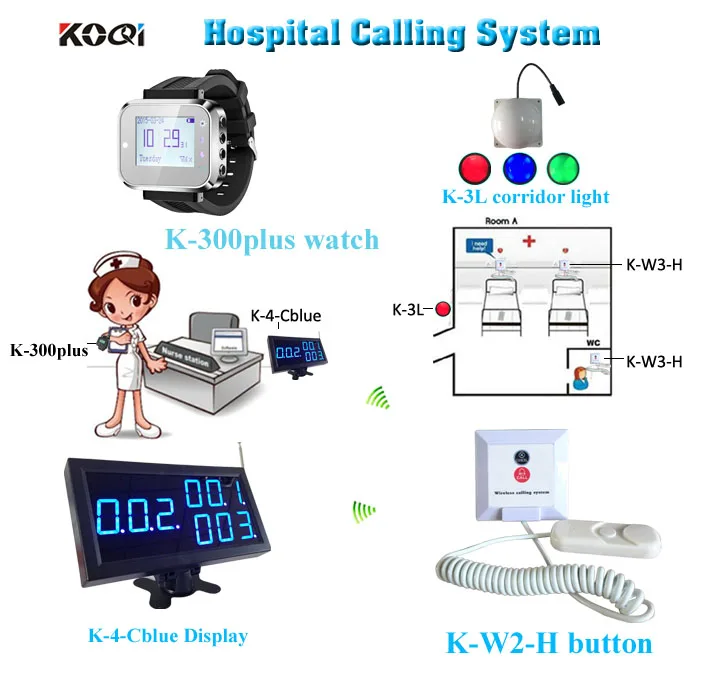

Components

The System consist the following parts:

-Receiver Screen

-Wrist watch

-Transmitter Button

-Room Light



Specification

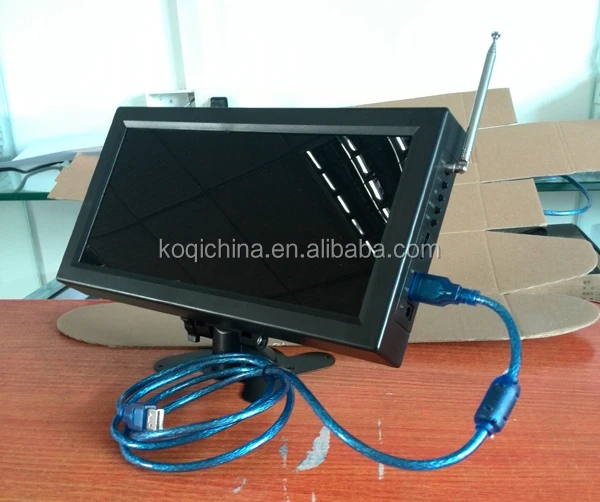

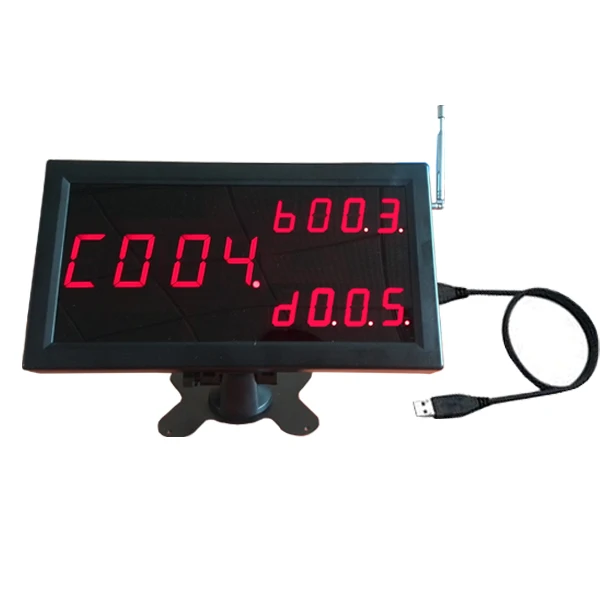

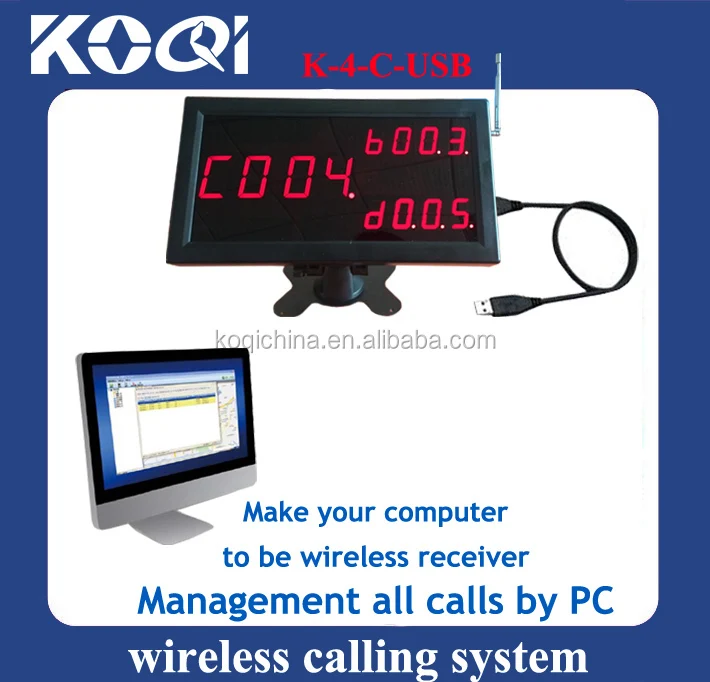

Specification of display of K-4-C-USB:

Software Device
1.With high strength ABS material cover
2.Desktop or wall mounted
3.Insert to USB port of the PC to work via management software
4.Management all calls by PC, also can show the call number itself
5.Easy read service type from PC
6.Can read service type from screen directly.
7.Can work with 999pcs 1-key or 3-key transmitter in max


Technical parameters:

*Working voltage: DC12V~18V

*Working current: <20mA

*Working Frequency: 433.92mhz

*Dimension: 282*150*34mm

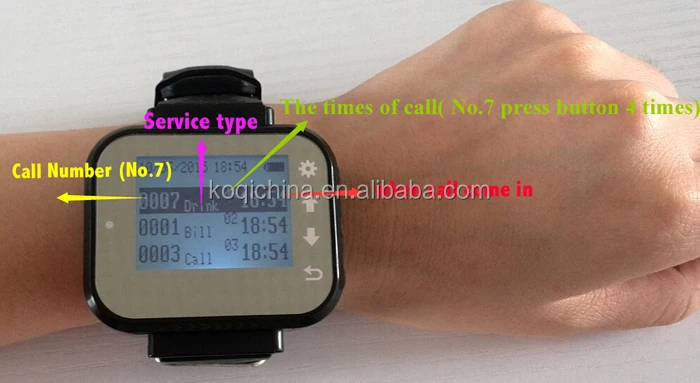

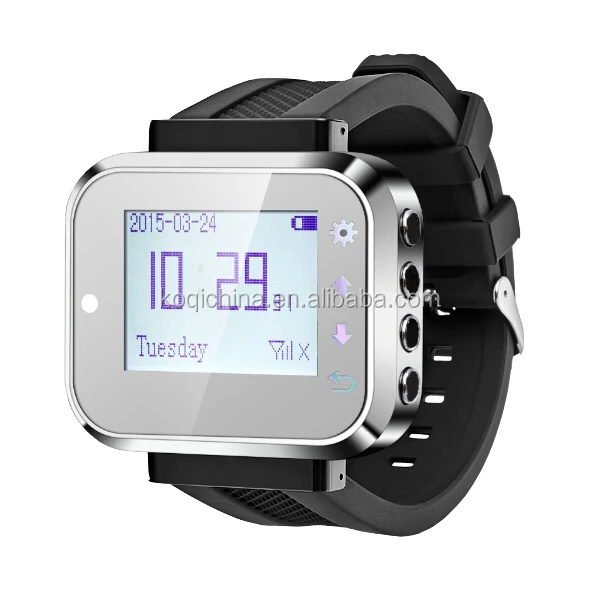

Watch Receiver K-300plus:

1. Can work with 500pcs 1-key and multi-key transmitter in max
2. Can show 3 group call number in one time
3. Show 4-digit number from 0001-9999 and first letter can be A-Z
4. Can indicate different service type via words or letter.(call;bill;drink; dessert ; help etc and A-Z)
5. Can record when call come in and Can count the call times of each number
6. Can store 50 calls and track the history calls up and down
7. Shows current time when stand-by
8. 3 reminder ways:sound promt and vibration or both
9. Battery is rechargeable
10.Dimension:50*41*16mm

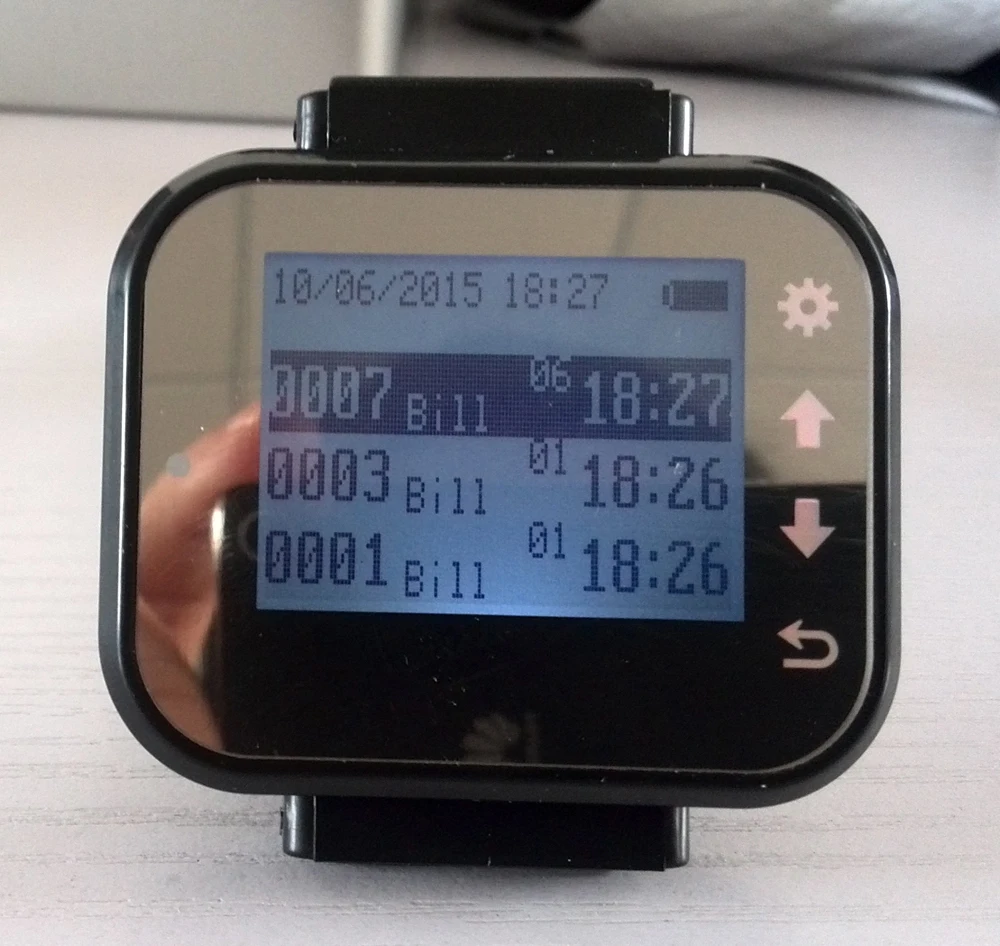

11.Two display mode:live view and queue view
“live view” means, when No.1 No.2 No.3 call in turn, screen is show 0003 0002 0001. Newest call number show on the top of screen.
“queue view” means, when No.1 No.2 No.3 call in turn, screen is show 0001 0002 0003. Oldest call number show on the top of screen.



Technical parameters:
*Power: AAA LR03 #7 battery,1.5V

*Working Frequency: 433.92MHz

*Transmitted Distance: >300m in open area

*Dimension: 55*45*18mm

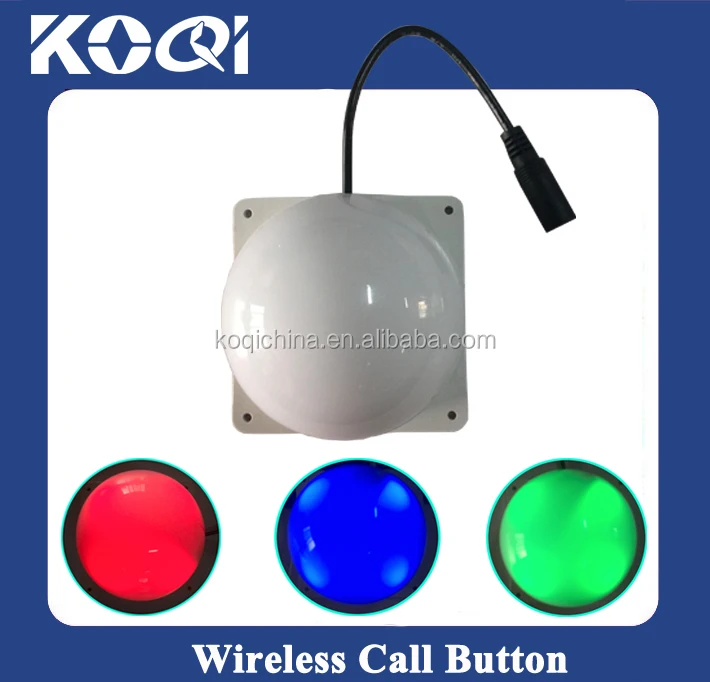

 Room Light K-3L:

1. With 3 color: Red, Blue, Green
2. Different color for different service type or service area.
3. It can work with 30 transmitter at max.
4. With separate output power supply.

Technical parameters:
*Working voltage: DC12V~18V
*Working current: <20mA
*Working Frequency: 433.92mhz
*Dimension: 78*78*60mm

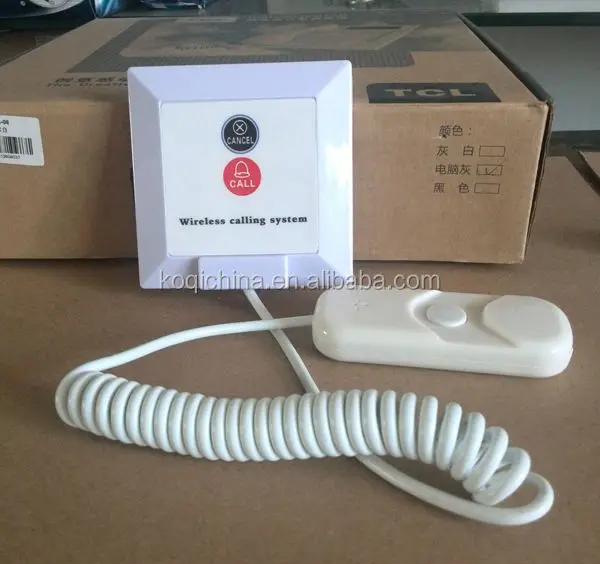

Transmitter Button K-W2-H:

1.Work with our receiver to combined the wireless calling system
2.Can be installed on wall-mounted installation.
3.When the customers or patients need help only push cord to call, the calling number will be shown on the screen, so everyone can easy to know who is calling.
4.3-key:Call button from cord;Call button and cancel button
5.Color:White
6.Material:PC



Technical Parameter:

Working voltage: DC12V
Working current: ≤35mA
Use Frequency: 433.92mhz
Transmitted Power: ≤10mW
Transmitted Distance: >300m in open area
Dimension: 80*80*10mm
Any language any LOGO is acceptable!!!











Attention on Battery

The transmitter buttons and watch are with battery. And some shipping company for few countries forbid shipping the product with battery. If so, we may have to remove the battery. Please confirm with us about the shipping details before departure.



Install and Maintain

*Wireless device, no wiring involved.

*The Display and Signal Enhancer are operated by 100-240V power supply.

*The button work with 12V 23A battery.

*The wrist watch work with AAA(3A) battery.

*The buttons number can be registered by the Display Setting, the button can fixed or paste on the wall or table. and the button is waterproof.

*Some of buttons any language and logo is acceptable .Welcome your OEM.





Advantage of our system

1) Revolutionary product to increase staff efficiency, lower labor costs.

2) Simple but elegant, value for money.

3) Customer do not need to shout or wave hands to call waiters, improving customer appreciation of service.

4) Provide a comfortable atmosphere.





Illustration of pictures









If you are interested in any of our hospital patient calling system,please feel free to contact me. I will reply to you in 24 hours, thanks.
