5-тонное гидравлическое лебедка Лебедка для грузовика
US $900.00-$1000
Заводская поставка 750lbs 1000lbs 2000lbs плавная работа 12 В электрическая рыболовная лебедка
- Категории: Winches >>>
- Поставщик: Guangdong,Gongyou,Lift,Slings,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
VR

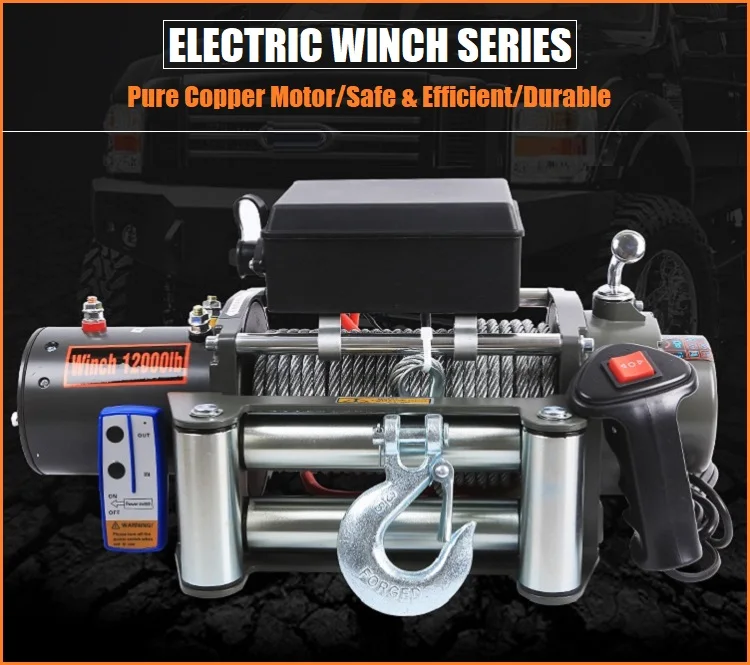

Product Description

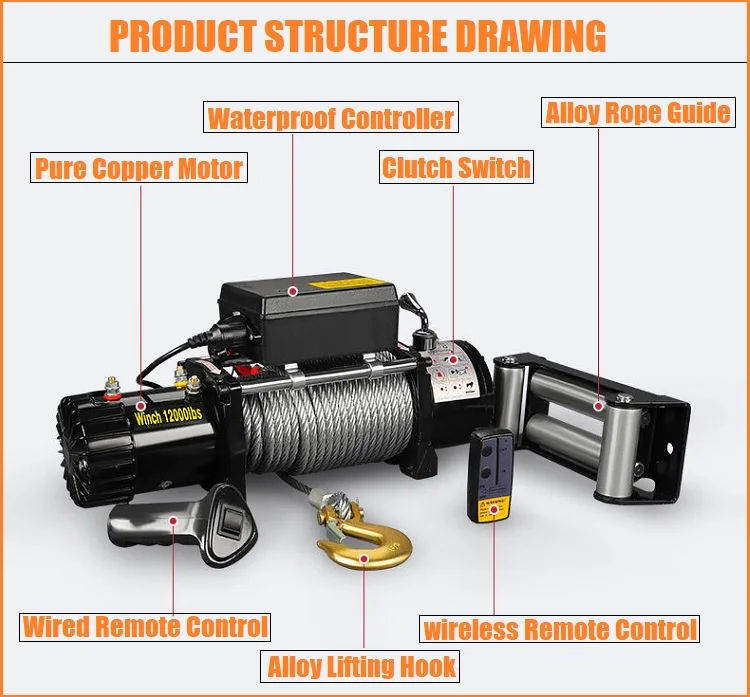

Product Features:
1. This electric winch adopts pure copper motor with strong power, its climbing performance is much higher than the general motor.
2. The winch has strong sealing performance with IP67 Grade professional watreproof.
3. The winch adopts steel core anti-rotating galvanized steel wire rope, anti-corrosion, durable and not easy to break, to ensure long time use.
4. The spiral winding method of ultra-coarse copper wire is adopted to greatly improve the conductivity. The dynamic force is strong and direct, and the operation is stable and smooth.
5. The winch adopts copper core terminal, which is not easy to corrode, has good conductivity, low resistance and low heat generation compared with iron terminal.
2. The winch has strong sealing performance with IP67 Grade professional watreproof.
3. The winch adopts steel core anti-rotating galvanized steel wire rope, anti-corrosion, durable and not easy to break, to ensure long time use.
4. The spiral winding method of ultra-coarse copper wire is adopted to greatly improve the conductivity. The dynamic force is strong and direct, and the operation is stable and smooth.
5. The winch adopts copper core terminal, which is not easy to corrode, has good conductivity, low resistance and low heat generation compared with iron terminal.
Model | Rated Line Pull (lbs/kgs) | Motor Data | Gear Reduction Ratio | Cable (Gia.xL) | Drum Size (Dia.xL) |

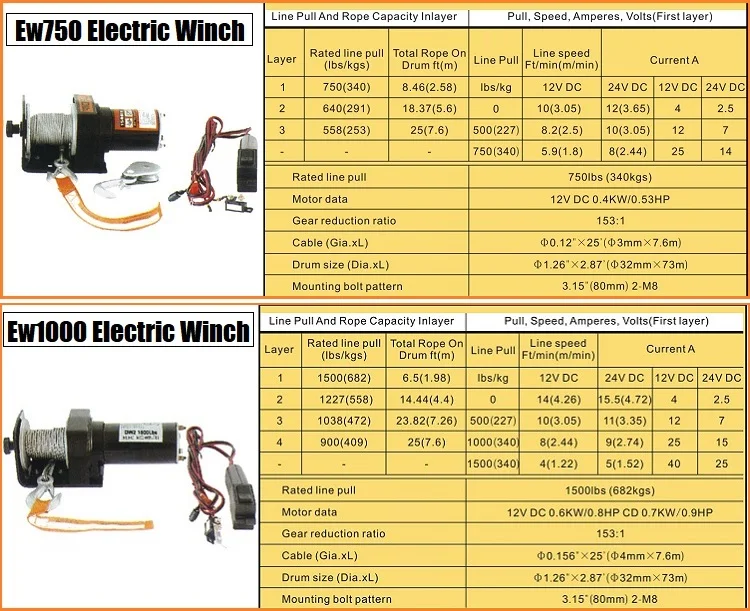

Ew750 | 750lbs(340kgs) | 12V DC 0.4KW/0.53HP | 153:1 | Φ3mm*7.6m | Φ32mm*73m |
Ew1000 | 1500lbs(682kgs) | 12V DC 0.6KW/0.8HP 24V DC 0.7KW/0.9HP | 153:1 | Φ4mm*7.6m | Φ32mm*73m |

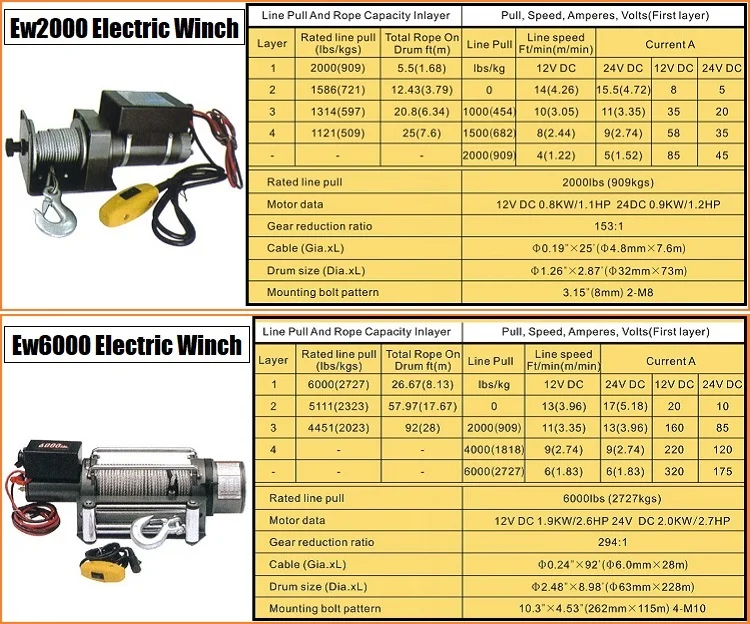

Ew2000 | 2000lbs(909kgs) | 12V DC 0.8KW/1.1HP 24V DC 0.9KW/1.2HP | 153:1 | Φ4.8mm*7.6m | Φ32mm*73m |
Ew6000 | 6000lbs(2727kgs) | 12V DC 1.9KW/2.6HP 24V DC 2.0KW/2.7HP | 294:1 | Φ6mm*28m | Φ63mm*228m |

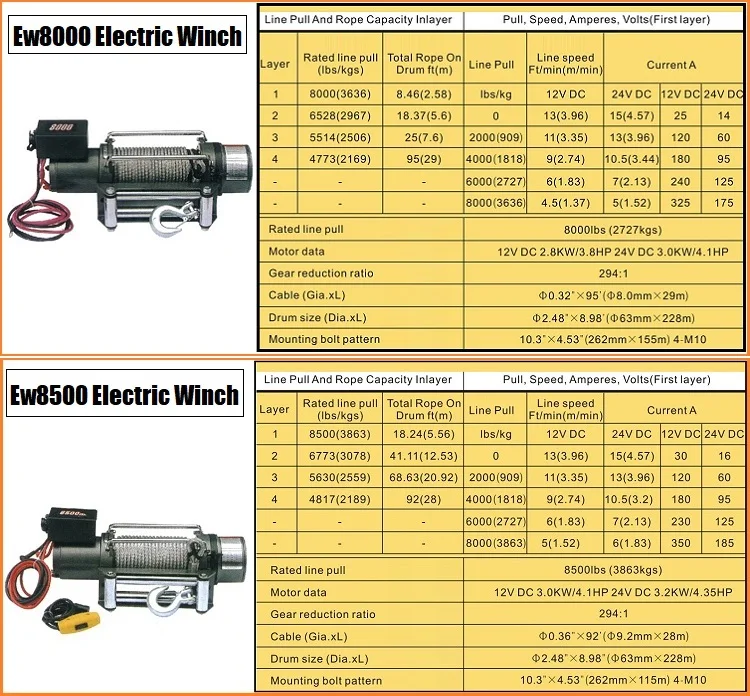

Ew8000 | 8000lbs(2727kgs) | 12V DC 2.8KW/3.8HP 24V DC 3.0KW/4.1HP | 294:1 | Φ8mm*29m | Φ63mm*228m |
Ew8500 | 8500lbs(3863kgs) | 12V DC 3.0KW/4.1HP 24V DC 3.2KW/4.35HP | 294:1 | Φ9.2mm*28m | Φ63mm*228m |

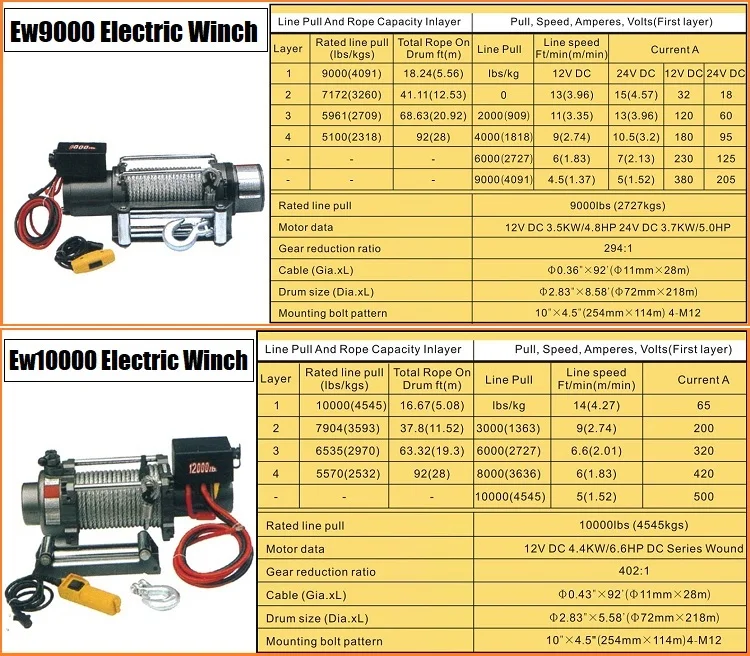

Ew9000 | 9000lbs(2727kgs) | 12V DC 3.5KW/4.8HP 24V DC 3.7KW/5.0HP | 294:1 | Φ11mm*28m | Φ72mm*218m |
Ew10000 | 10000lbs(4545kgs) | 12V DC 4.4KW/6.6HP 24V DC Series Wound | 402:1 | Φ11mm*28m | Φ72mm*218m |

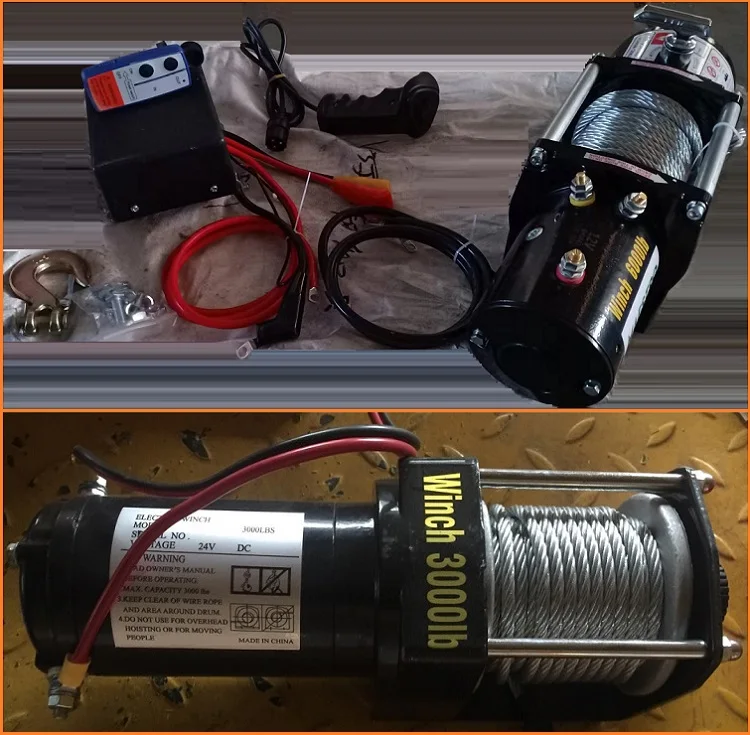

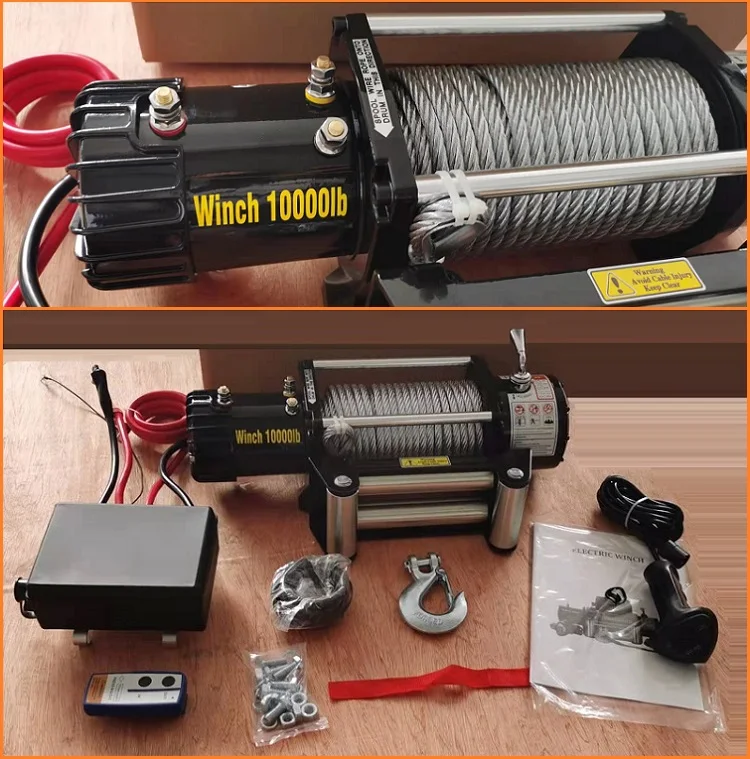

Details Images
You May Also Like

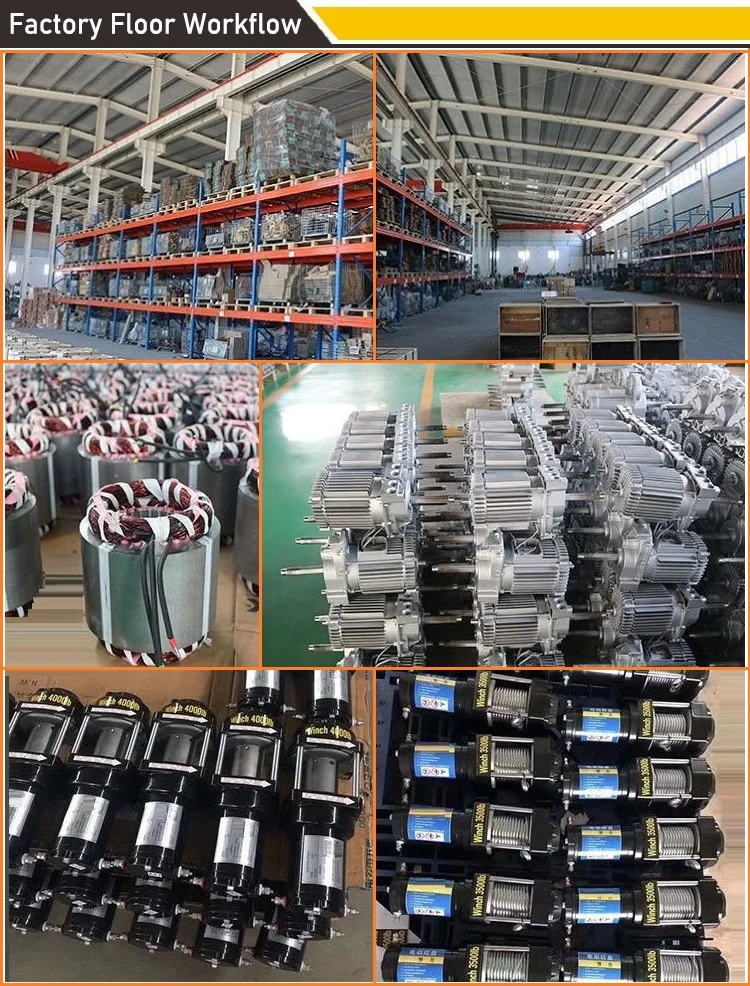

Company Profile
Exhibition & Customer's Case
Why Choose Us
Packing & Shipping
FAQ
