GENERAL | ||

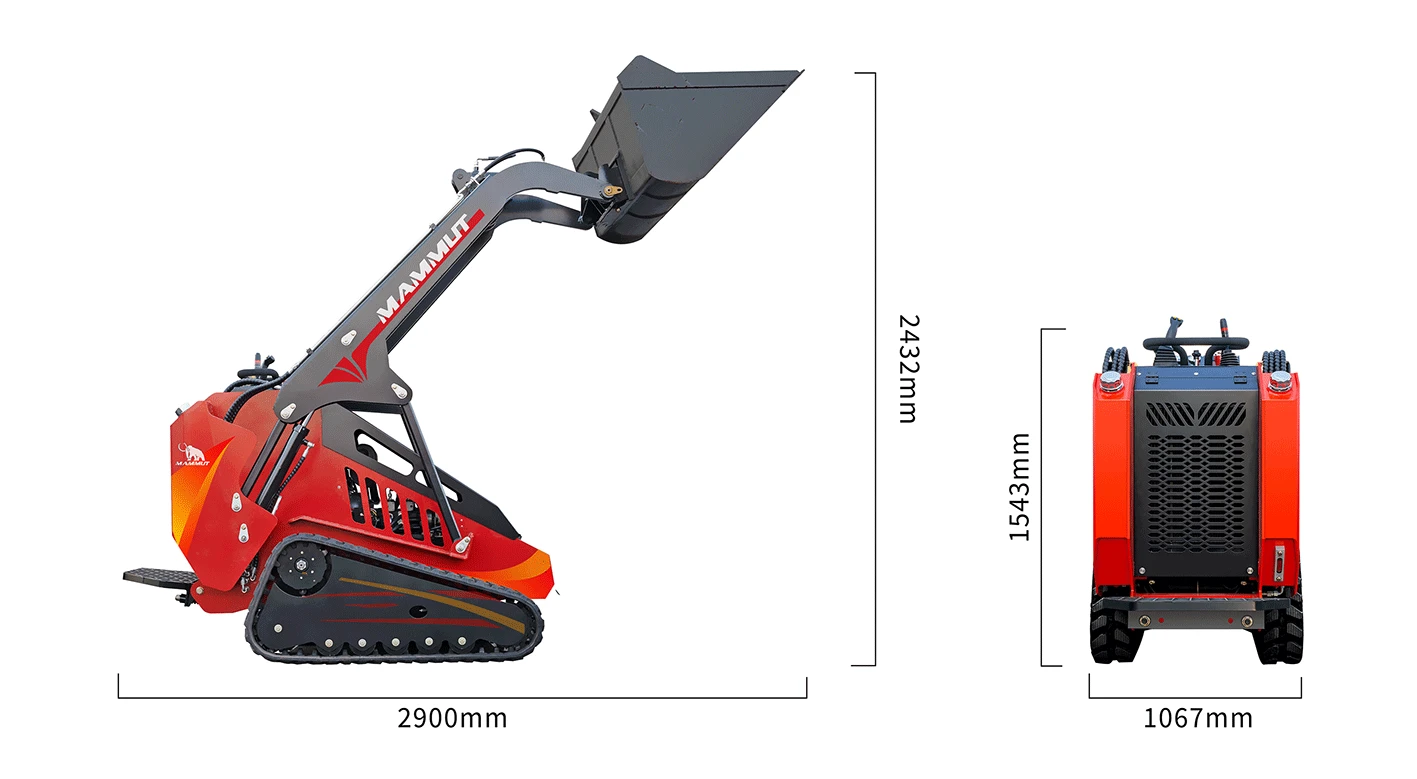

Length with standard bucket | 114.2 ( 290 cm ) | |
Length without standard bucket | 84.3 " ( 214 cm ) | |
Tracks width | 7 " ( 17.8 cm ) | |
Width without standard bucket | 36" ( 91.4 cm ) | |
Height | 60.7 " ( 154 . 3 cm ) | |
Lifting height ( to hinge pin ) | 88 . 9 " ( 225 . 8 cm ) | |
Weight (without standard bucket) | 3307 b ( 1500 kg ) | |
ENGINE | ||
Make/Model | Kubota | |
Fuel type | Diesel | |
Fuel tank capacity | 14.5 gal (54.9L) | |
Gross horsepower | 25hp (18.5kw) | |
Number of cylinders | 3 | |
PERFORMANCE | ||
Rated operating capacity (SAE) | 1102.3 lb (500kg) | |
Tipping capacity (with 165 lb operator) | 2958 lb (1341.7kg) | |
Travel speed (forward) | 4.35 mph (7km/h) |
