Products Description

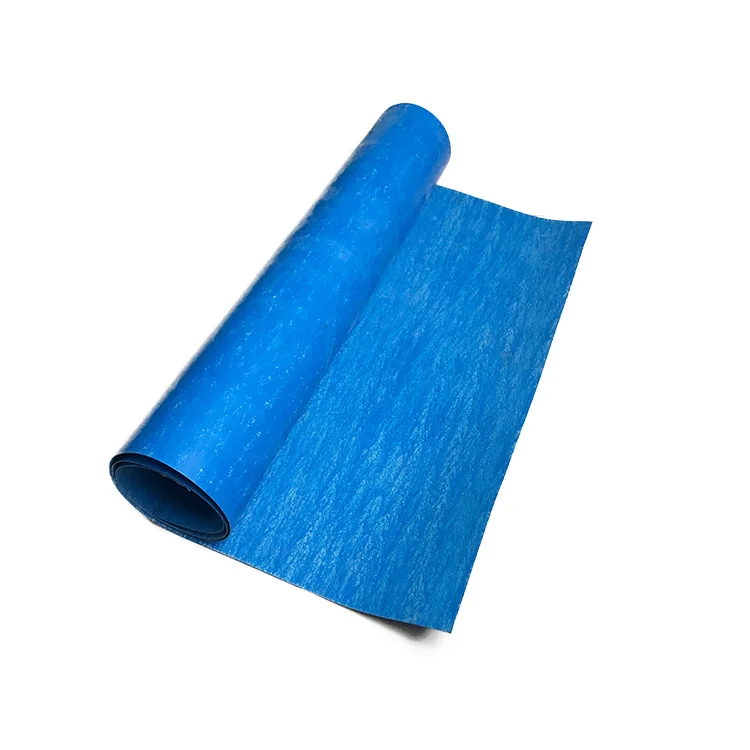

Non-Asbestos Gasket Sheet
Non-Asbestos Gasket Sheets are made of special no-asbestos heat-resisting fiber, heat-resisting packing material, and special nature or NBR rubber compound heating and compression molding it.
For applications that operate under high temperatures such as exhaust lines and engine parts, the Heat Resistant Compressed Non-Asbestos Gasket Sheet can be used. These do not wear or deform under high temperatures.
Therefore, the use of this type of sheets is seen in automotive engines and in other machineries.
The Heat and Steam Resistant Compressed Non-Asbestos Gasket Sheet can be used in heat exchangers and boilers as they have both high temperatures and steam available at most parts of the operations.
Non-asbestos gasket sheet series include: NXB200, NXB300, NXB350
Oil resistant non-asbestos sheet series include: NNY200-NNY350
Oil-resistant service: fuel/gasoline/hydrocarbons/solvents
For applications that operate under high temperatures such as exhaust lines and engine parts, the Heat Resistant Compressed Non-Asbestos Gasket Sheet can be used. These do not wear or deform under high temperatures.
Therefore, the use of this type of sheets is seen in automotive engines and in other machineries.
The Heat and Steam Resistant Compressed Non-Asbestos Gasket Sheet can be used in heat exchangers and boilers as they have both high temperatures and steam available at most parts of the operations.
Non-asbestos gasket sheet series include: NXB200, NXB300, NXB350
Oil resistant non-asbestos sheet series include: NNY200-NNY350
Oil-resistant service: fuel/gasoline/hydrocarbons/solvents
Wire mesh inserted gasket sheet and logo printing
Wire mesh inserted gasket sheet can make the sheet reinforced can wire much more pressure
Graphite coating on the surface
coating graphite on the surface of the sheet can make the gasket more smooth
Thickness | 0.3 to 5.0 mm | |||||||
size | 1500mm x 4500 mm | 1500mm x 4100 mm | 1300mm x 3850 mm | 1500mm x 2000 mm | ||||
1500mm x 1500 mm | 1500mm x 1360 mm | 1500mm x 1000 mm | 1270mm x 1270 mm | |||||
The other size please contact with us. | ||||||||
Quality | Tensile strength MPa≥ | Aging Coefficient ≥ | Compressibility % | Rebound degree |
NXB200 | 6 | 0.9 | 12±5 | 35 |
NXB300 | 8 | 0.9 | 12±5 | 40 |
NXB350 | 11 | 0.9 | 12±5 | 45 |
NNY200 | 8 | 0.9 | 12±5 | 40 |
NNY250 | 10 | 0.9 | 12±5 | 45 |
NNY300 | 12 | 0.9 | 12±5 | 50 |
NNY350 | 15 | 0.9 | 12±5 | 50 |
Product Details

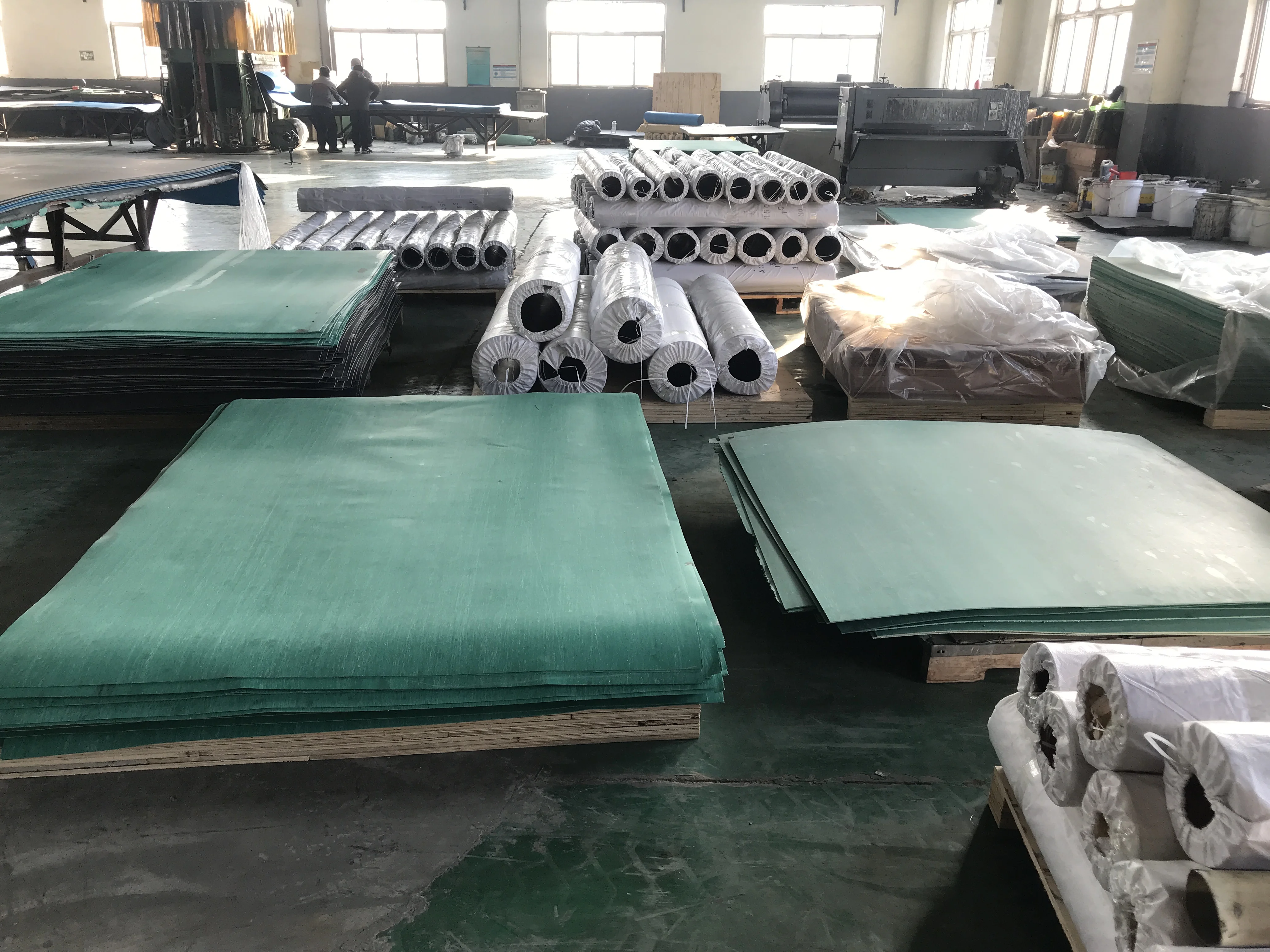

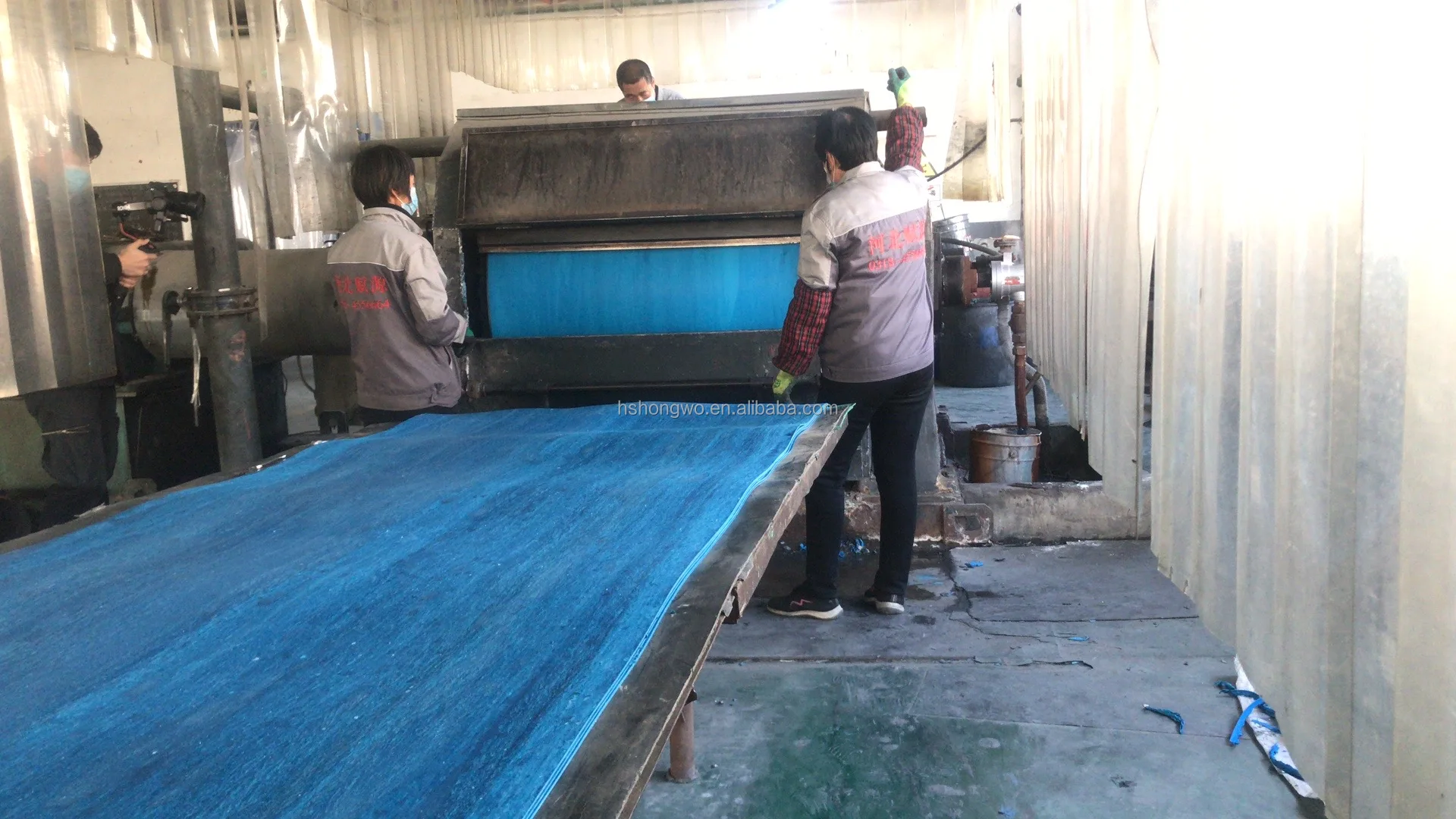

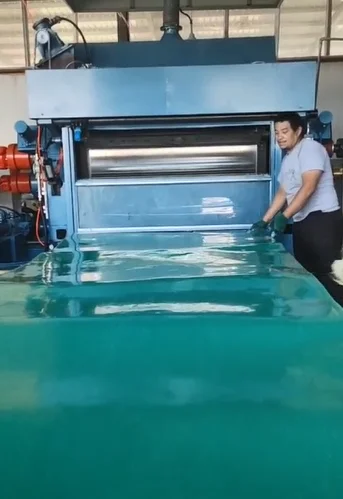

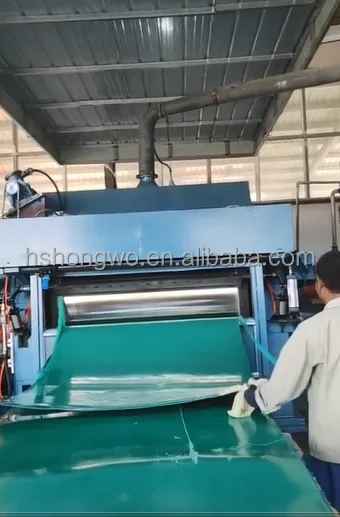

Factory & Packing

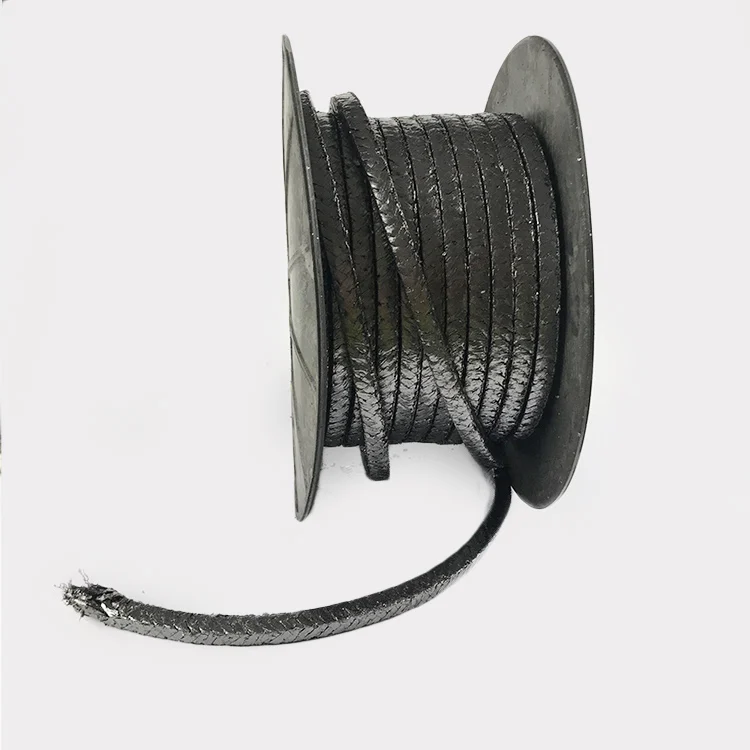

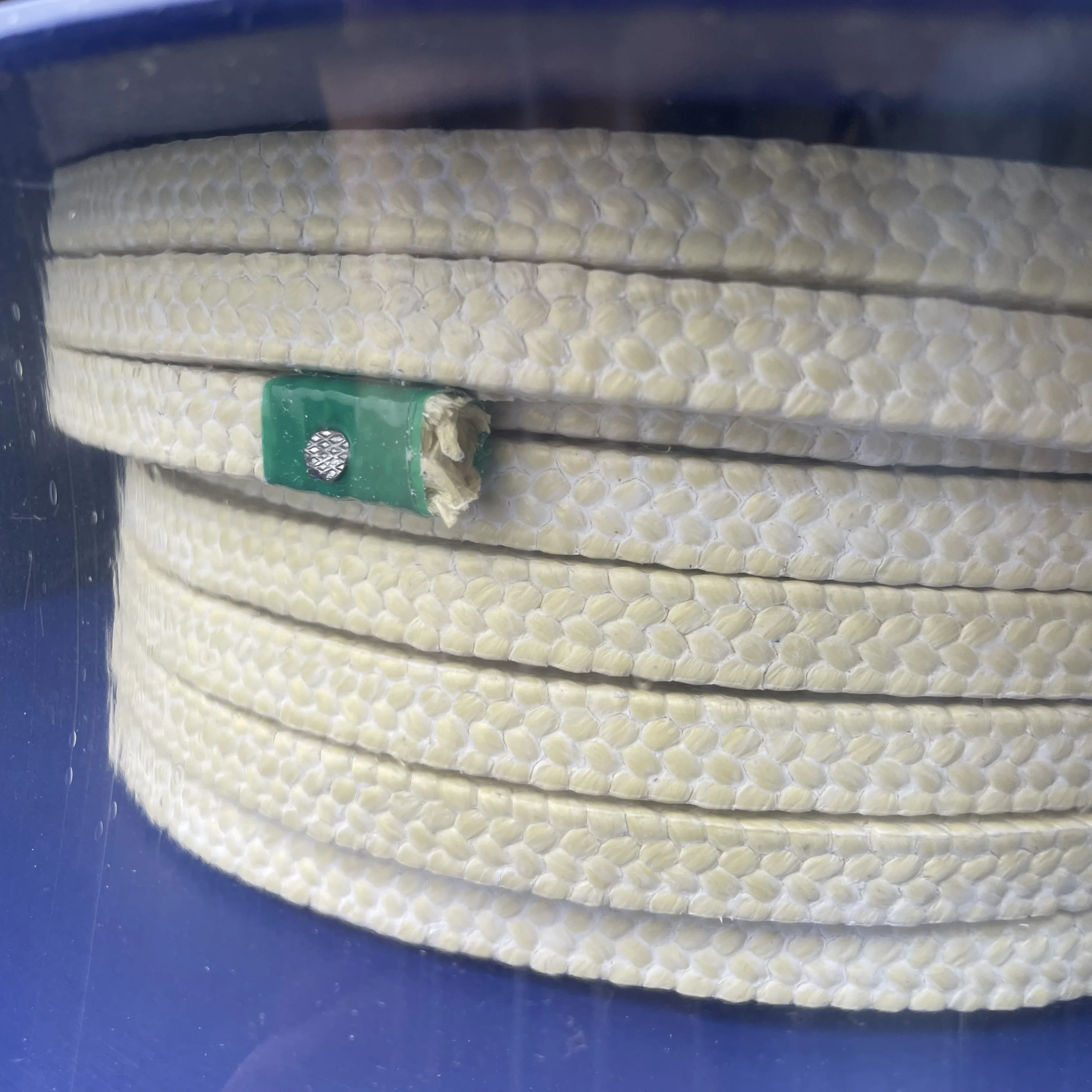

Recommend Products

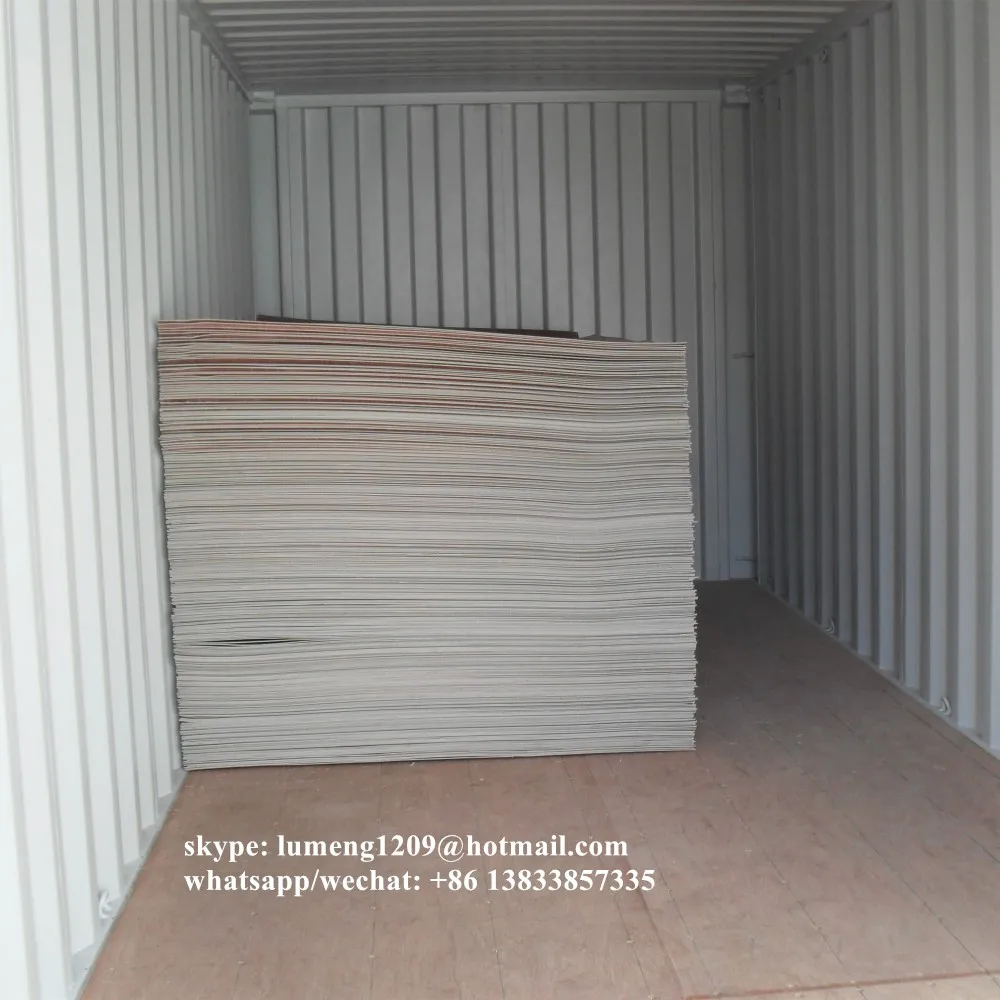

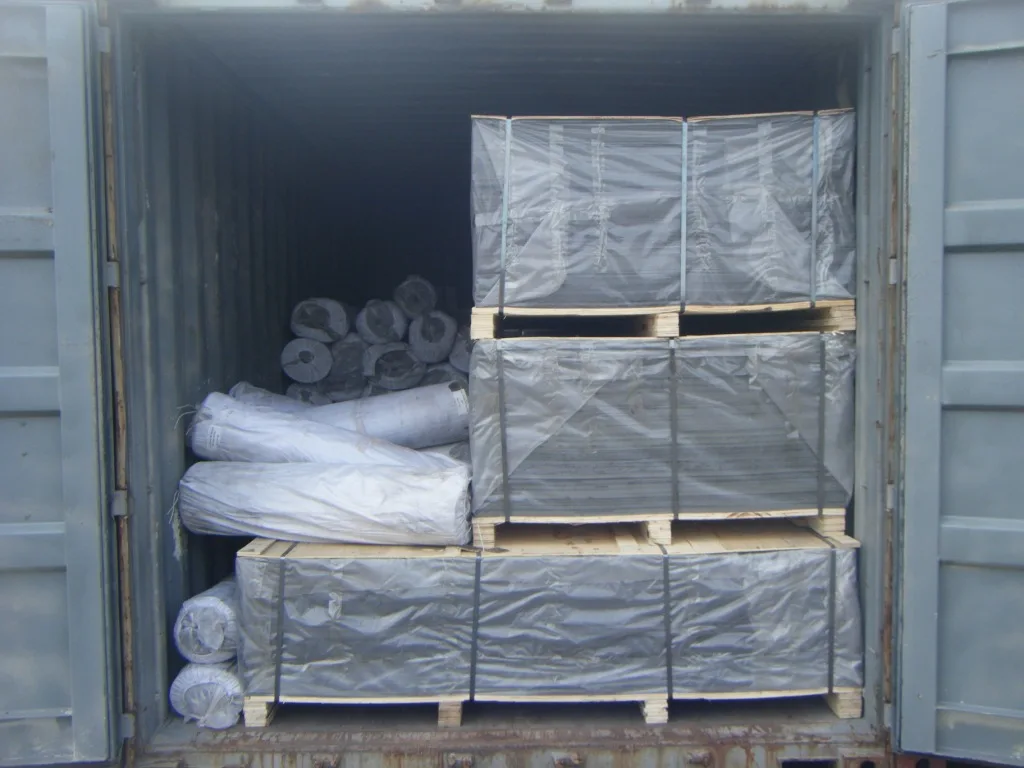

Packing & Shipping
