Product Description
Automatic gas fired steam boiler 0.7 mpa For Dry Cleaner
Product Description
LSS series products --water tube structure, vertical three return and burner on top design. The fire from top to down, fully expanded. Flame processes long and in full combustion, each part of the flue gas go through three return for heat transfer, greatly reducing the exhaust gas temperature, save heat loss and improves thermal efficiency. The boiler has controller protection and automatic recovery of the contactor to prevent electric shock function.It also has dual anti reflux and exhaust heat protection devices, which, strengthen the safety function.
Technical Parameters
| Model | LSS0.5-0.7-Y.Q | LSS1-1.0-Y.Q | LSS1.5-1.0-Y.Q | LSS2.0-1.0-Y.Q | ||
| Item | unit | |||||
| Rated evaporation | kg/h | 500 | 1000 | 1500 | 2000 | |
| Rated working pressure | Mpa | 0.7/1.25 | 1/1.25 | 1/1.25 | 1/1.25 | |
| Staturated steam temperature | ℃ | 170/193 | 184/193 | 184/193 | 184/193 | |
| Feed water temperature | ℃ | 20 | 20 | 20 | 20 | |
| Weight | T | 1.8/2.2 | 2.4/3.8 | 4.9/5.6 | 5.7/6.5 | |
| Water capacity | L | 1680 | 2450 | 3500 | 3200 | |
fuel consumption | diesel oil | Kg/h | 34.7 | 68.6 | 102.7 | 137.7 |
| natural gas | Nm3/h | 44.3 | 85.4 | 128 | 170.2 | |
| LPG | L/h | 69 | 133.1 | 199.5 | 265.2 | |

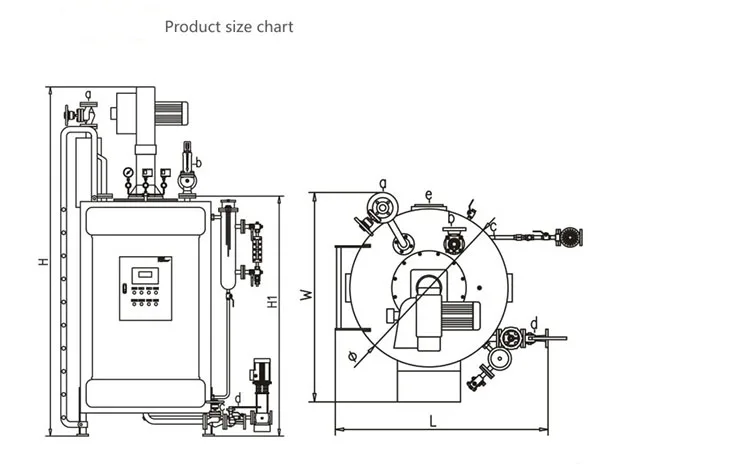

| main steam valve a | mm | 40 | 50 | 65 | 65 | |
| safety valve b | mm | 40 | 40 | 40×2 | 40×2 | |
| water inlet c | mm | 25 | 25 | 40 | 40 | |
| drain valve d | mm | 40 | 40 | 40 | 40 | |
| chimney e | mm | 250 | 300 | 300 | 350 | |
Overall size | L | mm | 1830 | 1750 | 2000 | 2200 |
| W | mm | 1780 | 1750 | 2000 | 2200 | |
| H | mm | 2650 | 2900 | 3370 | 3370 | |
| H1 | mm | 2100 | 2570 | 3030 | 3030 | |
Product Advantage
1. Quickly startup, achieving high temperature and pressure in short time.
2. Nature circle, could undertake large temperature difference.
3. With multi chain protection for water level and steam pressure.
4. Vertical structure, compact and beautiful, elegant style, classic color, save room space and easily installation.
Related Products
Company Profile
FAQ
Q: Are you a factory or a trading company?
A: We are a 20-year-old industrial boiler factory , specializing in gas oil diesel electric fired boilers.
A: We are a 20-year-old industrial boiler factory , specializing in gas oil diesel electric fired boilers.
Now we are one of leading industrial boiler manufacturers in China.
Q: What is the Warranty for the boilers?
A: Our steam boiler warranty is one year, During the warranty period, any parts damaged, you can get a new
Q: What is the Warranty for the boilers?
A: Our steam boiler warranty is one year, During the warranty period, any parts damaged, you can get a new
parts for free.
Q: How long should we wait for delivery?
A. Usually it will take about 35-45 days for pressured boilers, If you need to change the voltage or pressure, it
need more time.
Q: What about your payment term?
A: Usually it would be 30% deposit payment, 70% balance before delivery. We accept T/T, L/C and other
Q: How long should we wait for delivery?
A. Usually it will take about 35-45 days for pressured boilers, If you need to change the voltage or pressure, it
need more time.
Q: What about your payment term?
A: Usually it would be 30% deposit payment, 70% balance before delivery. We accept T/T, L/C and other
payment way.
