Products Description

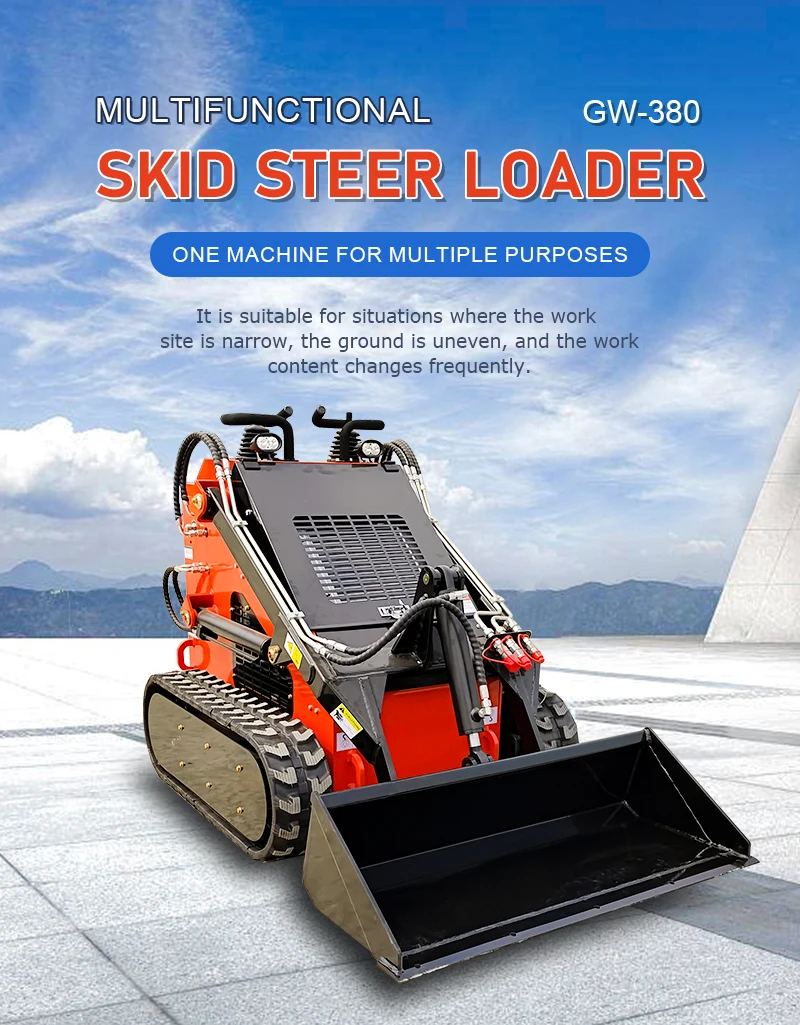

GONGWO GW380 mini skid steer loader adopts a narrow frame design and can operate in narrow spaces. It is equipped with various attachments, which can be quickly replaced according to different construction environments, achieving shovel, stacking, lifting, excavation, drilling, crushing, gripping, pushing, loosening, trenching, road cleaning, etc. It can also be used for on-site cleaning and project closure after large-scale construction machinery construction.

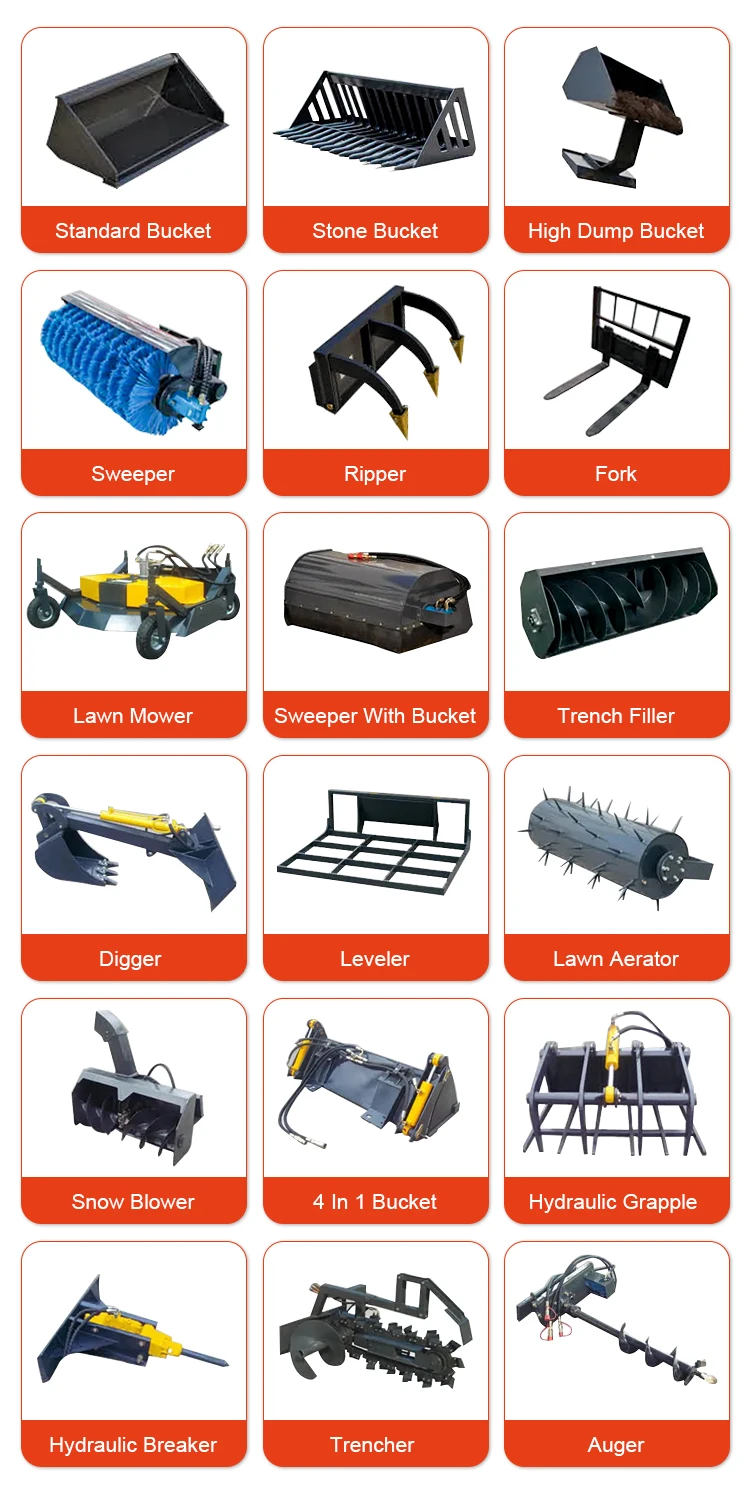

Attachments can be: digger, auger, trencher, sweeper, backhoe, high dump bucket, tiller, lawn mower, hydraulic grapple fork, fork,4 in 1 bucket, snow blower, leveler, angle blade, mixer, hydraulic breaker, trench filler, lawn aerator, sweeper with bucket,stone bucket, trailer, standard bucket, ripper, stump grinder, wood chipper, multi-function tool etc.
Famous Brand Engines Outstanding Quality
World Top Powerful diesel engine provides exceptional power
Engine brand : Briggs & Stratton, RATO, LONCIN Gasoline engines and Kubota diesel engine, Kholer
Stable Hydraulic System
Optimized hydraulics deliver the smoothest ride in the industry, allowing operators to stay comfortable and productive for long hours on the job
Flexible Convenient Operation

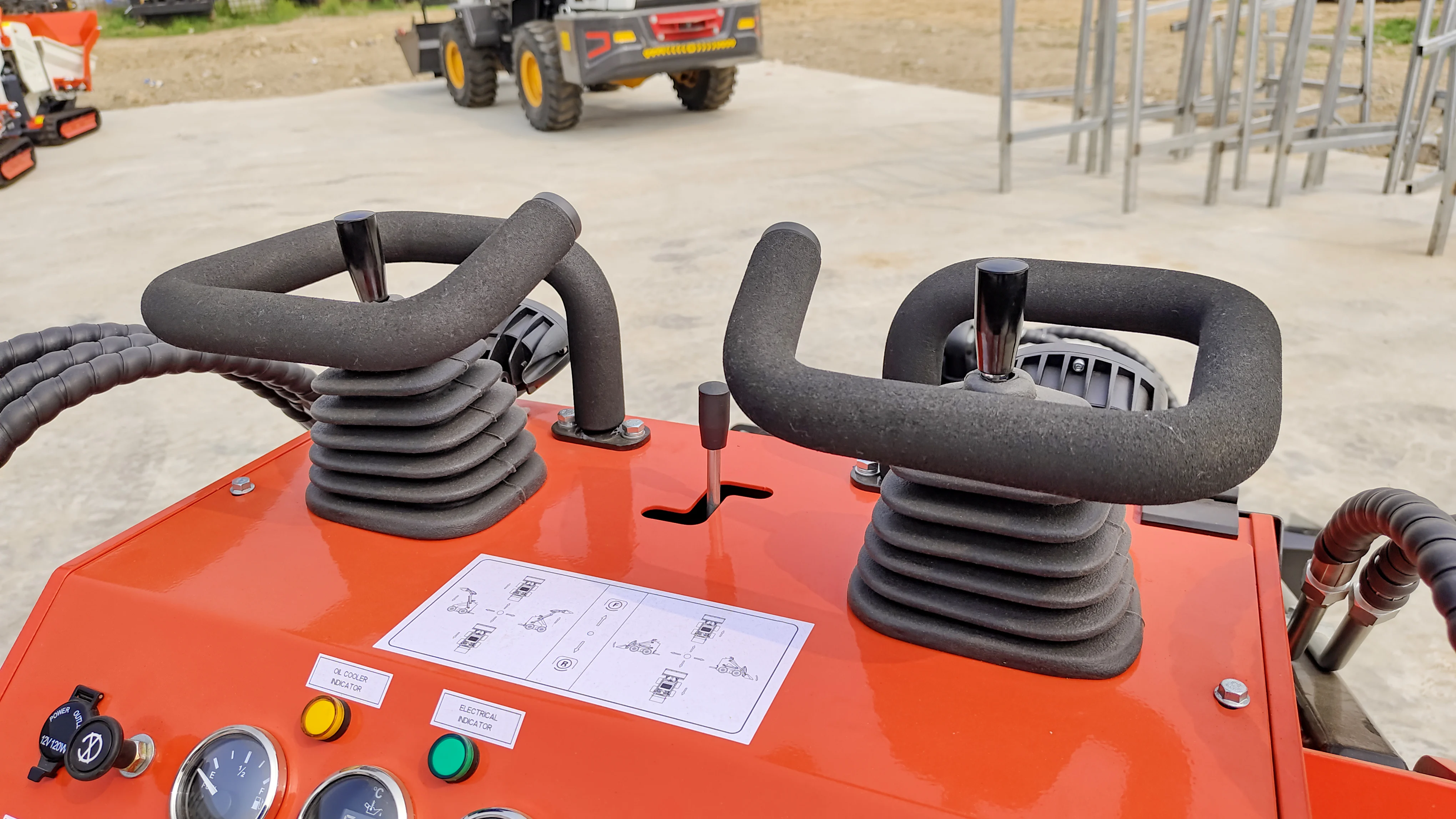

Adopting the design concept of human engineering mechanics, with dual joystick operation, the operator can independently control walking and construction operations, and can achieve in-situ turning

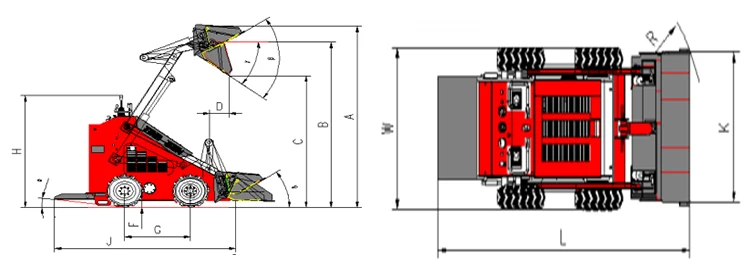

GW-380 Mini Skid Steer Loader | ||||
Item | Metric System | British System | ||
Maximum working height (A) | 2128mm | 83.8inch | ||
Maximum pin height (B) | 1869mm | 73.6inch | ||
Maximum unloading height (C) | 1473mm | 58.0inch | ||
Maximum discharge distance (D) | 399mm | 15.7inch | ||
Bucket swing Angle (β) | 55° | 55° | ||
Bucket discharge Angle (γ) | 30° | 30° | ||
Suction Angle (θ) | 25° | 25° | ||
Departure Angle (α) | 10° | 10° | ||
Total height (H) | 1218mm | 48.0inch | ||
Height above ground (F) | 105mm | 4.1inch | ||
Wheelbase (G) | 612mm | 24.1inch | ||
No bucket length (J) | 1752mm | 69.0inch | ||
Total width (W) | 1060mm | 41.7inch | ||
Bucket width (K) | 1150mm/980mm/1215mm | 45.3inch/(38.6inch/47.8inch | ||
Total length (L)(with bucket) | 2206mm | 86.9inch | ||
Front turning radius R | 1317mm | 51.9inch | ||
noise（Db） | ≤95 | |||
Engine | ||||
Rated power（KW） | 21 HP/23 HP | |||
Calibrated speed（rpm） | 3600 | |||
Hydraulic System | ||||
System pressure（Mpa） | 17 | |||
Performance Parameter | ||||
Loading capacity | 300 Kg | 441 Lb | ||
Bucket volume | 0.15 m3 | 5.33 ft3 | ||
Maximum lift | 375 Kg | 827 Lb | ||
speed | 0-5.5 Km/h | 0-3.4 mlie/h | ||
Operating weight | 1068 Kg | 2355 Lb | ||
Multifunctional Eauipment
This machine is equipped with a standard attachment locking system, which can quickly connect various attachments to achieve operations such as shovel transportation, stacking, lifting, excavation, drilling, crushing, grasping, pushing and scraping, soil loosening, trenching, road cleaning, and road compaction.

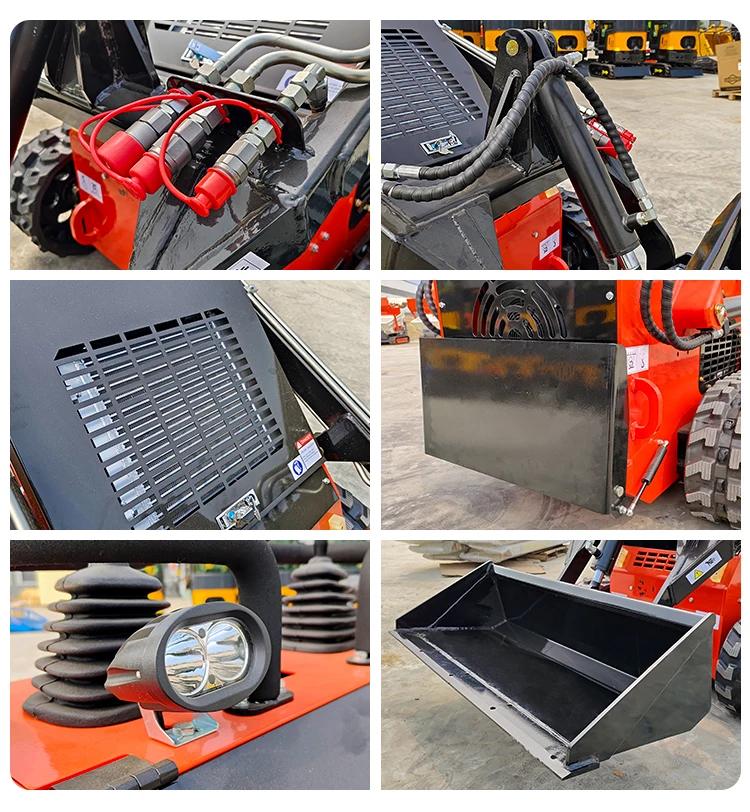

Details Images
Intelligent throttle control system,Achieve linear control of the throttle

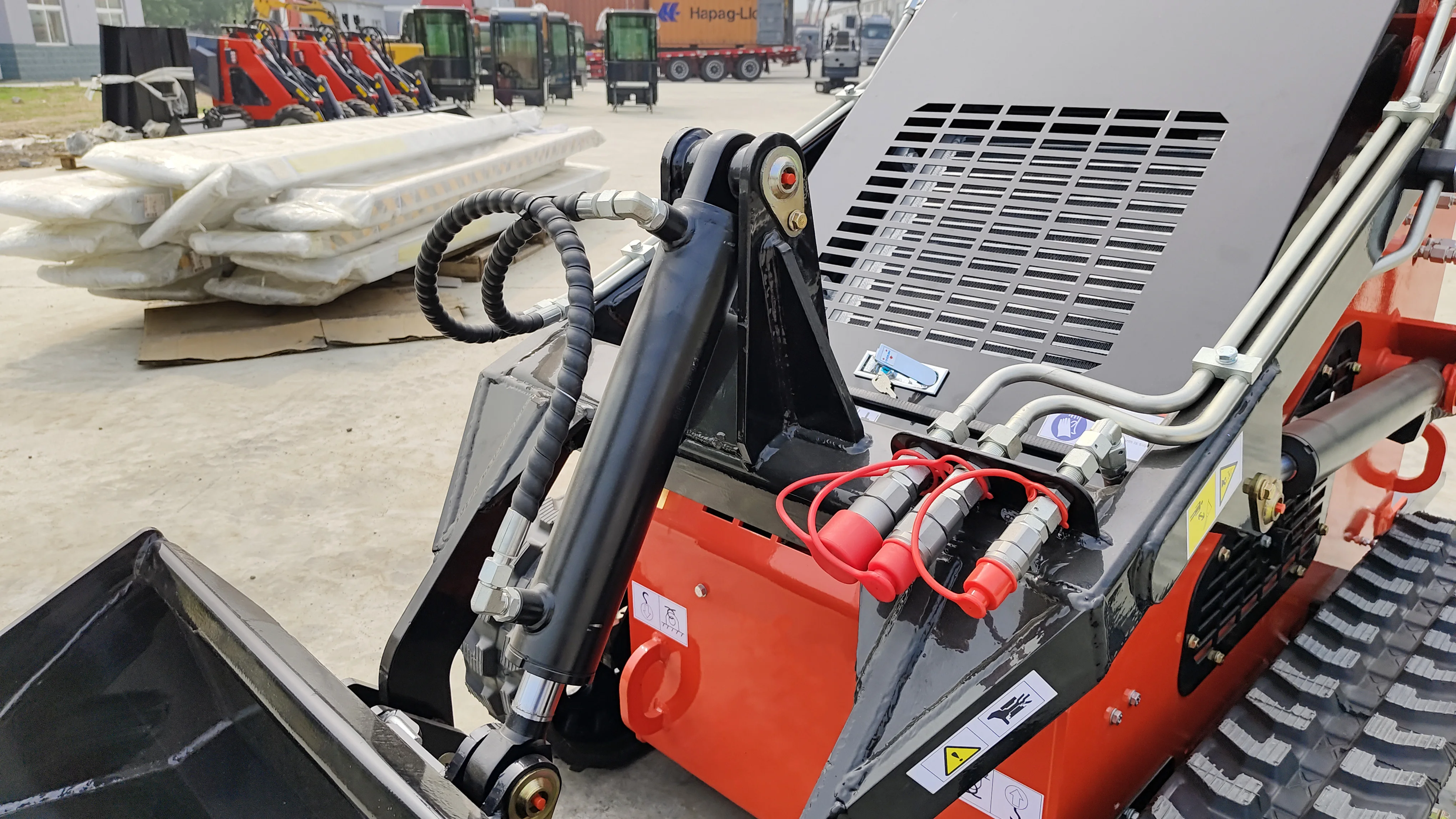

Standard quick-change connector,can be connected to a variety of attachments

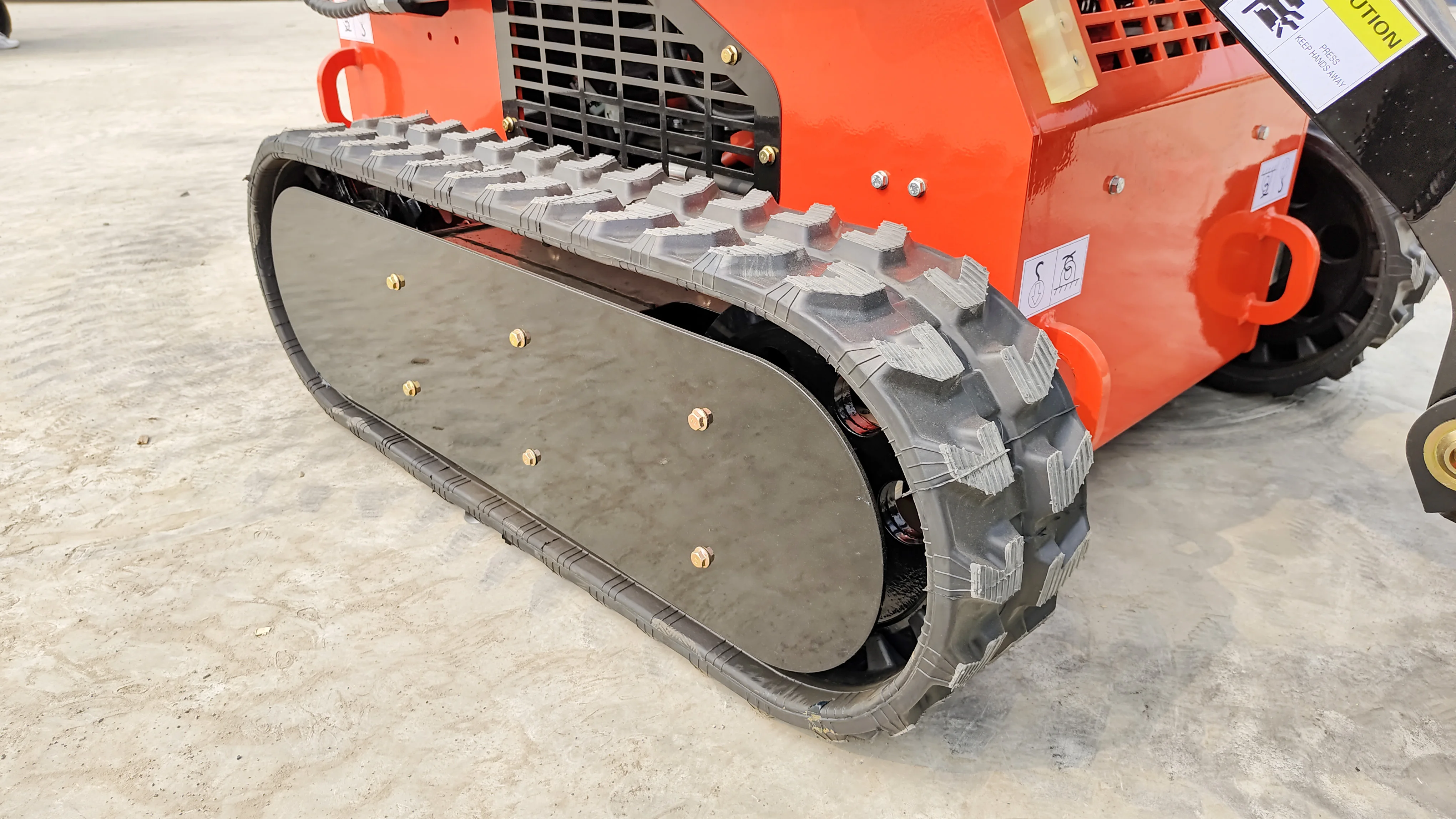

Thickened track, anti slip and durable

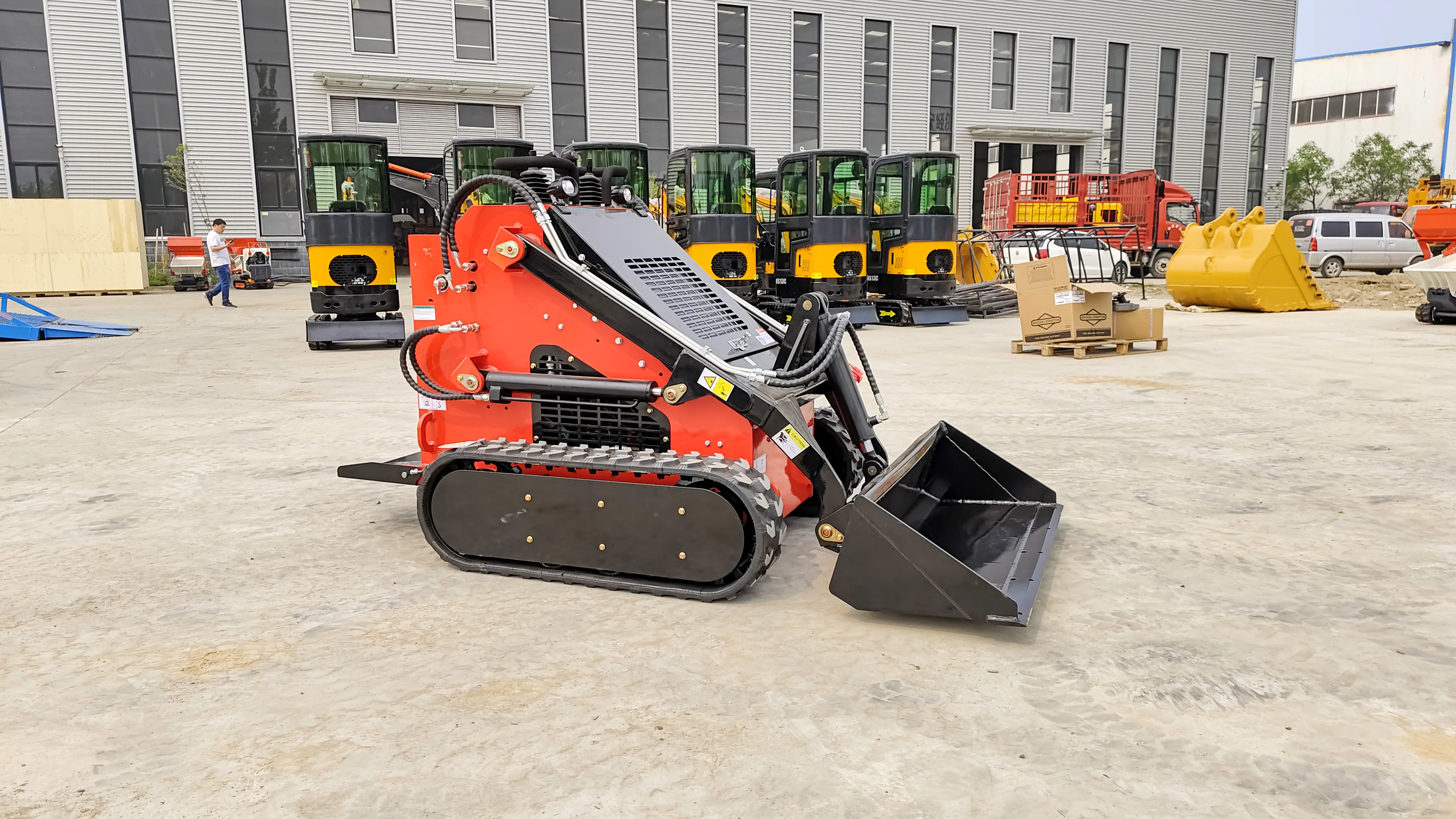

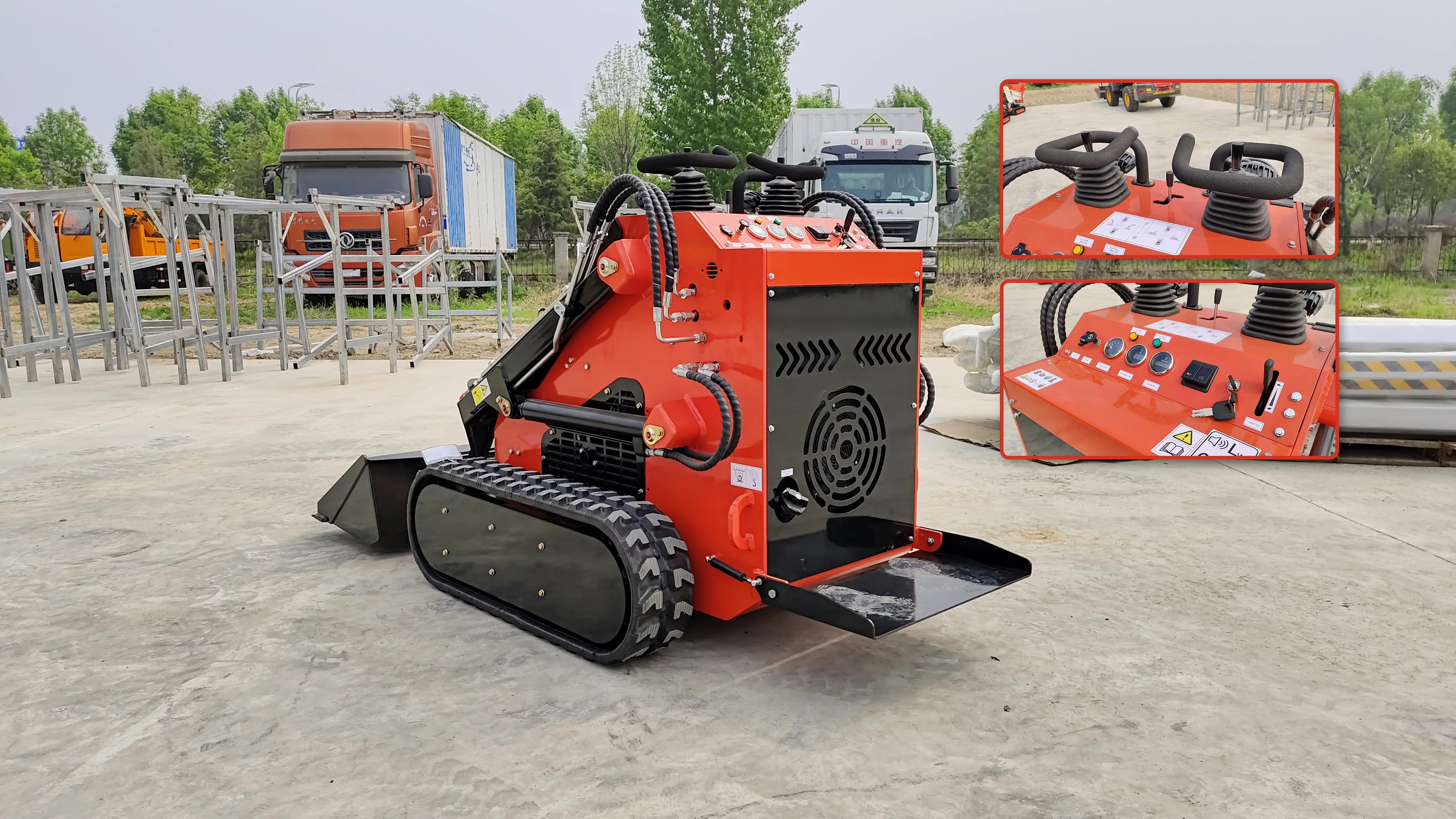

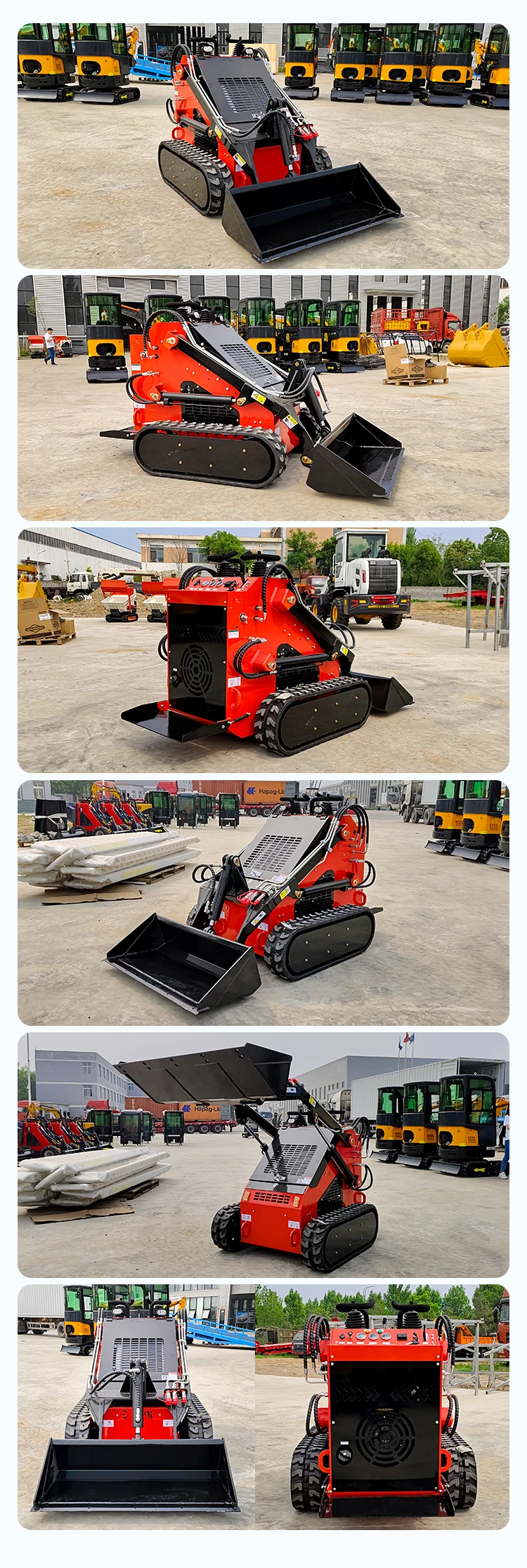

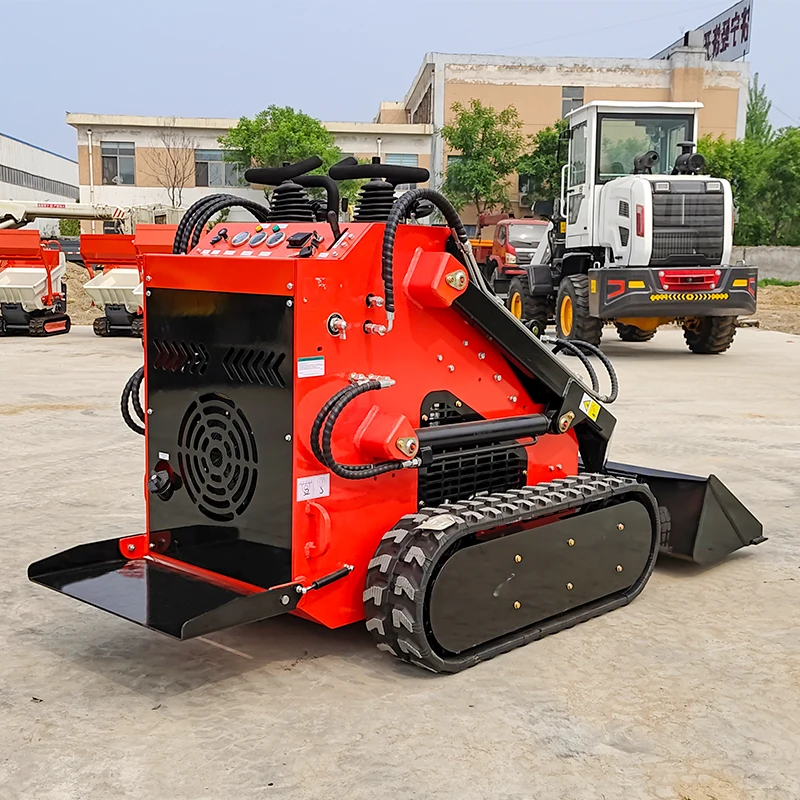

Product Photograph
Company Profile
Shandong Gongwo Machinery Co., Ltd. was founded in 2012. It is a physical factory specializing in the production of small and medium-sized construction machinery and equipment such as small wheel loaders, mini crawler excavators, electric/diesel tricycles,two-wheel drive/four-wheel drive forklifts, etc.
The company occupies an area of More than 100 acres, more than 100 employees, the total annual sales volume of products has reached more than 20,000 units, and the products are exported to Europe, America, Southeast Asia, Africa, Russia and other countries. For ten years, we have been serving customers from all over the world to meet their needs.Walker Heavy Industries,mining your opportunities, carrying your success.
