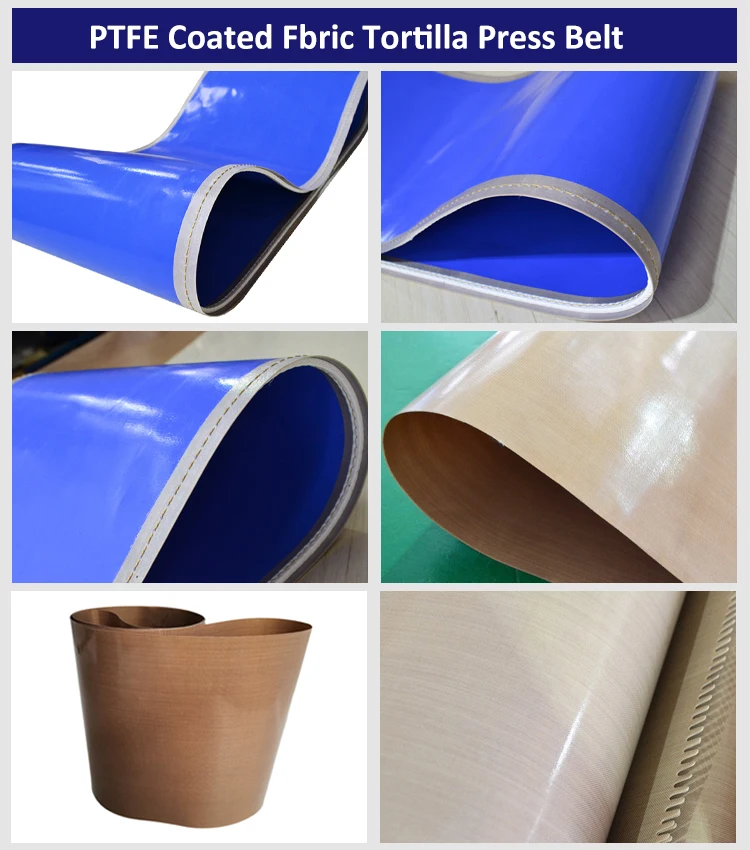

Non-Stick Endless PTFE Coated Fabric Tortilla Press Belt



1.  PTFE Coated Fabric Tortilla Press Belt Overview

Tortilla press belt is made by high-performance PTFE coated fabrics which are specifically designed for the tortilla industry. The tortilla press belt fabric is coated with PTFE in a special process to improve its non-stick feature, abrasion resistance, and the most important oil and grease resistance which will help to extend its life during the tortilla stamping and conveying process. The belt is customized with suitable joints according to customers' requests, the most important element of making this belt is the joint part that needs to be smooth to avoid seam markings on tortillas while maximum strength. If the joint part isn't treated specially, the belt may break in one day or even several hours.



A tortilla press belt helps you eliminate unscheduled downtime, decrease the cost of ownership, and dramatically increase throughput, the belt can be specially fabricated to help the joint part keep way from pressing moment during running.







2.  PTFE Coated Fabric Tortilla Press Belt Specification

♦ Width: up to 1500 mm.
♦ Thickness: 0,1 mm to 0,5 mm.
♦ Joints: mechanical or permanent.
♦ Side reinforcement: PTFE fabric / PTFE film.
♦ Guiding: PTFE knobs, steel rivets/knobs, silicone/aramid thread.



Tortilla Press Belt
Model	Standard Size(mm)	Total Thickness(mm)	Weight	Color
018-367 Tortilla	500 - 1000	0.18	367	Brown/Blue/Maroon/Black
020-412 Tortilla	500 - 1000	0.2	412	Brown/Blue/Maroon/Black
025-492 Tortilla	500 - 1500	0.25	492	Brown/Blue/Maroon/Black
026-550 Tortilla	500 - 1500	0.26	550	Brown/Blue/Maroon/Black
028-575 Tortilla	500 - 1500	0.28	575	Brown/Blue/Maroon/Black
030-622 Tortilla	500 - 1500	0.3	622	Brown/Blue/Maroon/Black



3. PTFE Coated Fabric Tortilla Press Belt Features



Tortilla press belts are manufactured by covering the fabric with additional layers of PTFE film. Their crucial advantage lies in their impermeable surface resistance to oils, chemicals, and aggressive fumes. A wide range of joints, reinforcements, and guiding systems. Wide range of FDA-attested colors (red, blue, silver, black). Continuous work temperature: -150°C to +260°C.

♦ Super smooth, non-stick
♦ Non-porous surface for durability
♦ Extremely flexible and resistant to cracking
♦ High abrasion resistant
♦ Oil & Grease resistant
♦ High-temperature resistant
♦ Chemical resistant
♦ Available up to 1500mm wide to suit all applications

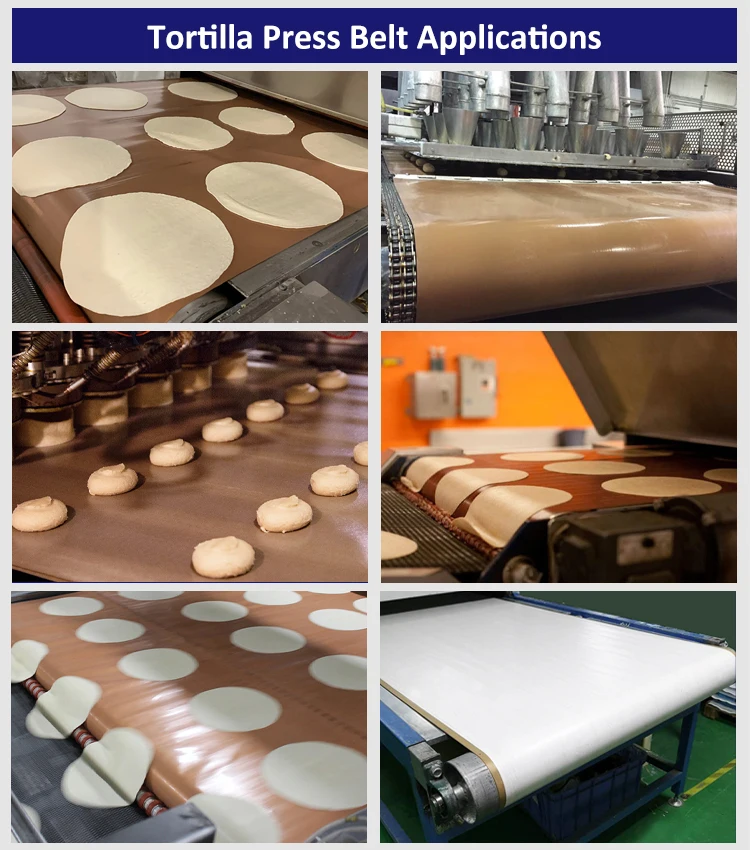

4. PTFE Coated Fabric Tortilla Press Belt Applications



PFM Screen tortilla press conveyor belts can be manufactured to suit all makes of tortilla press equipment on the market including Lawrence & Casa Hererra machines.
We can also make tortilla press conveyor belts to suit and fit all other machine brands currently on the market.

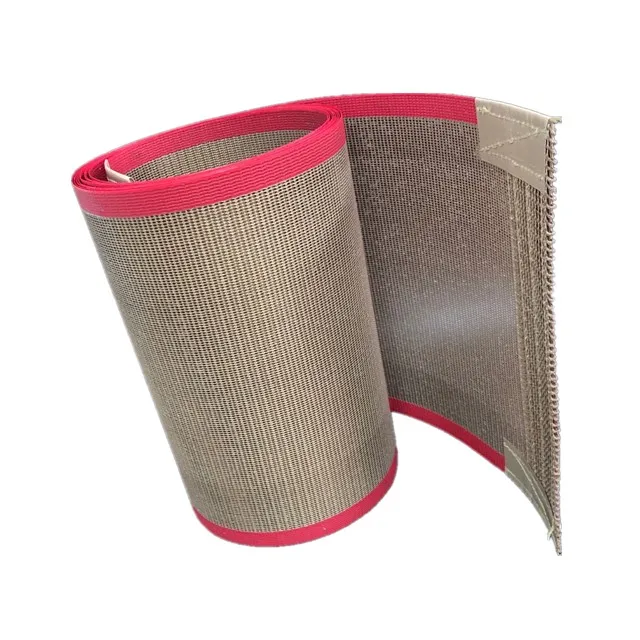

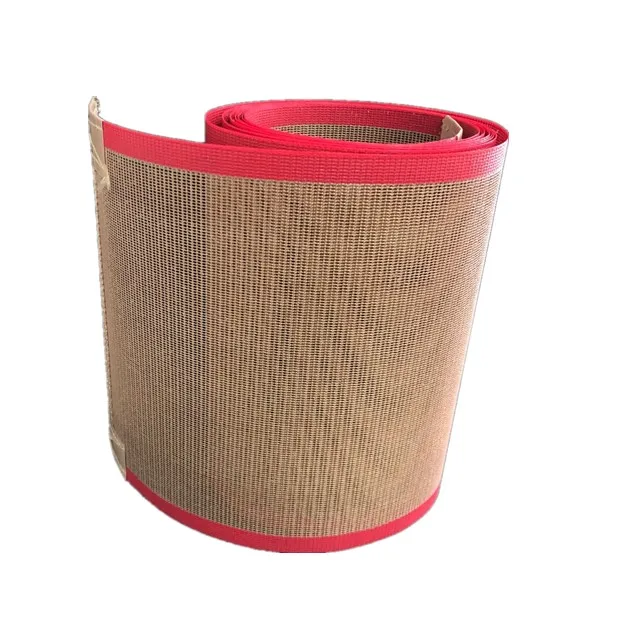

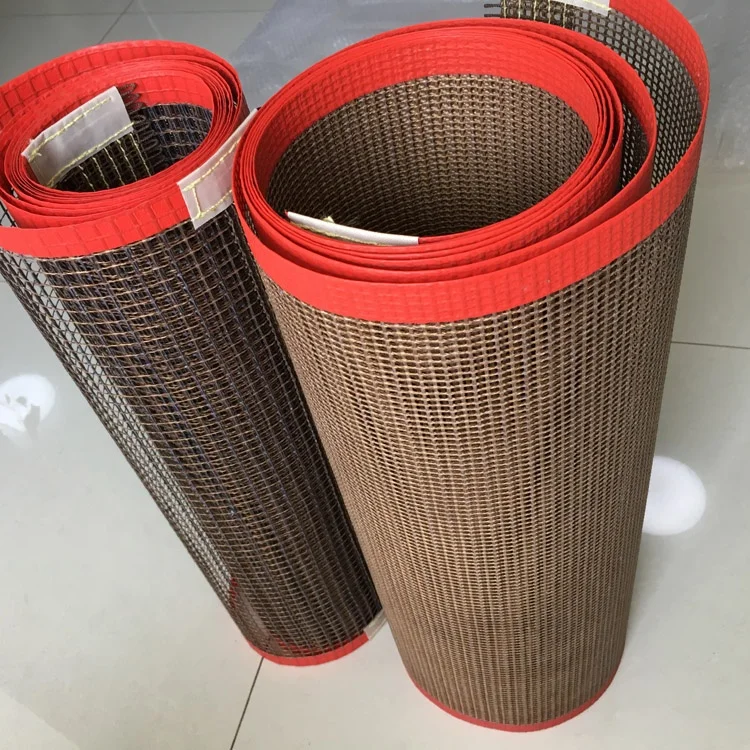

PTFE Coated Open Mesh Conveyor Belt for UV oven	1X1mm PTFE mesh fiberglass products	4x4mm PTFE fiberglass open mesh conveyor belts



PFM SCREEN is a professional manufacturer of all kinds of Screen Printing Mesh, Filter Mesh, and Flour Mesh, established in 1987.

PFM SCREEN is located in Bejing City and the factory is located in Anping county -- the famous Wire Mesh Land of China, with a land area of 40.000 square meters, a construction area of 13, 000 square meters. PFM SCREEN factory has 83 sets of P7100& P7150 Sulzer polyester printing mesh weaving looms. Our screen printing mesh ( polyester filter cloth) has been approved by ISO9001:2008, and we’re proud of our strict production line and quality control. Our mesh polyester is ranged from 7T-165T with white and yellow color mainly as a file, other special specifications can be produced as required.





1. What certificate does your PTFE fiberglass mesh conveyor belt have?

We have a certificate of SGS, LFGB.



2. What is the package of the PTFE fiberglass mesh conveyor belt?

The package is an export carton.



3. Can you get the custom size?

Yes, we can offer you mesh conveyor belts of your desired size.



4. What is the unit cost for 100roll,500roll, including freight via express to the united states?

Need to know-how is your size and quantity then we can calculate the freight. Also, freight varies every month, will tell right after your exact inquiry.



5. May we take samples? How much will you charge?

Yes, Samples which size A4 are free. Just freight collect or pay freight to our PayPal account. USA/West Europe/Australia USD30, South-East Asia USD20.Another area, quote separately.



6. How long will it take to receive samples?

4-5days will make you receive samples





7. Do you accept escrow payments or PayPal for the full order?

Yes. Also, we already signed a trade assurance agreement with Alibaba. You can purchase via our Alibaba platform to enjoy your benefit guarantee.
