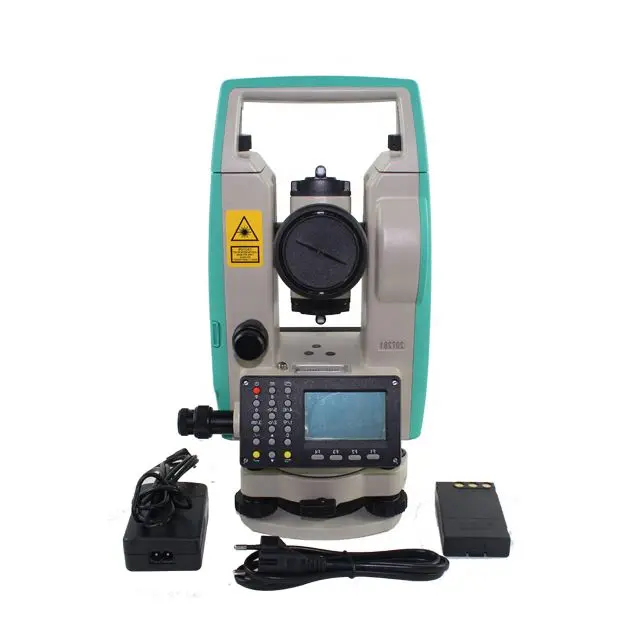

Ruide dистео 23 теодолит коллиматор

Distance Measurement

Vial

Range: 300m

Plate Vial: 30"/2mm

Accuracy: ±(3mm+2ppm*D)

Circular Vial: 8'/2mm

Measure Time:

Laser Tube

Continuous: 0.35s, Fine: 1.5s

Wave Length: 635 ±20nm

Atmosphere Correction: Manual input, auto correct.

Class II Laser

Angle Measurement

Spot Diameter: ≤5mm/100m

Prism Constant: Type: Absolute Encoding

Axis Error: ≤10"

Min. Reading: 1"

Laser Plummet

Accuracy: 2"

Accuracy: 31.5mm

Detection Method: Horizontal: Dual; Vertical: Dual

Spot Diameter: 32.5mm

Telescope

Length: 635 ± 20nm

Image: Erect

Class II Laser

Magnification: 30x

Display Unit

Effective Aperture: 40mm

2.7 inches, 160x96 dot

Resolving Power: 3"

4 lines display

Field of View: 1°30'

Power Supply

Min. Focus: 1.5m

Battery: Li-on Rechargeable

Stadia Accuracy: ≤0.40%/L

Voltage: 7.4V

Tube Length: 155mm

Working Hrs: 8 hrs

Compensator

Environment

Type: Single Axis

Working Range: -20°C - +50°C

Working Range: 3'

Dimension

Accuracy: 3"

Size: 165*160*340mm

Weight: 4.7kg
