Автомобиль скорой помощи FORD new transit

Описание и отзывы

Характеристики

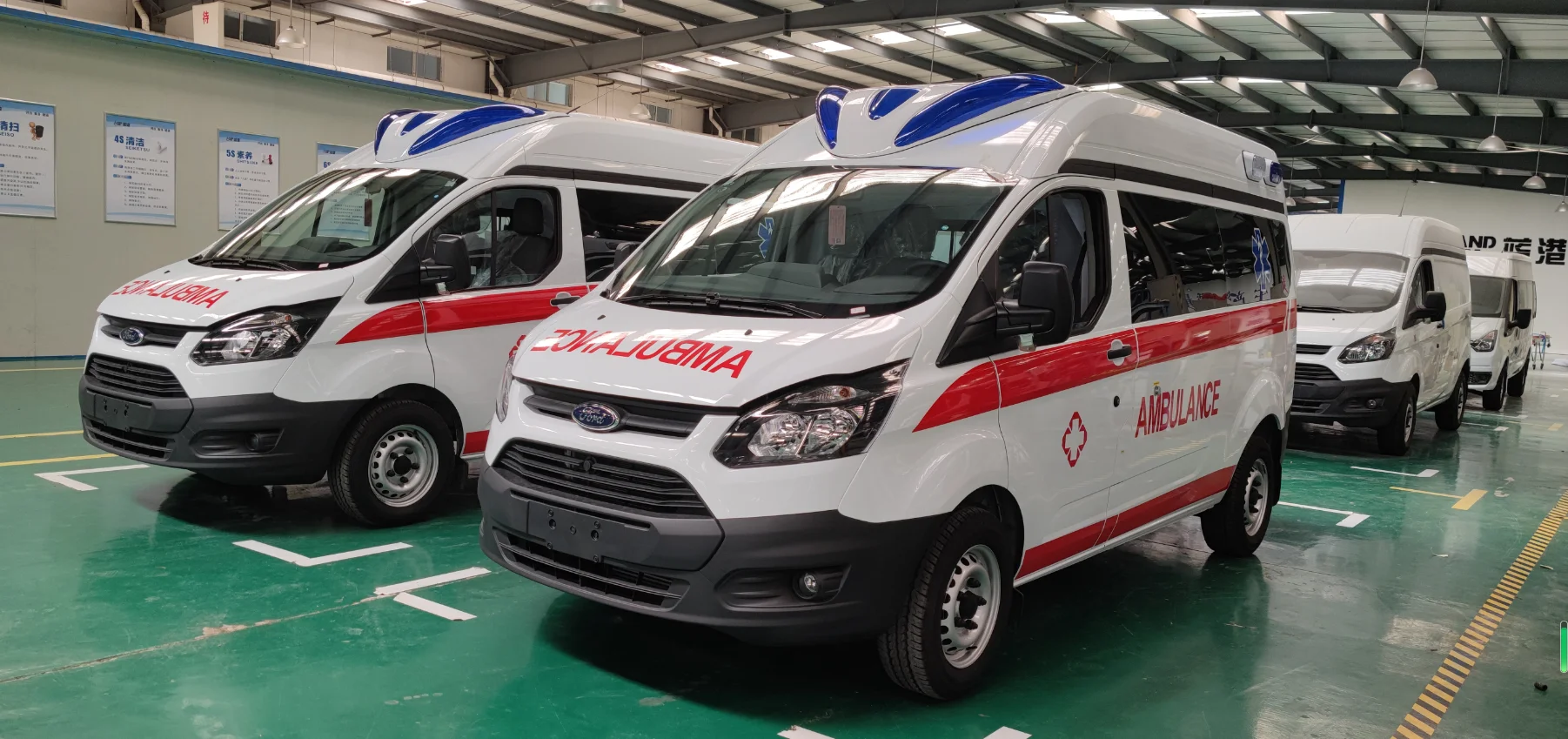

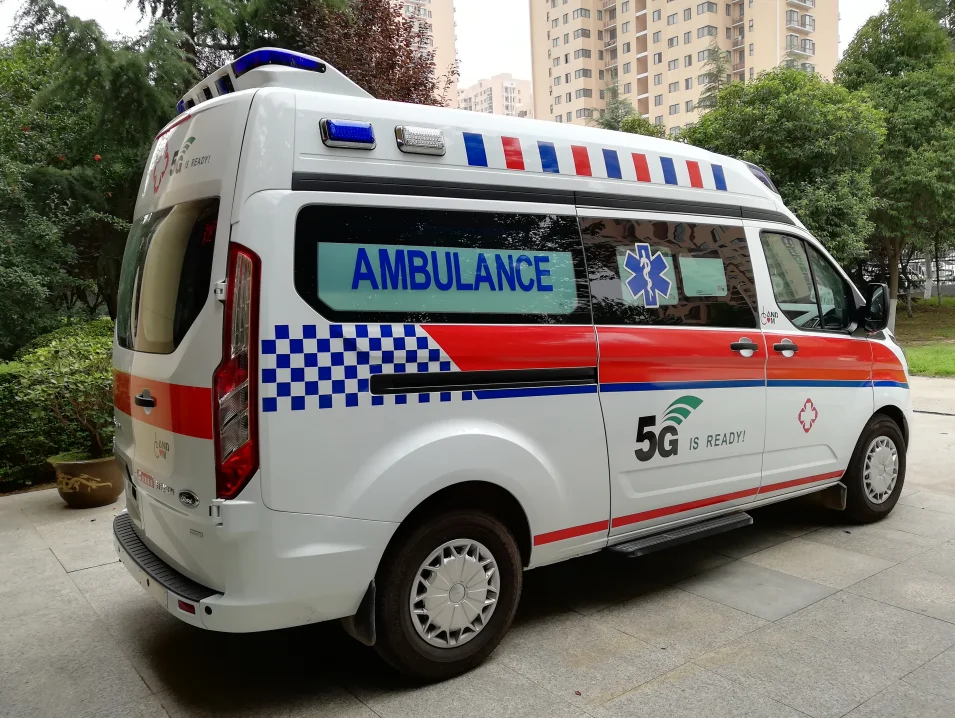

FORD NEW TRANSIT V362 MCA ICU AMBULANCE

( Diesel, EURO VI, XLG5042XJHC6)

Parameters and specifications of the Vehicle

A	Dimension and Weight
1	Overall Dimension (mm)	L:5341, 5520 ( with optional rear foot step)  W:1986   H:2450 (Heart-type alarm light) / 2495 (Embedded alarm light / 2510 (Alarm light bar)
2	Dimension of Patient’s compartment (mm)	L:2820  W:1725  H:1760
3	GVW (kg)	3510
4	Turning diameter(m)	12.9
5	Approach Angle/Departure Angle (°)	21/25
6	Complete vehicle curb mass (kg)	2480(6)
7	Front/rear suspension (mm)	1014/1027
8	Front Wheel tread (mm)	1736
9	Rear Wheel tread (mm)	1720
10	Minimum ground clearance (mm)	141
11	Wheelbase (mm)	3300
12	Max speed (km/h)	160
13	Number of seats	6
14	Axle Load (kg)	1570/1940
15	Qty. of tires	4
16	Tires size	215/75R16LT
B	Engine
1	Engine	DURATORQ4D20B6H  (FORD)
2	Type of Fuel	Diesel
3	Working manner	in-line, 4 cylinders, inter-cooling, direct injection diesel engine





Medical Equipment (Optional)

1) Comprehensive First-aid kit

2) Patient monitor

3) AED (Semi-Automatic External Defibrillator)

4) Defibrillator monitor

5) Auto CPR system (Cardiopulmonary Resuscitator)

6) Suction unit

7) Emergency and Transport ventilator

8) Video laryngoscope (with 3 sizes of disposable blades and camera systems)





Shipping:



Advantages:

1.Our medical equipment have been exported many countries,more than 168 countries, such as Philippines, Indonesia, Pakistan, Nigeria, Sudan and many other countries.



2.Not only manufacturing the different types of ventilator,but also supplying other kinds of medical equipment,it's easy to choose what you want models in one company,save time , save money.



3.It has been about 10 years,since we established the company.During these years,no any quality complaint about our machine .



4. Updated over 5 new models every year,and do the research in the medical research.



5.Attending 2 exhibition per year,to broadcast the new technical models.



6.Marked with CE&ISO certificate.



7. The main parts are imported from Germany ,Japan.



Exhibition Show:



Client's Visiting Show:





 Client's Tranning Show:





After Sales:

(1) ANJUE offer one year warranty, part of goods will enlarge to 24 months guarantees: within warranty, we offer our customers free service; beyond warranty, we offer customers paid service with cost price. We offer customers lifelong service. If there is any problem on our products,we will response in 12 hours by email,tel or fax.

(2) We offer customers new, good and qualified original products, which match manufacturer’s quality standard.

(3) The packages of devices are standard export standards,which is suitable for long distance transport.

(4) Every product have only identification serial number.
