Products Description

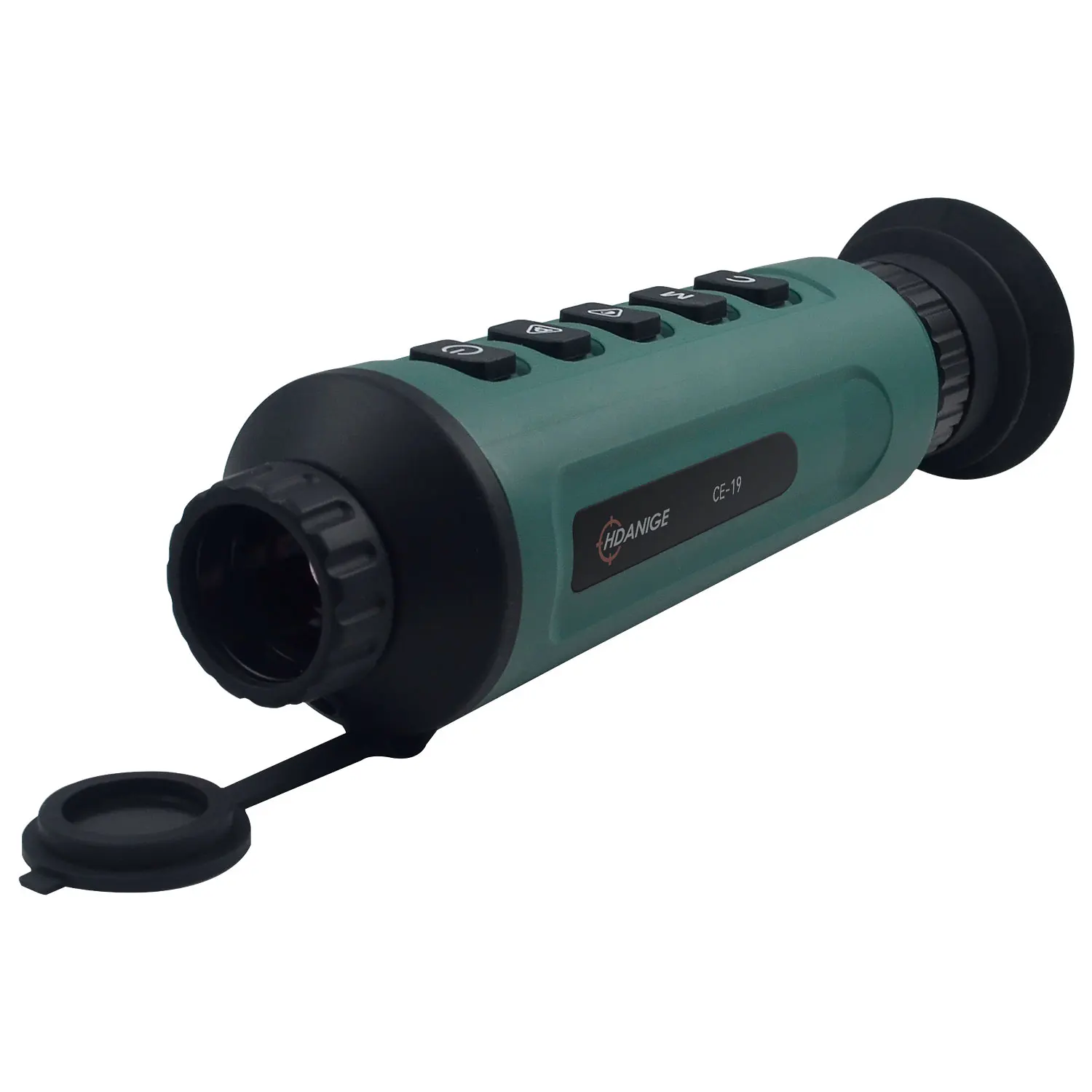

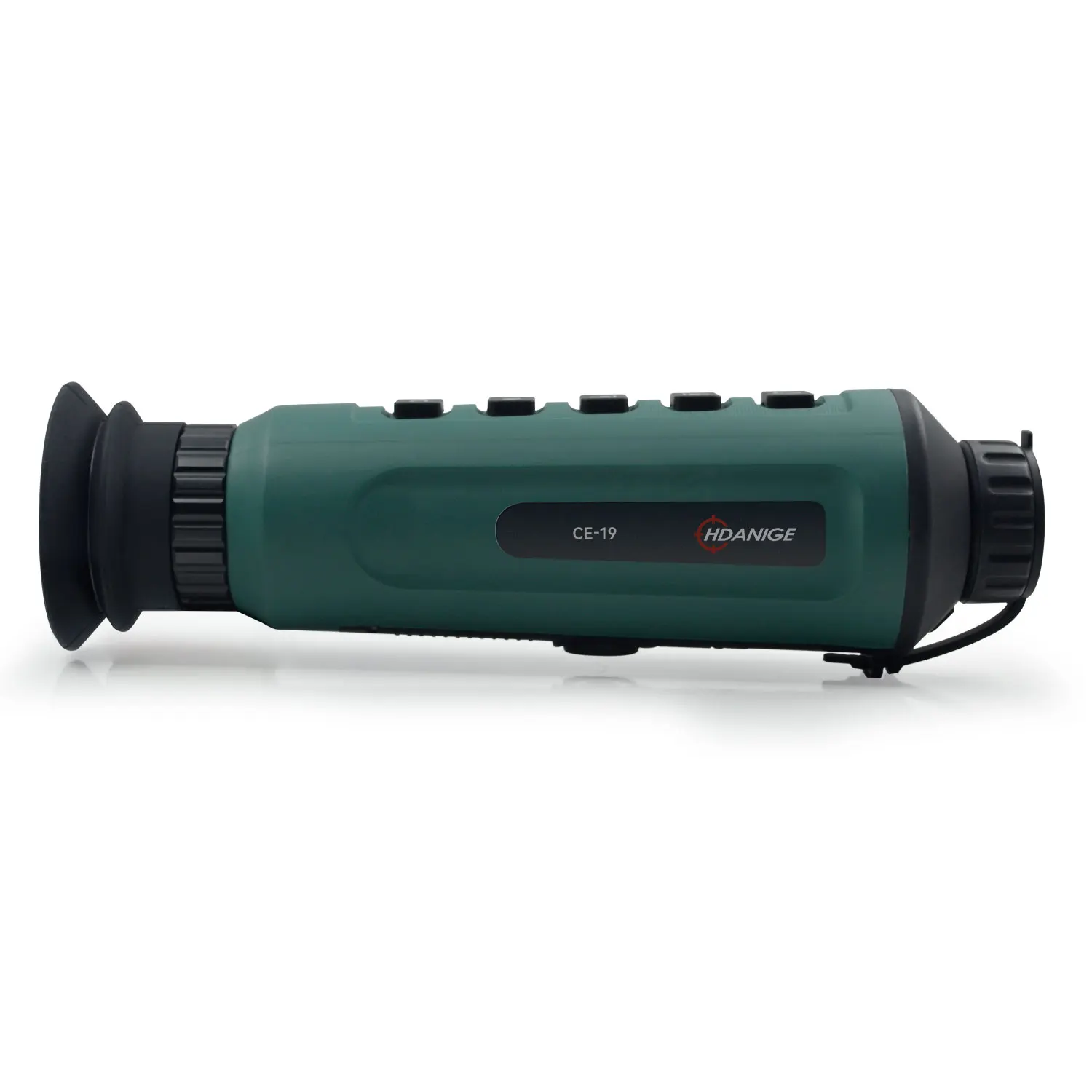

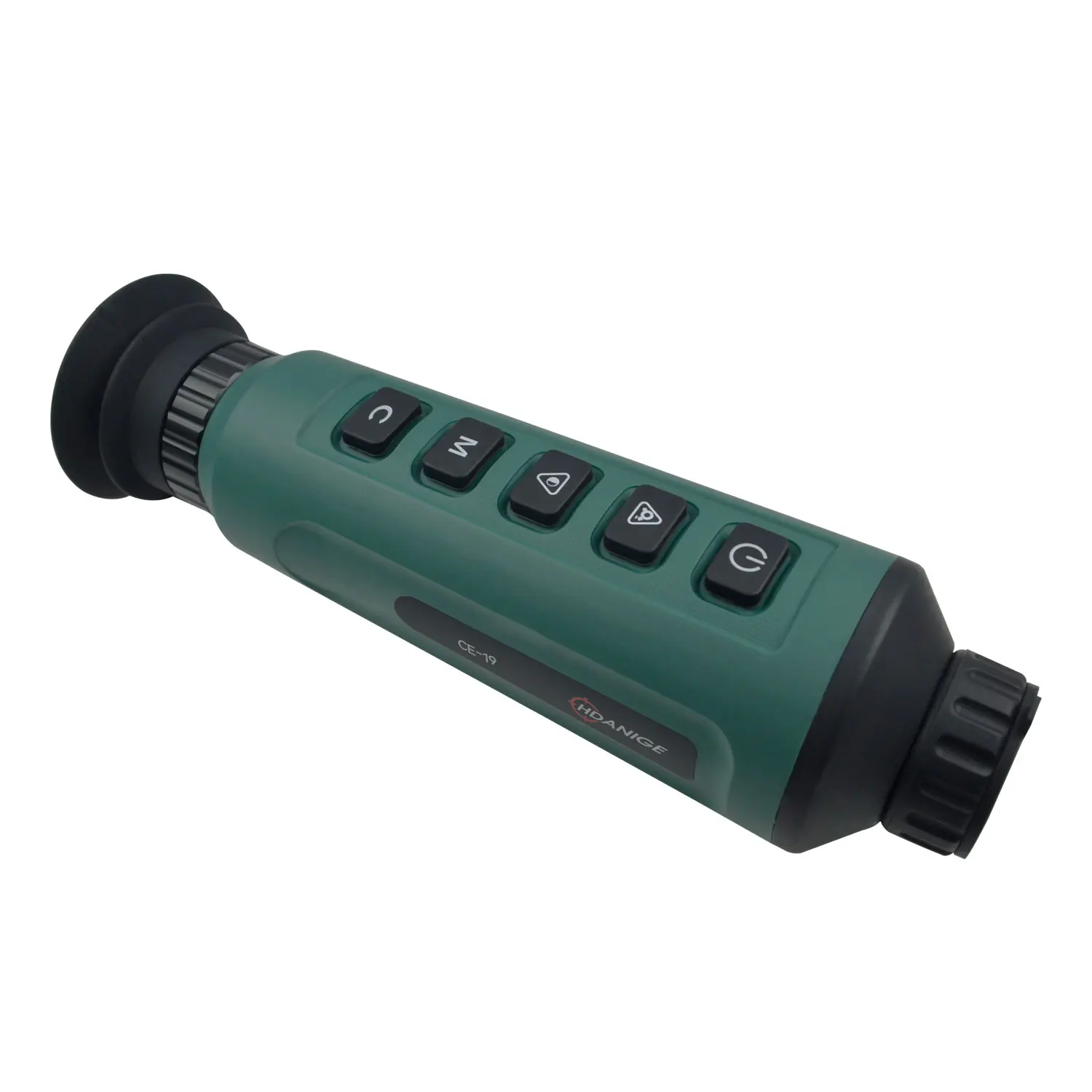

The handheld thermal monocular camera is a handheld device with functions of observation, highest temperature target tracking, distance measurement, and so on. The high-sensitivity built- in thermal detector provides you with clear view even in total darkness. The device is mainly applied to outdoor scenarios such as searching and rescue, hiking, and travel.
Key Features
⚫ 384x288, 12μm Vanadium Oxide Uncooled Sensor;
⚫ Sensor Frame rate: 50fps, high quality imaging;
⚫ Manual focus, 8x magnification;
⚫ Sensor Frame rate: 50fps, high quality imaging;
⚫ Manual focus, 8x magnification;
⚫Cost performance, focus on the consumer market;
⚫ Small & light weight, easy to carry;
Specification
Lens | ||||
Focal Length | 19mm | |||
Recognition Distance | Small animal | 42m | ||
Mid-size animals | 113m | |||
Large animals | 419m | |||
Sensor | ||||
Sensor Type | Vanadium Oxide Uncooled Sensor | |||
Spectral Range | 8～14 μm | |||
Resolution | 384×288 | |||
Pixel Pitch | 12μm | |||
FOV（H*V） | 14.5°x10.5° | |||
NETD | ＜50mK @25℃, F#1.0 | |||
Frame Rate | ≤50fps | |||
Image Display | ||||
Display Resolution | 1024×768 | |||
Screen | OLED | |||
Brightness/ Contrast | 1-5 level adjustable | |||
Image enhancement | Support | |||
Digital Zoom | X1, X2, X4, X8 | |||
Hot Point Tracking | Support | |||
Pseudo Color | Black Hot, White Hot, Red Hot, Fusion | |||
CVBS Output | Support | |||
Frame Rate | 50Hz | |||
Screen Boot time | 6s | |||
Crusor | Support | |||
Menu Display | Support | |||
System | ||||
Storage | Built-in Memory Module (16G) | |||
Hotspot | Support | |||
Video Record | Support | |||
Screen Capture | Support | |||
Laser Positioning | Support | |||
General | ||||
Protection Level | IP67 | |||
Weight | 400g | |||
Dimension (mm） | 58*62*215 | |||
Power Supply | ||||
Power | 5V 1A | |||
Consumption | 0.85W (CVBS output off ) | |||
Battery Type | Rechargeable Lithium Battery | |||
Battery Range | ≥8H | |||
Environmental | ||||
Working Temperature | -20℃~70℃ | |||
Charging Temperature | 0℃~45℃ | |||
Humidity | ≤80% | |||

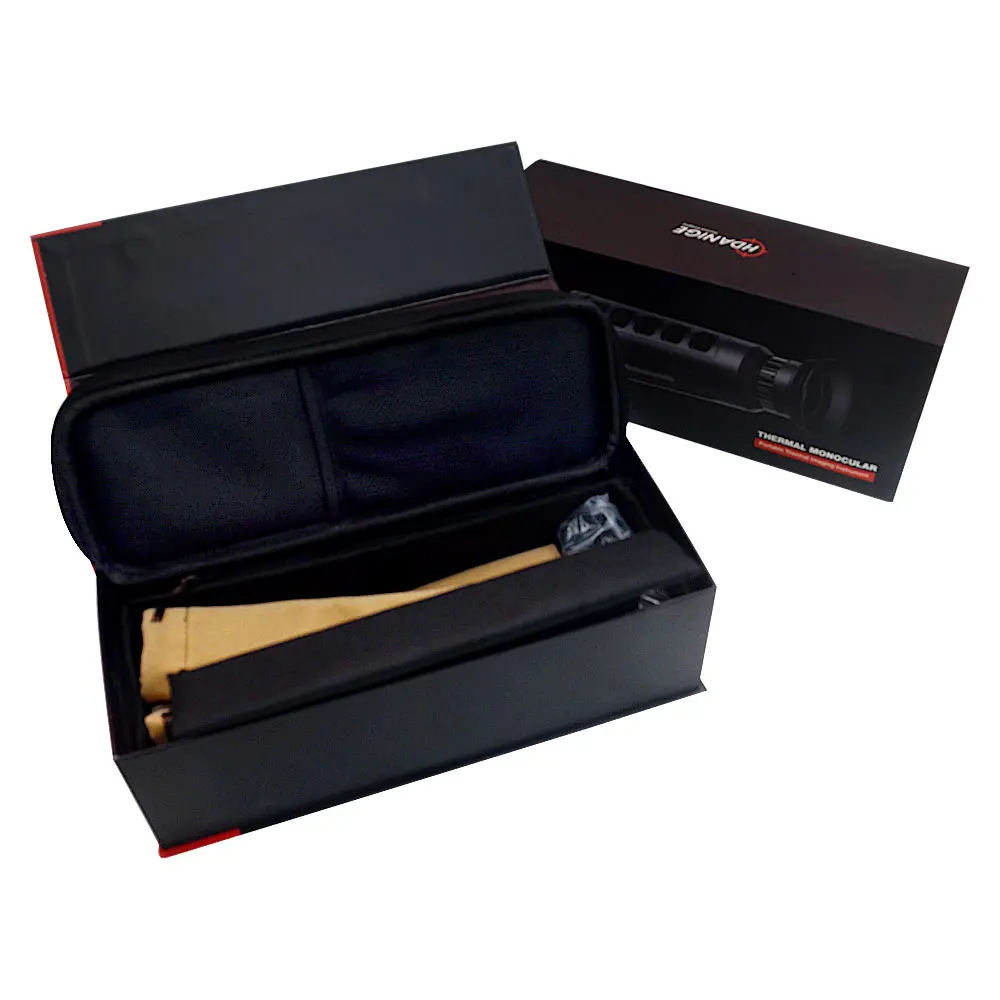

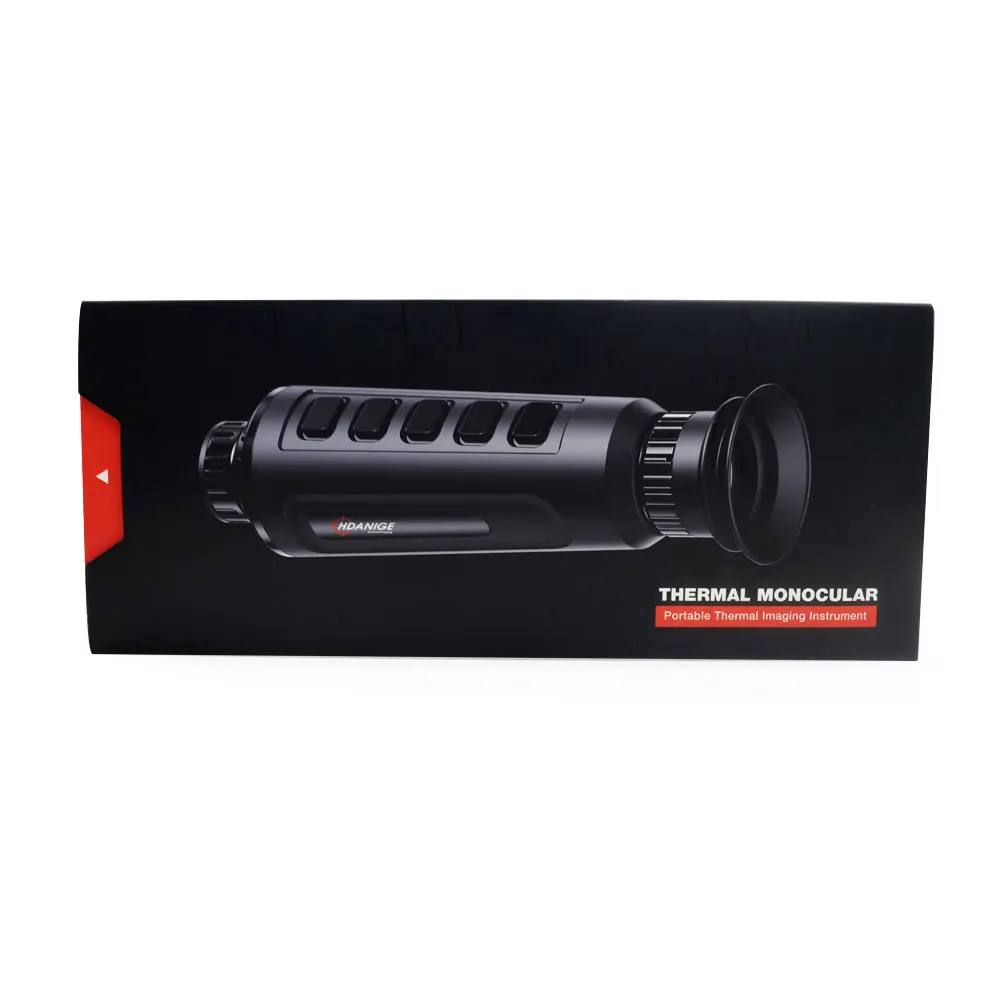

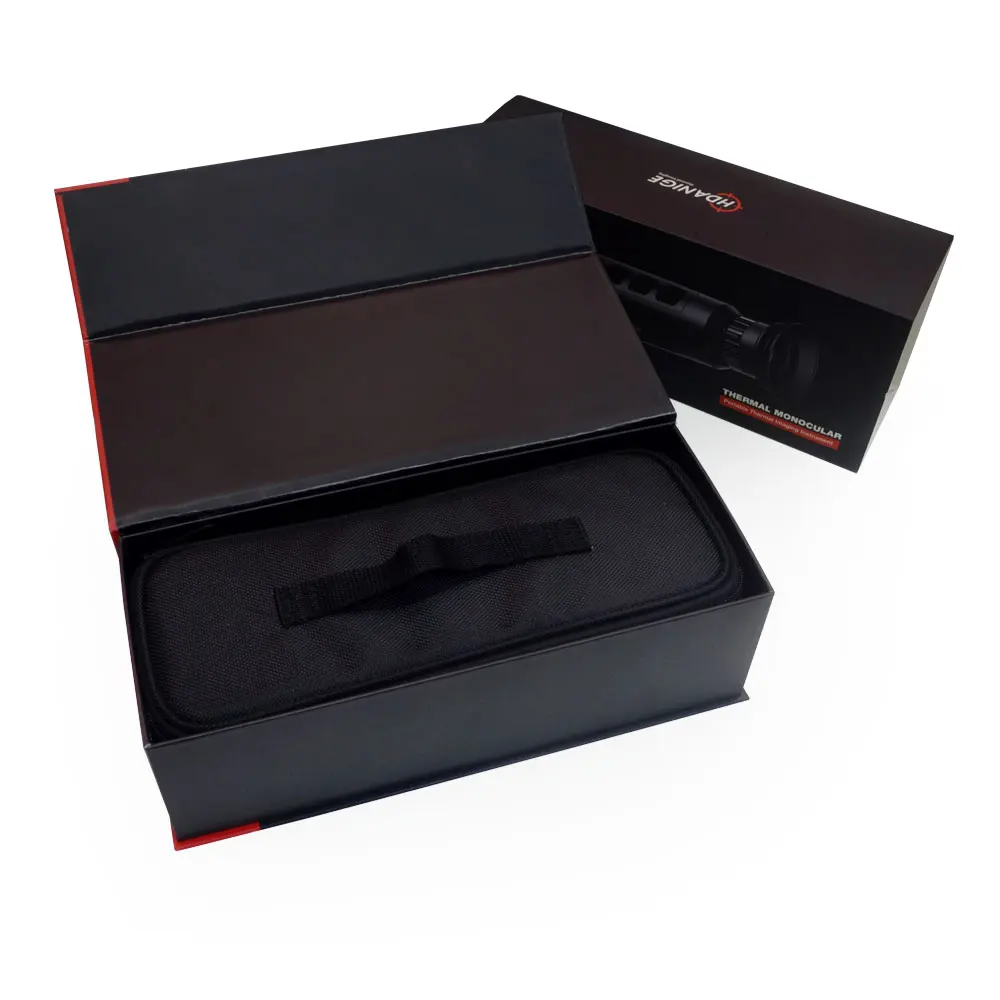

Product packaging
Company Profile
ABOUT US
Our company has 8 years of independent research and development experience,Already accumulate many thermal imager knowledge. Be able to provide customers with a comprehensive solution.
Our factory
Factory appearance drawing of Shenzhen Chengen Thermovision Technology Co., Ltd

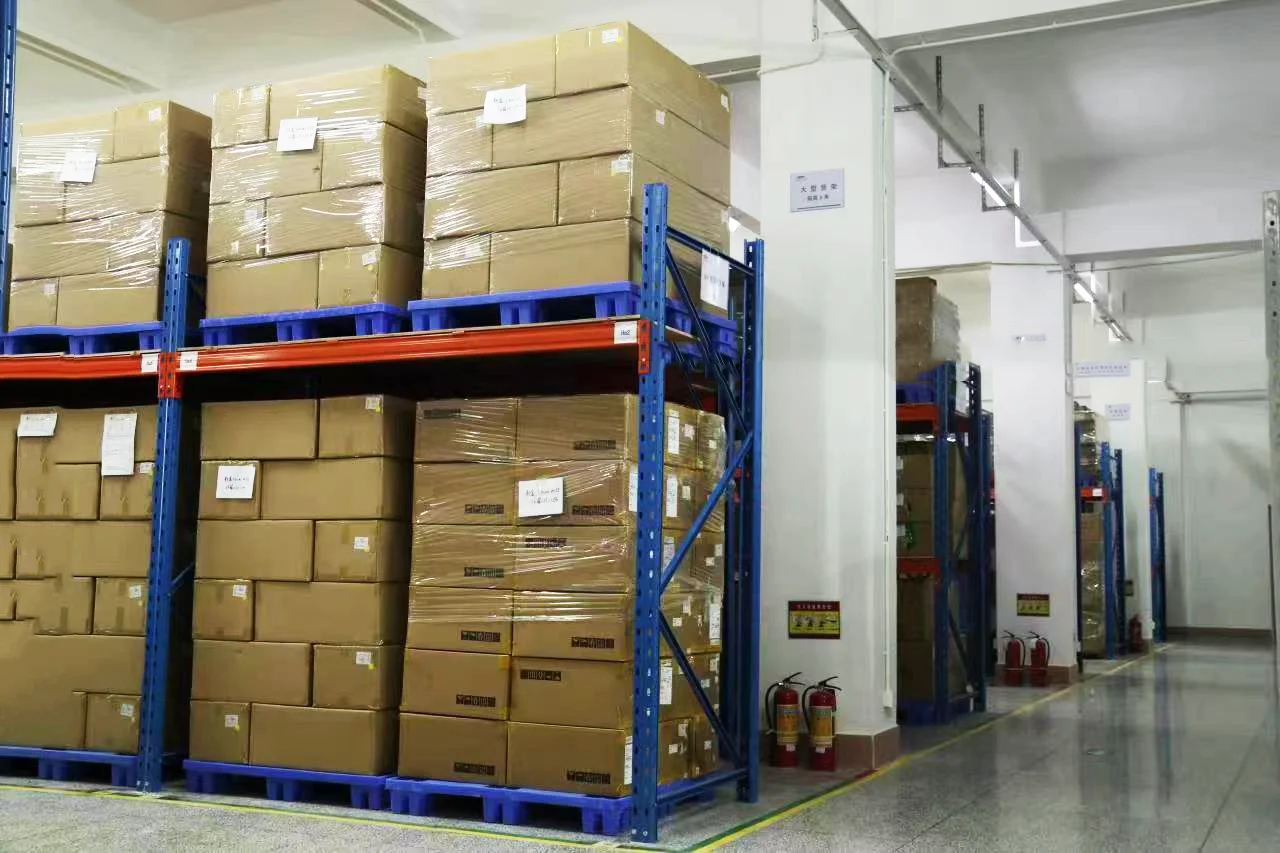

Factory product production workshop

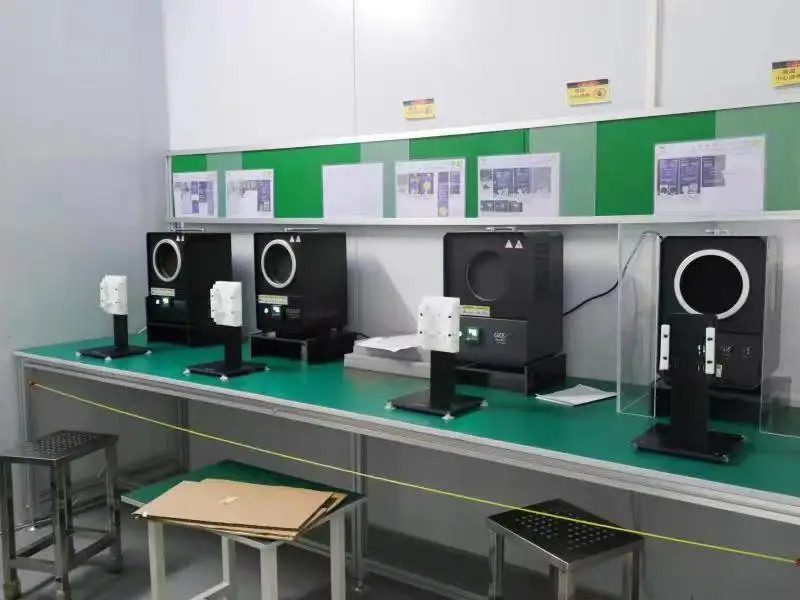

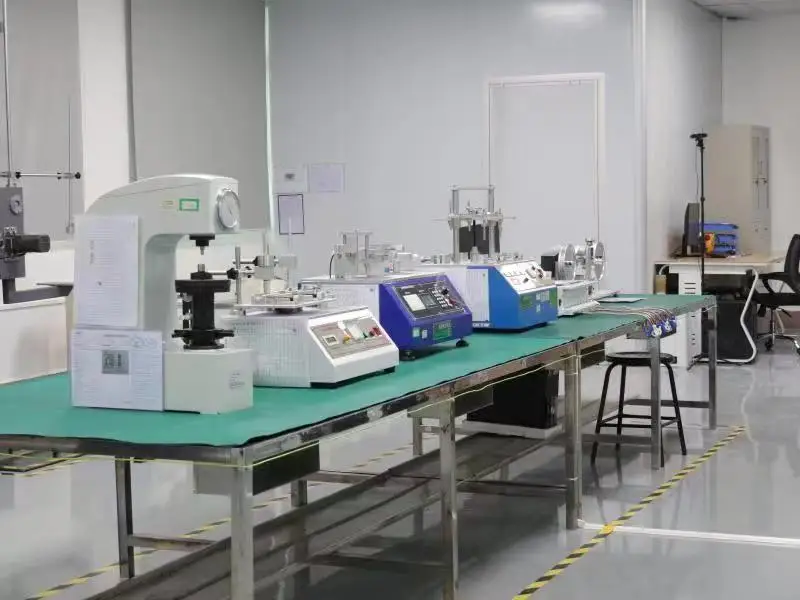

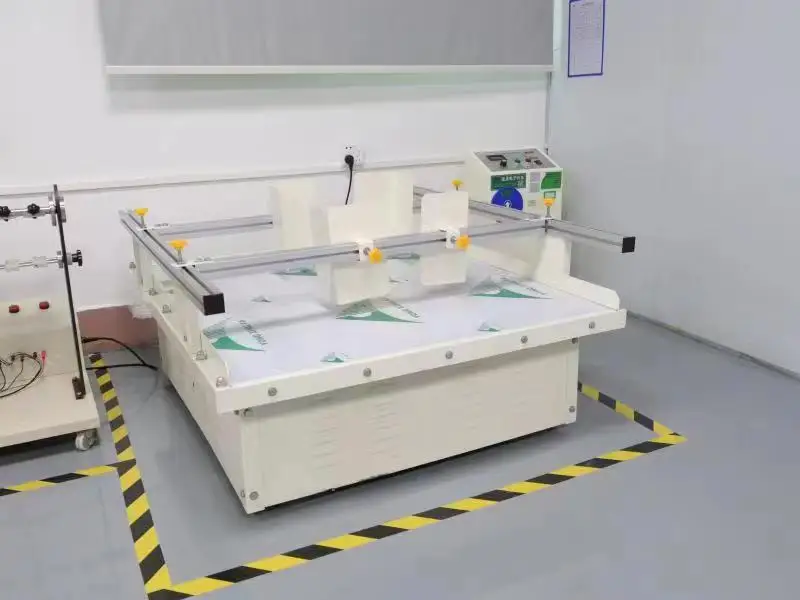

Factory product production equipment

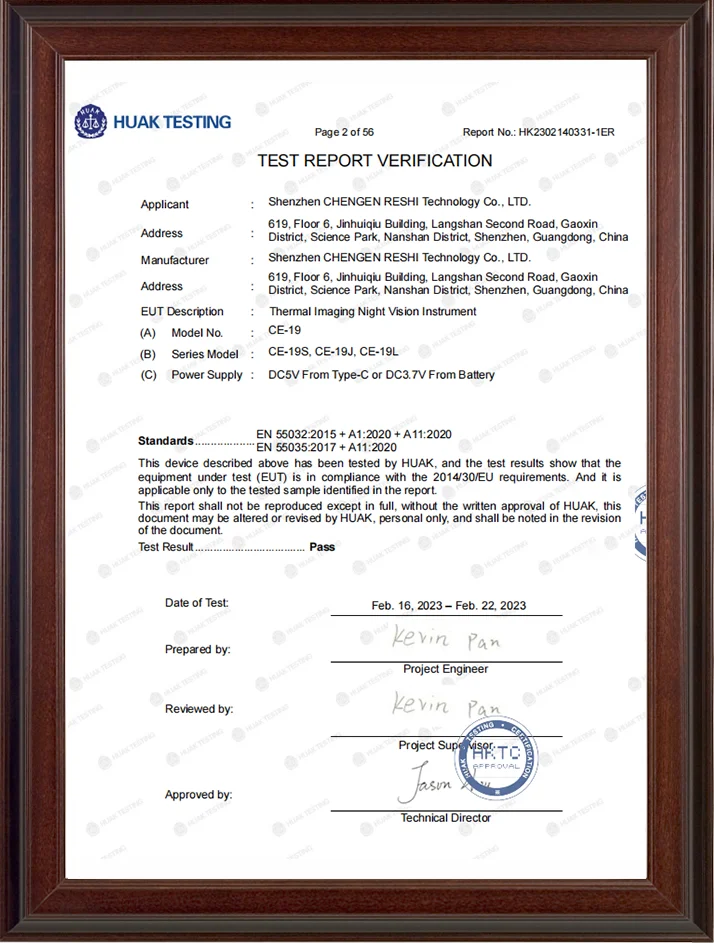

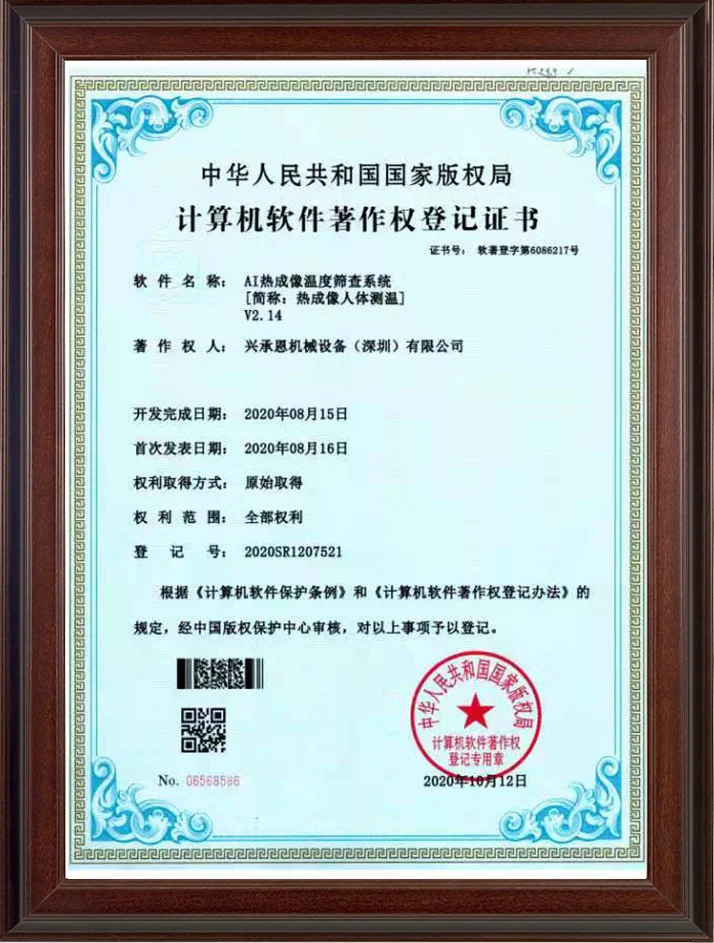

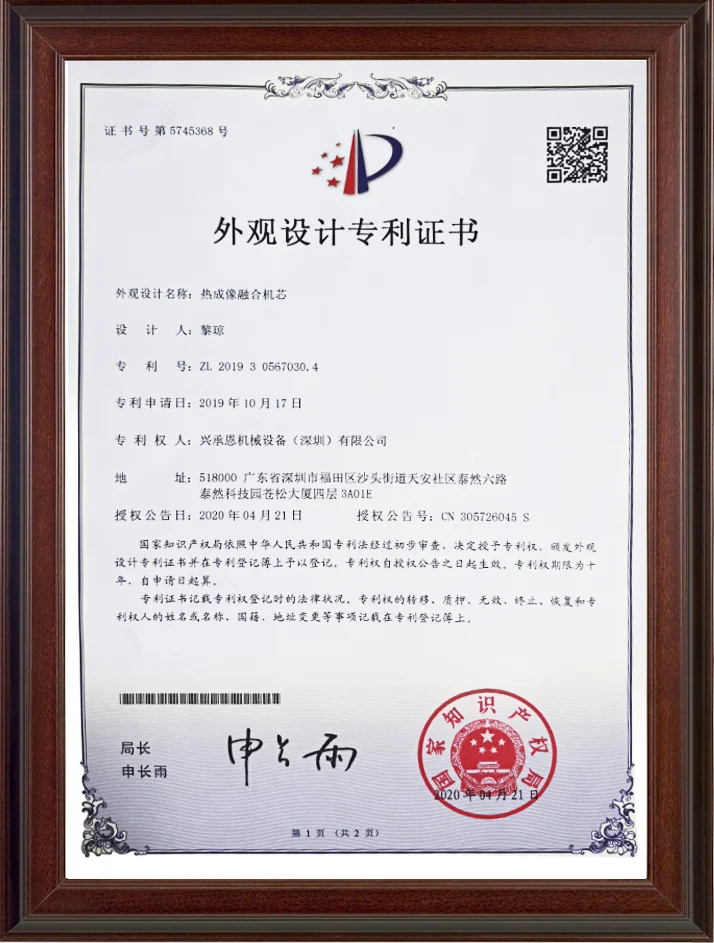

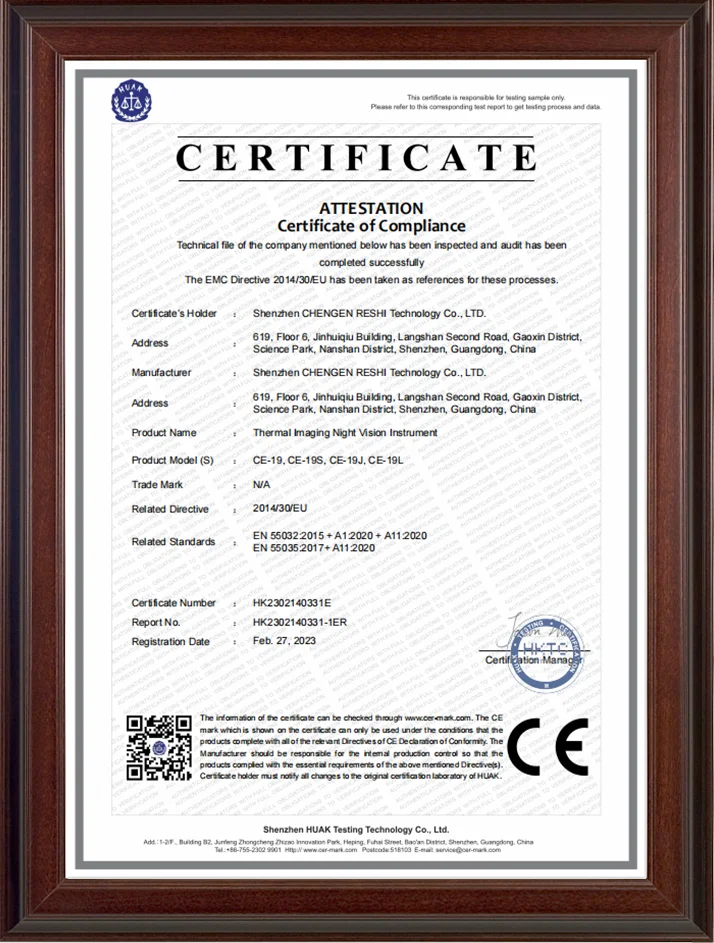

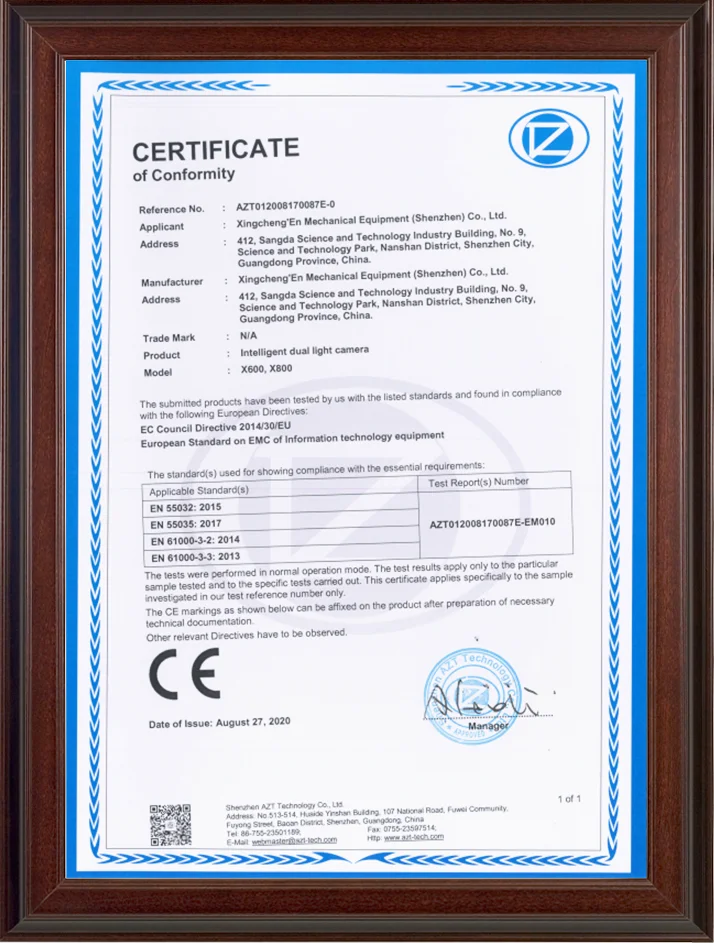

Certifications
