Сверлильный станок для бурения скважин/для бурения скважин
US $888.00-$1050
Kaishan KT7D Встроенная горно-струйная установка для бурения
- Категории: Mining Machinery >>>
- Поставщик: Zhengzhou,Kaishan,Mechanical,&,Electrical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description

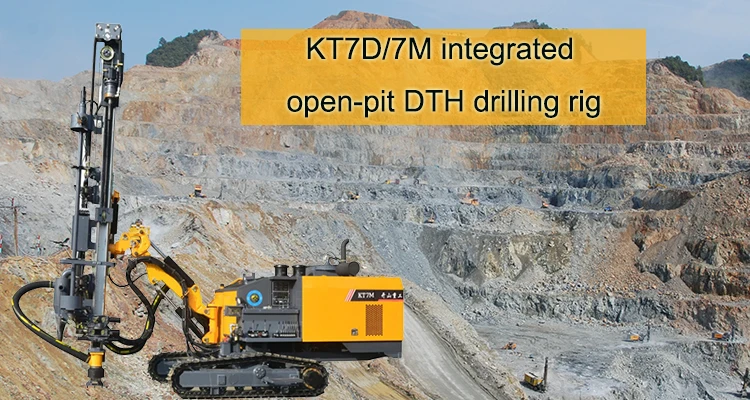

KT7D integrated open-pit DTH drilling rig is a drilling equipment which integrates DTH drilling system and screw air compression system. It can drill vertical, inclined and horizontal holes and is used for drilling blasting holes and presplitting holes in open-pit mines and stone works. It is equipped with Yuchai Power Non-road National III diesel engine, high-strength aluminum alloy propulsion beam, automatic rod loading and unloading system, drill pipe lubrication module and efficient dust collection system, which meets the national requirements for emission and environmental protection. It has the characteristics of energy saving, high efficiency, safety and environmental protection, flexibility, convenient operation and stable performance.
Product Parameters
Model | KT7D | KT7H |
Drilling hardness | F=6-20 | F=6-20 |
Drilling diameter | Φ90-135 mm | Φ115-146 mm |
Depth of drilling hole | 24 m | 24 m |
Travelling speed | 0-4 km/h | 0-4 km/h |
Climbing capacity | ≤25° | ≤25° |
Ground clearance | 430 mm | 430 mm |
Diesel engine | Yuchai engine YCA07240-T300 | Yuchai engine YC6A260-T30 |
Power of complete machine | 176 KW / 2200 r/min | 195 KW / 2200 r/min |
Screw compressor | 15m³/min ,18bar | 17m³/min ,18bar |
Dimensions | 8000×2300×2700 mm | 8000×2300×2700 mm |
Weight | 10000 kg | 11000 kg |
Rotation speed of gyrator | 180 rpm | 120 rpm |
Max rotary torque | 1560 N.m | 2800 N.m |
Max push-pull force | 22KN | 22KN |
Lifting angle of drill boom | Up 16°,Down 48° | Up 16°,Down 48° |
Tilt angle of beam | 147 ° | 147 ° |
Swing angle of carriage | Left 52°,Right 53° | Left 52°,Right 53° |
Swing angel of drill boom | Left 50°,Right 58° | Left 32°,Right 32° |
Leveling angle of frame | ±10° | ±10° |
One-time advance length | 3590mm | 3590mm |
Compensation length | 900mm | 900mm |
DTH hammer | 3 inch | 4 inch |
Drill rod | Φ64×3000mm | Φ76×3000mm |
Number of rods | 7+1 | 7+1 |
Method of extension rod | Automatic unloading rod | Automatic unloading rod |
Duster | 8 pieces filter | 13 pieces filter |

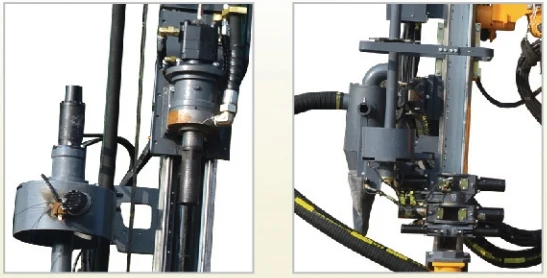

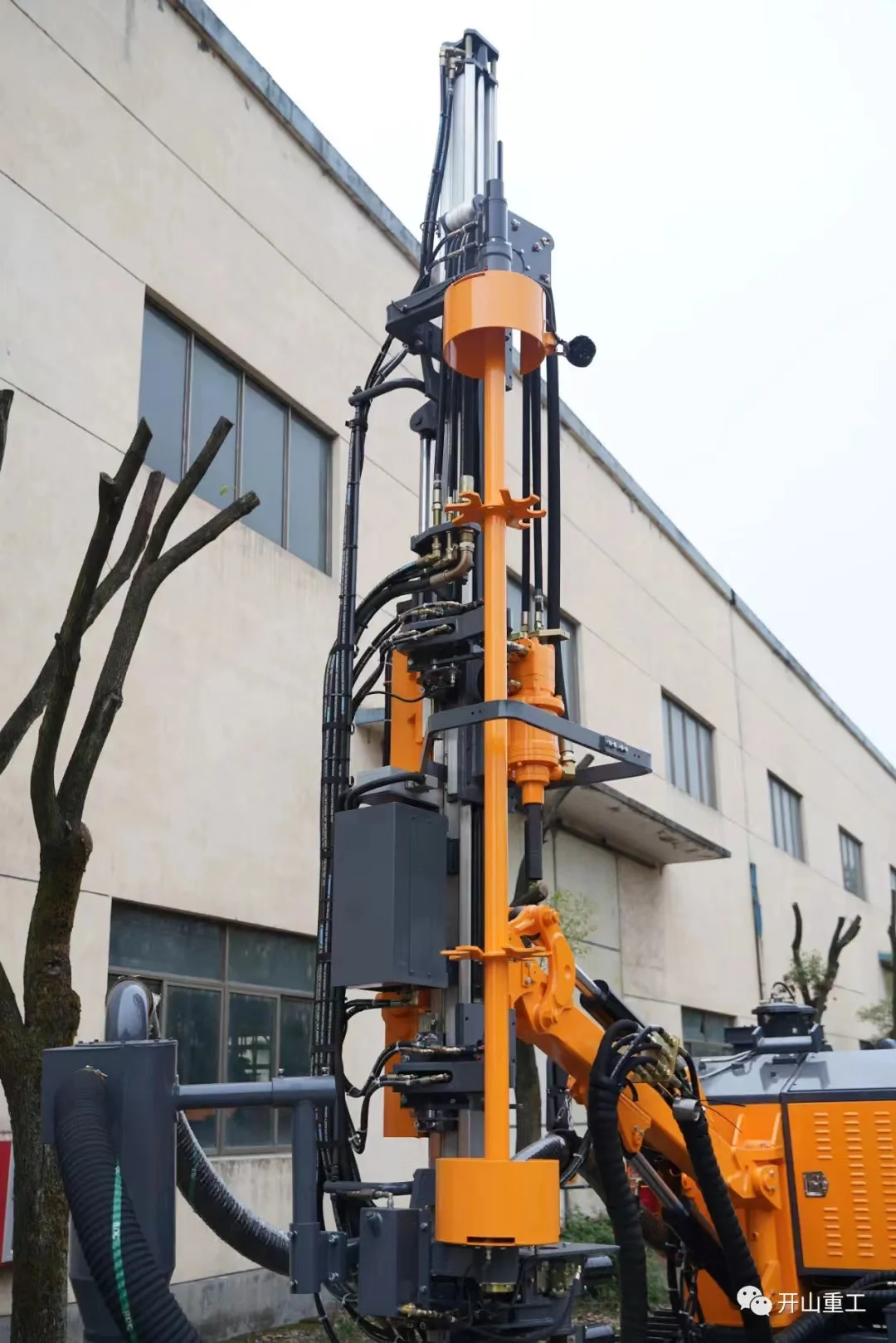

Large-section aluminum alloy guide rail and automatic drill pipe loading and unloading mechanism
The large-section aluminum alloy guide rail ensures sufficient strength, and it is equipped with a flexible and convenient
automatic loading and unloading drill pipe mechanism and drill pipe magazine to improve work efficiency and reduce work intensity. The capacity of the drill pipe storage is 7+1, and the depth of the drill pipe is 24m.
automatic loading and unloading drill pipe mechanism and drill pipe magazine to improve work efficiency and reduce work intensity. The capacity of the drill pipe storage is 7+1, and the depth of the drill pipe is 24m.

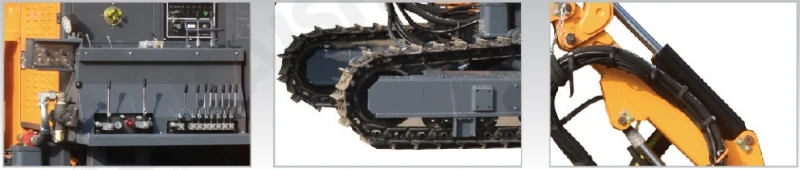

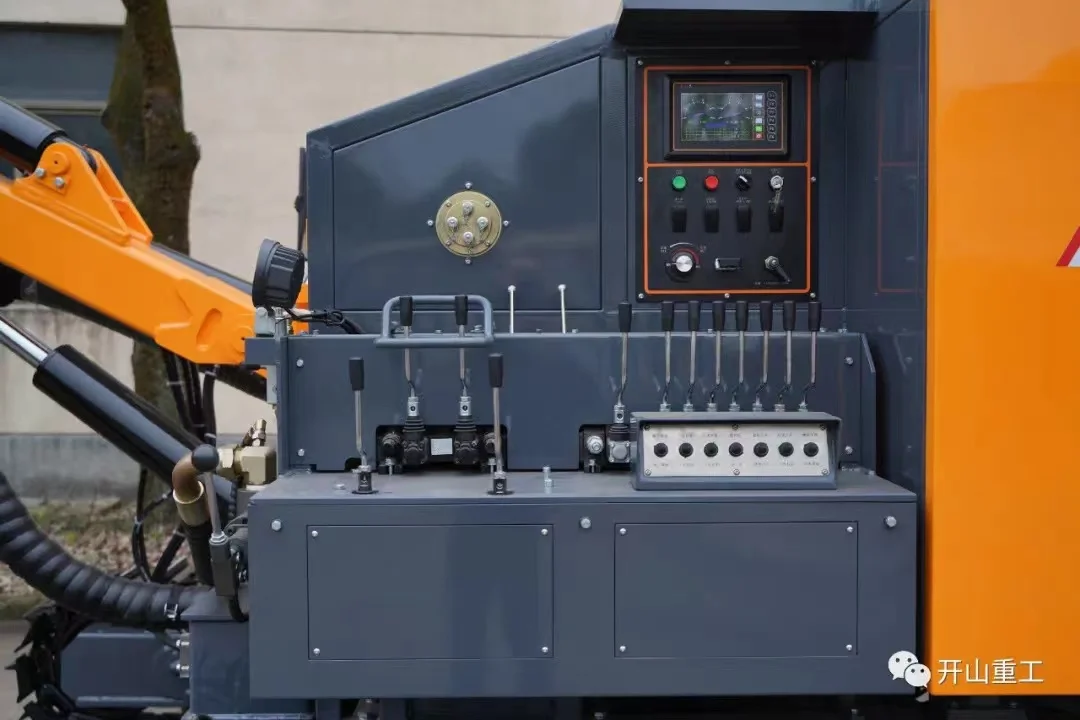

Centralized operating platform
The highly centralized control console is simple and convenient in layout, and it is more intuitive and clear to judge the status
of the drilling rig. All action instructions are clear and easy to operate
of the drilling rig. All action instructions are clear and easy to operate

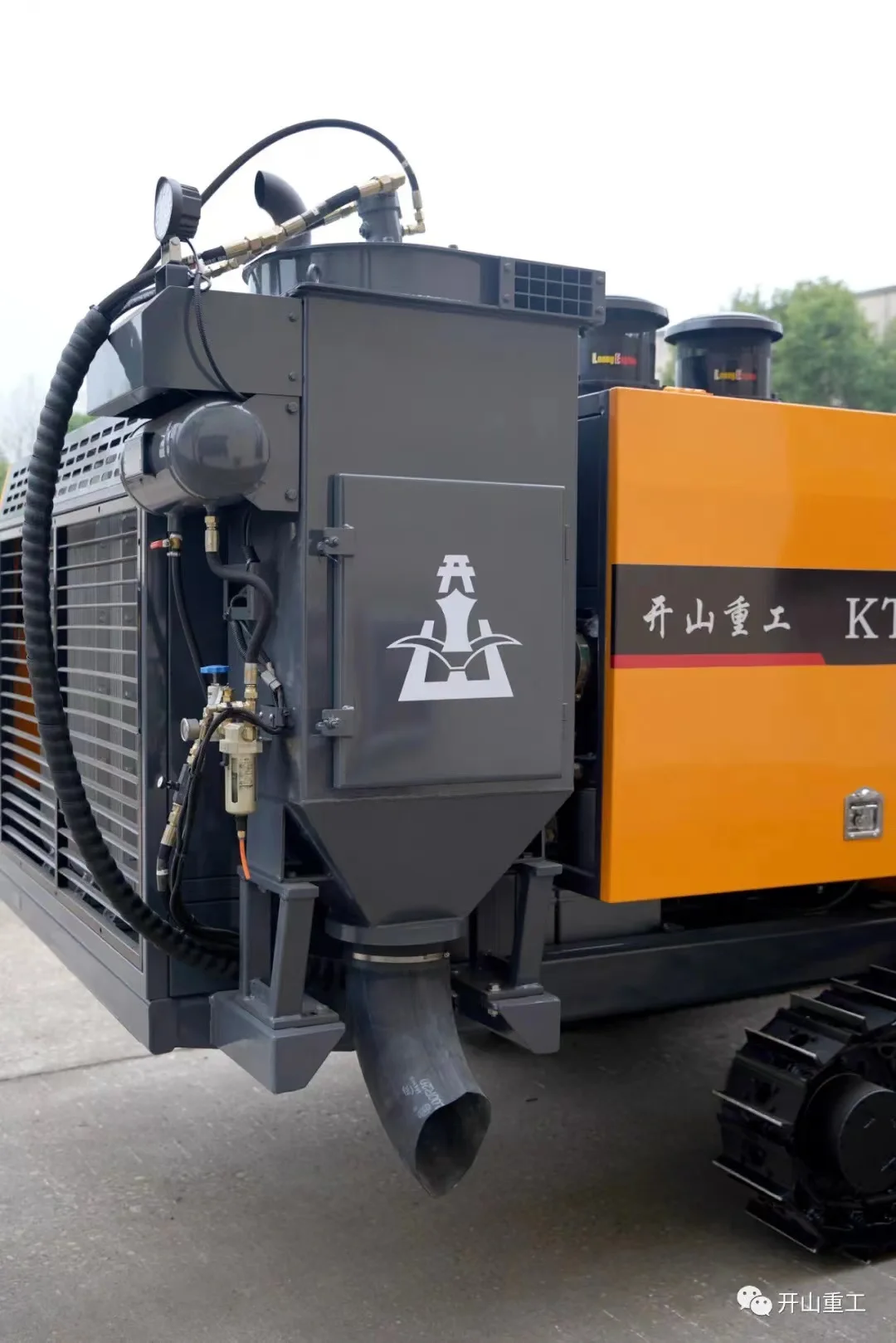

Efficient dust collection system
Equipped with a dry-type high-efficiency dust collection system to provide a comfortable working environment

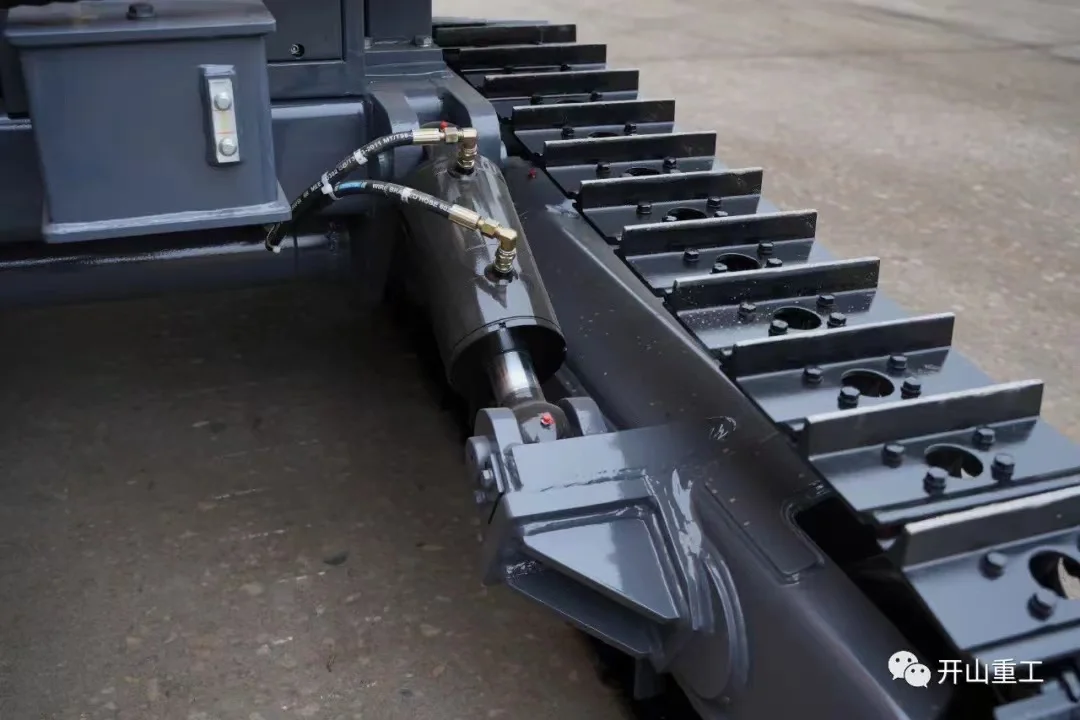

Engineering crawler matching leveling cylinder
The engineering crawler is equipped with a frame leveling oil cylinder, which has strong climbing ability and is suitable for all kinds of rough roads.

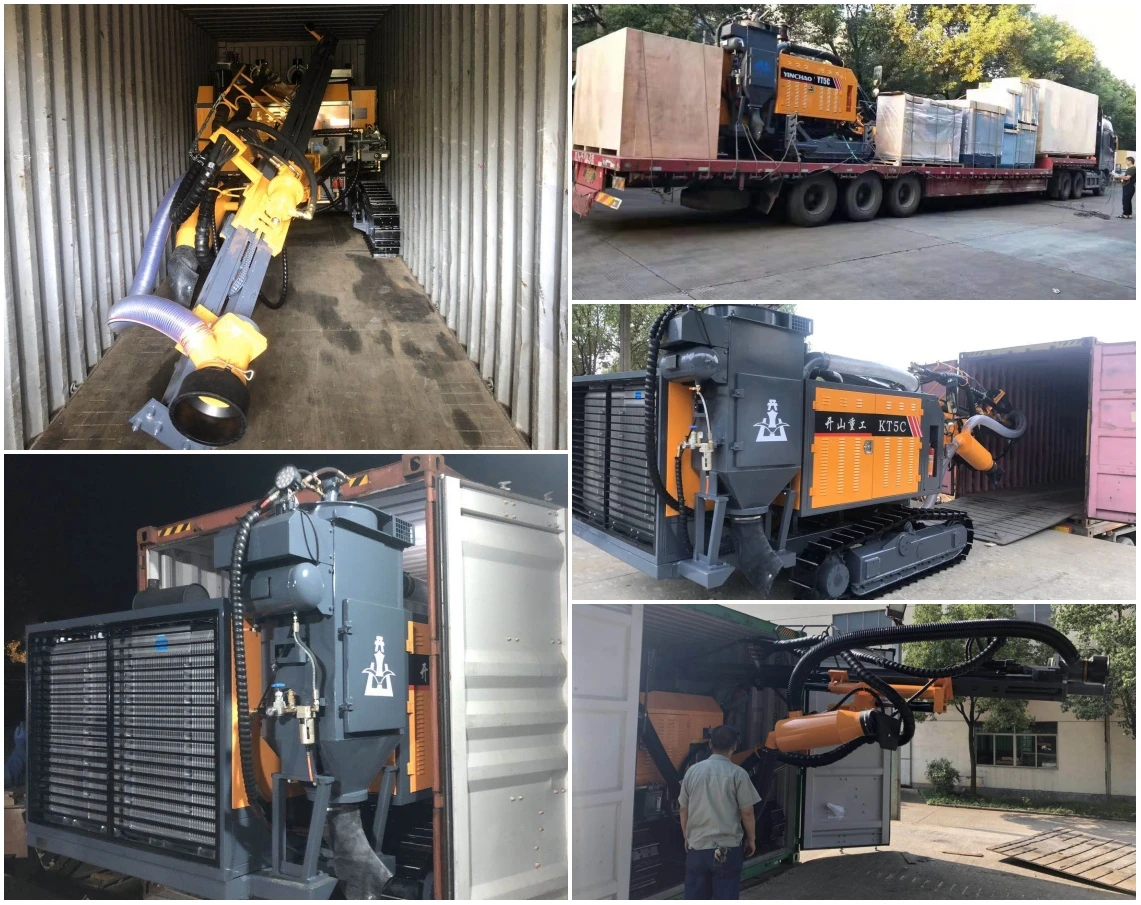

Packing and shipping
