Product Description

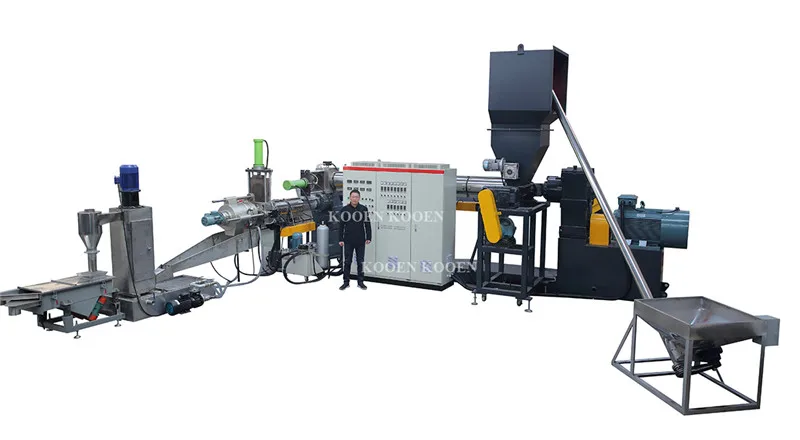

SJ Series Double Stage Granulator
Model (Double-stage) | SJ100-100 | SJ120-120 | SJ150-160 | SJ180-200 |
Screw Diameter (mm) | 100 | 120 | 150 | 200 |
L/D | 28-30 | 28-30 | 28-30 | 28-30 |
Capacity(kg/h) | 150kg/hour | 250-300 kg/hour | 300-400kg/h | 500-600kg/h |
Application: PE, PP film, Flakes, etc.
Note:Our SJ series pelletizing machine can be pull strip cutting method, or water ring cutting method for option
Consist of:
Side force feeder → Main extruder → Hydraulic screen changer →Sub extruder → Hydraulic screen changer → Water ring cutting system →Dewatering machine → Air blow system → Storage
Main Components:
Note:Our SJ series pelletizing machine can be pull strip cutting method, or water ring cutting method for option
Consist of:
Side force feeder → Main extruder → Hydraulic screen changer →Sub extruder → Hydraulic screen changer → Water ring cutting system →Dewatering machine → Air blow system → Storage
Main Components:

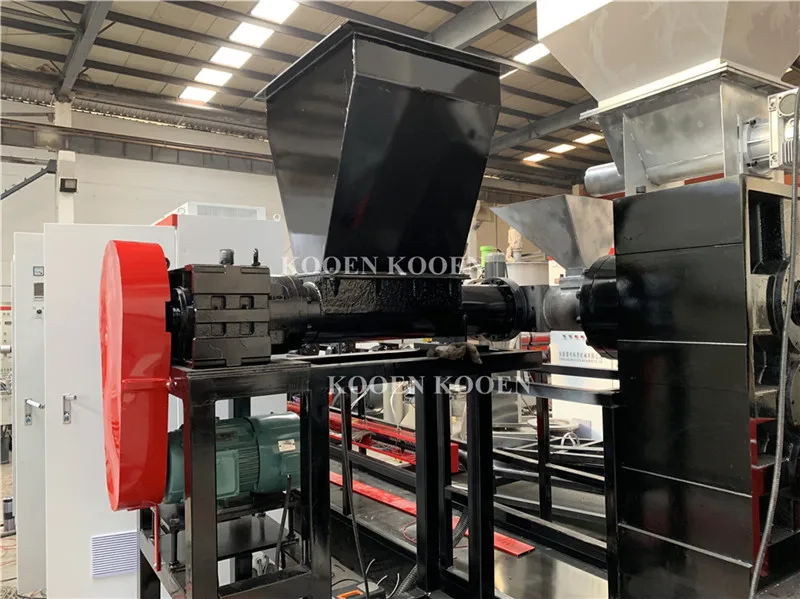

Side force feeder
Feeding plastic films/ flakes.

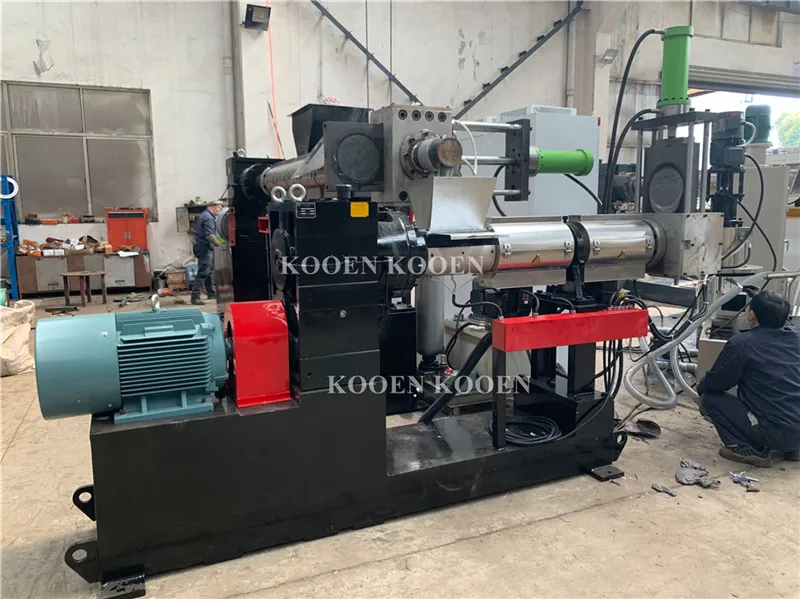

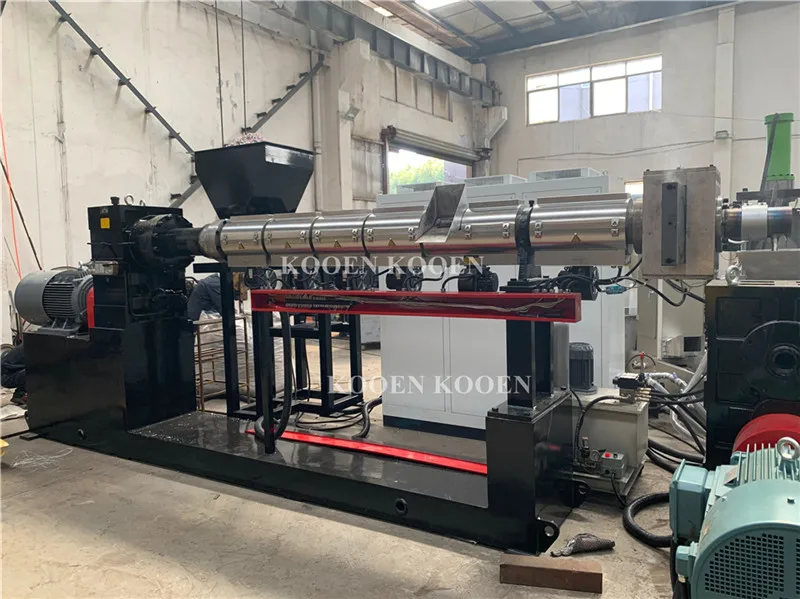

Main extruder
Screw diameter: 80100/120/150/180/200mm for option Aluminum heater
Screw/barrel material: 38CrMoAl, Nitrify processing Vacuum system for option

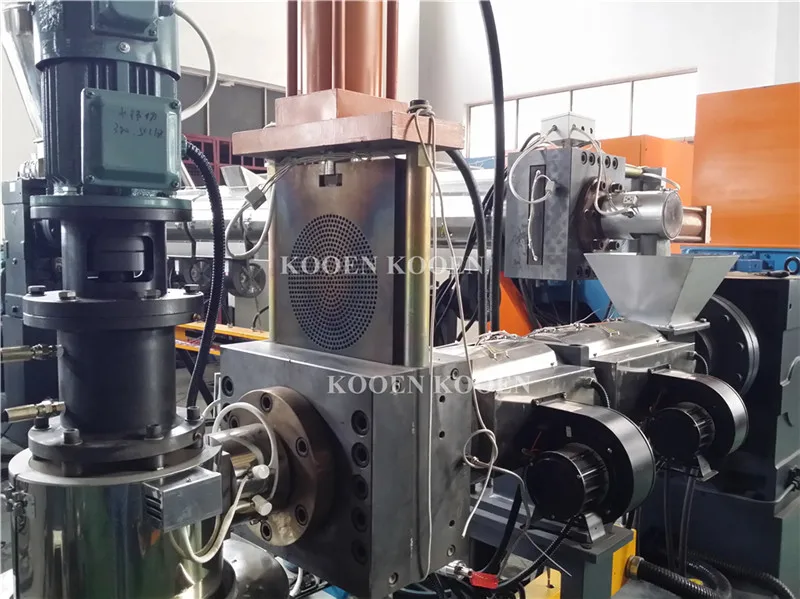

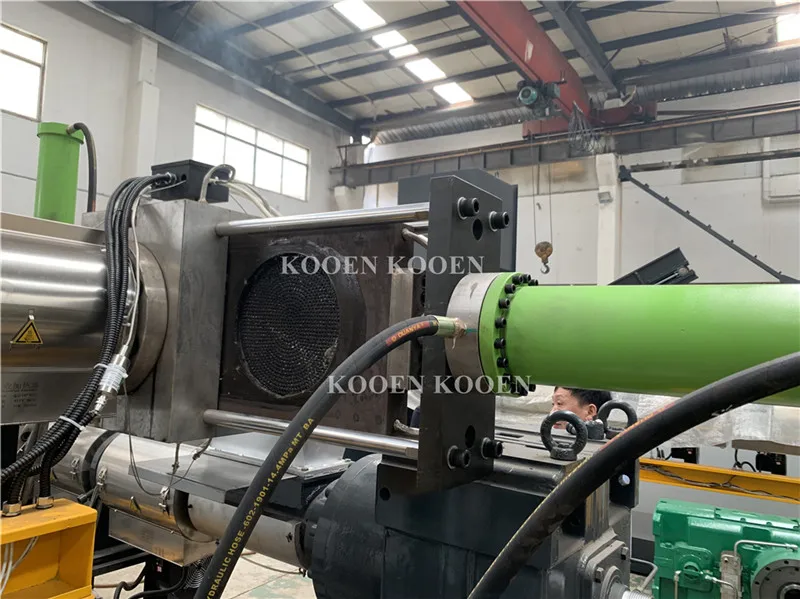

Hydraulic screen changer
Motor power:2.2/3KW
Special design board (no-stopping screen change, no leak)
Special design board (no-stopping screen change, no leak)
Sub extruder
Screw diameter: 100/120/150/180/200mm for option Aluminum heater
Screw/barrel material: 38CrMoAl, Nitrify processing
Screw/barrel material: 38CrMoAl, Nitrify processing
Hydraulic screen changer
Motor power:2.2/3KW
Special design board (no-stopping screen change, no leak)
Special design board (no-stopping screen change, no leak)

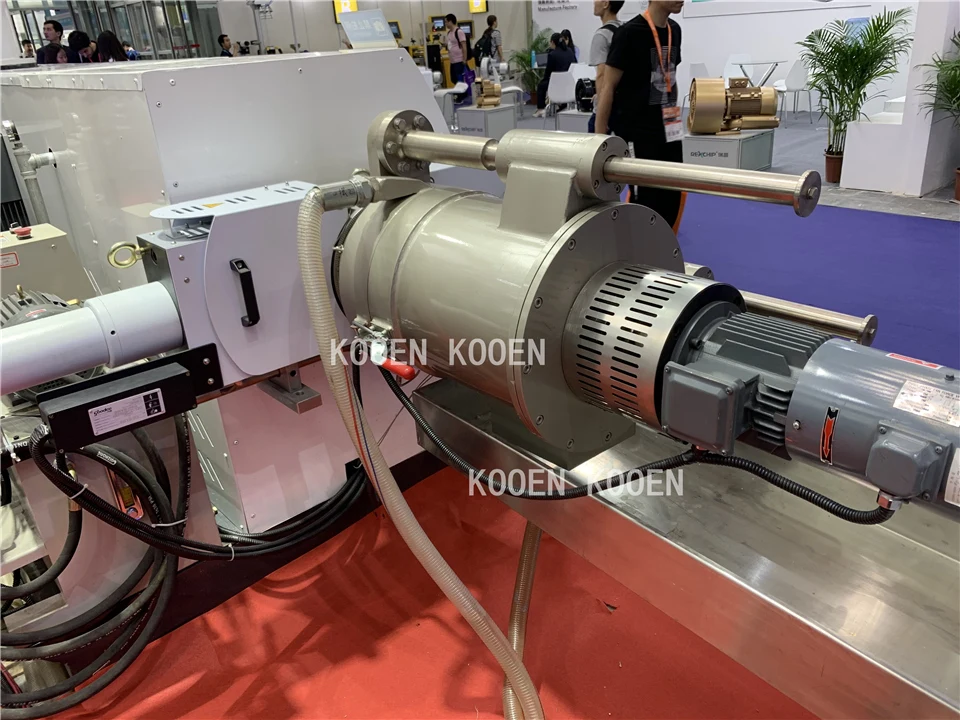

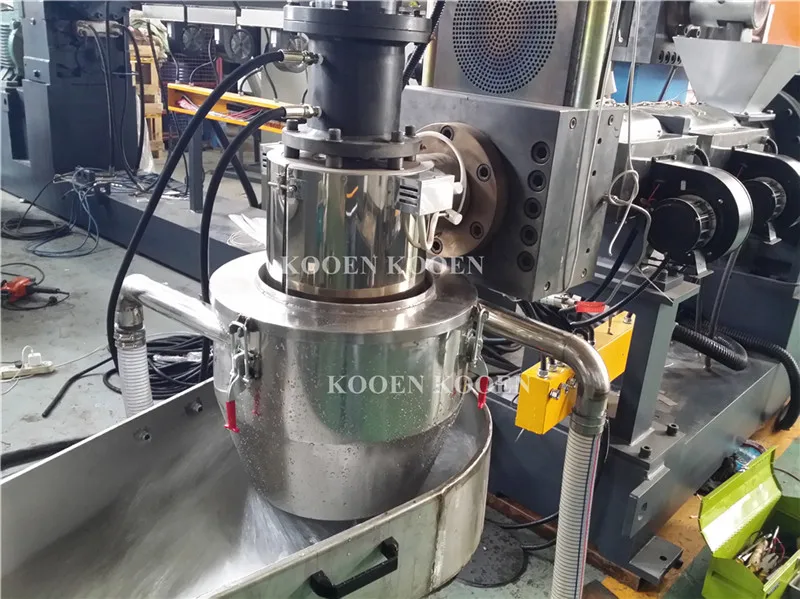

Water-ring cutting system
Motor power: 2.2/3kw
Frequency control
Frequency control

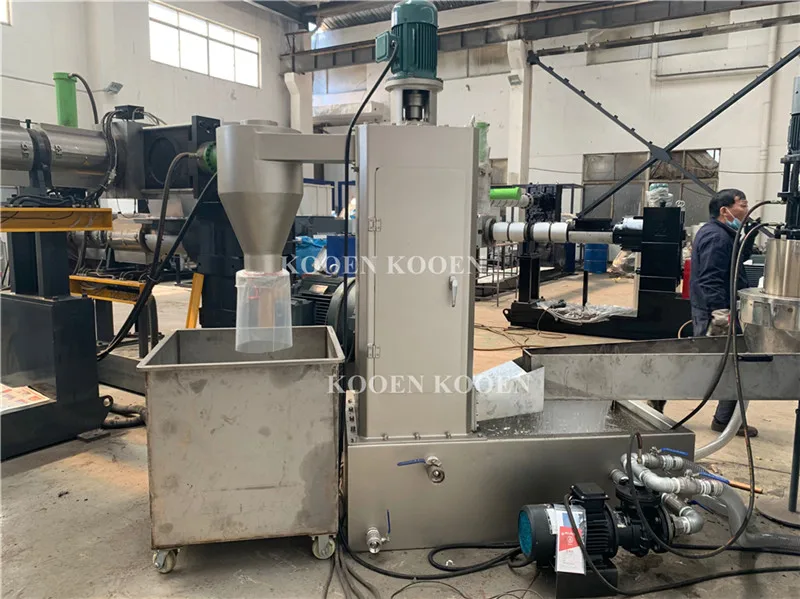

Centrifugal dryer
Motor power:4/5.5/7.5KW for option
Rotation speed: 1200rpm
Made of SUS304 stainless steel
Rotation speed: 1200rpm
Made of SUS304 stainless steel

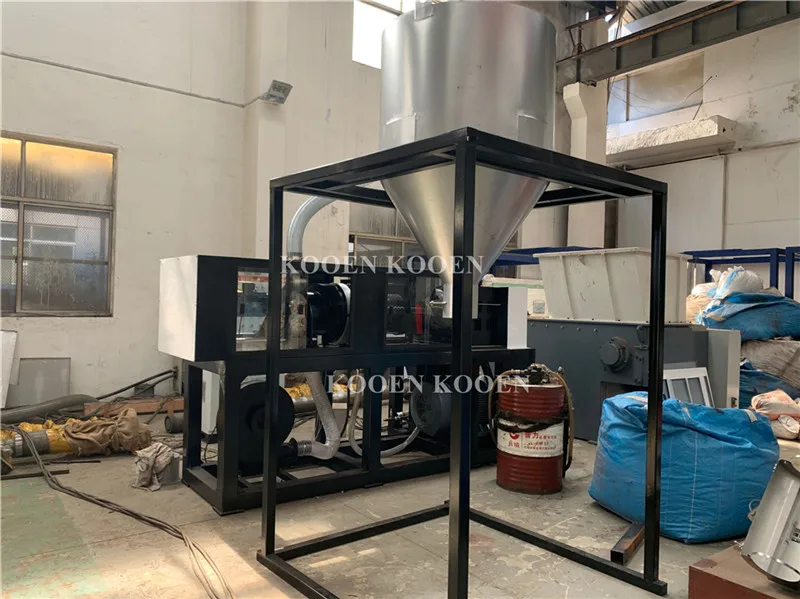

Silo
Made of SUS304 stainless steel

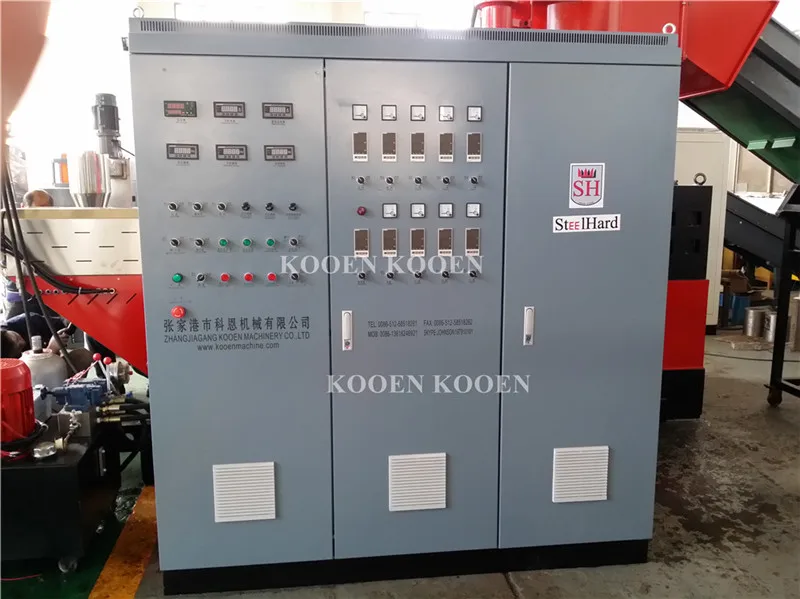

Control cabinet
Word famous brand electric components
Japan “Omron” temperature controller
Taiwan “TECO” Invertor
France “Schneider” contactor
Japan “Omron” temperature controller
Taiwan “TECO” Invertor
France “Schneider” contactor
Horizontal water ring cutting system
Easy for fix/disassemble the knives

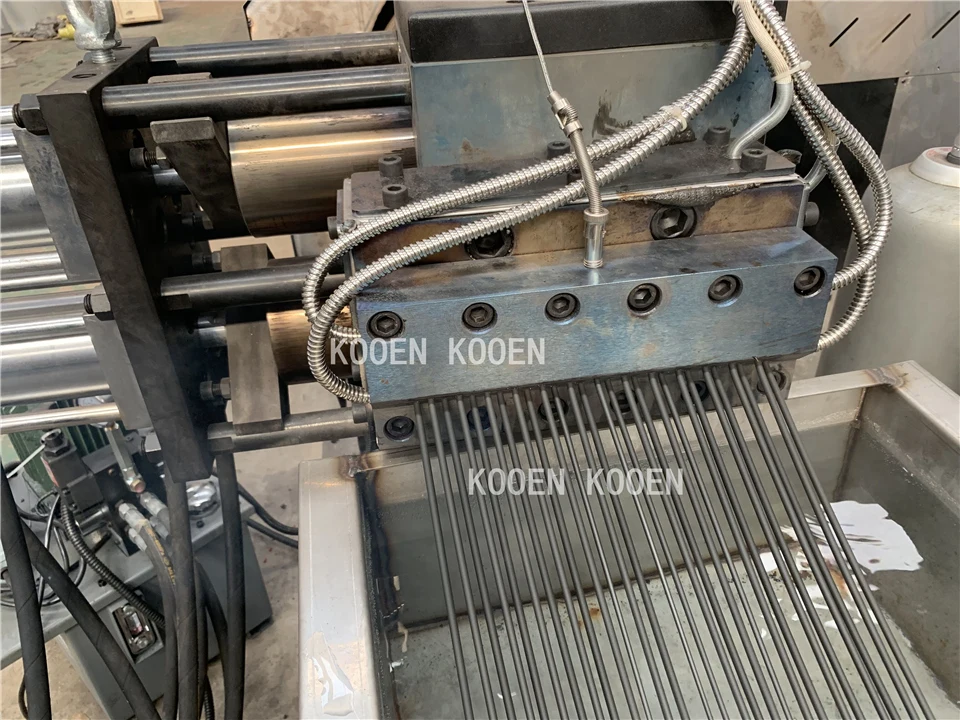

Pull strip cutting
Hole diameter: 3mm

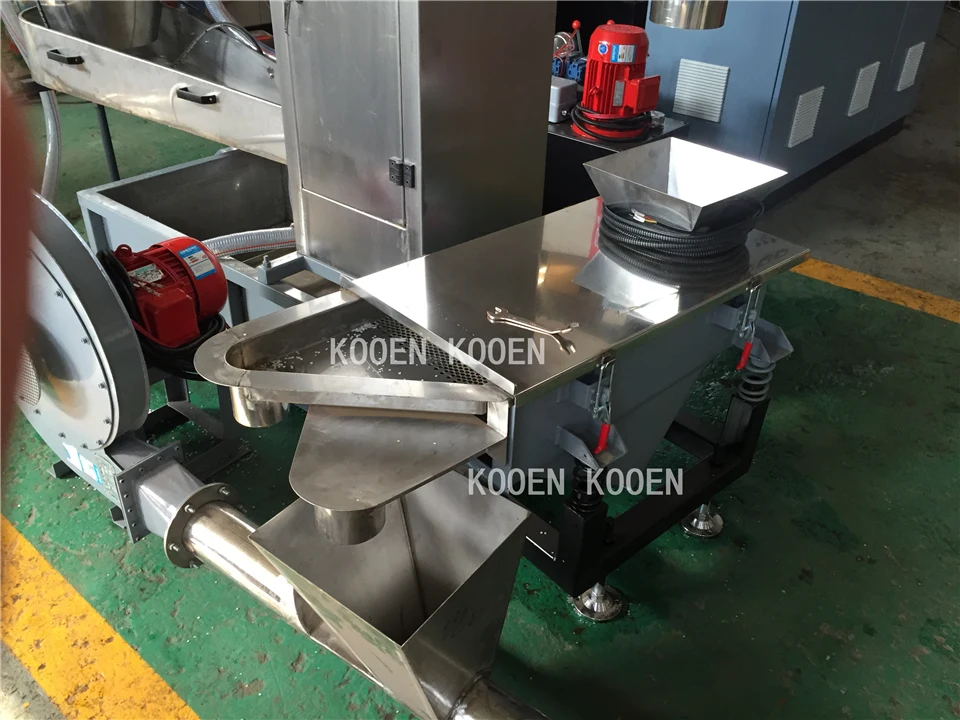

Vibration screen
Three layers, to separating the pellets
Made of stainless steel
Made of stainless steel
