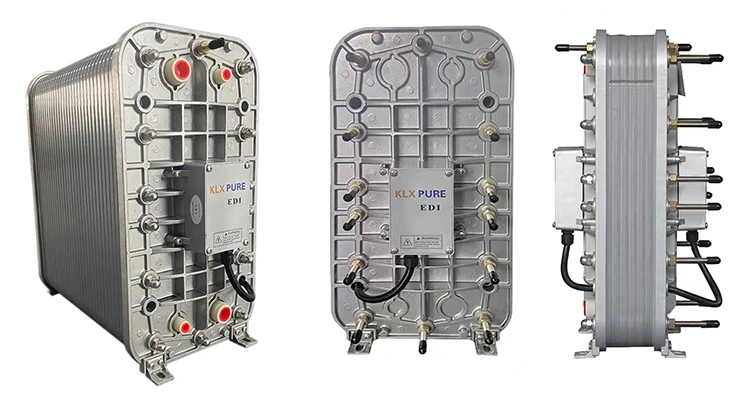

Product Description
►Product Overview ◄

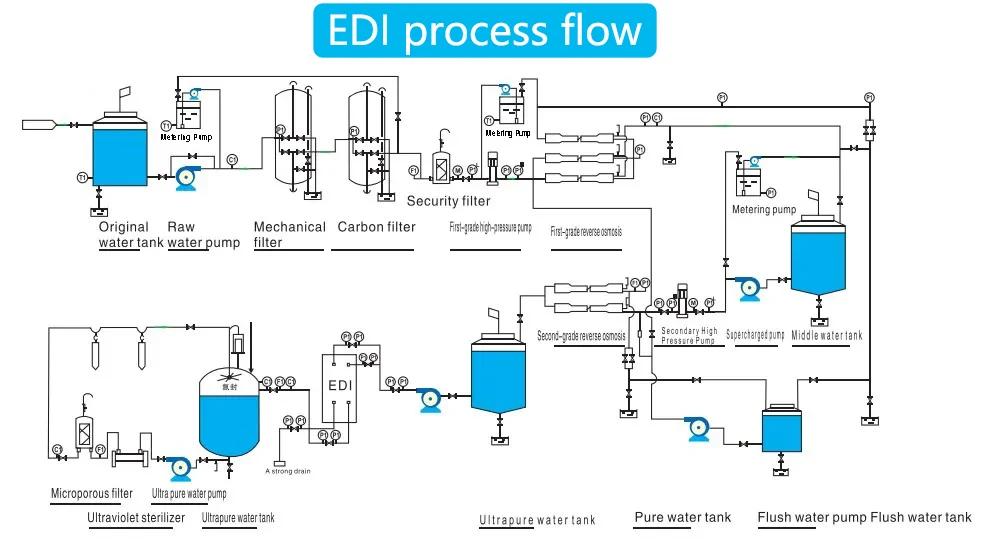

EDI ( Electrodeionization) is combined with reverse osmosis and other purification devices to remove ions from water. ion exchangeresin in EDI module can be divided into two parts, one part is called working resin and the other part is called polishing resin, and the boundary between the two is called working front. The working resin is responsible for removing most of the ions, while the polishing resin is responsible for removing ions that are more difficult to remove, such as weak electrolytes. The resistivity of ultrapure water produced by EDI systems can be as high as 15-18. 25 MΩ- cm. EDI can be operated either continuously or intermittently.
►Product Features ◄
►Fully automatic program control operation;
►No need to add salt and concentrated water circulation, easy to operate;
►All water circuits and power supply are on one side, easy to install and connect;
►With full-filling technology of middle partition, good water quality of produced water;
►Adopting homogeneous ion exchange resin, with high exchange capacity and selectivity;
►No need to add salt and concentrated water circulation, easy to operate;
►All water circuits and power supply are on one side, easy to install and connect;
►With full-filling technology of middle partition, good water quality of produced water;
►Adopting homogeneous ion exchange resin, with high exchange capacity and selectivity;
►Special resin filling process, lowest working voltage, energy saving (power saving) and environmental protection;
Specification
Feeding water/Inlet water requirement parameters of EDI module:
Influent conductivity(us/cm) | RO permeate water, conductivity <20 m s/cm, better < 10 u s/cm |
PH | 6.5-9.0 |
Temperature range(P) | 15-35（25 is best) |
Total carbon dioxide(ppm) | ≤3 |
Total hardeness(as CaCO3.ppm) | ≤1 |
Silicon-Activated silicon(ppm) | ≤0.5 |
Total organic carbon(ppm) | ≤0.5 |
Residual Chlorine(ppm) | ≤0.03 |
Ionic metals(Fe/Mn.ppm) | ≤0.01 |

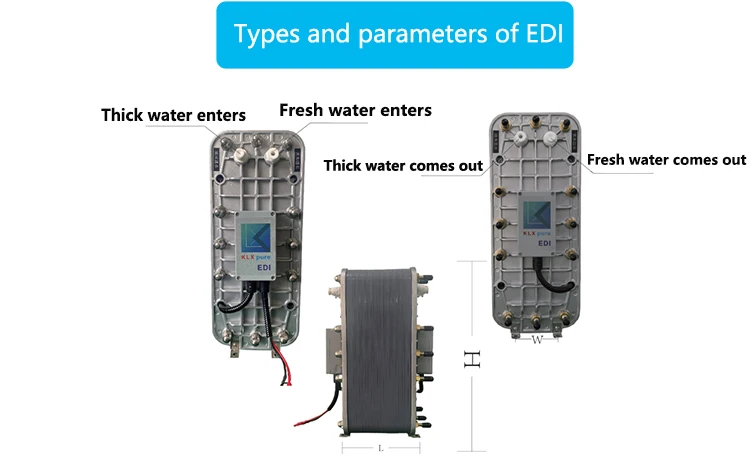

Basic specification parameters of EDI modules:
Model | LX-50 | LX-100 | LX-150 | LX-200 | LX-250 | LX-300 |
Working current (A, DC) | 0-2 | 0-2 | 0-2 | 0-2 | 0-2 | 0-2 |
Working voltage (V) | 0-220 | 0-220 | 0-220 | 0-220 | 0-220 | 0-220 |
Water Production Flow(LPH) | 30-70 | 80-120 | 130-170 | 180-220 | 230-270 | 280-320 |
Recovery Rate(%) | 75-85 | 75-85 | 75-85 | 75-85 | 75-85 | 75-85 |
Water Resistivity (Ω.cm) | 15-18.25 | 15-18.25 | 15-18.25 | 15-18.25 | 15-18.25 | 15-18.25 |
Pure Water In/Outlet (Male) | 3/8'' | 3/8'' | 3/8'' | 3/8'' | 3/8'' | 3/8'' |
Concentrated Water Inlet/Outlet(Male) | 1/4'' 2 point(Quick Connect) | 1/4''2 point(Quick Connect) | 1/4''2 point(Quick Connect) | 1/4''2 point(Quick Connect) | 1/4''2 point(Quick Connect) | 1/4''2 point(Quick Connect) |
Standard Water Production Flow Rate L/H | 50 | 100 | 150 | 200 | 250 | 300 |
Model | LX-500 | LX-1000 | LX-2000 | LX-3000 | LX-4000 | LX-5000 |
Working current (A, DC) | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 | 1-6 |
Working voltage (V) | 0-330 | 0-330 | 0-330 | 0-330 | 0-330 | 0-330 |
Water flow (m3/h) | 0.3-0.7 | 0.8-1.2 | 1.5-2.2 | 2.5-3.2 | 3-4.5 | 4-5.2 |
Recovery Rate(%) | 90-95 | 90-95 | 90-95 | 90-95 | 90-95 | 90-95 |
Water Resistivity (Ω.cm) | 15-18.25 | 15-18.25 | 15-18.25 | 15-18.25 | 15-18.25 | 15-18.25 |
Pure Water Outlet (Male) | DN32 | DN32 | DN32 | DN32 | DN32 | DN32 |
Concentrated Water Inlet/Outlet(Male) | DN20 | DN20 | DN20 | DN20 | DN20 | DN20 |
Silicon, Boron removal rate(%) | ≥99 | ≥99 | ≥99 | ≥99 | ≥99 | ≥99 |
Standard Water Production Flow Rate L/H | 500 | 1000 | 2000 | 3000 | 4000 | 5000 |
Applicable fields of EDI module
1. Pharmaceutical water;
2. Water for chemical process;
3. Ultra-pure water in electronics, semiconductor and precision machinery industries;
4. Boiler make-up water in electric power, chemical and metallurgical industries.
Packing & Delivery
For the proper protection of the EDI module/system, we utilize carton packaging.

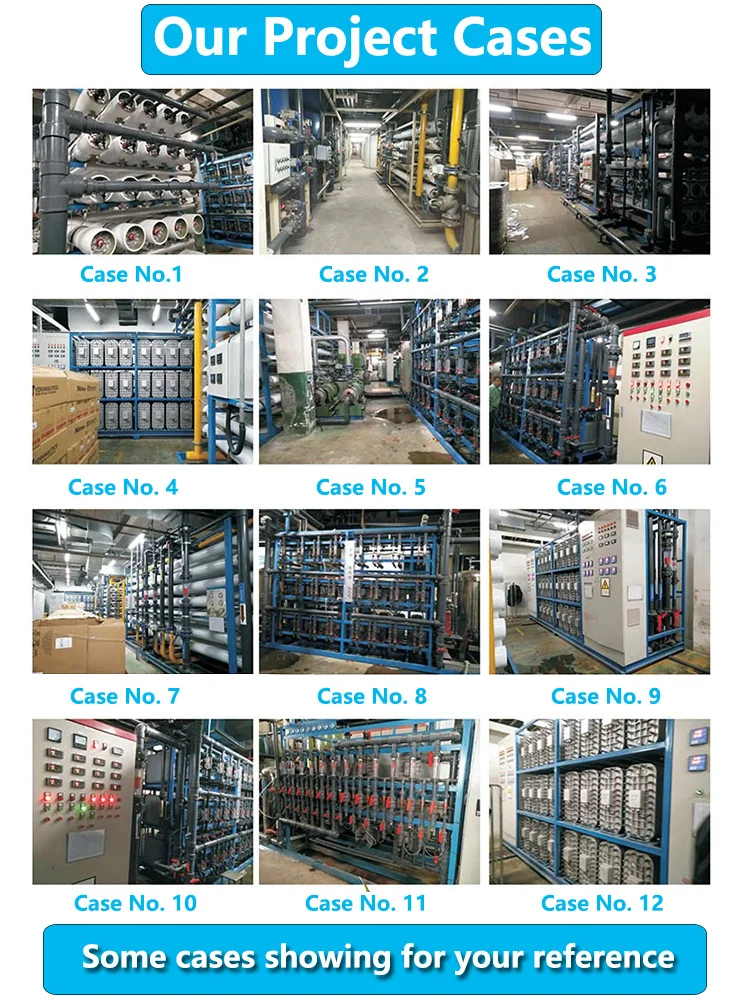

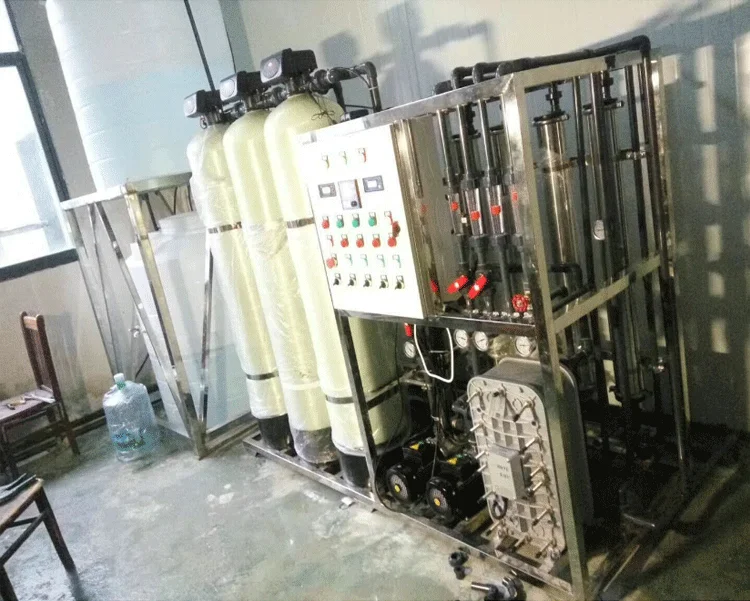

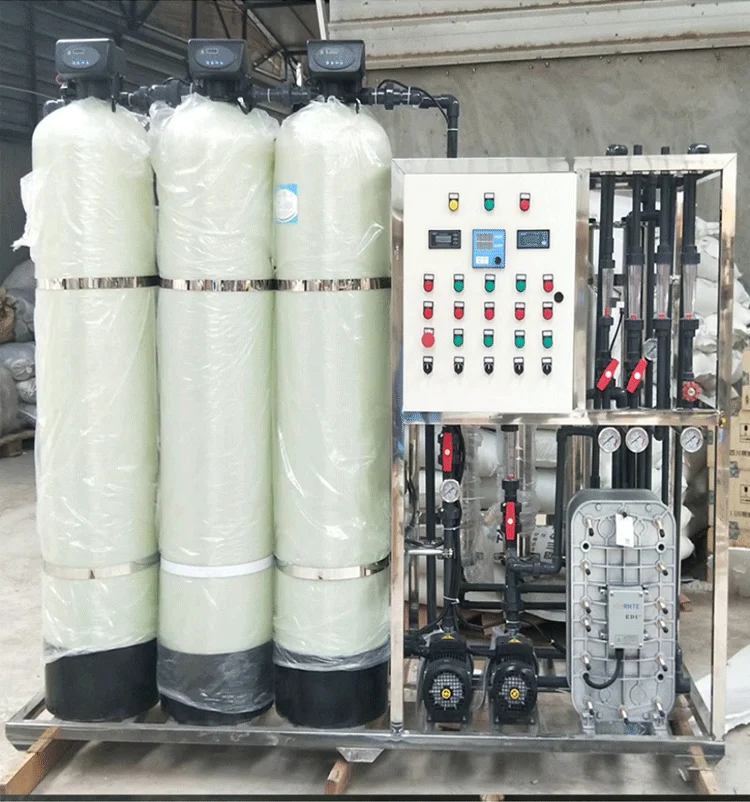

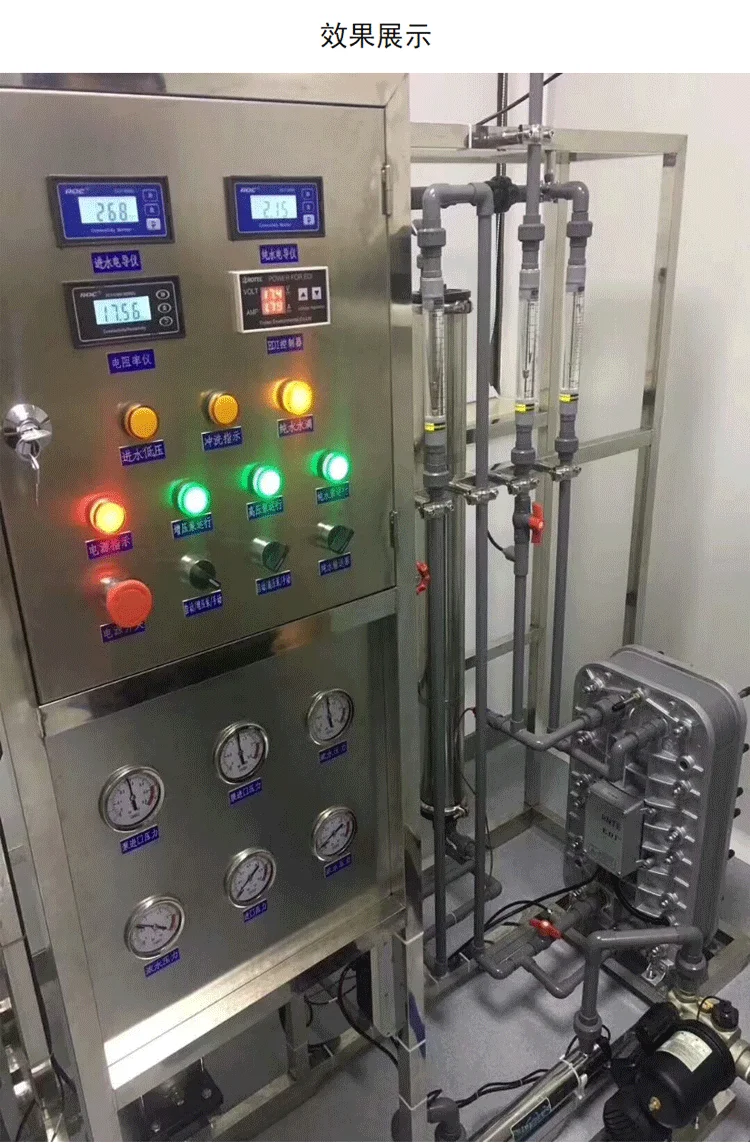

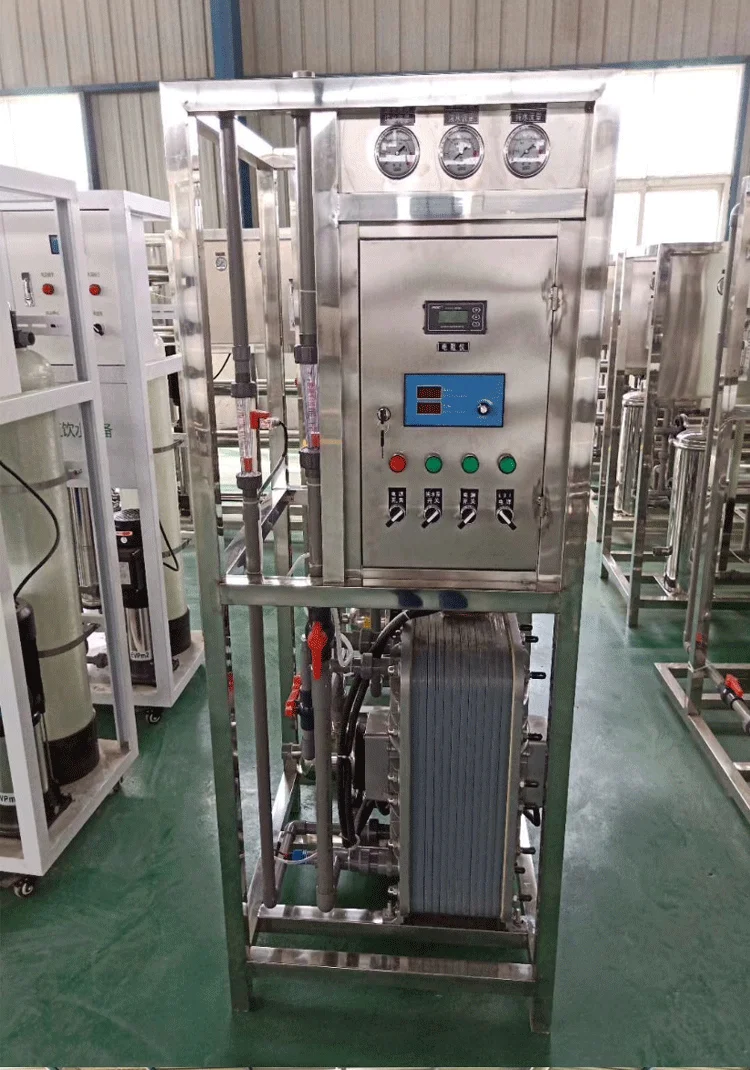

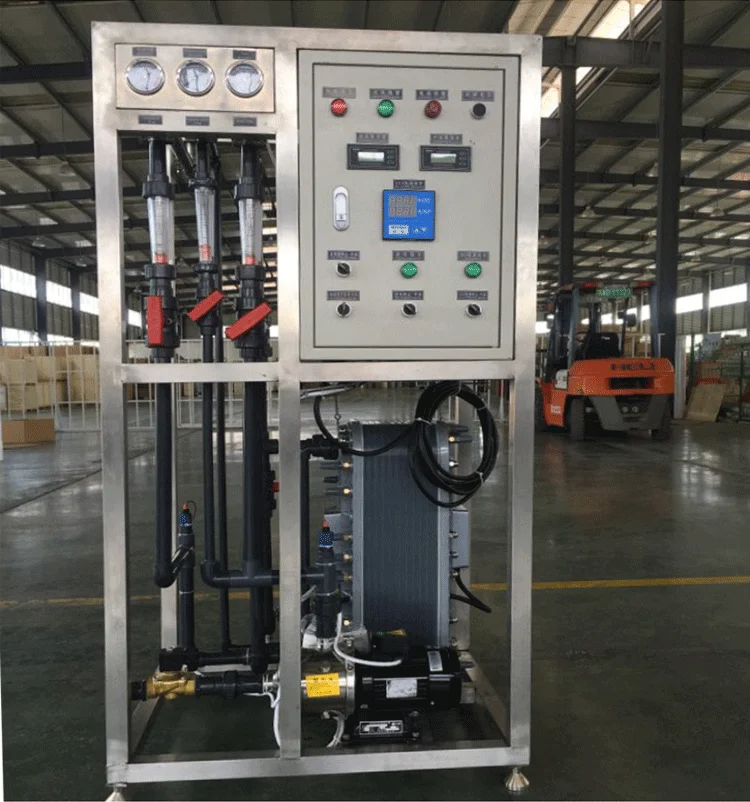

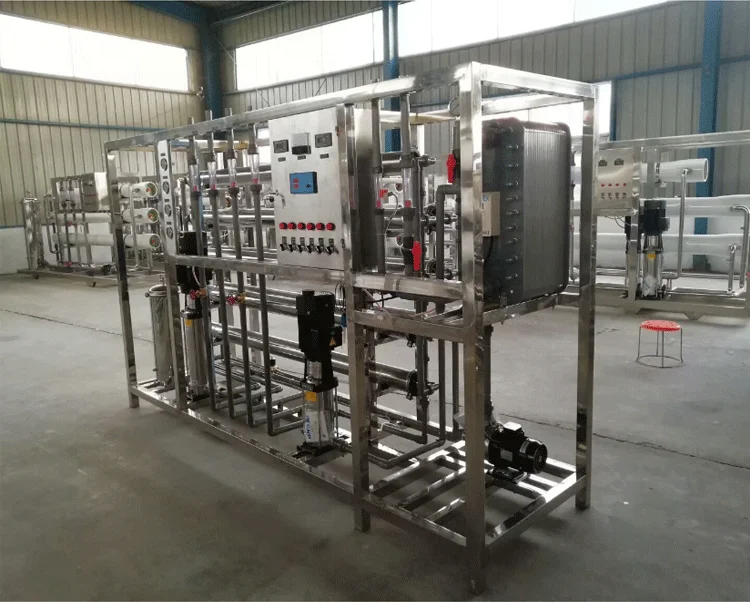

Our EDI equipment system for your reference as below, welcome to make inquiry:
Why Choose Us
HUAMO GROUP has strong R & D, production capacity and perfect after-sales service system, specializes in the design and production of water treatment automation sets of electronic control equipment, EDI power supply, SDI automatic tester, pollution index tester, EDI membrane block and its maintenance, constant pressure water supply equipment and PLC program development. We uphold the concept of innovation, efficiency, reliability and sustainability to create water resources solutions for the world.
Innovation is our brand, sustainability is our core philosophy, and excellence is our pursuit. As a R&D and manufacturing company, we are committed to providing our customers with stable and reliable products; at the same time, we think from the customer's point of view and provide them with comprehensive and complete EDI system solutions to ensure stable water quality production and module safety protection in place. Our technical team is composed of many engineers who have long been engaged in the development, design and maintenance of DC power supplies for ultrapure water systems. We will create maximum value for our customers with well-made products, high quality service and reasonable price; our company is also growing and expanding in the process of serving customers! We hope to increase our value by organically combining your business with our ability.
Innovation is our brand, sustainability is our core philosophy, and excellence is our pursuit. As a R&D and manufacturing company, we are committed to providing our customers with stable and reliable products; at the same time, we think from the customer's point of view and provide them with comprehensive and complete EDI system solutions to ensure stable water quality production and module safety protection in place. Our technical team is composed of many engineers who have long been engaged in the development, design and maintenance of DC power supplies for ultrapure water systems. We will create maximum value for our customers with well-made products, high quality service and reasonable price; our company is also growing and expanding in the process of serving customers! We hope to increase our value by organically combining your business with our ability.
FAQ
Q:1. Do you provide OEM service?
A: Yes. Any required logo is available.
Q2. Are you trading company or manufacturer?
A: We are truely manufacturer. Huamo Group is super-big group company in China, and we have thousands of waste and pure water treatment products who supports one-stop purchasing. All price are reasonable, and quality is in premier level.
Q3. How could we trust your company by the first time transaction?
A:Trade assurance is supported, you could get a sample first to test and check the quality if need. We are a company which has more than 20 years history, and the products are popular in domestic and overseas.
Q4. Can you support to send me sample to have a check first?
A:Yes, absolutely support.
Q5. What can we buy from you except for water analysis instruments?
A: UF membrane and UF equipments, RO membrane and RO equiments, MBR membrane, Membrane housing，SS tank and FRP tank, EDI and EDI equipment, ultraviolet sterilizer, kind of water treatment resin, dosing tank and dosing pump
and many other water treatment products.
Q6. Can we be your wholesaler and agent?
Yes, welcome to be our water treatment wholesaler and agent. A high efficiency team and high-end products will create yourcompany's bright future.
Q7. What's kind of payment can you accept?
A: T/T, L/C, Paypal, Cash, D/P, D/A, Western Union, Moneygram.
A: Yes. Any required logo is available.
Q2. Are you trading company or manufacturer?
A: We are truely manufacturer. Huamo Group is super-big group company in China, and we have thousands of waste and pure water treatment products who supports one-stop purchasing. All price are reasonable, and quality is in premier level.
Q3. How could we trust your company by the first time transaction?
A:Trade assurance is supported, you could get a sample first to test and check the quality if need. We are a company which has more than 20 years history, and the products are popular in domestic and overseas.
Q4. Can you support to send me sample to have a check first?
A:Yes, absolutely support.
Q5. What can we buy from you except for water analysis instruments?
A: UF membrane and UF equipments, RO membrane and RO equiments, MBR membrane, Membrane housing，SS tank and FRP tank, EDI and EDI equipment, ultraviolet sterilizer, kind of water treatment resin, dosing tank and dosing pump
and many other water treatment products.
Q6. Can we be your wholesaler and agent?
Yes, welcome to be our water treatment wholesaler and agent. A high efficiency team and high-end products will create yourcompany's bright future.
Q7. What's kind of payment can you accept?
A: T/T, L/C, Paypal, Cash, D/P, D/A, Western Union, Moneygram.
