Планшет alldocube iplay 30 pro, 10,5 дюйма, Android 10, lte 6 128g 4G LTE
US $155.00-$180.00
Описание и отзывы
Характеристики

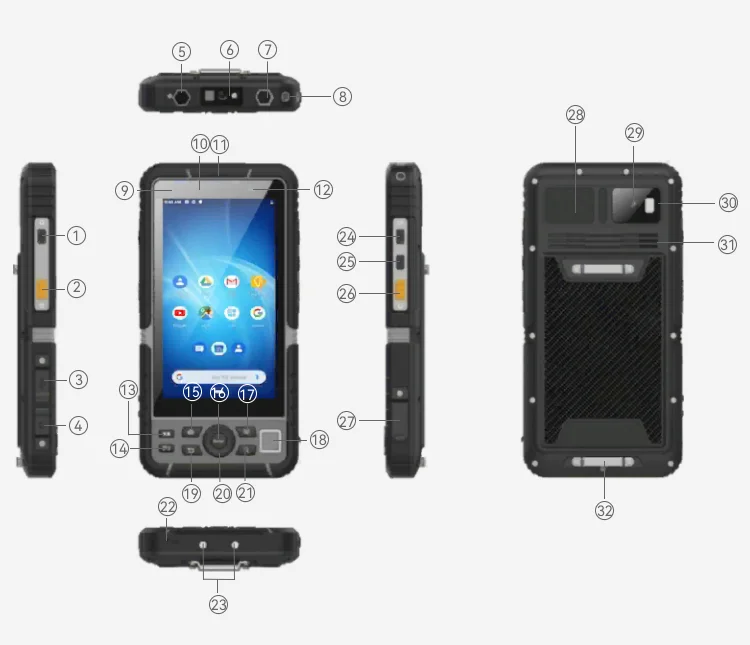

1. Power button | 2. SOS button | 3. Type-C (Sealed Cover) | 4. Earphone (Sealed Cover) | 5. RS232 (Optional) |
6. Barcode module(Optional) | 7. SMA (Optional) | 8. Hanging hole | 9. Front camera | 10. Charge lamp |
11. Receiver | 12. Light sensor | 13. Delete button | 14. Custom button | 15. Home button |
16. Confirm button | 17. Menu button | 18. Fiingerprint module (Optional) | 19. Back button | 20. Arrow button |
21. Search button | 22. MIC | 23. 2pin pogo pin | 24. Volume up | 25. Volume down |
26. Scan button(Definition) | 27. SIM (Sealed Cover) | 28. Nameplate | 29. Main camera | 30. Flash light |
31:Speaker | 32. Fihand strap xing parts |
Hardware | ||

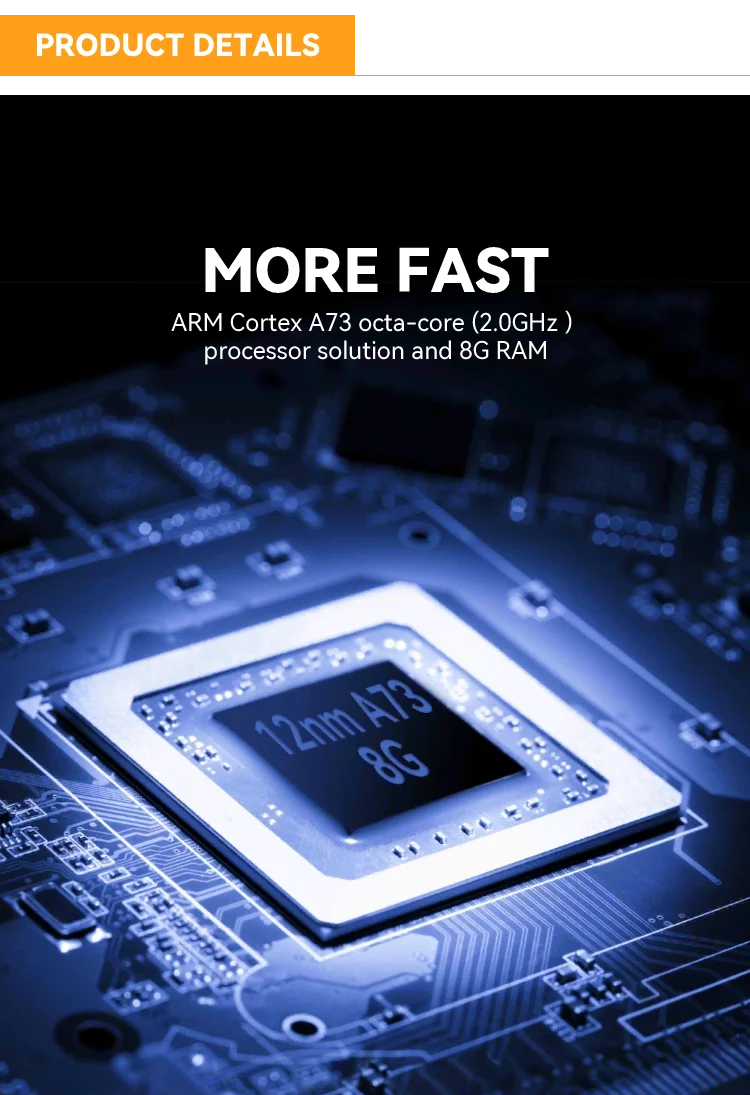

CPU | ARM Cortex A73 Octa-core (2.0GHz) | |
GPU | ARM Mali-G72 MP3 | |
RAM | 8G | |
Internal Memory | 128G | |
External Memory | Micro SD card ( T-FLASH card), max 256GB | |
Main Camera | 13.0MP(AF) with flash led | |
Sub Camera | 5.0MP | |
Battery | 7800mAh (Replaceable battery) | |
Display | 5.5 inch IPS/AFFS 1080*1920 FHD industrial 500cd/m2 Sunlight Readable | |
Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen | |
IO/Sensor/Navigation | ||
SIM Card | Nano sim card*2 | |
TF Card | Micro SD card(T-FLASH card); max 256GB | |
Headphone | 3.5mm (CTIA) | |
Charging interface | Type-C & 2pin pogo pin | |
Data interface | USB Type-C(OTG)*1 | |
RS232(optinal) | RS232*1 | |
Gravity sensor | support | |
Direction Sensor | support | |
Magnetic Field Sensor | support | |
Gyro sensor | support | |
Rotation Vector | support | |
Light-sensor | support | |
Acceleration sensor | support | |
Motion sensor | support | |
Charger | 5.0V 2A-10W | |
Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) | |
Appearance | ||
Size | 195*98*22mm (L×W×H) | |
Weight | 460g | |
Color & Material | Black&Gray | |
Communications & Networking | ||
Phone Call | GSM /WCDMA/CDMA 1X/VoLTE | |
2G | GSM/CDMA 1X/EDGE/GPRS/WAP | |
2G Band | GSM (B2/3/5/8) | |
3G | WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+11.5Mbps), EVDO | |
3G Band | WCDMA (B1/2/5/8), Evdo: BC0/BC1 CDMA: BC0/BC1 | |
4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink | |
4G Band | TD-LTE(B38/39/40/41); FDD LTE (B1/2/3/4/5/7/8/12/17/20/28) | |
WI-FI | Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac | |
BT | 5.0 Low Energy(LE) | |
Industrial & Reliability Design | ||
Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g | |

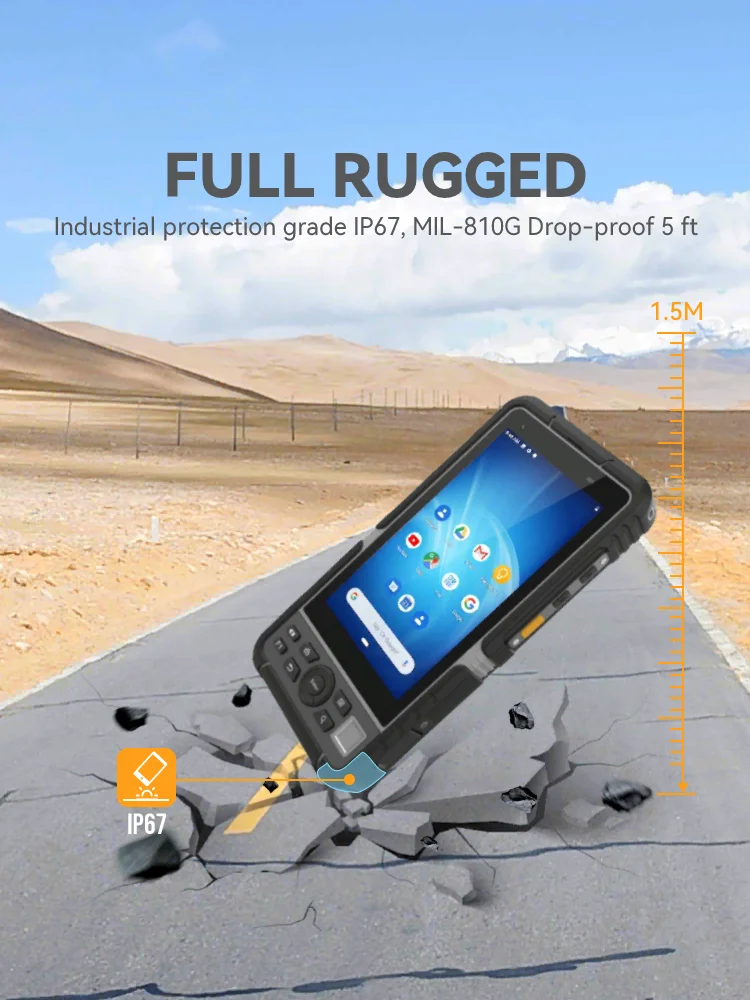

Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 | |
Waterproof | Class 7(IEC 60529) | |
Dustproof | Class 6 (IEC 60529) | |
Operating temperature | -20°C to 55°C | |
Storage Temperature | -40°C to 80°C | |
Reliability | MTBF>5000h; MTTR | |
RH | 5%RH-95% | |
Operating Altitude | Max: 4,500m (15,000 feet) | |
Certification/OS/Software | ||
Certification | 3C/FCC/CE/ROHS/IP67 (IEC 60529) | |
Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch,French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese,Hindi, Hebrew, Simplified, Chinese, Chinese Traditional, etc. | |
OS | Android 10 / Android 11 | |
Package/Warranty terms/OEM | ||
Warranty | 24 months | |
OEM/ODM | Support | |

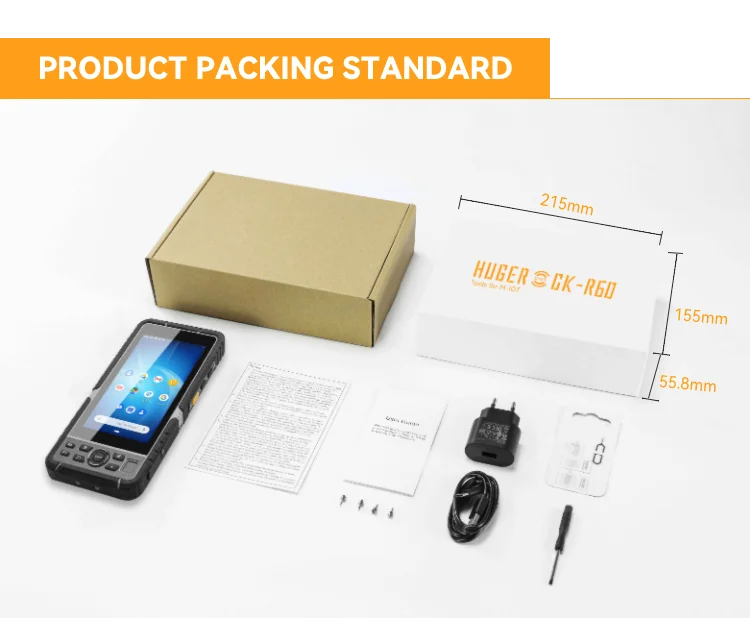

Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/ Packing box/Aircraft box/Toolkit(optional)/OTG x 1/SIM Card Ejector x 1 | |
NFC | ||
Frequency | 13.56MHz | |
Protocol standard | ISO14443A/B, ISO15693, NFC | |
Label standard | M1 (S50, S70), CPU, NFC | |
Read-write distance | 2-5cm | |
UHF RFID | ||
Air interface protocol | EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C | |
Operating spectrum range | 902Mhz – 928Mhz 865MHz – 868MHz (Optional) | |
Output range | 0-26bdm | |
Output accuracy | +/- 1dB | |
Output power level | +/- 0.2dB ,The label is sensitive and stable. | |
Reading distance | ≥1.8m (E41 tag) | |
Data Collection | ||

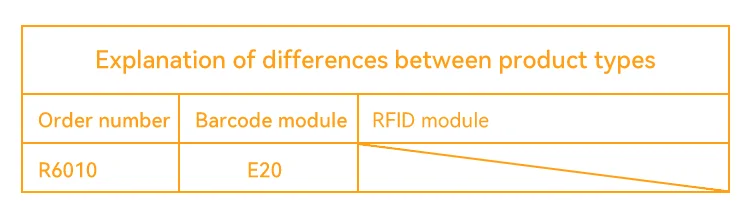

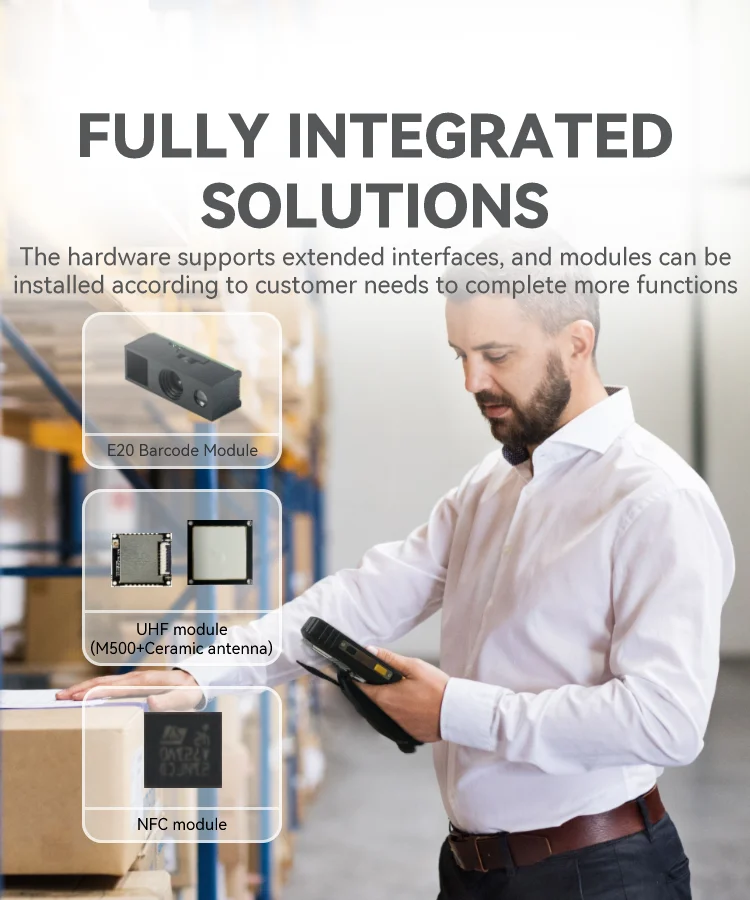

Scanning engine | E20 Barcode Module | |
2D | QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, Hanxin code, Dotcode, Composite. | |
1D | Code 128 ( ISBT 128, AIM 128, GSI 128 ), EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11, Interleaved 2 of 5, Code39, Code93, Code32, Codabar, Matrix 2 of 5, Industrial 25, IATA25, MSI Plessey, GSI DataBar, Plessey, Febraban. | |
Q :Are you manufacturer?
A: Yes, we are manufacturers.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
Q: Does the handheld can read QR code and common 1d bar codes?
A: Yes, if choose 2d scan version, it can read both 1D common code and 2d codes such as QR, PDF417, Data Matrix, PDF417 code...
Q: Would you provide SDK for me?
A: Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software
development.ment.
Q: What is the minimum order(MOQ)?
A: We accept one unit for standard products.
Q: Can we get the free sample?
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
A: Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the sample firstly for the testing and evaluation.
Q: Can i choose multiple function into 1 device?
A: We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance
Q: What's Your Products Warranty?
A: We Offer 24 Months Warranty after shipment sent.
Q: Can I extend the warranty?
A: We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up..
Q: How long it will take for delivery?
A: For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around 3-5 working days. For some remote place, delivery time maybe a little bit longer.
Q:How to repair the device if any problem ?
A: We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and teach customer to fit if they have technician or can also send backto us to fix it.
