Product Overview

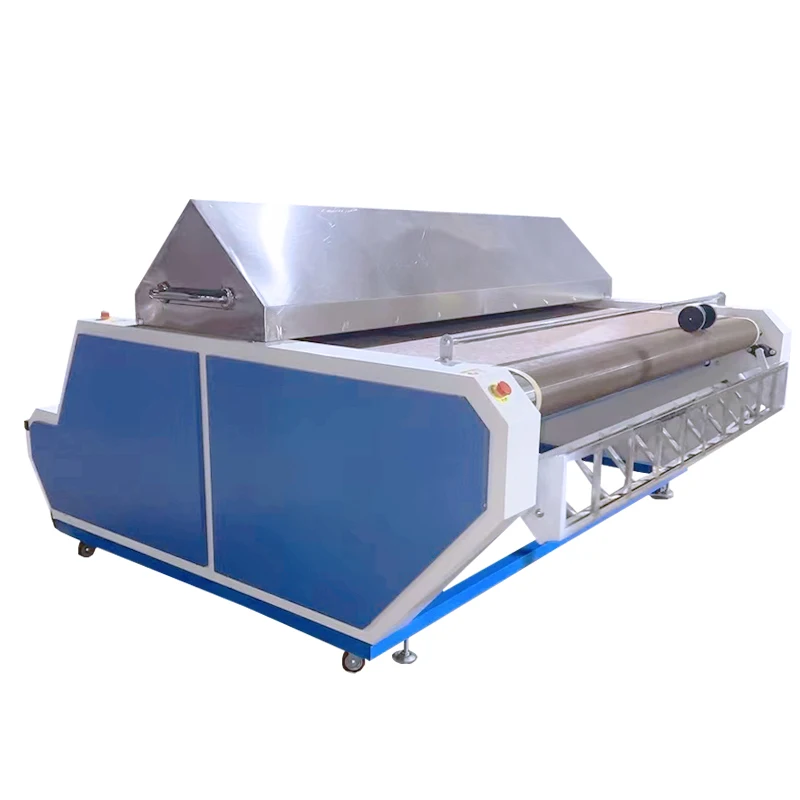

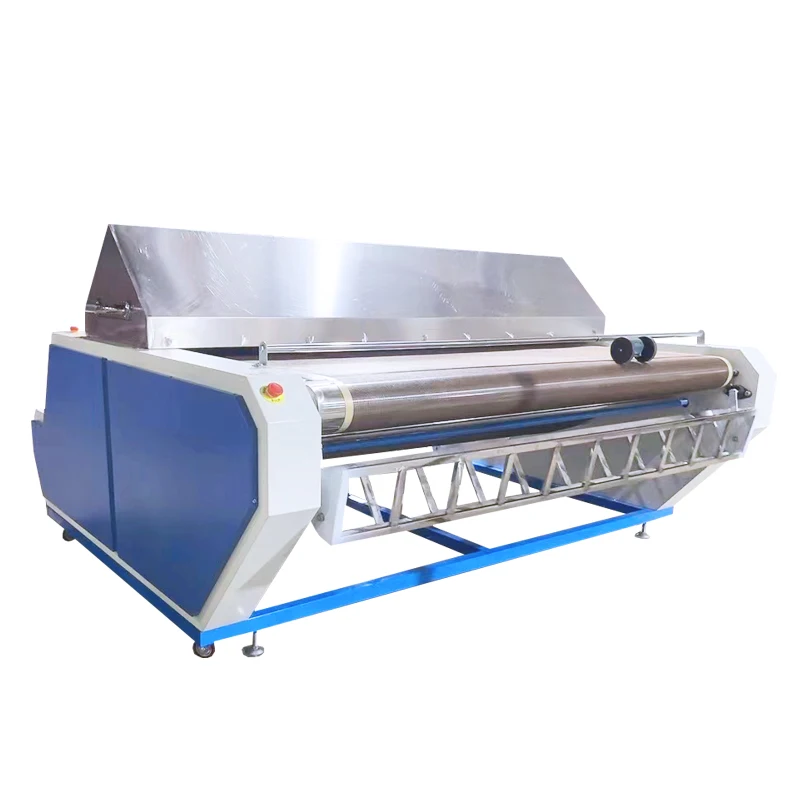

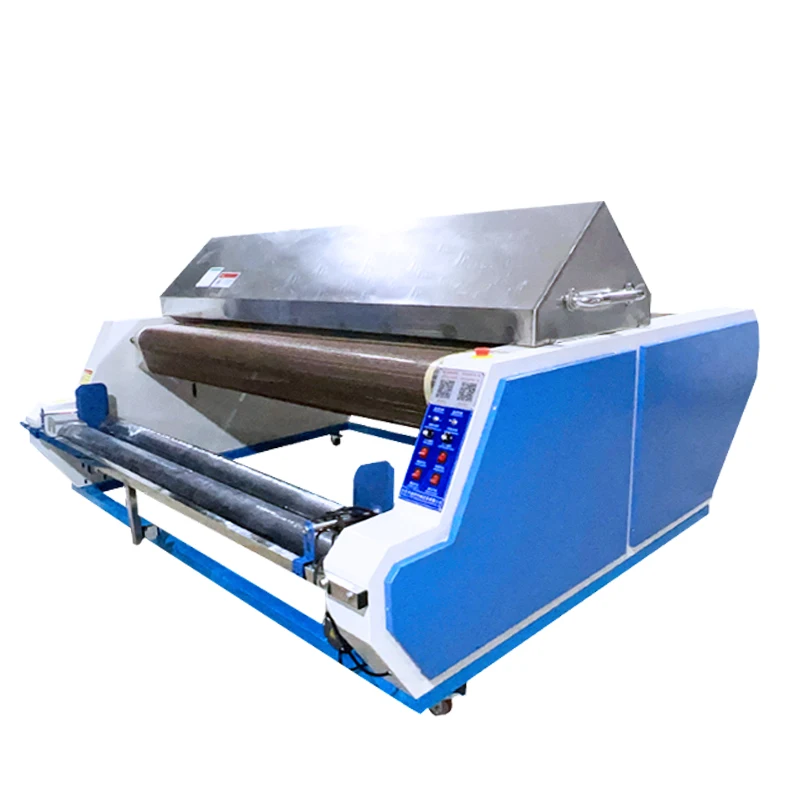

Medium Fabric Shrinking Machine Main function:
1.Suitable for fabric preshrink treatment in the apparel factory before cutting.
2.Steam humidification and heating
3.Electric heating drying
4.Measurement, folding fabric，shrinking fabric.
5. Teflon mesh belt can be automatic cloth feeding.
6.Infrared monitoring,no cloth shutdown.
7.Cloth receiving device(roll or fold).
It can be used with 36 KW or 48 KW steam boiler.
2.Steam humidification and heating
3.Electric heating drying
4.Measurement, folding fabric，shrinking fabric.
5. Teflon mesh belt can be automatic cloth feeding.
6.Infrared monitoring,no cloth shutdown.
7.Cloth receiving device(roll or fold).
It can be used with 36 KW or 48 KW steam boiler.
Suitable for :
Knit and woven ，a variety of general fabric. Especially suitable for viscose fiber, artificial cotton, artificial wool fabric.
Knit and woven ，a variety of general fabric. Especially suitable for viscose fiber, artificial cotton, artificial wool fabric.
Medium Fabric Shrinking Machine of Specification | ||||||||
Model | HW-DXG2800 | |||||||
Voltage&Frequency | AC 220 V 50 HZ | |||||||
Steam consumption | 80kg/h | |||||||
Steam pressure | 0.4-0.7 Mpa | |||||||
Maximum roll fabric diameter | 45 cm | |||||||
Maximum working width | 2100mm | |||||||
Working speed | Adjustable, 0-50m/min | |||||||
Drying temperature | Adjustable,125-200 °C | |||||||
Drying heating power | 1.5kw | |||||||
Total Power | 3 kw | |||||||
Boundary dimension（l*w*h） | 2600 *2600*1500 mm | |||||||
Medium Fabric Shrinking Machine product feature:

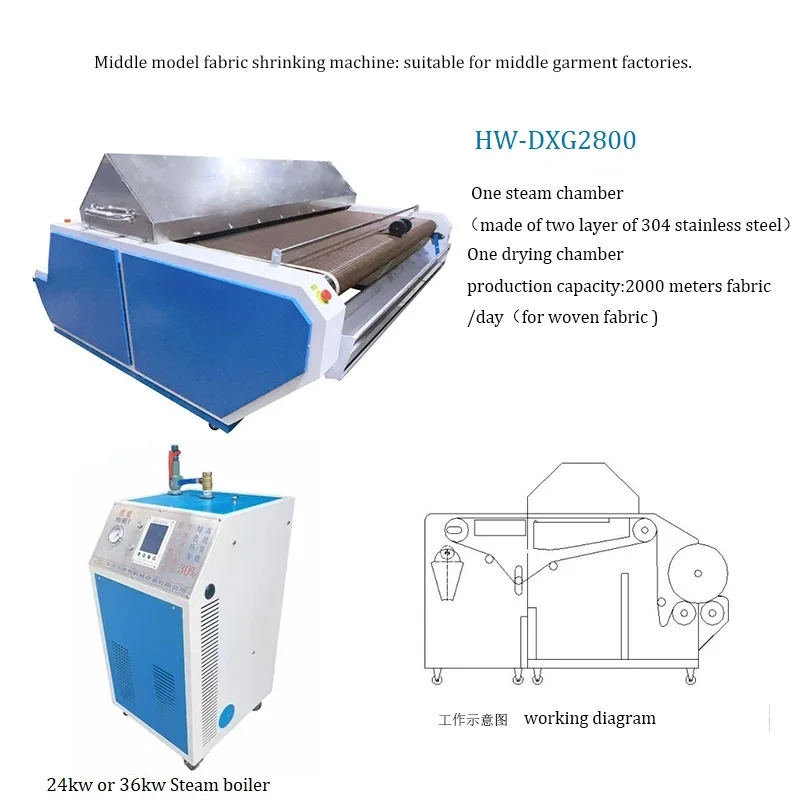

✔This machine is composed of two parts, the steam box shrinks and sets, and the drying box (dries and sets).
✔Fully sealed unique design steam cover: no leakage of steam reduce the steam consumption (save about 40% steam consumption than other type product), ensure no dripping water.
✔The steam cover is made of two layers of stainless steel good heat preservation and thermal insulation effect.
✔Electronic eye monitoring releasing fabric z make sure fabric is in the tension-free state.
✔Stepless Frequency speed regulation.
✔Equipped with original imported electrical appliances, stable performance machine is durable.
✔Use high temperature resistant Teflon mesh belt.
✔Fully sealed unique design steam cover: no leakage of steam reduce the steam consumption (save about 40% steam consumption than other type product), ensure no dripping water.
✔The steam cover is made of two layers of stainless steel good heat preservation and thermal insulation effect.
✔Electronic eye monitoring releasing fabric z make sure fabric is in the tension-free state.
✔Stepless Frequency speed regulation.
✔Equipped with original imported electrical appliances, stable performance machine is durable.
✔Use high temperature resistant Teflon mesh belt.
