Product Description
Plug and socket (switch) life testing machine
Product Overview
Designed according to the corresponding clauses of GB2099.1, GB16915.1, and IEC60884-1, it is used for testing the mechanical life of plug, socket, and switch products for household and similar purposes. This testing machine can be connected to the supporting power load cabinet for testing the electrical life, normal operation, and breaking capacity of plugs and sockets.
Executive Standards
GB2099 "Test Methods for Plugs and Sockets for Household and Similar Purposes"
GB16915.1 "Switches for Fixed Electrical Installations for Household and Similar Purposes"
Technical parameters
1. Air source: 4-6 kg/cm2
2. Control method: PLC program control/touch screen display setting
3. Connection time: 0-99.9 seconds (minutes) adjustable
4. Experimental cycle time: 0-99 seconds adjustable
5. Counter: 0~99999 times can be preset
6. Workstations: 3 or 6
If the number of tests reaches the preset value during the testing process, the equipment will automatically stop
8. Working power supply: AC 220V 50Hz 5A
Note: This machine requires the user to provide an air compressor (4~6kg/cm2) for matching use

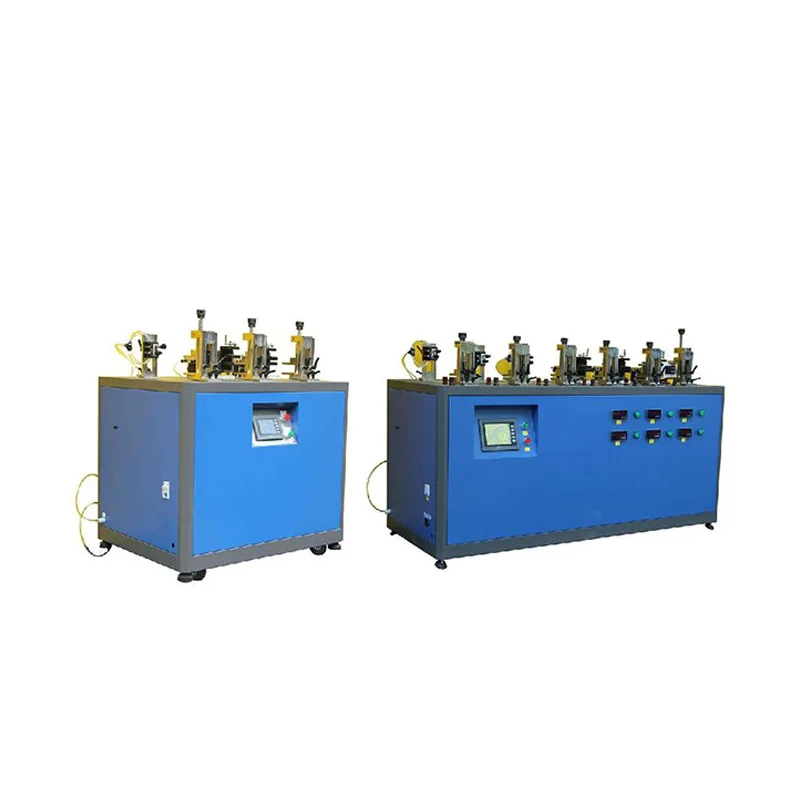

| Model testing items SKY5006-3 Mechanical Life Test for Plug, Socket, and Switch Products for Household and Similar Purposes SKY5006-6 Mechanical Life Test for Plug, Socket, and Switch Products for Household and Similar Purposes | Composition Main box, PLC control system, sample clamping mold, three stations Main box, PLC control system, sample clamping mold, six stations |
remarks:
1. The above models of products are controlled by PLC touch screen.
2. The weight of the entire equipment is greater than 200kg, and the net size of the entire equipment is 86 width * 70 depth * 100 height cm, which needs to be transported by truck
