Высокомощный полупроводниковый кулер Peltier элемент TEC 04703
- Категории: Electronic Accessories & Supplies >>>
- Поставщик: Wellen,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Related Products

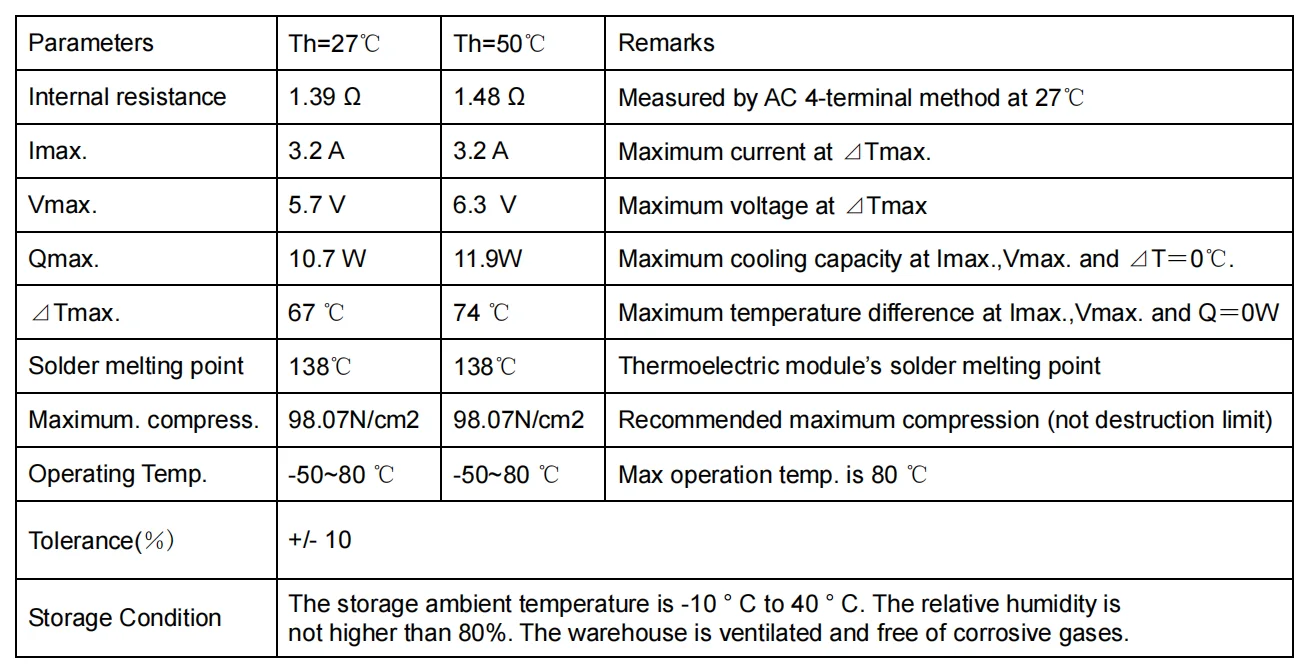

Specification
Products Show
Wellen Technology Co.,Ltd.
Specialized in thermoelectric modules production for more than 20 years
Wellen Tech is a professional manufacturer of thermoelectric modules, peltier modules, thermoelectric assemblies. We can provide more than 800 specifications of products and also provide customized service . Welcome to contact us !

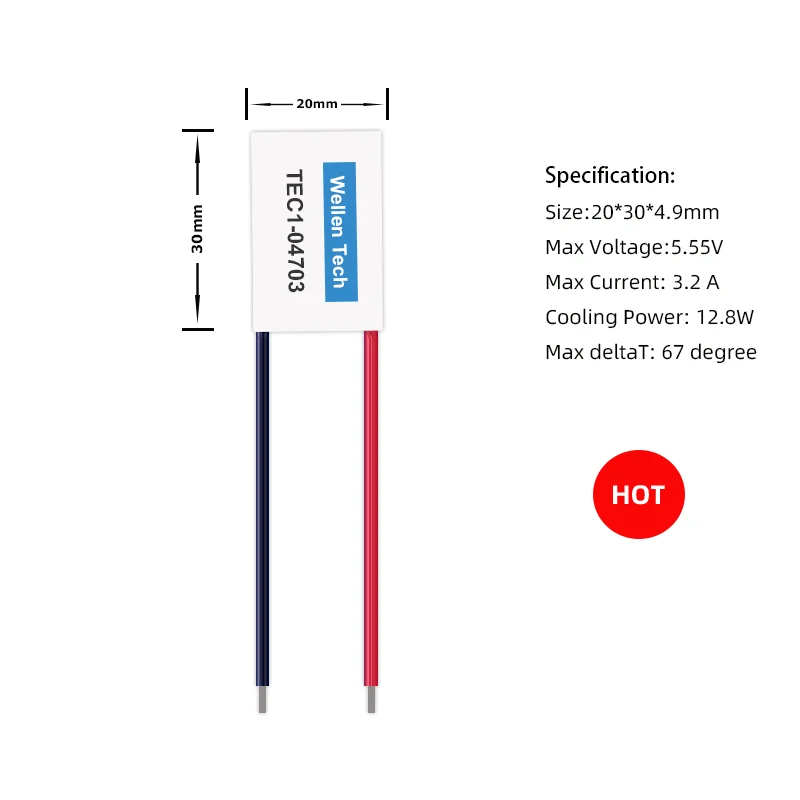

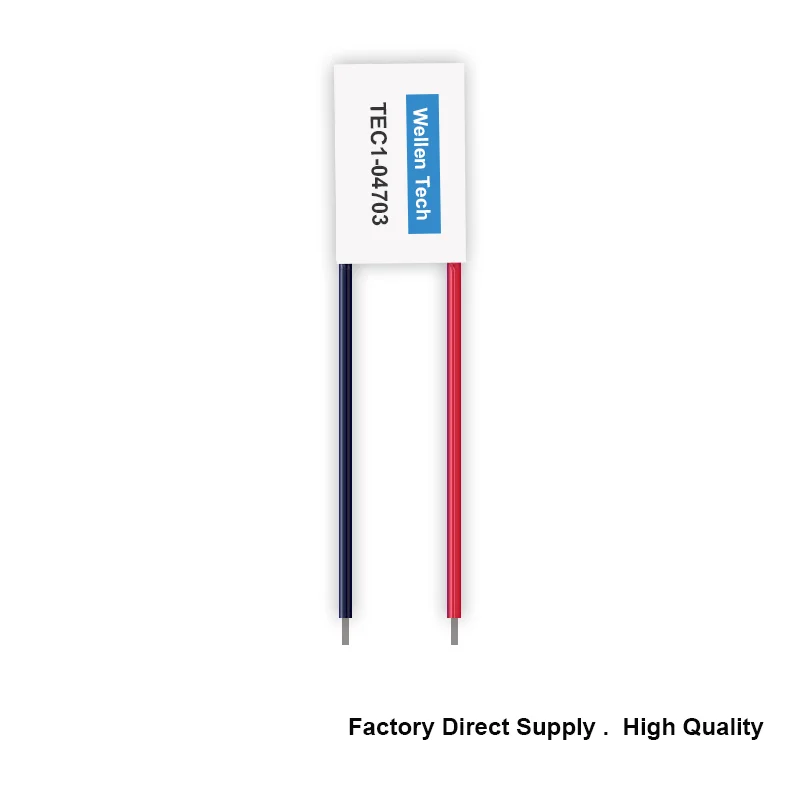

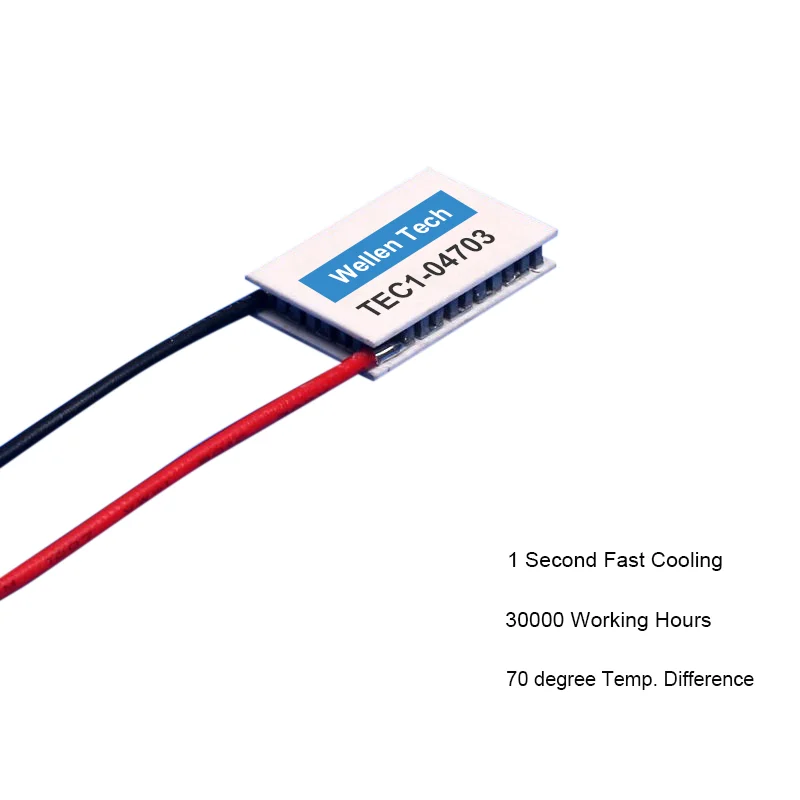

Thermoelectric Cooling Module TEC1-04703
Features
1. Higher cooling efficiency and longer working time.
2. Top quality & competitive price
3. Eco-friendly
4. Small size&Easy to operate
5. All products are RoHS and REACH compliant.
6. ISO9001 verified
7. Customizable.
1. Higher cooling efficiency and longer working time.
2. Top quality & competitive price
3. Eco-friendly
4. Small size&Easy to operate
5. All products are RoHS and REACH compliant.
6. ISO9001 verified
7. Customizable.
Applications:
* Analytical instrumentation
* Medical diagnostics
* Photonics laser systems
* Industrial instrumentation
* Food and beverage cooling
* Tele-comunication facilities
* Analytical instrumentation
* Medical diagnostics
* Photonics laser systems
* Industrial instrumentation
* Food and beverage cooling
* Tele-comunication facilities
Custom design is acceptable .(Wellen Tech www.wellentech.com )
All products are RoHS ans REACH compliant,SGS ISO9001 certified.
All products are RoHS ans REACH compliant,SGS ISO9001 certified.

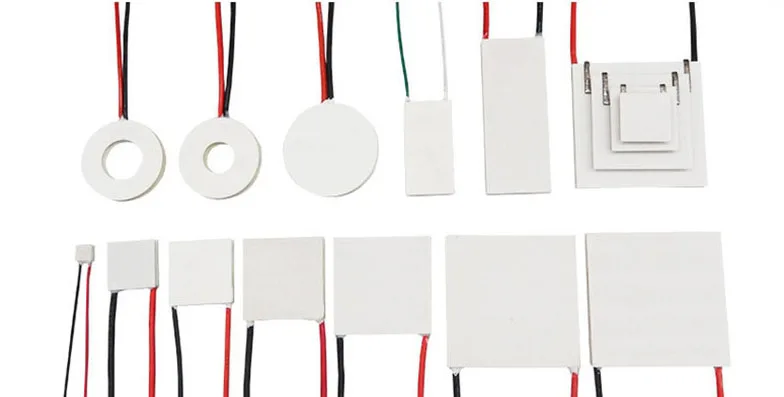

Products List
No. | Th=30℃ | Measurement | |||||||
Model No. | Imax | Tmax | Vmax | Qmax | W T L T W B L B H | ||||
A | ℃ | V | W | mm | |||||
1 | TEC1-04703 | 3.2 | ≥66 | 5.55 | 12.80 | 20 30 20 30 4.7 | |||
2 | TEC1-04703 | 3.2 | ≥66 | 5.55 | 12.80 | 20 30 20 30 4.9 | |||
3 | TEC1-04704 | 4.0 | ≥66 | 5.55 | 13.20 | 20 30 20 30 3.8 | |||
4 | TEC1-04705 | 5.5 | ≥66 | 5.60 | 18.10 | 20 30 20 30 3.8/4.0 | |||
5 | TEC1-04706 | 6.0 | ≥66 | 5.55 | 19.70 | 20 30 20 30 3.8 | |||
6 | TEC1-04708 | 8.5 | ≥66 | 5.55 | 28.00 | 20 30 20 30 3.5 | |||
7 | TEC1-04709 | 9.5 | ≥65 | 5.60 | 29.60 | 20 30 20 30 3.0/3.2 | |||
8 | TEC1-04710 | 10.0 | ≥66 | 5.55 | 32.90 | 20 30 20 30 3.5 | |||
9 | TEC1-04712 | 12.0 | ≥66 | 5.60 | 39.50 | 20 30 20 30 3.2 | |||
10 | TEC1-04715 | 15.0 | ≥66 | 5.55 | 49.40 | 20 30 20 30 3.1 | |||
Products Application

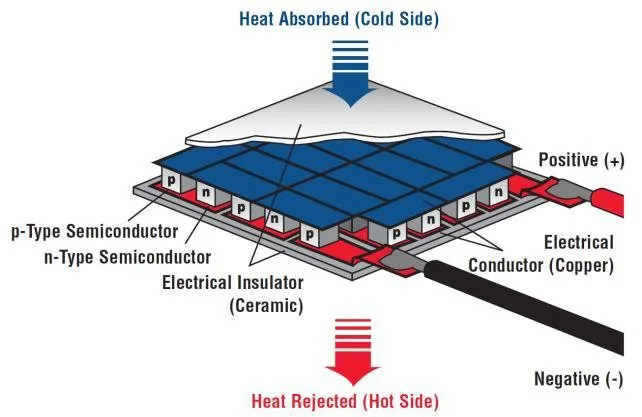

Operating Principle

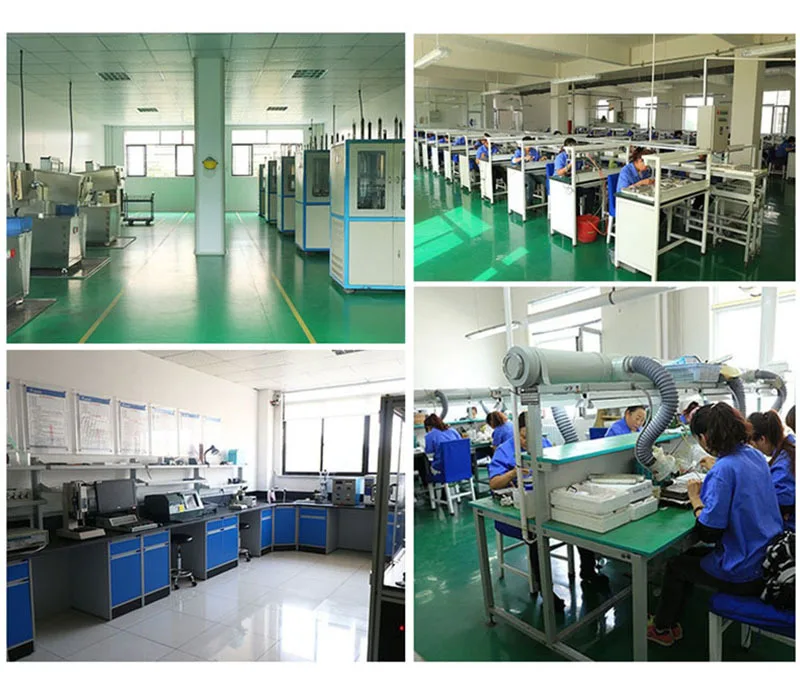

Company Profile
Certificates
1) ISO 9001:2008 audited factory, Patented design
2) More than 20 years R&D and manufacturing experience for thermoelectric modules peltier coolers and design for
dehumidifier;Cabinet air conditioner; Protection relay; Digital Meter; Temperature and humidity controller etc
2) More than 20 years R&D and manufacturing experience for thermoelectric modules peltier coolers and design for
dehumidifier;Cabinet air conditioner; Protection relay; Digital Meter; Temperature and humidity controller etc
3) ODM and OEM are warmly welcomed
4) Quality guarantee, 1 years warranty
5) 24h service, better pre-sale and after-sale service.
6) Professional suggestions.
4) Quality guarantee, 1 years warranty
5) 24h service, better pre-sale and after-sale service.
6) Professional suggestions.

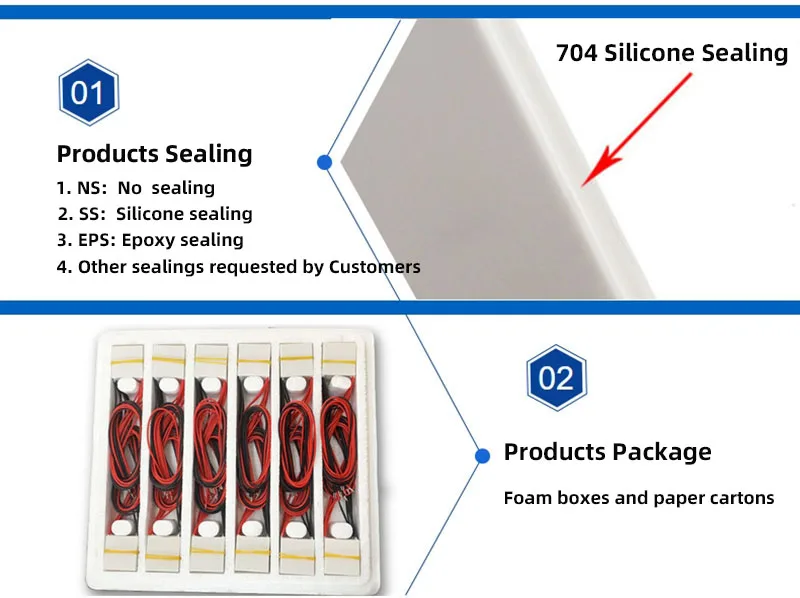

Packing & Delivery
Contact Us
Welcome to contact us !
Email: sales@wellentech.com
Website: www.wellentech.com
Add: Rm905, No. A Tangshang Building,Shangxing， Xinqiao,Baoan District,shenzhen,518104 China
