High quality ME4024 EMC PowerVault dual controller DELL SAN Storage



Product Overview





Dell EMC PowerVault ME4 Series Storage
The affordable, simple, and fast Dell EMC PowerVault ME4 Series SAN/DAS Storage Series is optimized to run a variety of mixed workload applications – physical and virtual – for small businesses. Whether you need to consolidate your block storage, support the demands of data intensive applications, take advantage of intelligent data management, or optimize your virtual environments, the ME4 Series has been designed to meet your growing business needs. The flexibility of the ME4 Series let’s you decide the protocol, supports a wide range of mixed drive types, scales to 4PB raw, is highly aligned with Dell PowerEdge Servers, and is delivered to you with all-inclusive software – everything you’ll need to store, manage, and protect your data.The two non-dense ME4 base arrays start at 2U and the dense ME4 array starts at 5U. Both models include dual controllers with Dual-core Intel Xeon processors, 8GB per controller and 4x10Gb iSCSI, 4x12Gb SAS, and 4x16Gb FC network connections (auto-negotiation supported on iSCSI and FC).



PRODUCT SPECIFICATIONS


PowerVault ME4 Series Specifications
Chassis Overview
Chassis format
All-in-one (single/dual controllers, internal drive bays, networking) with expansion options
Rack size
2U or 5U
Controllers
2 hot-swappable per chassis (dual active)
Single/dual controller support for 2U
Dual controller support for 5U
Processor
 Intel® Broadwell-DE Processor 2 cores 2.2GHz
Internal storage

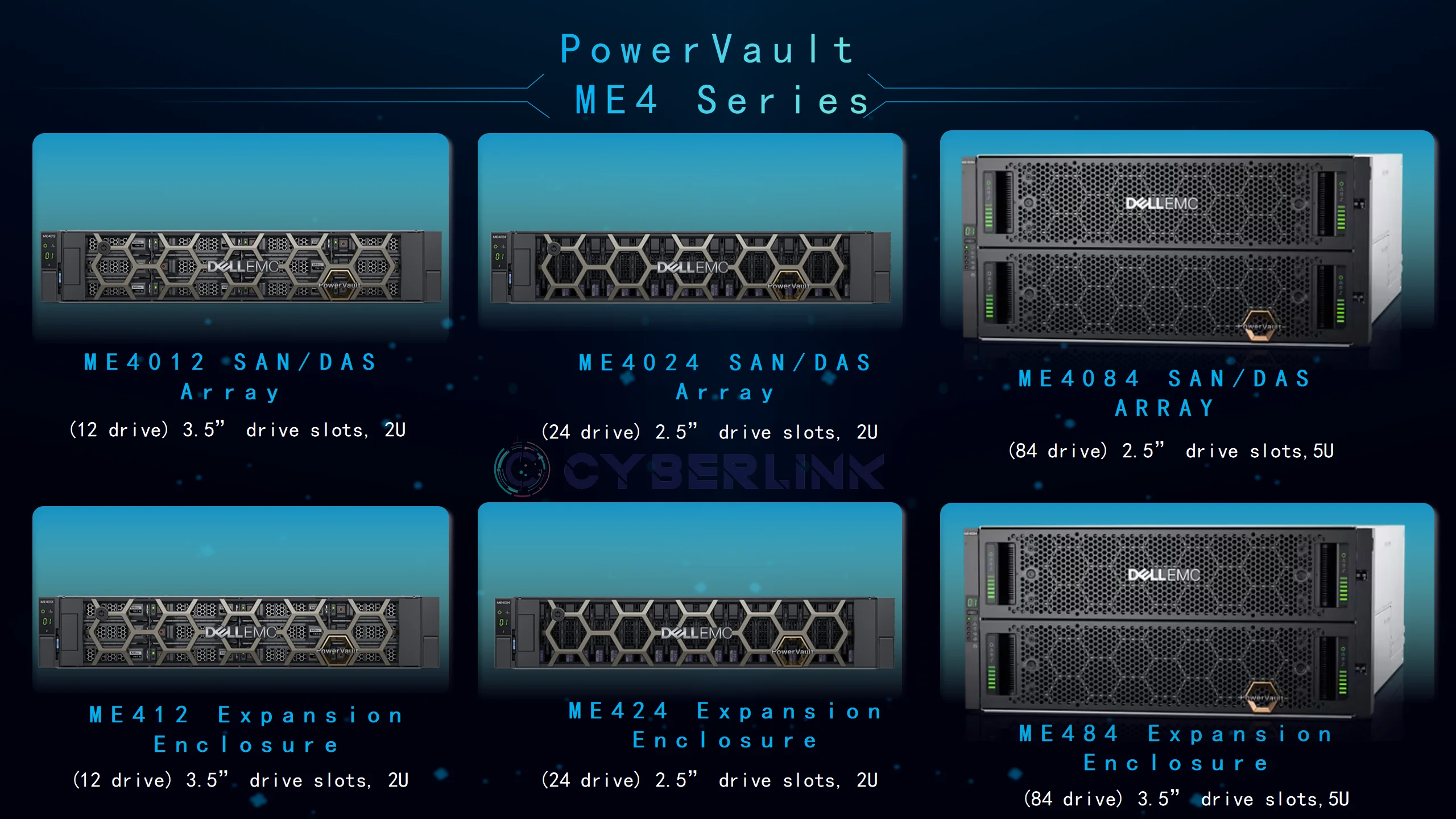

ME4012: 12 x 3.5” drive bays (2.5” drive carriers supported)
ME4024: 24 x 2.5” drive bays
ME4084: 84x 3.5” drive bays (2.5” drive carriers supported)
System memory
8GB per controller
Expansion Capacity
Expansion enclosures
ME412: 12 x 3.5” drive bays (12Gb SAS)
ME424: 24 x 2.5” drive bays (12Gb SAS)
ME484: 84 x 3.5” drive bays (12Gb SAS)
Min/Max drive count
ME4012: 2/264
ME4024: 2/276
ME4084: 28/336
Max raw capacity
ME4012: 3.1PB (with ME484 expansion)
ME4024: 3PB (with ME484 expansion)
ME4084: 4PB
NAS Support
Supported with NX Series Windows NAS appliance
Storage media
SAS and NL-SAS drives; different drive types, transfer rates, rotational speeds can be mixed in the same system:
• NLSAS 7.2K 3.5”– 4TB, 8TB, 12TB, 12TB SED
• NLSAS 7.2K 2.5” – 2TB, 2TB SED
• SAS 10K 2.5” – 1.2TB, 1.8TB, 2.4TB, 2.4TB SED
• SAS 15K 2.5” –900GB, 900GB SED
• SSD – 480GB, 960GB, 1.92TB, 1.92TB SED
• SDD and HDD: FIPS-certified SEDs
Network and Expansion I/O
Host interface
FC, iSCSI, SAS (supports simultaneous multiprotocol FC/iSCSI)
Max 16Gb FC ports
8 per array (support auto-negotiate to 8Gb)
Max 10Gb iSCSI ports
8 SFP+ or BaseT ports per array (BaseT only support auto negotiate to 1Gb)
Max 12Gb SAS ports
8 12Gb SAS ports
Max multi-protocol ports
4 ports 16Gb FC SFP+
4 ports 10Gb iSCSI SFP+
Max management ports
2 per array (1Gb BASE-T)
Disk expansion protocol
12Gb SAS
Disk interface expansion ports
2 12Gb SAS (wide-Port) per array (1 port per controller)
Up to 9 2U expansion enclosures per 2U base array
Up to 3 5U expansion enclosures per 2U base array
Up to 3 5U expansion enclosures per 5U base array
Functional
Array configurations
All-flash, hybrid or all HDD arrays
Storage format
Native SAN or DAS
Data Optimization
Auto-tiering
Up to 3 primary (media-based) tiers
RAID support
RAID 0, 1, 5, 6, 10, 50 or Adapt; any combination of RAID levels can exist in single array
Adapt
Distributed erasure coding that reduces rebuild times when drive failures occur
Thin provisioning
Active by default on all volumes, operates at full performance across all features
Snapshots
1024 maximum snapshots per array
Management
Management

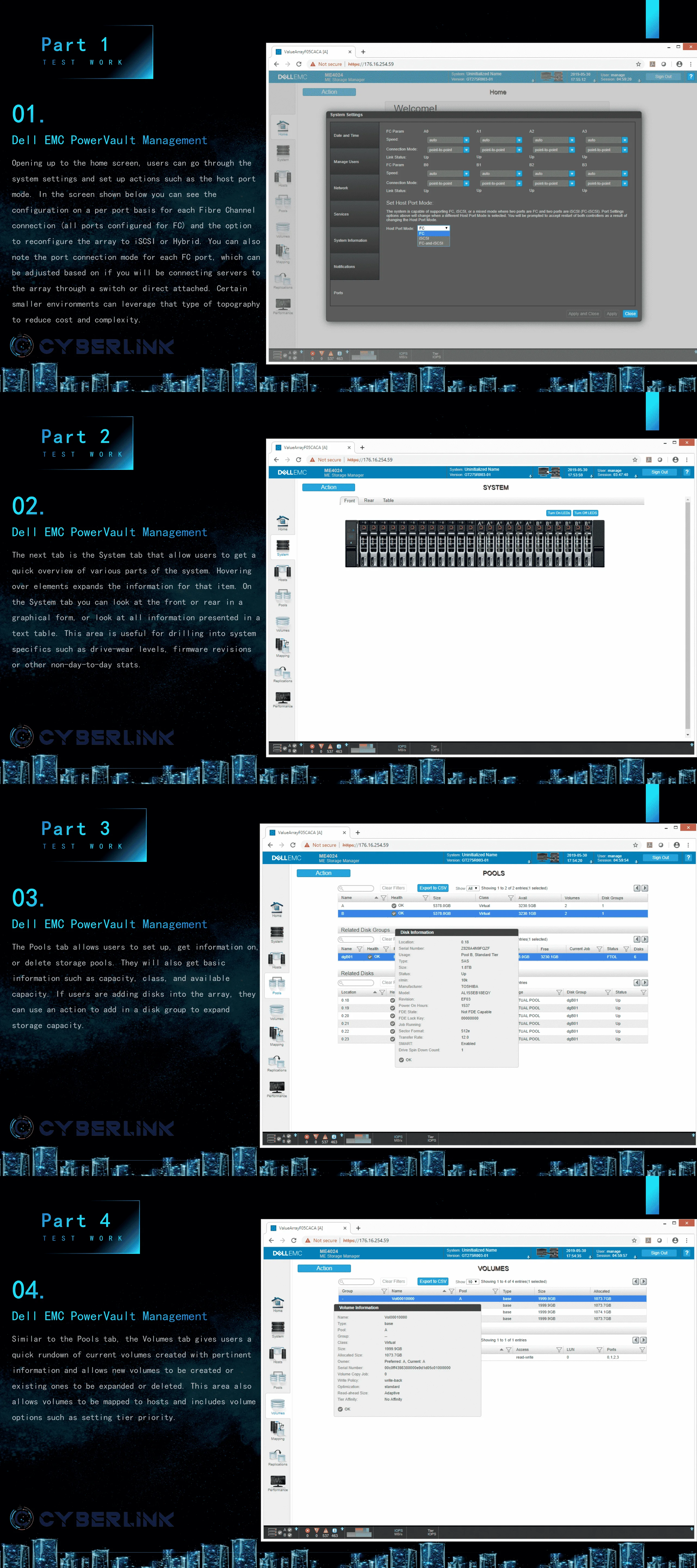

ME Storage Manager (MESM) HTML5 GUI, CLI, REST
VMware vCenter
Support VMware vCenter plugin to manage the ME4 arrays through vCenter.
Scripting
CLI Microsoft PowerShell API RESTful API
Virtualization integration
VMware vSphere (ESXi)
vCenter; SRM
Microsoft Hyper-V
Supported host OS
Windows 2016 and 2012 R2
RHEL 6.9 and 7.4 SLES 12.3
VMware 6.5 and 6.0
Rack size
ME4012 (2U), ME4024 (2U), ME4084 (5U)
ME412 (2U), ME424 (2U), ME484 (5U)
Power/wattage
ME4012: 580W
ME4024: 580W
ME4084: 2200W
ME412: 580W
ME424: 580W
ME484: 2200W


FEATURES AT A GLANCE

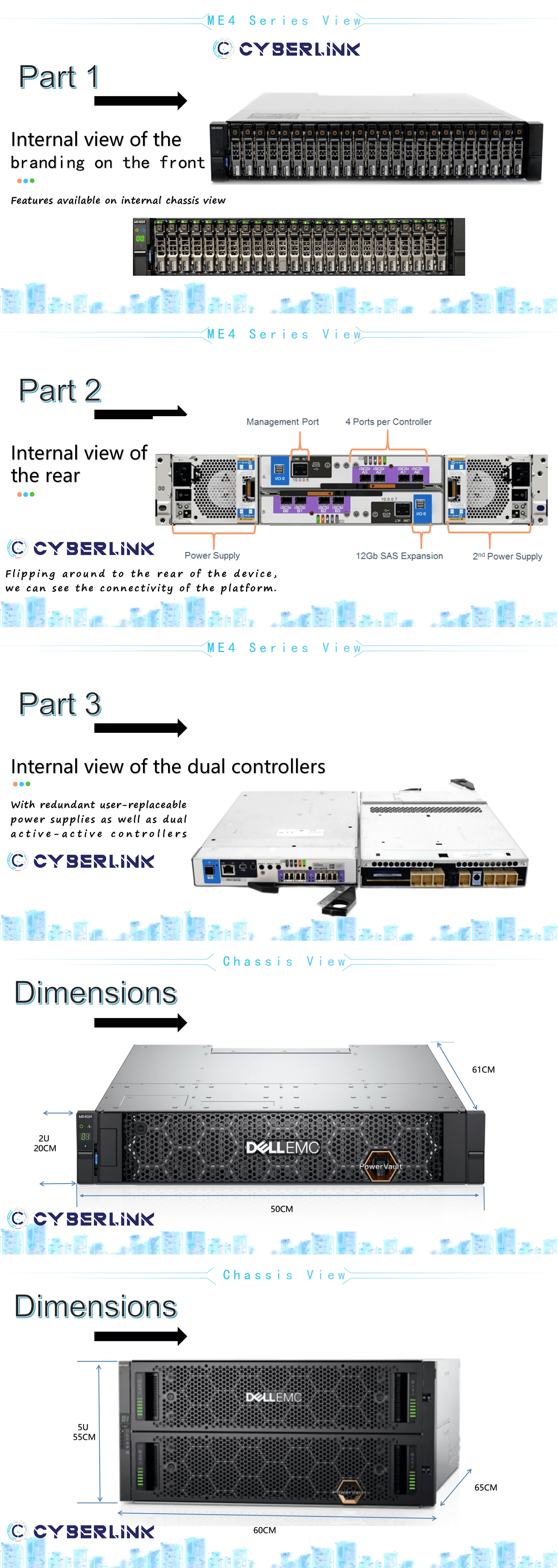

Details Images






Application Scenario




Product packaging






Company Profile




FAQ


Q1: Are you the TRADING COMPANY or TECHNOLOGY COMPANY?
A1: We’re A Technology company, which have a team full of in-house certified technicians and specialists in IT and Tele com, they all have over 10 years’experience, so they can provide you professional technical service.

Q2: Why can you become my long-term partner?
A2: We have cooperated with major well-known manufacturers and have been granted authorization qualifications, such as Dell,HPE,HUAWEI,Lenovo, Inspur, etc.And we are also Alibaba Verified Gold Supplier, which have A strong and professionally trained pre-sales and after-sales team we will arrange professional training once a week for sales pre-sales and after-sales team, so that they can 100% perfect serve you well.

Q3: How can you guarantee the quality of the goods what I ordered from you?
A3: Well, as we are authorized by the cooperating manufacturer, we only provide original brand-new products for each client Before delivery, our engineer will do the test for all the products you ordered from us in our dust-free IDC room, and make sure they have 100% new appearance, also can 100% work well.

Q4: If I purchase a server from you, you only provide a complete original factory standard configuration product,right?
A4: No, not only this, we offer both customized products and standard configuration products.So, if you have request of the customization, we can follow your requestion.

Q5: Can you give a discount?
A5: As a gold supplier of brands such as HPE,Dell,Huawei .Lenovo, Cisco, etc., we can provide you with the most favorable prices when you purchase large quantities of goods in our stores.

Q6: How about the warranty?
When I placed orders from you, how about the lead time?
A6: Normally, the shelf life of servers are 3 years,and other products(accessories) is 1 year. If the products are in stock, then it will be about3-5 days, if not, that’s may take 15 days.
